0-12 — CYLINDER BLOCK (#119507) — 44 parça

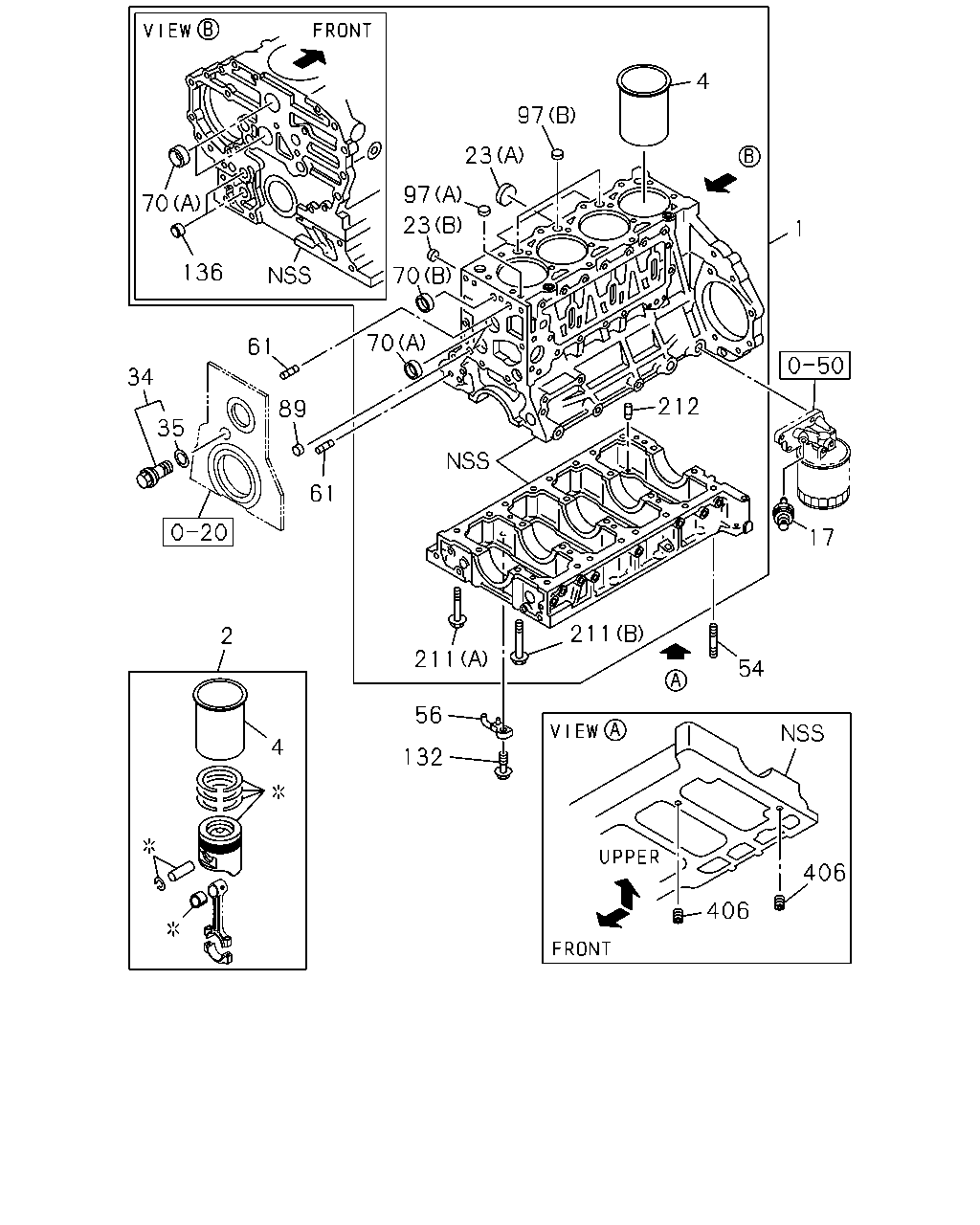

çizim 351940
70 136 61 34 35 89 61 2 4 132 56 211 211 406 406 54 17 212 70 70 23 97 23 97 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-98204-529-0 01 1 1304-1405
1 BLOCK ASM; CYL
IMA 		8-98204-528-0 01 1 1406-
2 LINER SET; ENG CYL
GRADE=1X IMA 		1-87813-119-6 04 1 1304-1405
2 LINER SET; ENG CYL
GRADE=1X IMA 		1-87814-726-0 04 1 1406-
2 LINER SET; ENG CYL
GRADE=3X IMA 		1-87813-120-6 04 1 1304-1405
2 LINER SET; ENG CYL
GRADE=3X IMA 		1-87814-727-0 04 1 1406-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON IMA 		8-98014-046-1 04 1 1304-1405
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON IMA 		8-94391-602-1 04 1 1406-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON IMA 		8-98014-047-1 04 1 1304-1405
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON IMA 		8-94391-603-1 04 1 1406-
17 SWITCH; OIL PRESSURE
IMA 		8-97176-230-0 01 1 1304-
23 CUP; SEALING,C/BL FRT & RR
(B) OD=25 IMA 		1-09600-016-0 01 1 1304-
23 CUP; SEALING,C/BL FRT & RR
(A) OD=45 IMA 		8-97036-550-1 03 1 1304-
34 VALVE; OIL RELIEF
IMA 		8-97328-859-0 01 1 1304-
35 GASKET; RELIEF VLV
ID=23.3 IMA 		8-94173-412-0 01 1 1304-
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 IMA 		8-97021-431-0 03 1 1304-
56 JET; OIL,PISTON COOLING
IMA 		8-98173-342-0 04 1 1304-
61 PIN; STRAIGHT
L=22 IMA 		8-94483-674-0 04 1 1304-
70 CUP; SEALING,FRT & RR
(B) OD=25 IMA 		1-09600-016-0 01 1 1304-
70 CUP; SEALING,FRT & RR
(A) OD=40 IMA 		8-97096-824-0 04 1 1304-
89 CUP; SEALING,OIL GALLERY
OD=20 IMA 		9-11129-128-0 03 1 1304-
97 CUP; SEALING
(A) OD=16 IMA 		5-11129-006-0 01 1 1304-
97 CUP; SEALING
(C) OD=12 IMA 		8-97036-335-1 01 1 1304-
97 CUP; SEALING
(B) OD=22 IMA 		8-97209-609-0 03 1 1304-
132 VALVE; CHECK,OIL
M10X18.5 IMA 		8-97329-618-0 04 1 1304-
136 BUSHING; DRIVE SHAFT,OIL PUMP
IMA 		8-98091-566-0 02 1 1304-
211 BOLT; CRANKCASE
(A) M10X82 IMA 		8-94399-553-2 17 1 1304-
211 BOLT; CRANKCASE
(B) M14X115 W/FLANGE IMA 		8-97077-638-0 10 1 1304-
212 PIN; CRANKCASE
OD=10 L=20 IMA 		8-97135-423-0 02 1 1304-
406 PLUG; CRANK CASE
PT3/8 IMA 		5-09605-005-0 02 1 1304-

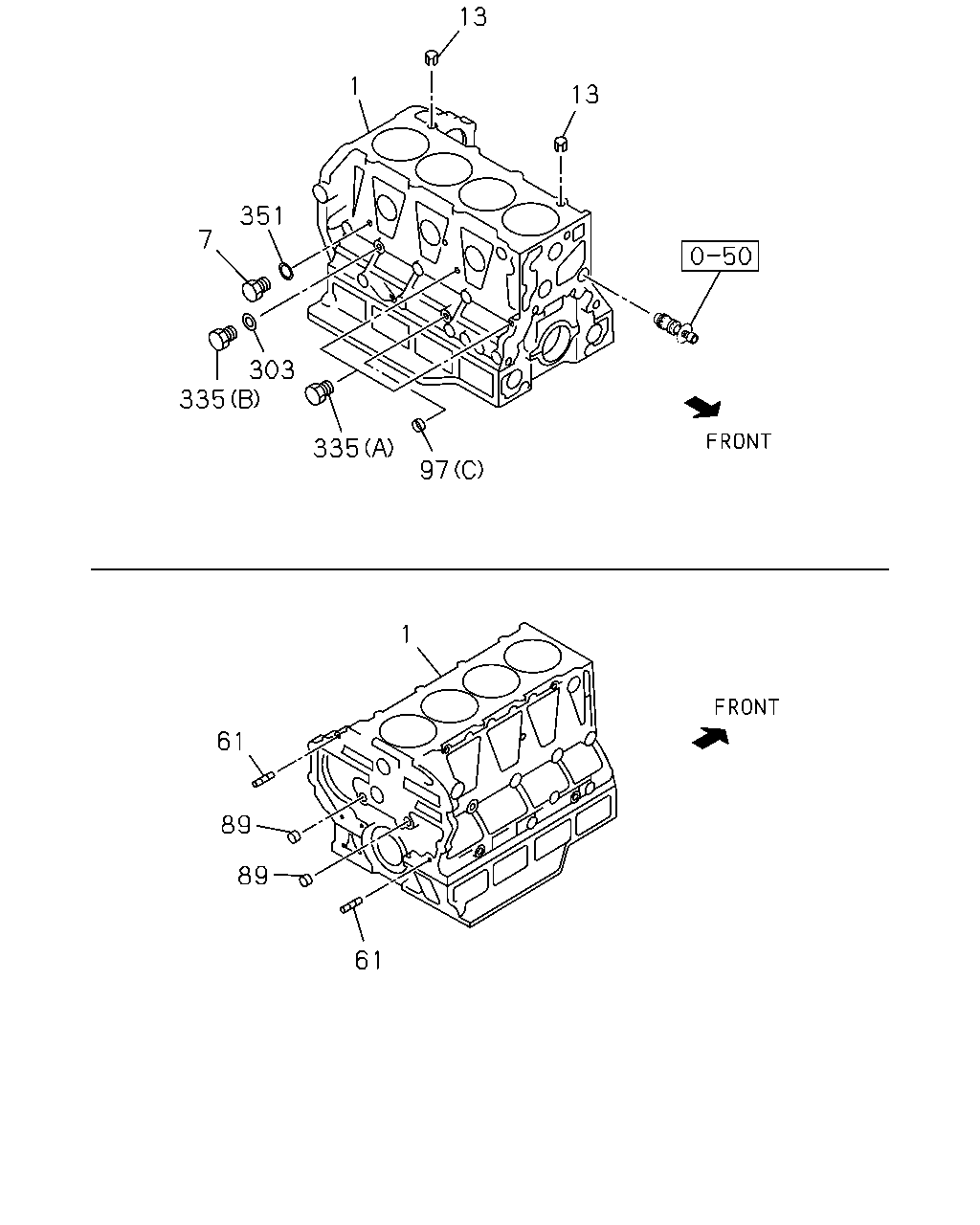

çizim 351963
1 61 89 89 61 97 335 335 303 13 13 1 351 7
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-98204-529-0 01 1 1304-1405
1 BLOCK ASM; CYL
IMA 		8-98204-528-0 01 1 1406-
7 PLUG; WATER DRAIN
M10X10 IMA 		8-97352-537-0 01 1 1304-
13 DOWEL; C/BL TO HD
OD=18.15 IMA 		8-94399-688-1 02 1 1304-
61 PIN; STRAIGHT
L=22 IMA 		8-94483-674-0 04 1 1304-
89 CUP; SEALING,OIL GALLERY
OD=20 IMA 		9-11129-128-0 03 1 1304-
97 CUP; SEALING
(A) OD=16 IMA 		5-11129-006-0 01 1 1304-
97 CUP; SEALING
(C) OD=12 IMA 		8-97036-335-1 01 1 1304-
97 CUP; SEALING
(B) OD=22 IMA 		8-97209-609-0 03 1 1304-
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 IMA 		1-09630-085-0 01 1 1304-1312
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 IMA 		8-98251-345-0 01 1 1401-
335 PLUG; C/BL,SIDE
(A) M14X16.5 IMA 		8-97329-617-0 02 1 1304-
335 PLUG; C/BL,SIDE
(B) M14X18 IMA 		8-98038-403-0 01 1 1304-
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 IMA 		1-09630-083-0 01 1 1304-
