◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11500 - FYH(THAILAND)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#119502) — 14 parça

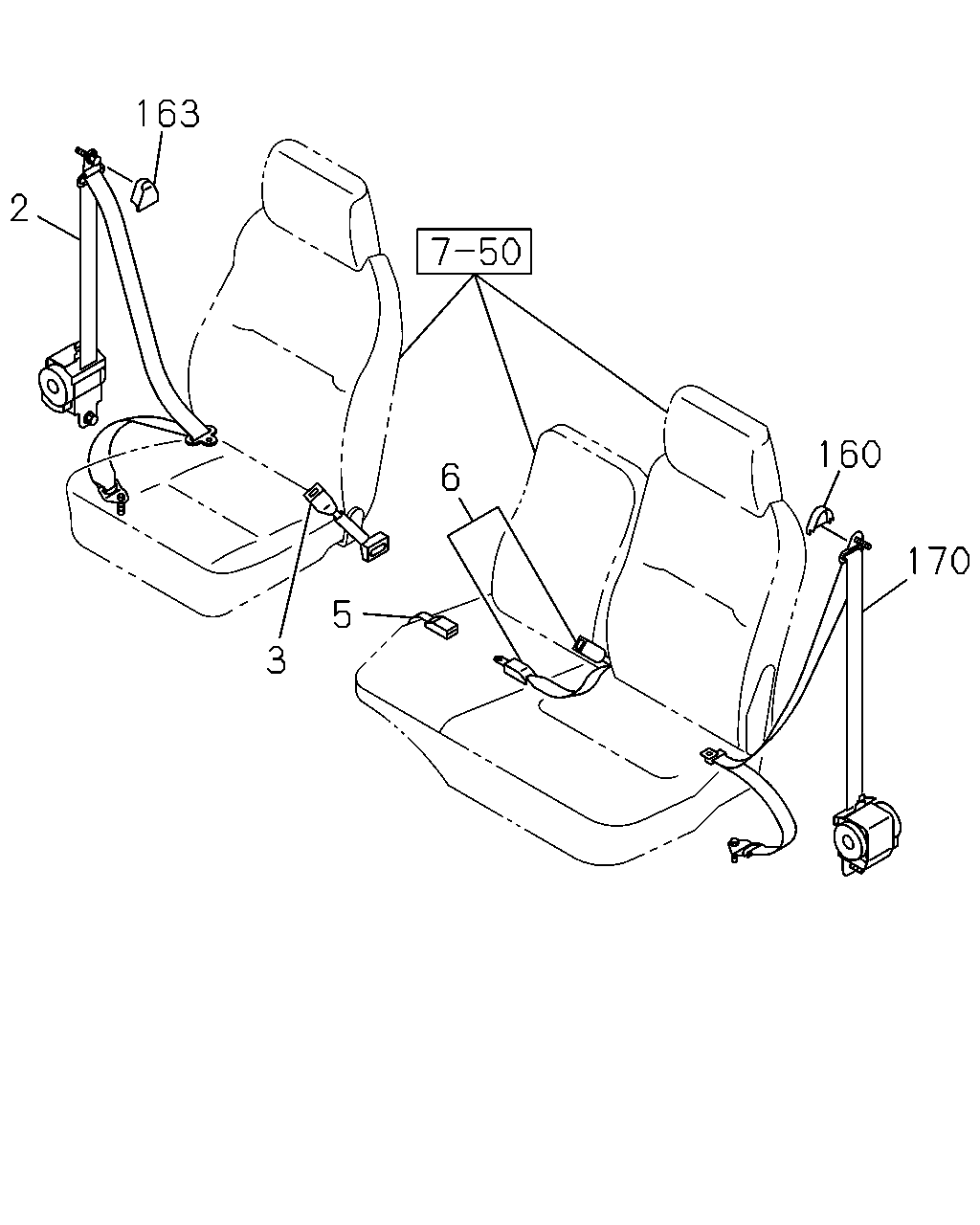

çizim 351508
163 2 3 6 5 160 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305-
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-600-0 01 1 1305-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-604-0 01 1 1305-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97423-512-0 01 1 1305-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1305-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1305-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305-
çizim 351513
163 2 160 170 169 4 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305-
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-600-0 01 1 1305-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-603-0 01 1 1305-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1305-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1305-
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK THA 		1-76798-019-0 01 1 1305-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
