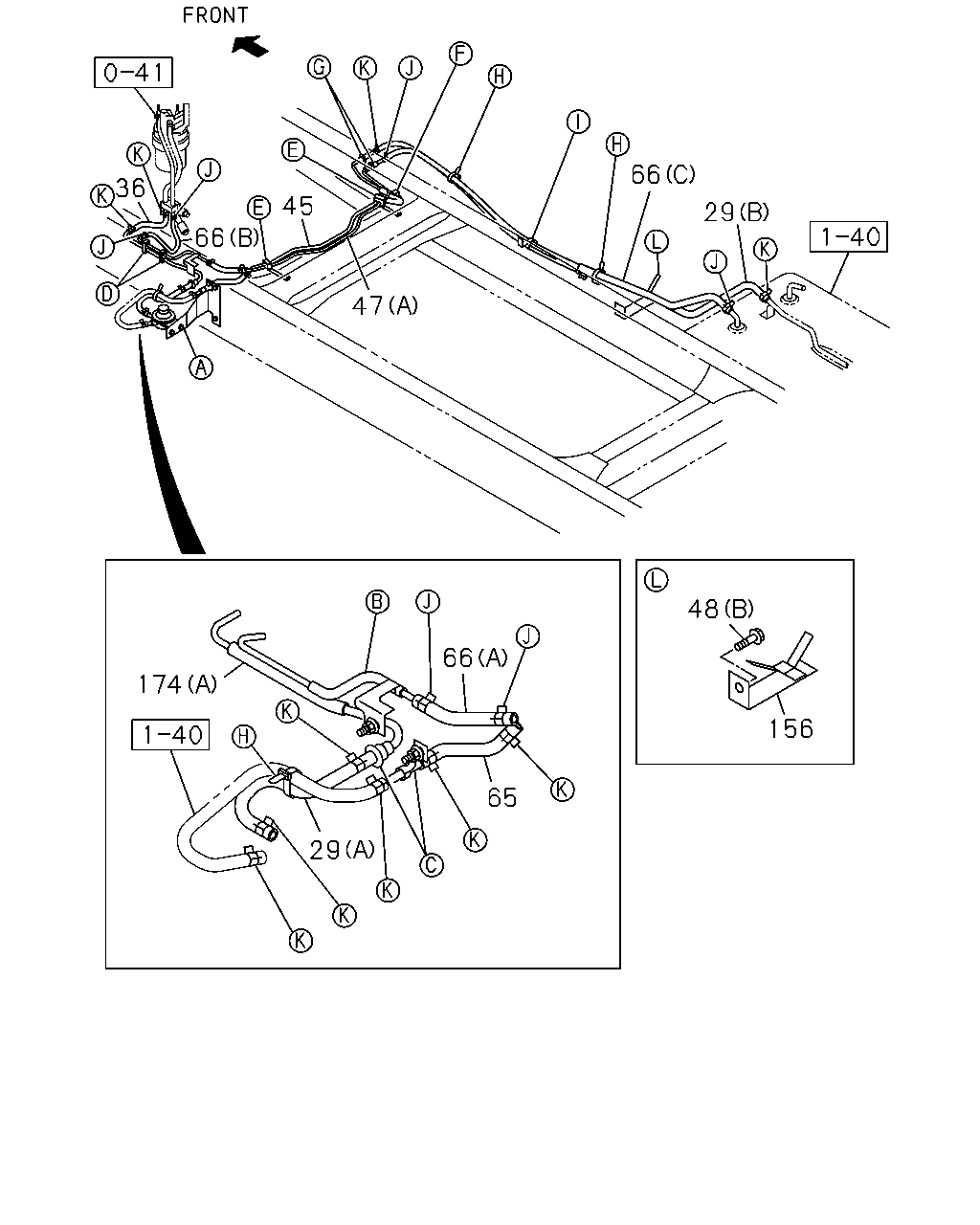

1-41 — FUEL PIPING; CHASSIS (#119500) — 53 parça

147 24 147 24 64 15 62 199 8 61 61 48 97 15 106 174 61 199 28 426 270 72 106 47 15 15 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50 IMA	8-94157-054-1	01	1	1304-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5 IMA	1-09701-027-0	01	1	1304-	●	●
15	CLIP; FUEL PIPE WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5 IMA	1-09701-027-0	01	1	1304-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76 IMA	8-97202-954-1	02	1	1304-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 IMA	8-97215-437-0	02	1	1304-	●	●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35 IMA	8-97326-157-1	01	1	1304-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140 THA	8-97920-656-0	03	1	1304-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16 IMA	8-98008-098-0	04	1	1304-	●	●
24	CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 IMA	8-98150-358-0	02	1	1304-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> ID=12 IMA	8-98150-358-0	02	1	1304-	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98043-639-0	01	1	1304-	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	1304-	●	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98057-487-1	01	1	1304-		●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	1304-	●	●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> ID=17 IMA	8-94128-319-2	03	1	1304-	●	●
62	BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-	●	●
64	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
64	NUT; CLIP WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
72	BRACKET; FUEL PUMP & FILTER IMA	8-98084-815-1	01	1	1304-	●	●
97	BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> IMA	8-98041-203-0	02	1	1304-	●	●
106	NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	02	1	1304-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16 IMA	8-98008-098-0	06	1	1304-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12 IMA	8-98150-358-0	02	1	1304-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	1304-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	1304-	●	●
199	PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50 IMA	8-97077-629-0	02	1	1304-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1304-1408	●	●
270	PUMP ASM; FUEL THA	8-97948-892-0	01	1	1409-	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE THA	0-28650-820-0	02	1	1304-	●	●

36 66 45 47 66 29 48 156 66 65 29 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-005-0	01	1	1304-	●	●
29	HOSE; FUEL WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97924-004-0	01	1	1304-	●	●
29	HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98037-758-0	01	1	1304-	●	●
36	HOSE; FUEL,FILTER TO TANK FRAME STRAIGHT TYPE<7KJ> THA	8-98034-028-1	01	1	1304-	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> THA	8-98043-681-1	01	1	1304-	●
45	PIPE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> THA	8-98057-486-1	01	1	1304-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98043-639-0	01	1	1304-	●
47	PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-618-1	01	1	1304-	●	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98057-487-1	01	1	1304-		●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
48	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	1304-	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> L=140 SERVICED BY L=3000 IMA	0-01259-300-0	01	1	1304-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000 IMA	0-01259-300-0	01	1	1304-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG<RDQ> M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000 IMA	0-01855-300-0	01	1	1304-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-008-0	01	1	1304-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97924-007-0	01	1	1304-	●	●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98065-058-0	01	1	1304-	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) L=200 SERVICED BY L=3000 IMA	0-01855-300-0	01	1	1304-		●
156	BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> IMA	8-98041-250-2	01	1	1304-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A) THA	8-98033-844-1	01	1	1304-	●	●
174	PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-616-0	01	1	1304-	●	●
