◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#11950) — 16 parça

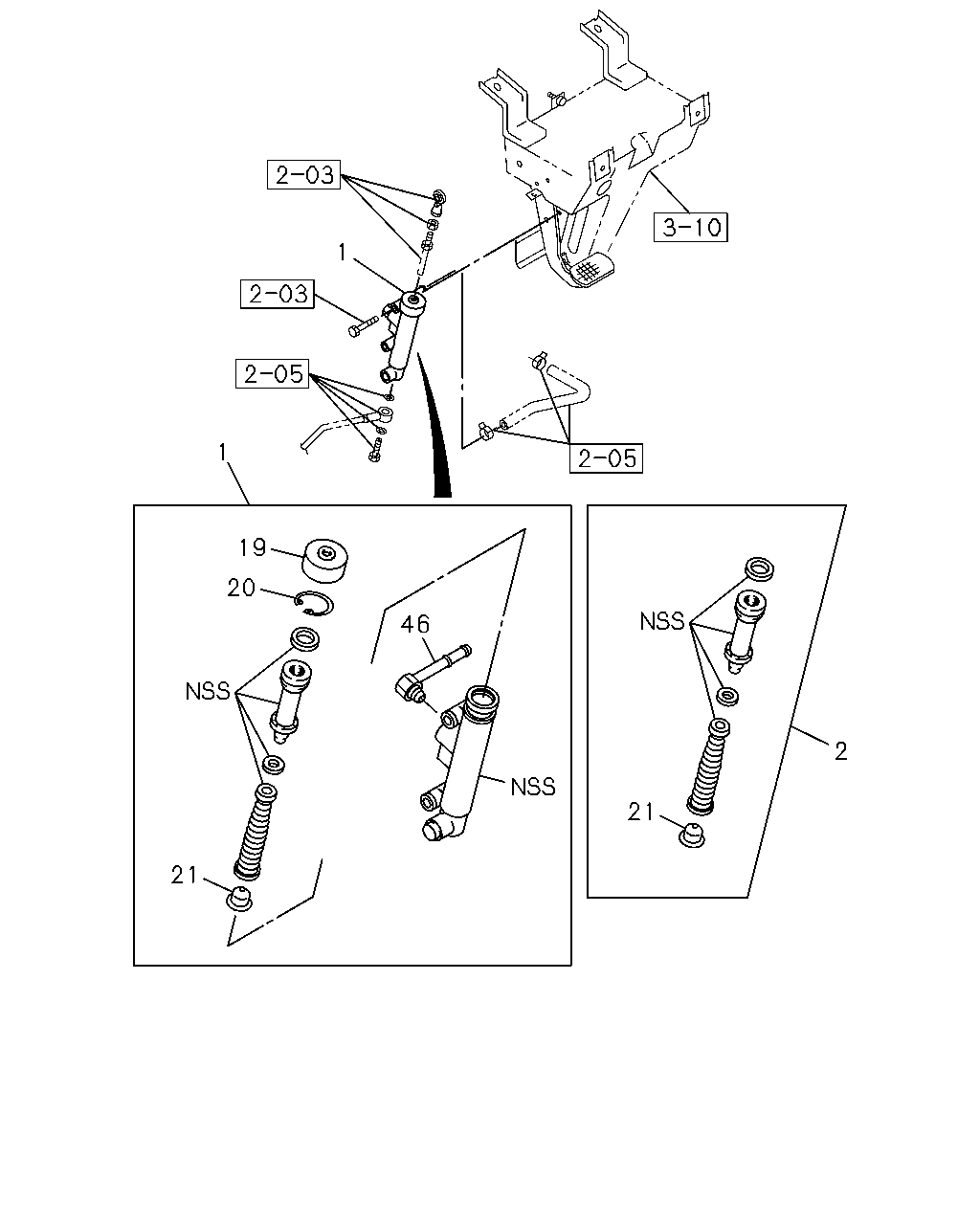

çizim 23659
1 1 19 20 46 2 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47500-243-2 01 1 0105-
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47500-242-2 01 1 0105-
1 CYLINDER ASM; CLUTCH MASTER
FULLER M/T<X9B> 		1-47500-232-2 01 1 0105-0106
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47500-232-2 01 1 0107-
2 REPAIR KIT; CLU M/CYL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47550-048-0 01 1 0105-
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47550-046-0 01 1 0105-
2 REPAIR KIT; CLU M/CYL
FULLER M/T<X9B> 		1-85576-114-0 01 1 0105-0106
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-85576-114-0 01 1 0107-
19 BOOT; CLU M/CYL
FULLER M/T<X9B> 		9-47545-032-0 01 1 0105-0106
19 BOOT; CLU M/CYL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		9-47545-032-0 01 1 0107-
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 0105-
20 RING; SNAP,BODY
FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0105-0106
20 RING; SNAP,BODY
ISUZU M/T<X9A>,FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0107-
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 0105-
21 VALVE; CHECK 1-47565-004-0 01 1 0105-
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
