Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#119495) — 227 parça

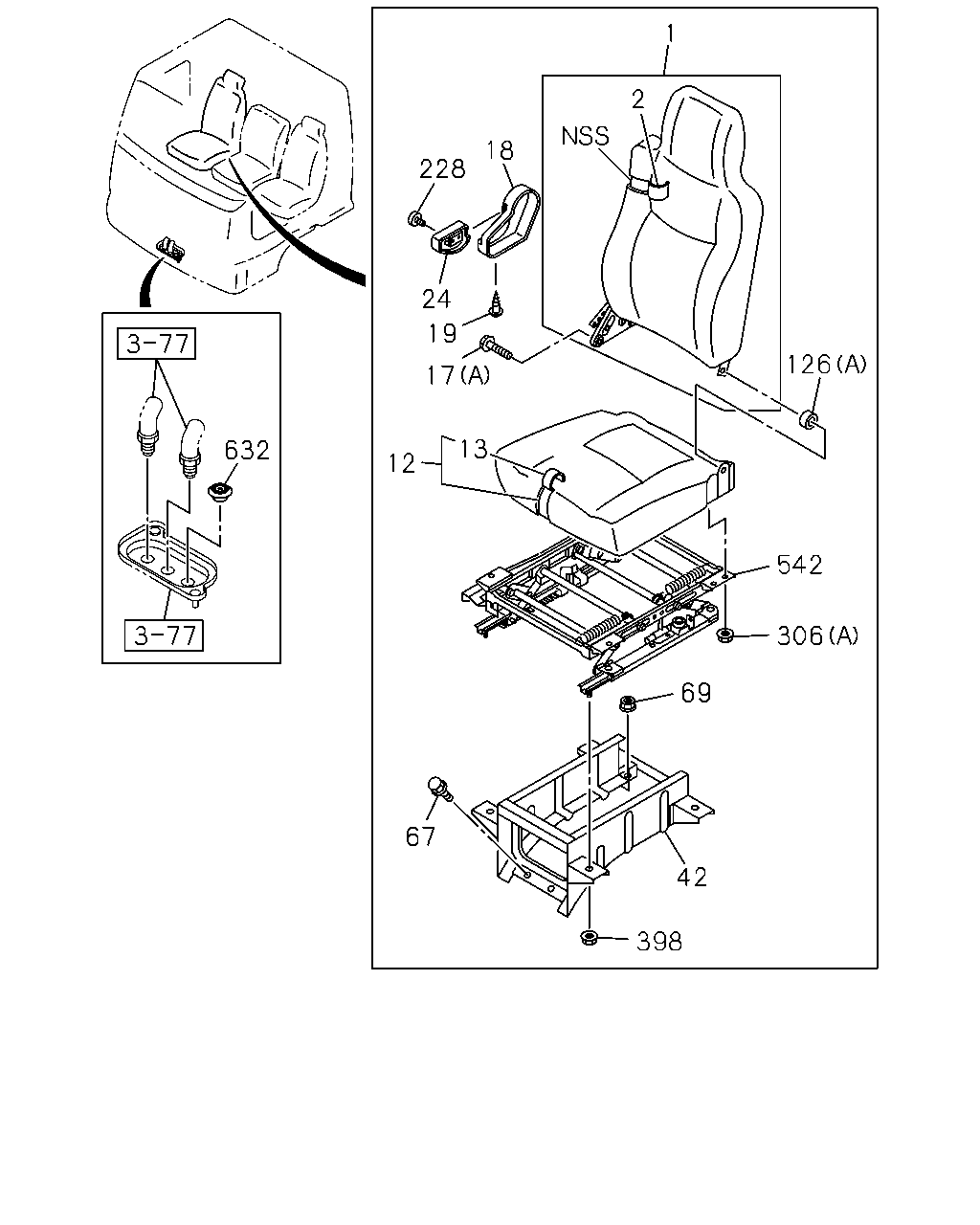

398 42 67 69 306 542 126 13 12 17 19 24 228 18 2 1 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1305-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-322-0	01	1	1305-		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1305-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1305-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-325-0	01	1	1305-		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1305-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1305-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-331-0	01	1	1305-		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1305-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1305-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-328-0	01	1	1305-		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1305-		●
17	BOLT; RECLINING (A) M10X20 THA	8-98062-661-0	04	1	1305-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> (A) M10X20 THA	8-98062-661-0	04	1	1305-		●
17	BOLT; RECLINING (B) THA	8-98092-334-0	04	1	1305-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> (B) THA	8-98092-334-0	04	1	1305-		●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1305-	●
18	COVER; RECLINING DELUXE SEAT<PQ8> GRAY THA	8-97409-332-0	01	1	1305-		●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1305-	●
19	SCREW; COVER DELUXE SEAT<PQ8> M5 THA	8-98062-663-0	01	1	1305-		●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1305-	●
24	KNOB; RECLINING,FRT,SEAT DELUXE SEAT<PQ8> GRAY THA	8-97409-333-0	01	1	1305-		●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1305-	●
42	STAND; DRIVER SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1305-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1305-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1305-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1305-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1305-		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1305-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1305-		●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1305-	●
228	SCREW; KNOB DELUXE SEAT<PQ8> M4 THA	8-98062-662-0	01	1	1305-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1305-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1305-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1305-		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1305-	●
398	NUT; STAND DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1305-		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1305-	●
632	GROMMET OD=24	8-94119-796-0	01	1	1305-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1305-		●

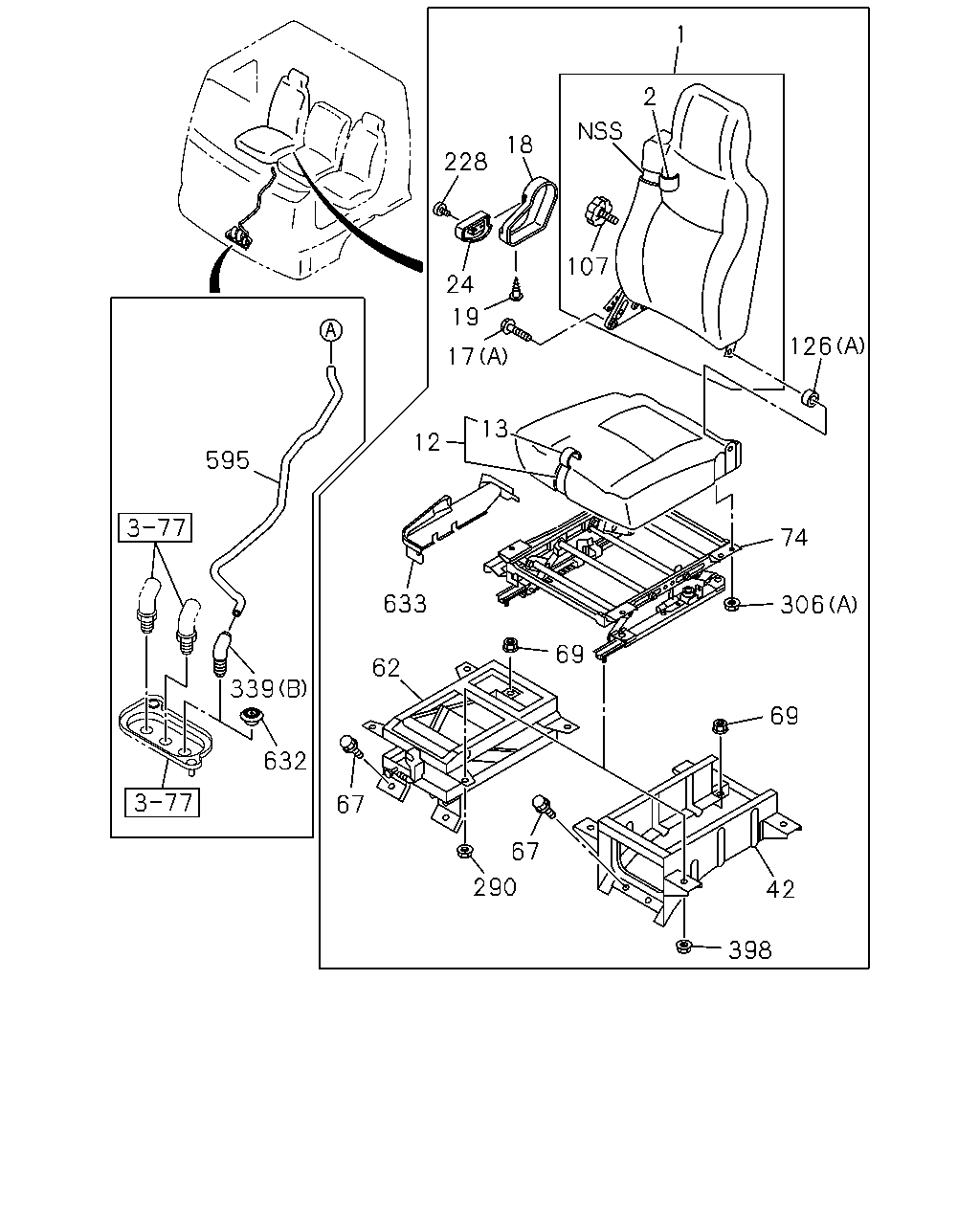

1 2 107 18 228 24 17 126 74 306 69 42 398 290 67 62 633 12 13 19 69 595 339 632 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1305-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-322-0	01	1	1305-		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1305-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1305-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-325-0	01	1	1305-		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1305-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1305-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-331-0	01	1	1305-		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1305-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1305-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-328-0	01	1	1305-		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1305-		●
17	BOLT; RECLINING (A) M10X20 THA	8-98062-661-0	04	1	1305-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> (A) M10X20 THA	8-98062-661-0	04	1	1305-		●
17	BOLT; RECLINING (B) THA	8-98092-334-0	04	1	1305-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> (B) THA	8-98092-334-0	04	1	1305-		●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1305-	●
18	COVER; RECLINING DELUXE SEAT<PQ8> GRAY THA	8-97409-332-0	01	1	1305-		●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1305-	●
19	SCREW; COVER DELUXE SEAT<PQ8> M5 THA	8-98062-663-0	01	1	1305-		●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1305-	●
24	KNOB; RECLINING,FRT,SEAT DELUXE SEAT<PQ8> GRAY THA	8-97409-333-0	01	1	1305-		●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1305-	●
42	STAND; DRIVER SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1305-		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-183-7	01	1	1305-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1305-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1305-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98003-678-0	01	1	1305-		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98063-174-0	01	1	1305-		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1305-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1305-		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1305-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1305-		●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1305-	●
228	SCREW; KNOB DELUXE SEAT<PQ8> M4 THA	8-98062-662-0	01	1	1305-		●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> M8 FLANGE THA	1-75538-207-0	04	1	1305-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1305-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1305-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1305-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1305-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-131-3	01	1	1305-		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1305-	●
398	NUT; STAND DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1305-		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98067-762-0	01	1	1305-		●
632	GROMMET OD=24	8-94119-796-0	01	1	1305-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1305-		●
633	COVER; ADJ,TILT DELUXE SEAT<PQ8> GRAY THA	8-97409-956-0	01	1	1305-		●

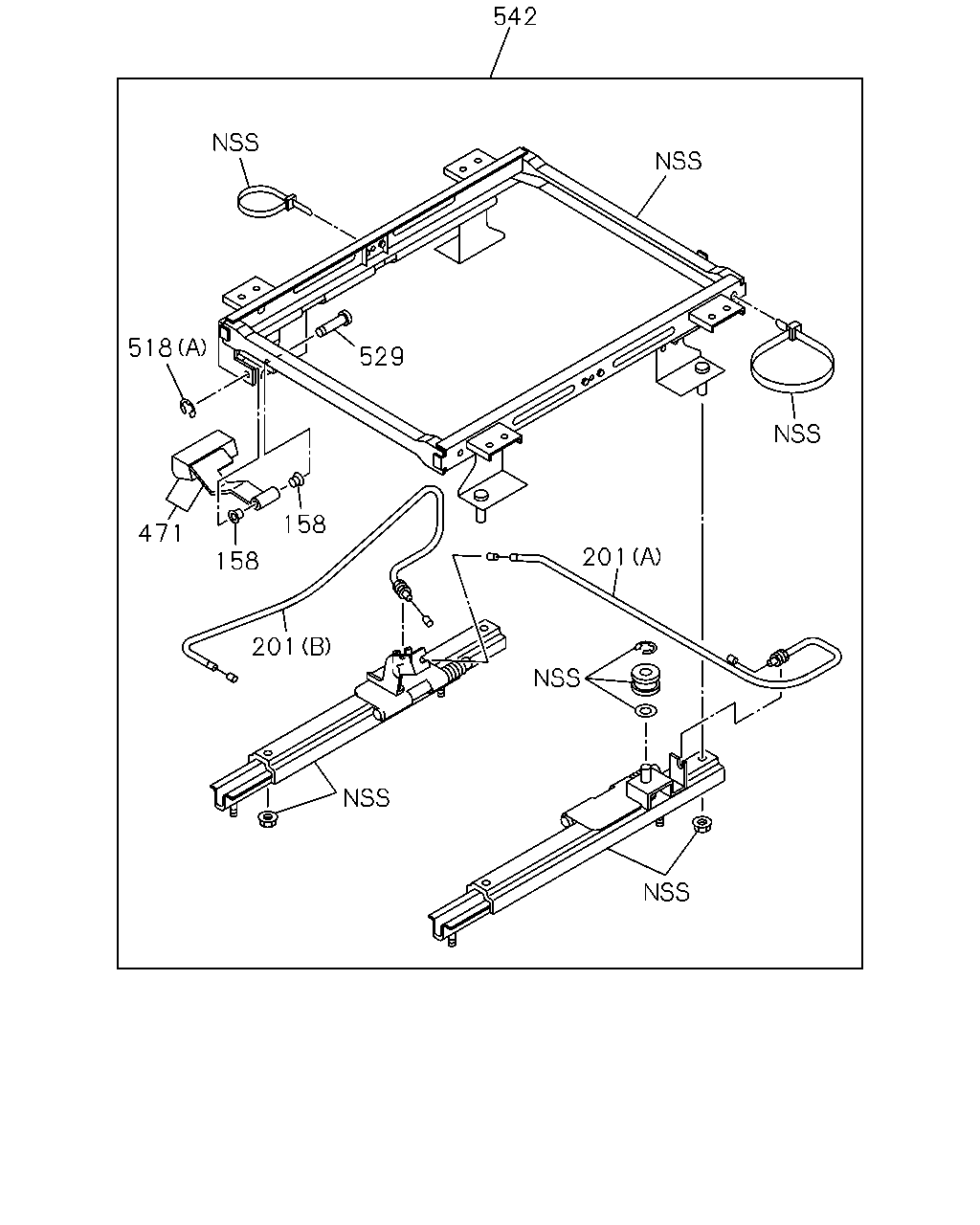

542 518 529 158 158 471 201 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1305-	●
158	BUSHING; LINK ARM DELUXE SEAT<PQ8> THA	1-75518-209-0	02	1	1305-		●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1305-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (A) L=667 THA	1-75518-288-0	01	1	1305-		●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1305-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (B) L=605 THA	1-75518-289-1	01	1	1305-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1305-	●
471	LEVER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98107-869-0	01	1	1305-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1305-	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (A) THA	1-75518-263-0	01	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) THA	1-75518-264-0	04	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 FLANGE THA	8-94152-886-0	04	1	1305-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1305-	●
529	PIN; LINK DELUXE SEAT<PQ8> THA	1-75518-262-0	01	1	1305-		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1305-	●

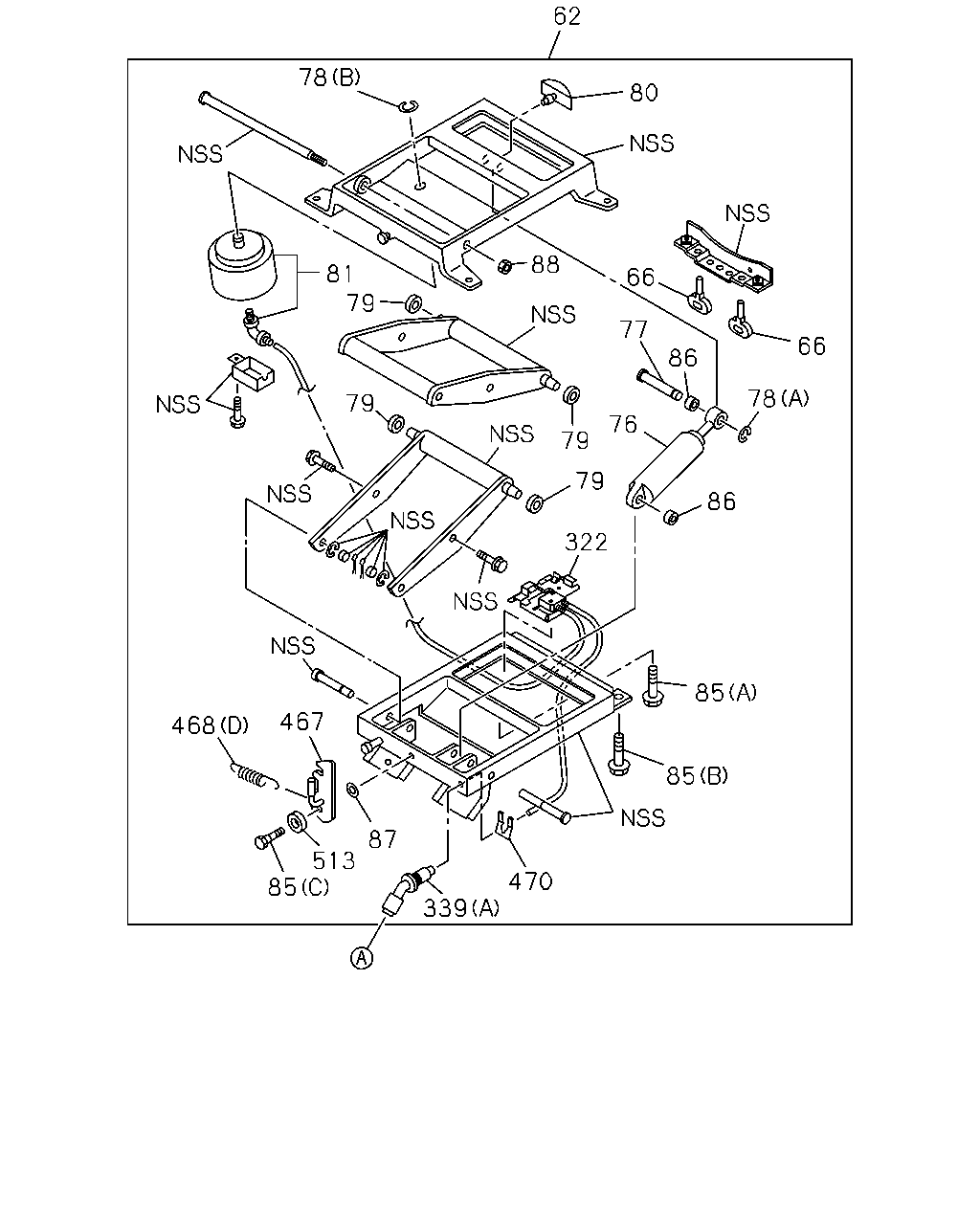

62 78 80 81 79 79 468 467 85 513 87 339 470 85 85 322 86 78 66 86 77 66 88 79 79 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-183-7	01	1	1305-	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-145-0	02	1	1305-	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-139-0	01	1	1305-	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-138-2	01	1	1305-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) ID=8 THA	9-09185-408-0	01	1	1305-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) ID=15 THA	9-09185-415-0	01	1	1305-	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-159-0	04	1	1305-	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-09987-123-0	01	1	1305-	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-151-2	01	1	1305-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (C) THA	1-09980-577-0	01	1	1305-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-208-0	02	1	1305-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	1305-	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	1305-	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> ID=8.2	0-91510-508-0	01	1	1305-	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75537-273-1	01	1	1305-	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-186-2	01	1	1305-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1305-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-131-3	01	1	1305-	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-134-0	01	1	1305-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) THA	1-75538-132-0	01	1	1305-	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	1305-	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	1305-	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	1305-	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-137-0	01	1	1305-	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-133-0	01	1	1305-	●

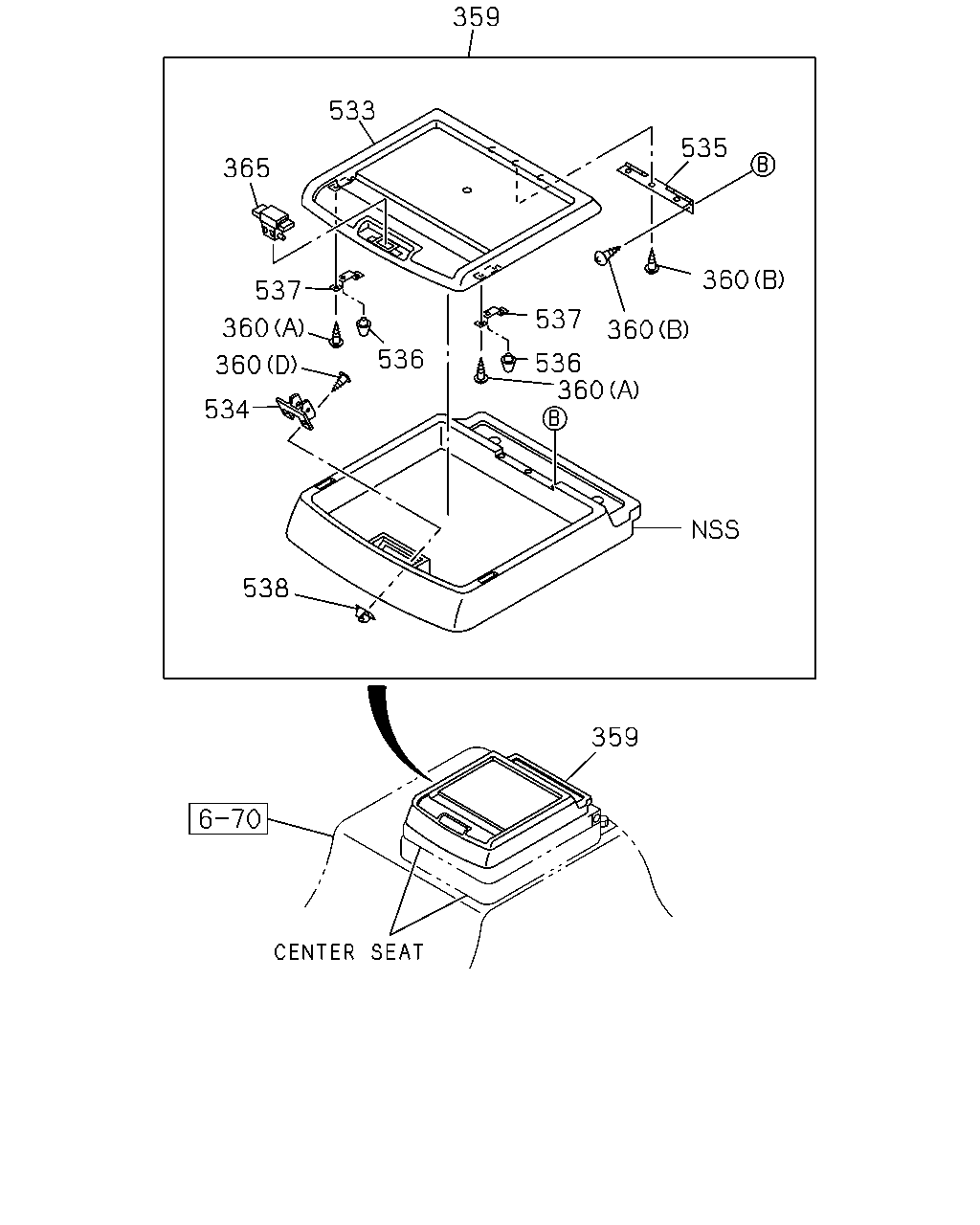

535 360 360 360 536 537 536 534 360 360 537 365 533 359 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
359	BOX; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1305-	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1305-	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1305-	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1305-	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1305-	●
365	LOCK ASM; SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-512-0	01	1	1305-	●
533	LID; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-511-0	01	1	1305-	●
534	STRIKER; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97913-529-0	01	1	1305-	●
535	HINGE; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97913-533-0	01	1	1305-	●
536	RUBBER; CUSHION DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97914-858-0	02	1	1305-	●
537	BRACKET; RUBBER DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97914-859-0	02	1	1305-	●
538	GROMMET; SCREW DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97914-867-0	02	1	1305-	●

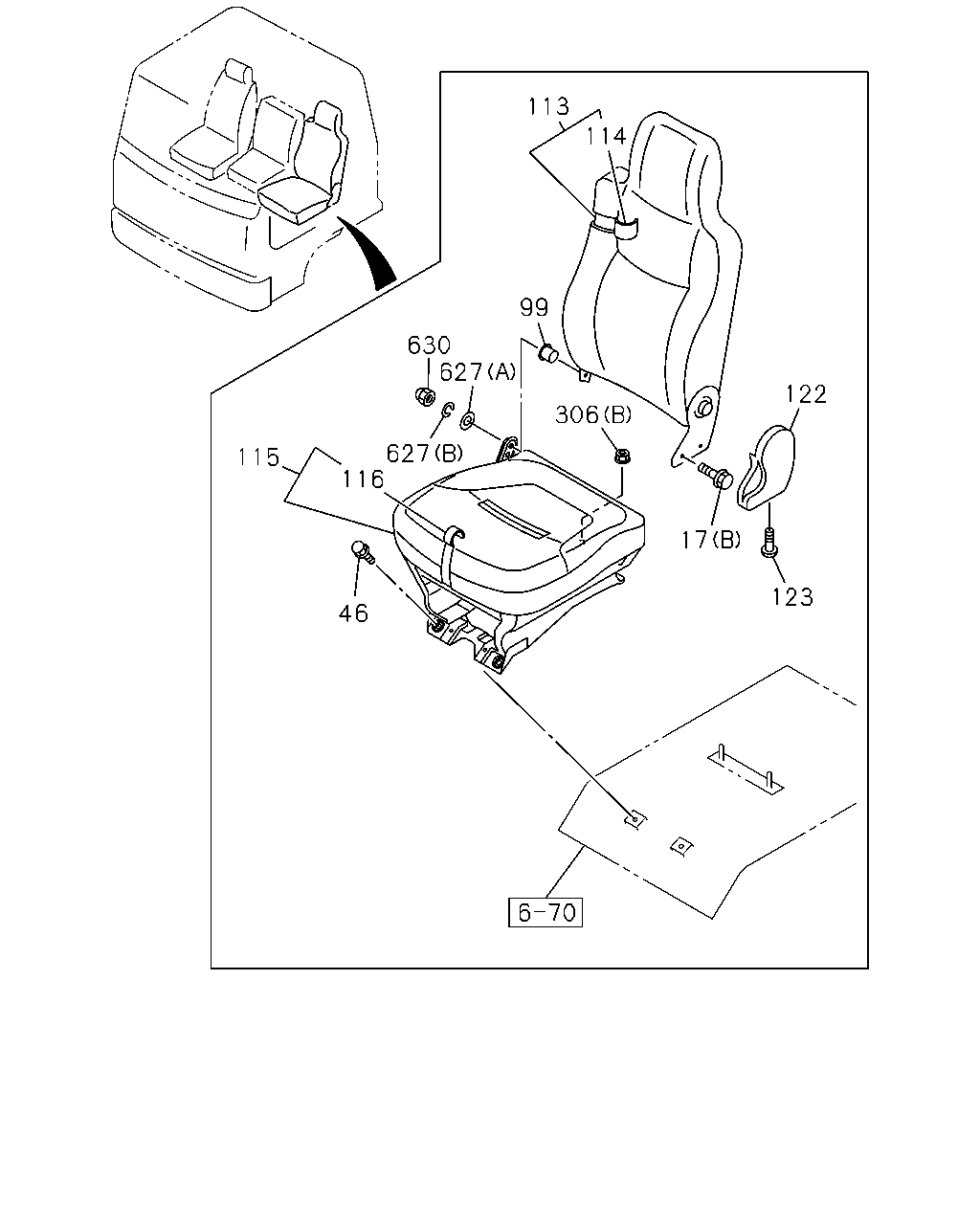

113 114 122 123 17 306 99 630 627 116 115 46 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (A) M10X20 THA	8-98062-661-0	04	1	1305-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> (A) M10X20 THA	8-98062-661-0	04	1	1305-		●
17	BOLT; RECLINING (B) THA	8-98092-334-0	04	1	1305-	●
17	BOLT; RECLINING DELUXE SEAT<PQ8> (B) THA	8-98092-334-0	04	1	1305-		●
46	BOLT; STAND TO FLOOR THA	8-97925-965-0	02	1	1305-	●	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	1305-	●
99	BUSHING; SEAT BACK DELUXE SEAT<PQ8> THA	8-98063-219-0	01	1	1305-		●
113	BACK ASM; SEAT THA	8-97924-737-0	01	1	1305-	●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> THA	8-97925-324-0	01	1	1305-		●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	1305-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> THA	8-97925-327-0	01	1	1305-		●
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	1305-	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> THA	8-97925-333-0	01	1	1305-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	1305-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> THA	8-97925-330-0	01	1	1305-		●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	1305-	●
122	COVER; ADJ,RECLINING DELUXE SEAT<PQ8> GRAY THA	8-97409-967-0	01	1	1305-		●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	1305-	●
123	SCREW; COVER,RECLINING DELUXE SEAT<PQ8> THA	8-98070-026-0	01	1	1305-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1305-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1305-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1305-		●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1305-	●
627	WASHER; FRT SEAT DELUXE SEAT<PQ8> (A) THA	8-98063-223-0	01	1	1305-		●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1305-	●
627	WASHER; FRT SEAT DELUXE SEAT<PQ8> (B) THA	8-98063-224-0	01	1	1305-		●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1305-	●
630	NUT; CAP DELUXE SEAT<PQ8> M8 THA	8-98063-225-0	01	1	1305-		●

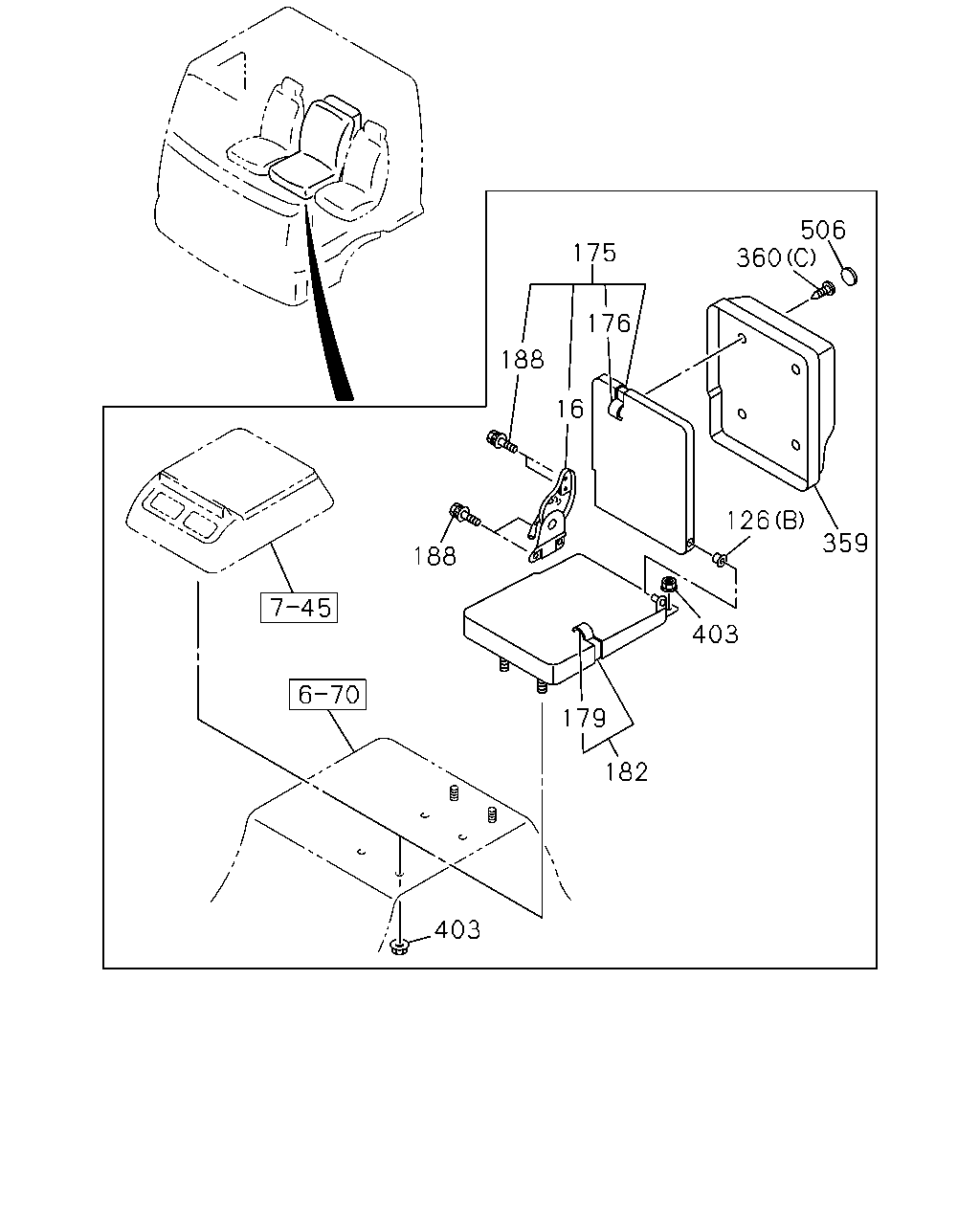

506 360 126 359 403 182 179 403 188 188 16 176 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1305-	●
16	ADJUSTER ASM; RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1305-		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1305-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1305-		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1305-	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1305-		●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97925-314-0	01	1	1305-	●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-456-1	01	1	1305-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97925-308-0	01	1	1305-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-458-0	01	1	1305-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	1305-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-454-0	01	1	1305-		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	1305-	●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-452-0	01	1	1305-		●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1305-	●
188	BOLT; BACK TO CUSHION DELUXE SEAT<PQ8> CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1305-		●
359	BOX; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1305-		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1305-		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1305-		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1305-		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1305-		●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE THA	0-91180-108-0	04	1	1305-	●	●
506	CAP; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-470-0	04	1	1305-		●

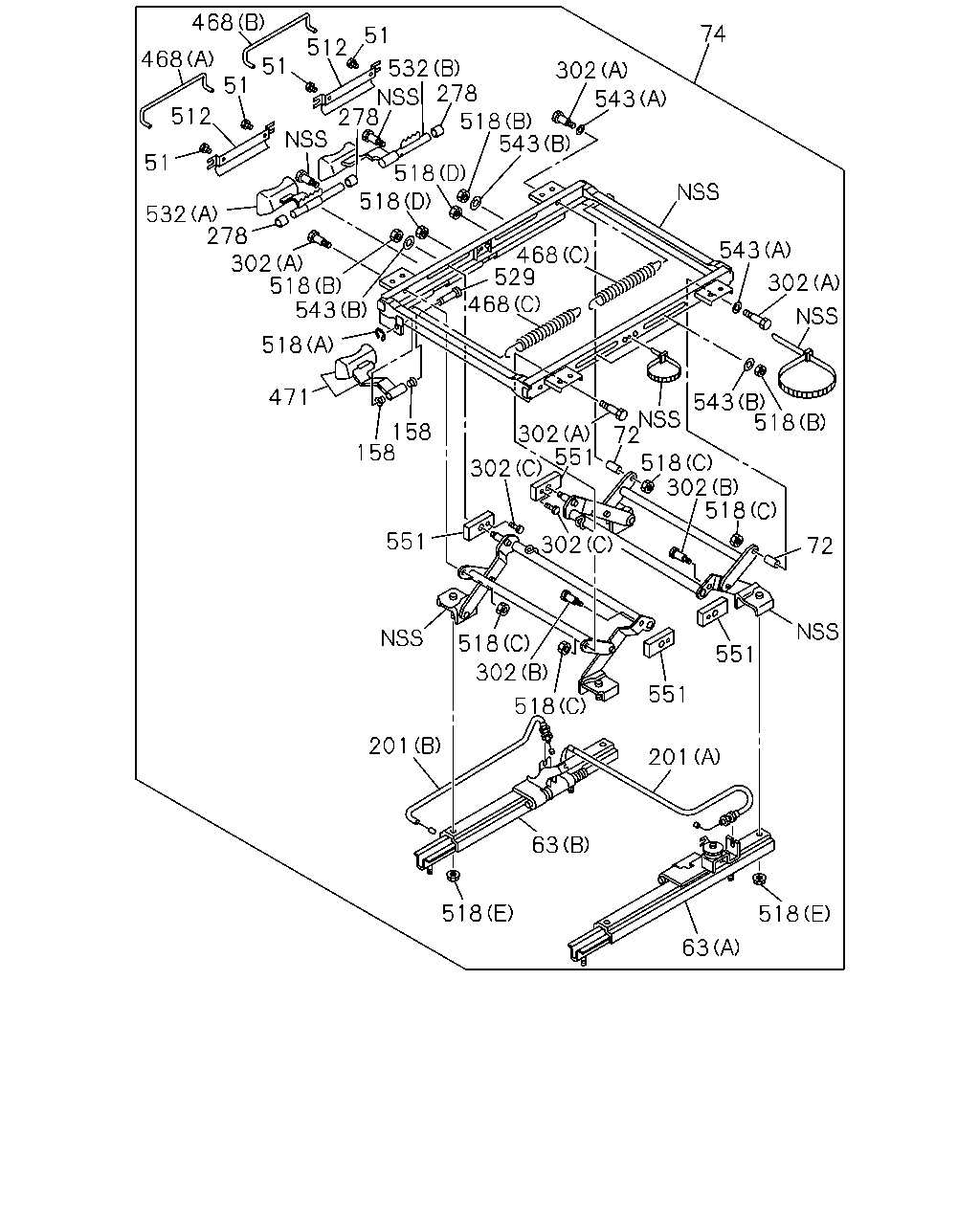

468 51 512 51 51 512 51 532 278 532 518 518 302 518 278 74 543 543 278 518 518 471 158 158 468 529 468 543 543 302 518 518 551 302 72 302 72 518 302 302 551 518 302 518 551 201 551 518 63 518 63 201 468 302 543

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER DELUXE SEAT<PQ8> THA	1-75518-325-1	04	1	1305-		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (A) THA	1-75518-199-1	01	1	1305-		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (B) THA	1-75518-323-0	01	1	1305-		●
72	SPACER; SEAT ADJ DELUXE SEAT<PQ8> THA	1-75518-334-1	02	1	1305-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98003-678-0	01	1	1305-		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1305-	●
158	BUSHING; LINK ARM DELUXE SEAT<PQ8> THA	1-75518-209-0	02	1	1305-		●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1305-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (A) L=667 THA	1-75518-288-0	01	1	1305-		●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1305-	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (B) L=605 THA	1-75518-289-1	01	1	1305-		●
278	COLLAR; FRT SEAT DELUXE SEAT<PQ8> THA	1-75518-244-0	03	1	1305-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (B) THA	1-75518-266-2	02	1	1305-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (A) THA	1-75518-270-1	04	1	1305-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (C) THA	1-75518-336-1	02	1	1305-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) THA	1-75538-132-0	01	1	1305-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	1305-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	1305-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	1305-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1305-	●
471	LEVER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98107-869-0	01	1	1305-		●
512	COVER; LEVER DELUXE SEAT<PQ8> THA	1-75518-243-1	02	1	1305-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1305-	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (A) THA	1-75518-263-0	01	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) THA	1-75518-264-0	04	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1305-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 FLANGE THA	8-94152-886-0	04	1	1305-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1305-	●
529	PIN; LINK DELUXE SEAT<PQ8> THA	1-75518-262-0	01	1	1305-		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (A) THA	1-75518-203-0	01	1	1305-		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (B) THA	1-75518-204-1	01	1	1305-		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (A) THA	1-75518-335-0	02	1	1305-		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (B) ID=8.4 THA	9-09160-508-0	04	1	1305-		●
551	SLIDER; HEIGHT ADJ DELUXE SEAT<PQ8> THA	1-75518-265-0	04	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
