2-07C — CLUTCH BOOSTER; MINIPACK (#11949) — 167 parça

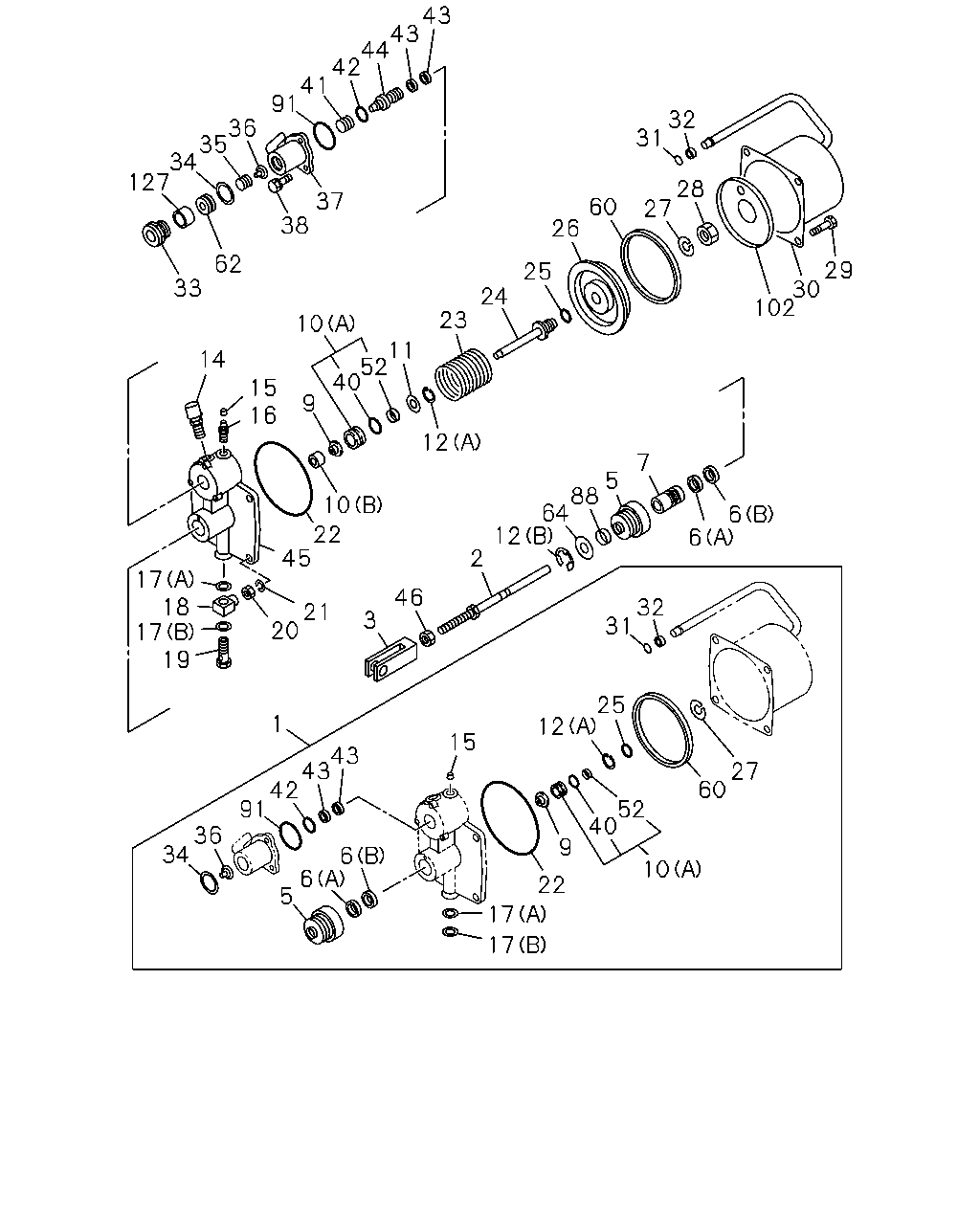

çizim 22804
43 43 44 42 41 91 36 37 35 34 38 62 33 127 14 10 32 31 28 29 27 30 60 102 26 24 25 6 7 6 23 5 12 88 11 52 40 9 15 16 10 22 2 21 20 45 46 3 64 12 32 31 25 27 60 10 12 52 40 9 15 22 17 17 5 6 6 43 43 42 1 91 36 34 19 17 18 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 0107-0203 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0204- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0107- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0107- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0107- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0107-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0107- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0204- ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0203 ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0107- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0107- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0107- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0107- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 0107-0203 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0204- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0107- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 0107-0203 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0204- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0107- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0107- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0107- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0107-0203 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0107-0203 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0107-0203 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0204- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0107- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0107- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-0203 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0204- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0204- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0107-0203 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0204- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 0107- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 0107- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 0107- ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ●

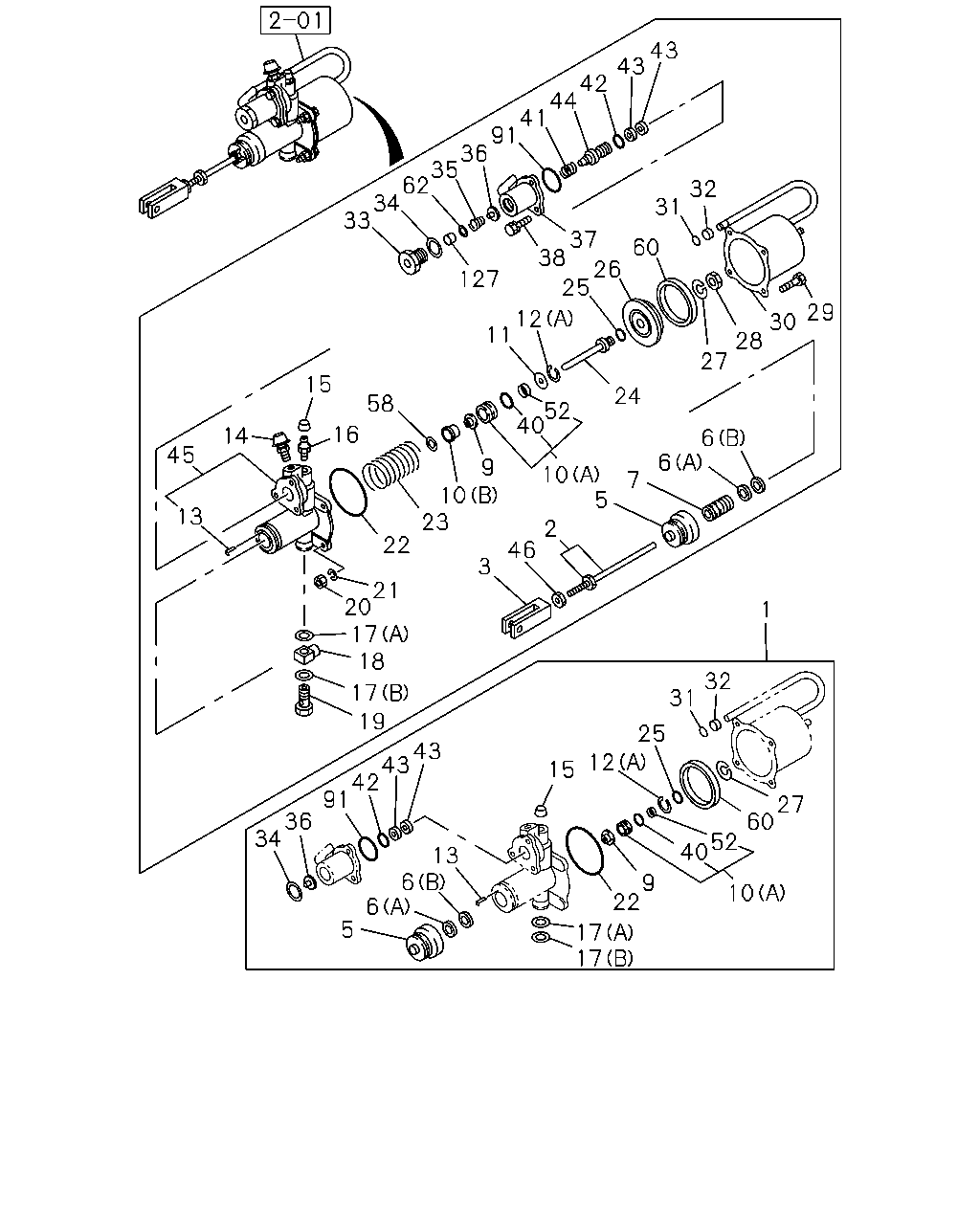

çizim 22806
43 32 43 31 42 44 41 37 91 60 36 35 62 34 33 127 38 26 25 12 27 11 28 30 29 24 6 52 6 40 7 46 2 9 10 23 22 21 20 17 18 17 19 58 15 14 16 45 13 3 5 10 1 32 31 25 27 60 12 15 52 10 40 9 22 17 17 43 43 13 42 6 6 5 34 36 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 0107-0203 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0204- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0107- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0107- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0107- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0107-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0107- ●
13 PIN; SPR 1-31829-109-0 01 1 0107- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0204- ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0203 ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0107- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0107- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0107- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0107- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 0107-0203 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0204- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0107- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 0107-0203 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0204- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0107- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0107- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0107- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0107-0203 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0107-0203 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0107-0203 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0204- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0107- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0107- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-0203 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0204- ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 0107-0203 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0204- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0107-0203 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0204- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ●
