2-25 — SPEEDOMETER DRIVEN GEAR (#119485) — 19 parça

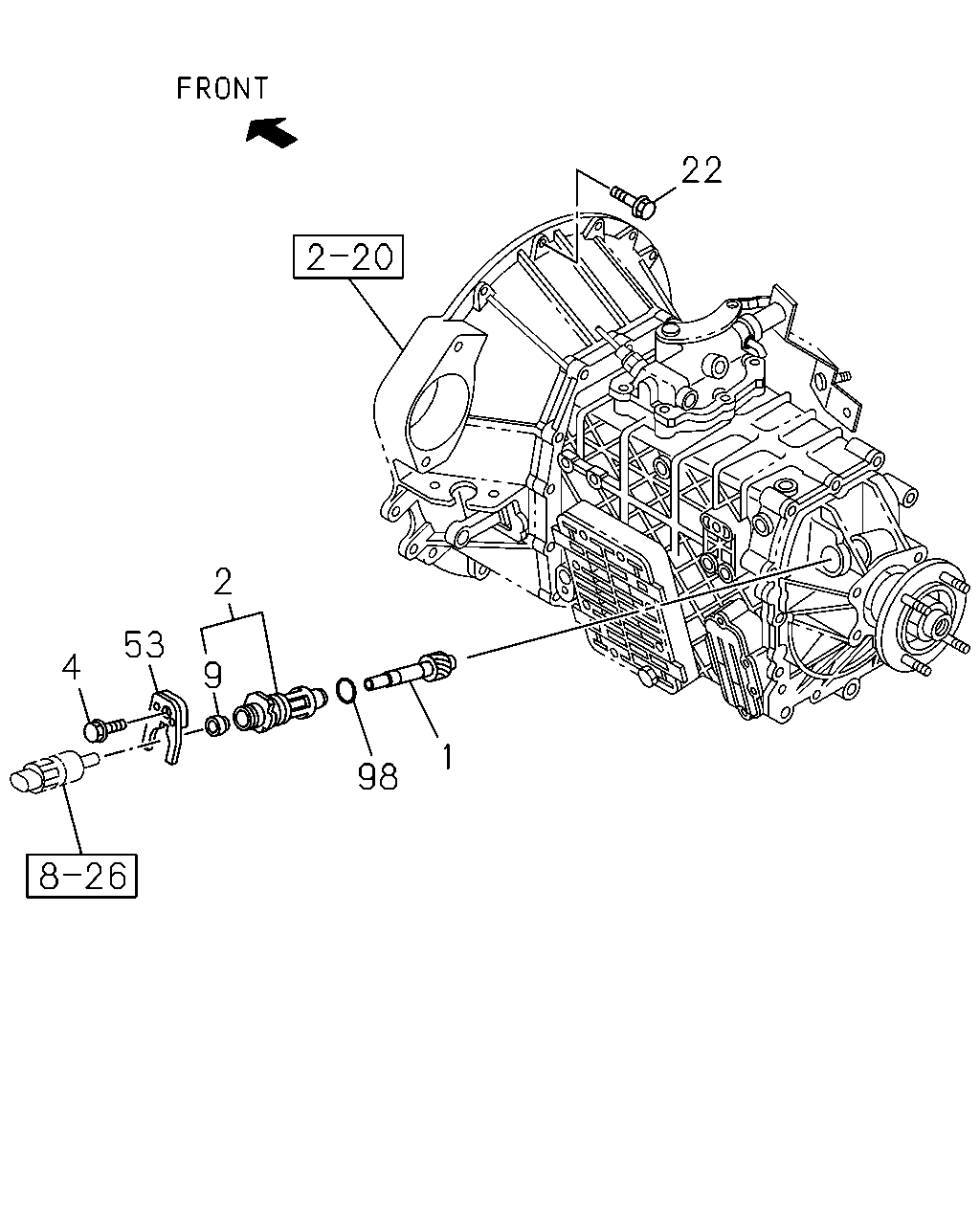

çizim 350630
4 1 2 9 53 98 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=11 IMA 		8-97253-559-1 01 1 1304- ●
1 GEAR; DRIVEN,SPD
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=11 IMA 		8-97253-559-1 01 1 1304- ●
1 GEAR; DRIVEN,SPD
M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> Z=12 IMA 		8-97253-563-1 01 1 1304- ●
1 GEAR; DRIVEN,SPD
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> Z=10 IMA 		8-97253-579-1 01 1 1304- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S<RST> FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "10,11,16,17" IMA 		8-97253-124-0 01 1 1304- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 41/9<HC6> FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT<CUZ>, FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> MARK "10,11,16,17" IMA 		8-97253-124-0 01 1 1304- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S<RST> FINAL GEAR RATIO 43/9<S2J> FRT&RR 7.5R-16-14 DISC 6GSX16-127<CVN>,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> MARK "12,13,14,15" IMA 		8-97253-125-0 01 1 1304- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304- ● ●
9 SEAL; OIL,DRIVEN GEAR
NOK IMA 		8-97131-328-1 01 1 1304- ● ●
22 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10X30 FLANGE IMA 		0-28151-030-0 02 1 1304- ●
22 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG<RDQ> M/T MYY6S<RST> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10X35 FLANGE IMA 		0-28151-035-0 05 1 1304- ●
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE IMA 		8-97365-449-0 02 1 1304-1308 ● ●
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE THA 		8-97948-217-0 02 1 1309- ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X30 FLANGE IMA 		0-28151-030-0 04 1 1304- ● ●
22 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10X30 FLANGE IMA 		0-28151-030-0 04 1 1304- ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X35 FLANGE IMA 		0-28151-035-0 03 1 1304- ● ●
22 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10X35 FLANGE IMA 		0-28151-035-0 03 1 1304- ● ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98046-217-0 01 1 1304- ● ●
98 SEAL; OIL,BUSH
IMA 		9-09561-324-0 01 1 1304- ● ●
