2-26 — MANUAL TRANSMISSION GEAR (#119484) — 167 parça
çizim 350645
93 511 507 268 510 507 108 325 135 314 132 408
BalonParca AdiParca NoAdetTipApplied Date A B
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 IMA 		8-97254-734-0 01 1 1304- ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 IMA 		8-97254-740-0 01 1 1304- ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 IMA 		8-97254-742-0 01 1 1304- ● ●
108 SHAFT; COUNTER
Z=45-49-33-20 IMA 		8-97380-630-1 01 1 1304- ●
108 SHAFT; COUNTER
Z=47-39-33-20 IMA 		8-97380-627-1 01 1 1304- ●
132 SHAFT; REV
IMA 		8-97252-655-0 01 1 1304- ● ●
135 GEAR; REV IDLER
Z=25 IMA 		8-98031-869-1 01 1 1304- ● ●
268 PLATE; ANTI LASH,COUNTER
IMA 		8-97257-300-1 01 1 1304- ●
268 PLATE; ANTI LASH,COUNTER
IMA 		8-97252-684-1 01 1 1304- ●
314 BEARING; NEEDLE,REV GEAR
NSK IMA 		8-97253-114-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 IMA 		8-97252-666-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 IMA 		8-97252-667-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 IMA 		8-97252-668-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 IMA 		8-97252-669-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 IMA 		8-97252-670-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 IMA 		8-97252-671-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 IMA 		8-97252-672-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 IMA 		8-97252-673-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 IMA 		8-97252-674-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 IMA 		8-97252-675-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 IMA 		8-97257-622-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 IMA 		8-97306-188-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 IMA 		8-97306-189-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 IMA 		8-97306-190-0 01 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ●
408 SPRING
(B) IMA 		8-94148-196-0 03 1 1304- ● ●
507 BEARING; COUNTER SHAFT,FRT & RR
IMA 		8-97253-107-0 02 1 1304- ● ●
510 PIN; STRAIGHT,ANTI LASH
IMA 		9-08160-825-0 03 1 1304- ● ●
511 RING; SNAP,ANTI LASH PLATE
IMA 		8-97254-767-0 01 1 1304- ● ●
çizim 350660
118 115 508 506 423 528 529 527 300 510 268 511 507 93 135 314 132 108 507 325 480 408 408 408
BalonParca AdiParca NoAdetTipApplied Date A B
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 IMA 		8-97254-734-0 01 1 1304- ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 IMA 		8-97254-740-0 01 1 1304- ● ●
93 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 IMA 		8-97254-742-0 01 1 1304- ● ●
108 SHAFT; COUNTER
Z=45-49-33-20 IMA 		8-97380-630-1 01 1 1304- ●
108 SHAFT; COUNTER
Z=47-39-33-20 IMA 		8-97380-627-1 01 1 1304- ●
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411- ●
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 IMA 		8-97253-113-0 01 1 1304- ●
118 GEAR; 6TH,COUNTER
Z=50 IMA 		8-97386-580-0 01 1 1304- ●
132 SHAFT; REV
IMA 		8-97252-655-0 01 1 1304- ● ●
135 GEAR; REV IDLER
Z=25 IMA 		8-98031-869-1 01 1 1304- ● ●
268 PLATE; ANTI LASH,COUNTER
IMA 		8-97257-300-1 01 1 1304- ●
268 PLATE; ANTI LASH,COUNTER
IMA 		8-97252-684-1 01 1 1304- ●
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 IMA 		8-97254-727-0 01 1 1304- ●
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.8 IMA 		8-97254-728-0 01 1 1304- ●
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 IMA 		8-97254-734-0 01 1 1304- ●
300 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 IMA 		8-97365-617-0 01 1 1304- ●
314 BEARING; NEEDLE,REV GEAR
NSK IMA 		8-97253-114-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 IMA 		8-97252-666-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 IMA 		8-97252-667-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 IMA 		8-97252-668-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 IMA 		8-97252-669-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 IMA 		8-97252-670-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 IMA 		8-97252-671-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 IMA 		8-97252-672-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 IMA 		8-97252-673-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 IMA 		8-97252-674-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 IMA 		8-97252-675-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 IMA 		8-97257-622-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 IMA 		8-97306-188-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 IMA 		8-97306-189-0 01 1 1304- ● ●
325 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 IMA 		8-97306-190-0 01 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ●
408 SPRING
(B) IMA 		8-94148-196-0 03 1 1304- ● ●
423 SLEEVE & HUB ASM; 6TH
IMA 		8-97367-022-0 01 1 1304- ●
480 WASHER; THRUST,6TH
IMA 		8-97253-123-1 01 1 1304- ●
506 COLLAR; 6TH,COUNTER
IMA 		8-97253-121-1 01 1 1304- ●
507 BEARING; COUNTER SHAFT,FRT & RR
IMA 		8-97253-107-0 02 1 1304- ● ●
508 RING; BLOCK,6TH
Z=45 IMA 		8-97309-532-0 01 1 1304- ●
510 PIN; STRAIGHT,ANTI LASH
IMA 		9-08160-825-0 03 1 1304- ● ●
511 RING; SNAP,ANTI LASH PLATE
IMA 		8-97254-767-0 01 1 1304- ● ●
527 INSERT; 6TH
IMA 		8-94448-202-2 03 1 1304- ●
528 SLEEVE; 6TH
Z=45 IMA 		8-94421-871-1 01 1 1304- ●
529 PLATE; STOPPER,6TH
IMA 		8-97248-952-0 01 1 1304- ●

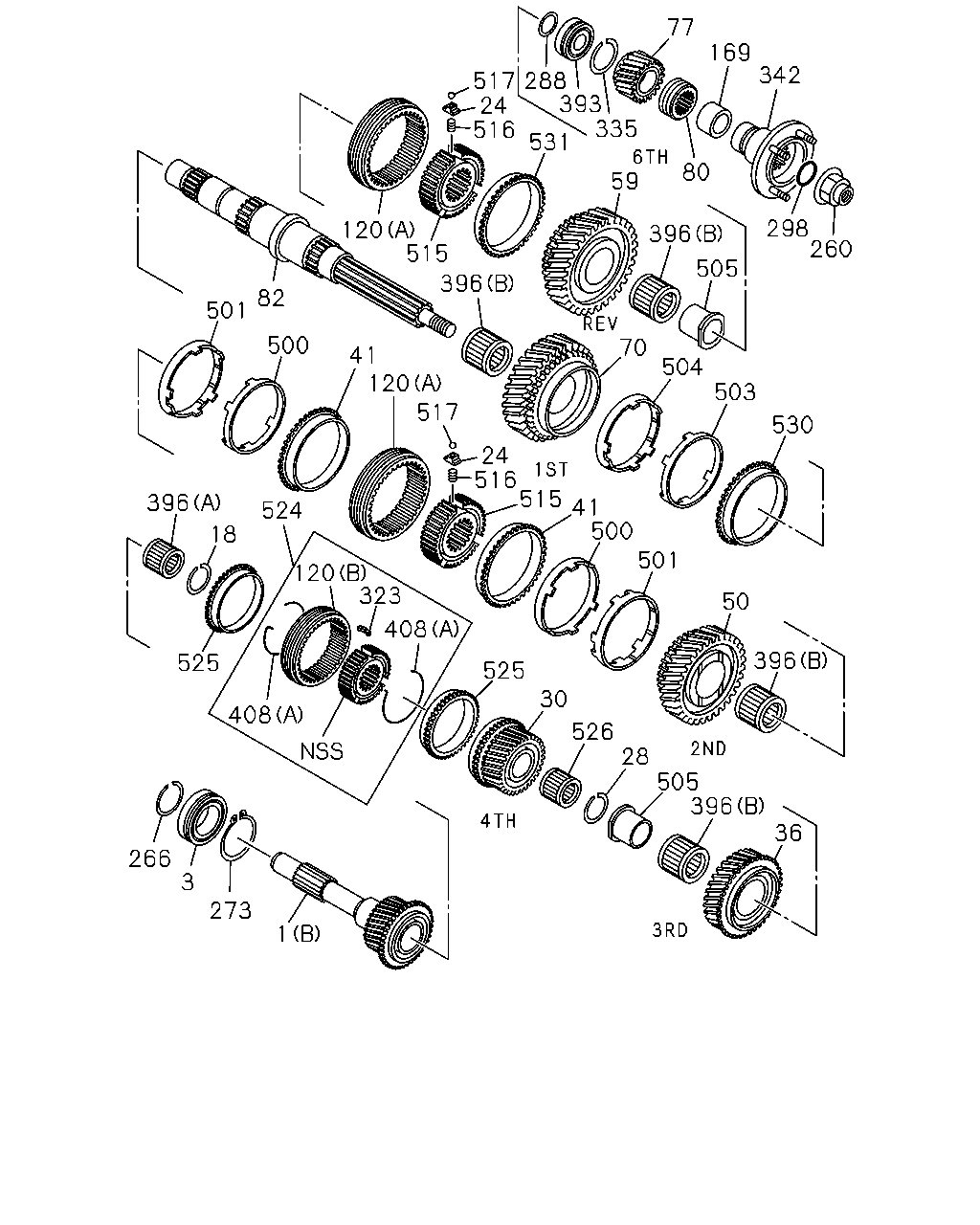

çizim 352455
77 342 169 260 298 80 335 393 288 517 516 24 59 531 505 515 70 503 504 530 50 501 500 41 515 516 24 517 41 500 501 82 505 36 28 526 30 525 323 525 18 524 273 3 266 120 396 120 396 408 1 396 396 408 120 396
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
(A) Z=28 IMA 		8-98031-848-0 01 1 1304- ●
1 SHAFT; TOP GEAR,TRANS
(B) Z=26 IMA 		8-98021-266-0 01 1 1304- ●
3 BEARING; TOP GEAR SHAFT
NSK IMA 		8-97253-098-1 01 1 1304- ● ●
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 IMA 		8-97254-728-0 01 1 1304- ● ●
24 BLOCK; INDEX,SYN
IMA 		8-97241-313-1 06 1 1304- ● ●
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 IMA 		8-97254-743-0 01 1 1304- ● ●
30 GEAR; 4TH,MAINSHAFT
Z=28 IMA 		8-97241-230-0 01 1 1304- ●
36 GEAR; 3RD,MAINSHAFT
Z=34 IMA 		8-97241-234-0 01 1 1304- ● ●
41 RING; BLOCK,2ND & 3RD
Z=45 IMA 		8-97241-306-1 02 1 1304- ● ●
50 GEAR; 2ND,MAINSHAFT
Z=38 IMA 		8-97241-237-1 01 1 1304- ● ●
59 GEAR; REV MAINSHAFT
Z=41 IMA 		8-97241-244-0 01 1 1304- ● ●
70 GEAR; 1ST,MAINSHAFT
Z=43 IMA 		8-97350-010-0 01 1 1304- ● ●
77 GEAR; 6TH,MAINSHAFT
Z=21 IMA 		8-97386-582-0 01 1 1304- ●
80 GEAR; SPD DRIVE
Z=4 IMA 		8-97253-556-0 01 1 1304- ● ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 IMA 		8-97253-117-3 01 1 1304- ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 IMA 		8-97253-116-3 01 1 1304- ●
120 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1304-1311 ● ●
120 SLEEVE
(A) Z=45 IMA 		8-98258-279-0 02 1 1312- ● ●
120 SLEEVE
(B) Z=45 IMA 		8-94421-871-1 01 1 1304- ● ●
169 COLLAR; MAINSHAFT
IMA 		8-97252-937-1 01 1 1304- ●
260 NUT; MAINSHAFT END
M27 H=25 IMA 		8-97360-410-0 01 1 1304- ● ●
266 RING; SNAP,BRG INNER
IMA 		8-97286-916-0 01 1 1304- ● ●
273 RING; SNAP,BRG OUTER
IMA 		8-97254-610-0 01 1 1304- ● ●
288 SPACER; BRG,MAINSHAFT
IMA 		8-97252-942-0 01 1 1304- ● ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 IMA 		8-98028-226-0 01 1 1304- ● ●
323 INSERT
IMA 		8-94448-202-2 03 1 1304- ● ●
335 RING; SNAP,BEARING
IMA 		8-97254-722-0 01 1 1304- ● ●
342 FLANGE; OUTPUT
IMA 		8-98031-640-0 01 1 1304- ● ●
393 BEARING; MAINSHAFT END
IMA 		8-97253-105-1 01 1 1304- ● ●
396 BEARING; NEEDLE,MAINSHAFT
(A) IMA 		8-97253-102-1 01 1 1304- ● ●
396 BEARING; NEEDLE,MAINSHAFT
(B) IMA 		8-97253-110-0 04 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ●
408 SPRING
(B) IMA 		8-94148-196-0 03 1 1304- ● ●
500 RING; OUTSIDE,3RD & 2ND
IMA 		8-97241-309-1 02 1 1304- ● ●
501 RING; INSIDE,3RD & 2ND
IMA 		8-97241-312-1 02 1 1304- ● ●
503 RING; OUTSIDE,LOW & REV
IMA 		8-97241-309-1 01 1 1304- ● ●
504 RING; INSIDE,LOW & REV
IMA 		8-97241-312-1 01 1 1304- ● ●
505 COLLAR; 3RD & REV
IMA 		8-97253-119-2 02 1 1304- ● ●
515 HUB; CLU,1ST & REV,2ND & 3RD
IMA 		8-97241-298-3 02 1 1304- ● ●
516 SPRING; SYNCHRO,INDEX
IMA 		8-97254-835-0 06 1 1304- ● ●
517 BALL; SYNCHRO,INDEX
IMA 		8-97252-935-0 06 1 1304- ● ●
524 SLEEVE & HUB ASM; TOP-4TH,OD
IMA 		8-97366-526-0 01 1 1304- ● ●
525 RING; BLOCK,TOP & 4TH,OD
Z=45 IMA 		8-97309-532-0 02 1 1304- ● ●
526 BEARING; NEEDLE,4TH & 5TH
IMA 		8-97253-112-0 01 1 1304- ● ●
530 RING; BLOCK,LOW
Z=45 IMA 		8-97241-306-1 01 1 1304- ● ●
531 RING; BLOCK,REV
Z=45 IMA 		8-97368-343-0 01 1 1304- ● ●

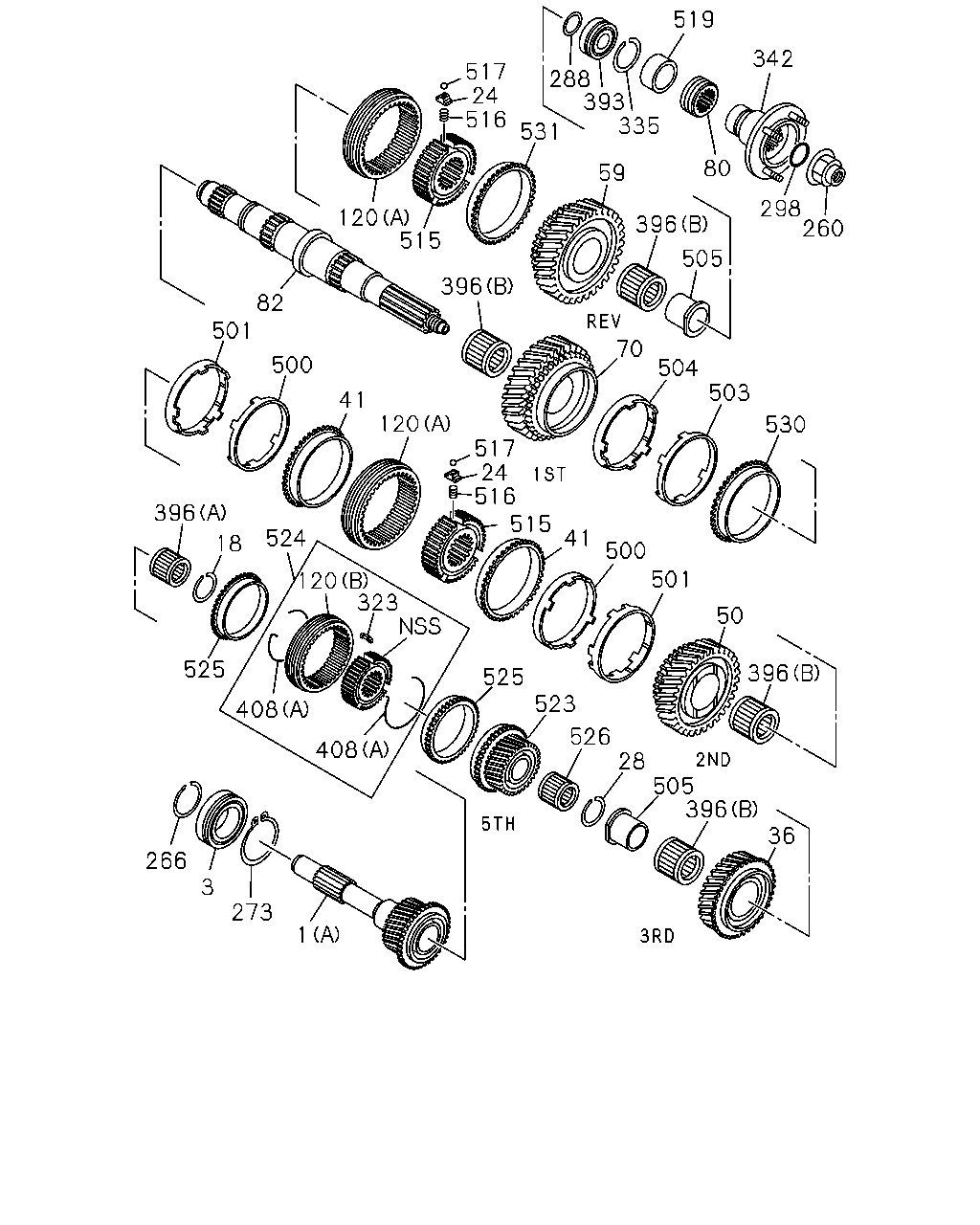

çizim 352699
260 298 80 342 519 335 393 288 59 505 396 531 516 24 517 530 503 504 70 396 515 120 82 501 41 500 500 50 396 501 41 515 516 517 24 396 36 505 28 526 523 525 408 408 323 120 524 18 396 525 266 3 273 1 120
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
(A) Z=28 IMA 		8-98031-848-0 01 1 1304- ●
1 SHAFT; TOP GEAR,TRANS
(B) Z=26 IMA 		8-98021-266-0 01 1 1304- ●
3 BEARING; TOP GEAR SHAFT
NSK IMA 		8-97253-098-1 01 1 1304- ● ●
18 RING; SNAP,CLU HUB
ID=30.7 T=1.8 IMA 		8-97254-728-0 01 1 1304- ● ●
24 BLOCK; INDEX,SYN
IMA 		8-97241-313-1 06 1 1304- ● ●
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 IMA 		8-97254-743-0 01 1 1304- ● ●
36 GEAR; 3RD,MAINSHAFT
Z=34 IMA 		8-97241-234-0 01 1 1304- ● ●
41 RING; BLOCK,2ND & 3RD
Z=45 IMA 		8-97241-306-1 02 1 1304- ● ●
50 GEAR; 2ND,MAINSHAFT
Z=38 IMA 		8-97241-237-1 01 1 1304- ● ●
59 GEAR; REV MAINSHAFT
Z=41 IMA 		8-97241-244-0 01 1 1304- ● ●
70 GEAR; 1ST,MAINSHAFT
Z=43 IMA 		8-97350-010-0 01 1 1304- ● ●
80 GEAR; SPD DRIVE
Z=4 IMA 		8-97253-556-0 01 1 1304- ● ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 IMA 		8-97253-117-3 01 1 1304- ●
82 SHAFT; MAIN,TRANS
Z=28-42-42-21 IMA 		8-97253-116-3 01 1 1304- ●
120 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1304-1311 ● ●
120 SLEEVE
(A) Z=45 IMA 		8-98258-279-0 02 1 1312- ● ●
120 SLEEVE
(B) Z=45 IMA 		8-94421-871-1 01 1 1304- ● ●
260 NUT; MAINSHAFT END
M27 H=25 IMA 		8-97360-410-0 01 1 1304- ● ●
266 RING; SNAP,BRG INNER
IMA 		8-97286-916-0 01 1 1304- ● ●
273 RING; SNAP,BRG OUTER
IMA 		8-97254-610-0 01 1 1304- ● ●
288 SPACER; BRG,MAINSHAFT
IMA 		8-97252-942-0 01 1 1304- ● ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 IMA 		8-98028-226-0 01 1 1304- ● ●
323 INSERT
IMA 		8-94448-202-2 03 1 1304- ● ●
335 RING; SNAP,BEARING
IMA 		8-97254-722-0 01 1 1304- ● ●
342 FLANGE; OUTPUT
IMA 		8-98031-640-0 01 1 1304- ● ●
393 BEARING; MAINSHAFT END
IMA 		8-97253-105-1 01 1 1304- ● ●
396 BEARING; NEEDLE,MAINSHAFT
(A) IMA 		8-97253-102-1 01 1 1304- ● ●
396 BEARING; NEEDLE,MAINSHAFT
(B) IMA 		8-97253-110-0 04 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ● ●
408 SPRING
(A) IMA 		8-97366-040-1 02 1 1304- ●
408 SPRING
(B) IMA 		8-94148-196-0 03 1 1304- ● ●
500 RING; OUTSIDE,3RD & 2ND
IMA 		8-97241-309-1 02 1 1304- ● ●
501 RING; INSIDE,3RD & 2ND
IMA 		8-97241-312-1 02 1 1304- ● ●
503 RING; OUTSIDE,LOW & REV
IMA 		8-97241-309-1 01 1 1304- ● ●
504 RING; INSIDE,LOW & REV
IMA 		8-97241-312-1 01 1 1304- ● ●
505 COLLAR; 3RD & REV
IMA 		8-97253-119-2 02 1 1304- ● ●
515 HUB; CLU,1ST & REV,2ND & 3RD
IMA 		8-97241-298-3 02 1 1304- ● ●
516 SPRING; SYNCHRO,INDEX
IMA 		8-97254-835-0 06 1 1304- ● ●
517 BALL; SYNCHRO,INDEX
IMA 		8-97252-935-0 06 1 1304- ● ●
519 COLLAR; MAINSHAFT END,5TH
IMA 		8-97252-940-0 01 1 1304- ●
523 GEAR; OD,MAINSHAFT
Z=22 IMA 		8-97241-231-0 01 1 1304- ●
524 SLEEVE & HUB ASM; TOP-4TH,OD
IMA 		8-97366-526-0 01 1 1304- ● ●
525 RING; BLOCK,TOP & 4TH,OD
Z=45 IMA 		8-97309-532-0 02 1 1304- ● ●
526 BEARING; NEEDLE,4TH & 5TH
IMA 		8-97253-112-0 01 1 1304- ● ●
530 RING; BLOCK,LOW
Z=45 IMA 		8-97241-306-1 01 1 1304- ● ●
531 RING; BLOCK,REV
Z=45 IMA 		8-97368-343-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
