◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#119479) — 37 parça

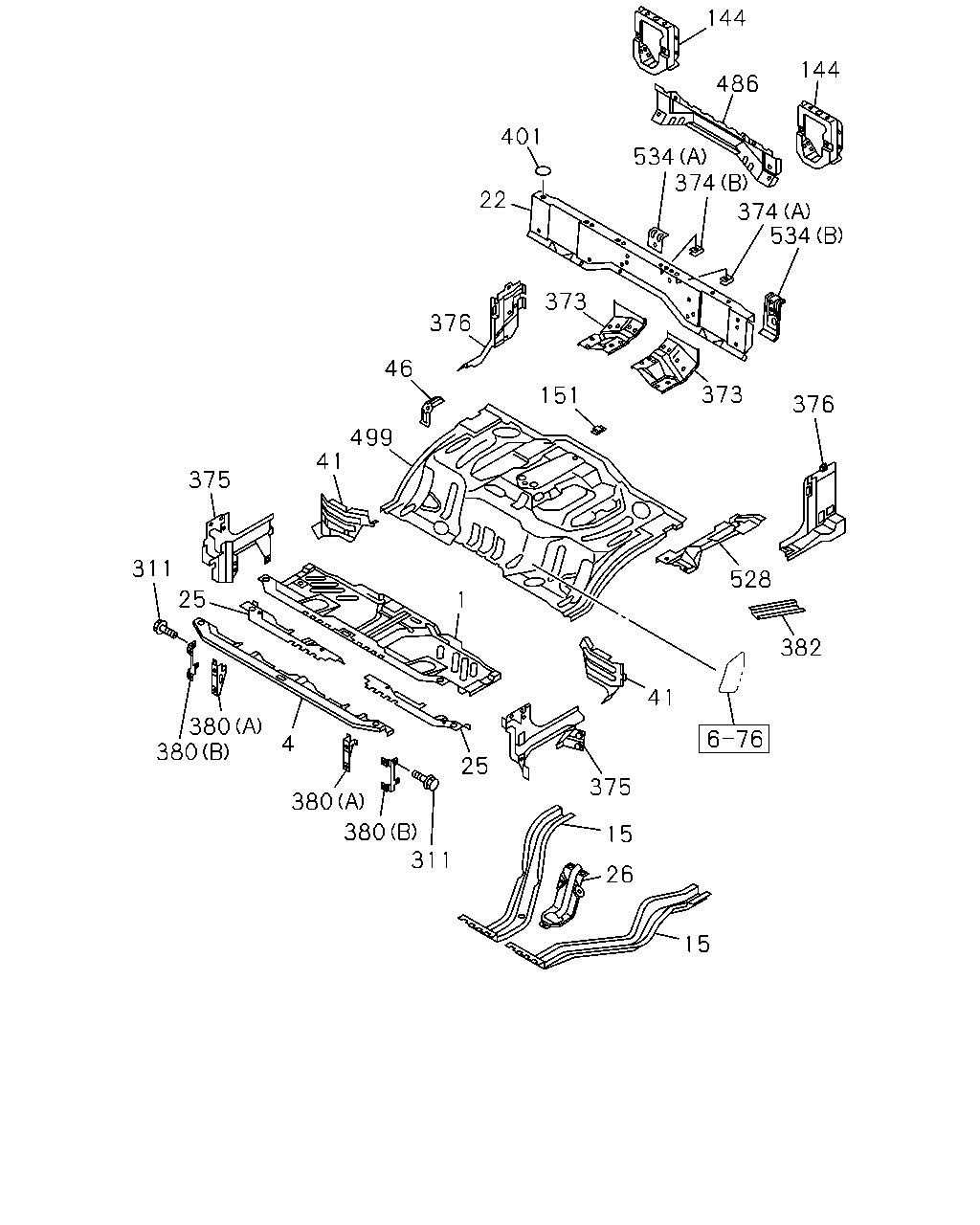

çizim 352098
144 144 534 401 22 373 376 46 499 41 375 311 25 380 380 380 380 311 375 15 26 15 41 382 528 376 373 151 534 374 374 486 25 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
IMA 		8-97583-910-5 01 1 1304- ● ●
4 FRAME; FLOOR,FRT
IMA 		8-98059-496-0 01 1 1304- ● ●
15 FRAME; UNDER
IMA 		8-98061-277-1 01 1 1304- ● ●
15 FRAME; UNDER
IMA 		8-98061-278-1 01 1 1304- ● ●
22 FRAME; FLOOR REAR
IMA 		8-97583-925-3 01 1 1304- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
IMA 		8-97588-030-1 01 1 1304- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
IMA 		8-97588-031-1 01 1 1304- ● ●
26 PANEL; GEAR CONT REINF
IMA 		8-97589-382-1 01 1 1304- ● ●
41 SUPPORT; STEP,RR
IMA 		8-97583-935-2 01 1 1304- ● ●
41 SUPPORT; STEP,RR
IMA 		8-97583-936-2 01 1 1304- ● ●
46 BRACKET; FRT SEAT,RR OUTER
IMA 		8-97583-834-0 01 1 1304- ● ●
144 BRACKET; MTG,RR 8-97589-544-3 02 1 1304- ● ●
151 BRACKET; SEAT CUSHION STOPPER
IMA 		8-97583-833-0 01 1 1304- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
IMA 		8-98014-521-2 01 1 1304- ● ●
373 REINFORCEMENT; SEAT BELT
IMA 		8-98014-522-2 01 1 1304- ● ●
374 NUT; FLOOR
(B) M6 IMA 		1-09984-110-0 02 1 1304- ● ●
374 NUT; FLOOR
(A) M8 IMA 		1-09984-111-0 01 1 1304- ● ●
375 CLOSING; PILLAR
IMA 		8-97583-882-3 01 1 1304- ● ●
375 CLOSING; PILLAR
IMA 		8-97583-883-2 01 1 1304- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97583-888-2 01 1 1304- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97584-618-2 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(A) IMA 		8-97589-384-4 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(A) IMA 		8-97589-385-3 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(B) IMA 		8-98029-288-0 01 1 1304- ● ●
380 BRACKET; HEAD LAMP
(B) IMA 		8-98029-289-0 01 1 1304- ● ●
382 STIFFENER; RR FLOOR
IMA 		8-98041-232-0 01 1 1304- ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 IMA 		8-97224-683-0 01 1 1304- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR
IMA 		8-98030-610-2 01 1 1304- ● ●
499 PANEL; FLOOR,RR
IMA 		8-97583-912-4 01 1 1304- ● ●
528 REINFORCEMENT; PARKING BRAKE
IMA 		8-97583-829-4 01 1 1304- ● ●
534 REINFORCEMENT; SEAT BACK
(B) IMA 		8-98007-678-2 01 1 1304- ● ●
534 REINFORCEMENT; SEAT BACK
(A) IMA 		8-98019-181-2 01 1 1304- ● ●

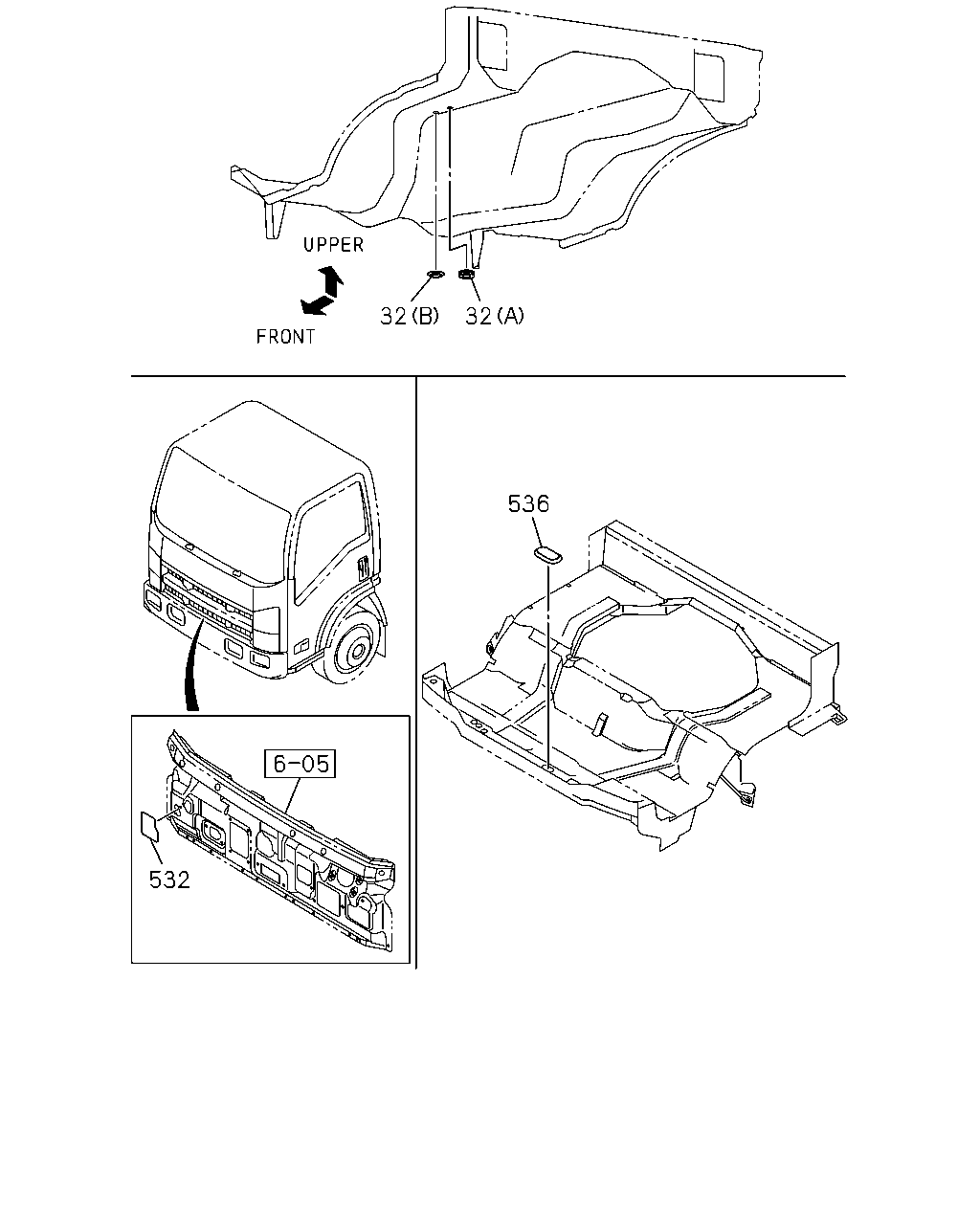

çizim 352736
536 32 32 532
BalonParca AdiParca NoAdetTipApplied Date A B
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 IMA 		8-94279-040-0 02 1 1304- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 IMA 		8-97898-423-0 02 1 1304- ● ●
532 SEAL; CABLE
EXC. PTO MANUAL CONTROL<6WC> IMA 		8-98042-432-1 01 1 1304- ● ●
536 PLUG; CABLE,PTO
IMA 		8-98029-219-1 01 1 1304- ● ●
