◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#119478) — 35 parça

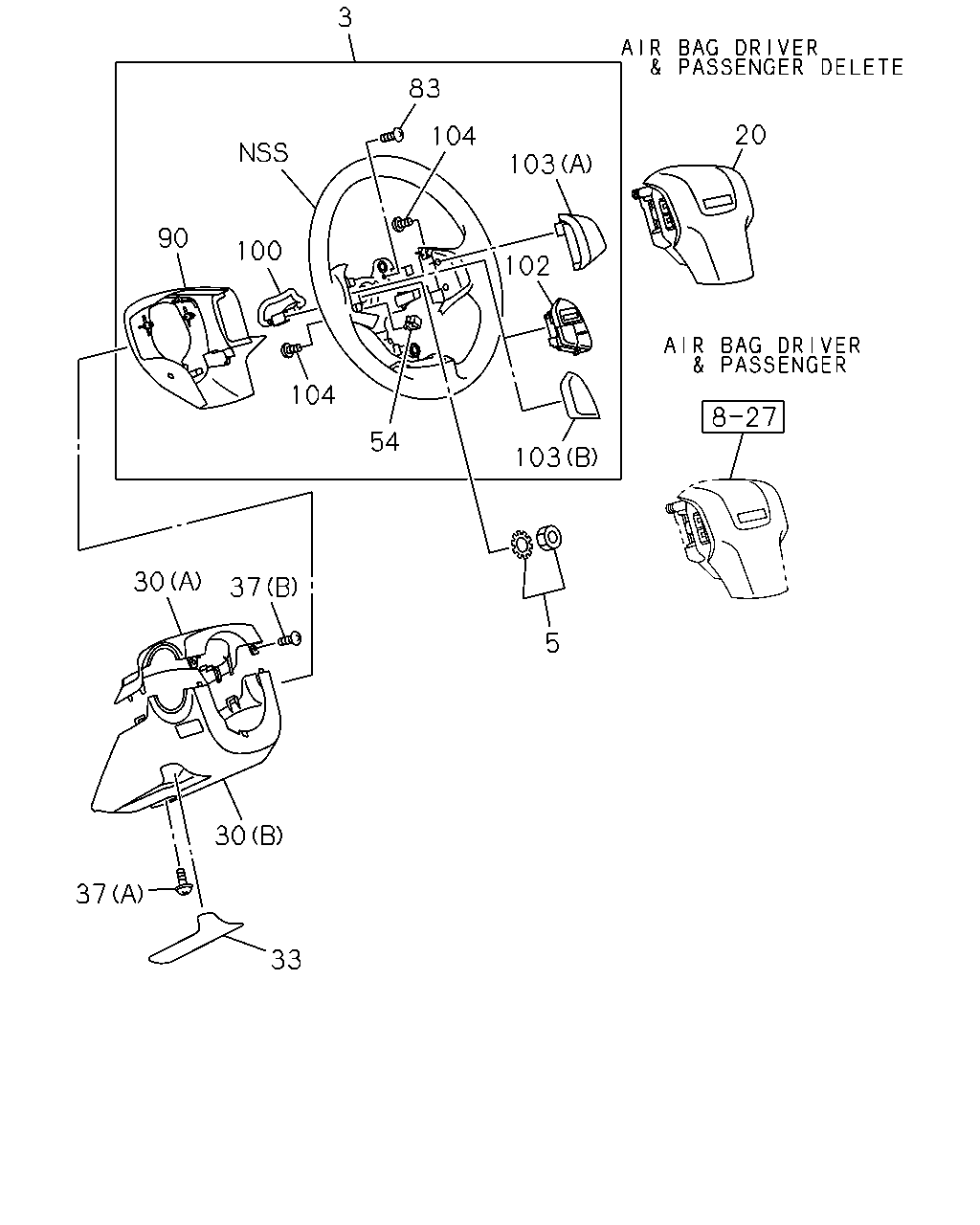

çizim 351029
83 3 104 102 103 100 90 104 103 54 20 30 37 37 30 33 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-797-3 01 1 1305- ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) EXC. STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-797-3 01 1 1305- ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97416-799-3 01 1 1305- ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-799-3 01 1 1305- ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-802-3 01 1 1305- ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-796-3 01 1 1305- ● ●
3 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-798-3 01 1 1305- ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 1305- ● ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERIOR STEERING CENTER PAD BADGE<8MB> BLACK 		8-97416-803-4 01 1 1305- ● ● ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97416-803-4 01 1 1305- ●
20 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> BLACK 		8-97416-804-4 01 1 1305- ● ● ●
30 COWL; STEERING
(A) BLACK 		8-97416-863-4 01 1 1305- ● ● ● ●
30 COWL; STEERING
(B) BLACK 		8-97416-795-6 01 1 1305- ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> (B) BLACK 		8-97416-795-6 01 1 1305- ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> (B) BLACK 		8-97416-794-6 01 1 1305- ●
30 COWL; STEERING
(B) BLACK 		8-97416-794-6 01 1 1305- ● ●
33 COVER; STRG COWL
EXC. TILT STEERING<N33> BLACK 		8-97421-052-0 01 1 1305- ● ● ● ●
37 SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER 		0-36210-412-0 01 1 1305- ● ● ● ●
37 SCREW; STRG COWL UPR
(B) M5X16 TAPPING 		8-98167-449-0 02 1 1305- ● ● ● ●
54 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1305- ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
M4X10 TAPPING 		0-71240-410-0 02 1 1305- ● ●
83 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING 		0-71240-410-0 02 1 1305- ● ●
83 SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING 		0-71240-410-0 02 1 1305- ● ●
83 SCREW; LWR COVER TO WHEEL
EXC. STEERING WHEEL LEATHER<NP5> M4X10 TAPPING 		0-71240-410-0 02 1 1305- ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-856-1 01 1 1305- ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97416-859-2 01 1 1305- ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-859-2 01 1 1305- ● ●
90 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-859-2 01 1 1305- ● ●
100 HARNESS; STRG WHEEL
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> 		8-98108-695-0 01 1 1305- ● ●
102 SWITCH ASM; AUDIO CONT,STRG WHEEL
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> 		8-98108-690-0 01 1 1305- ● ●
103 BEZEL; COVER,SWITCH HOLE
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> (A) SILVER 		8-97416-857-1 01 1 1305- ● ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (A) SILVER 		8-97416-857-1 01 1 1305- ● ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (B) SILVER 		8-97416-858-1 01 1 1305- ● ●
104 SCREW; SWITCH AND BEZEL
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING 		0-71240-410-0 04 1 1305- ● ●
104 SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> M4X10 TAPPING 		0-71240-410-0 04 1 1305- ● ●
