3-05 — REAR WHEEL BRAKE (#119472) — 84 parça

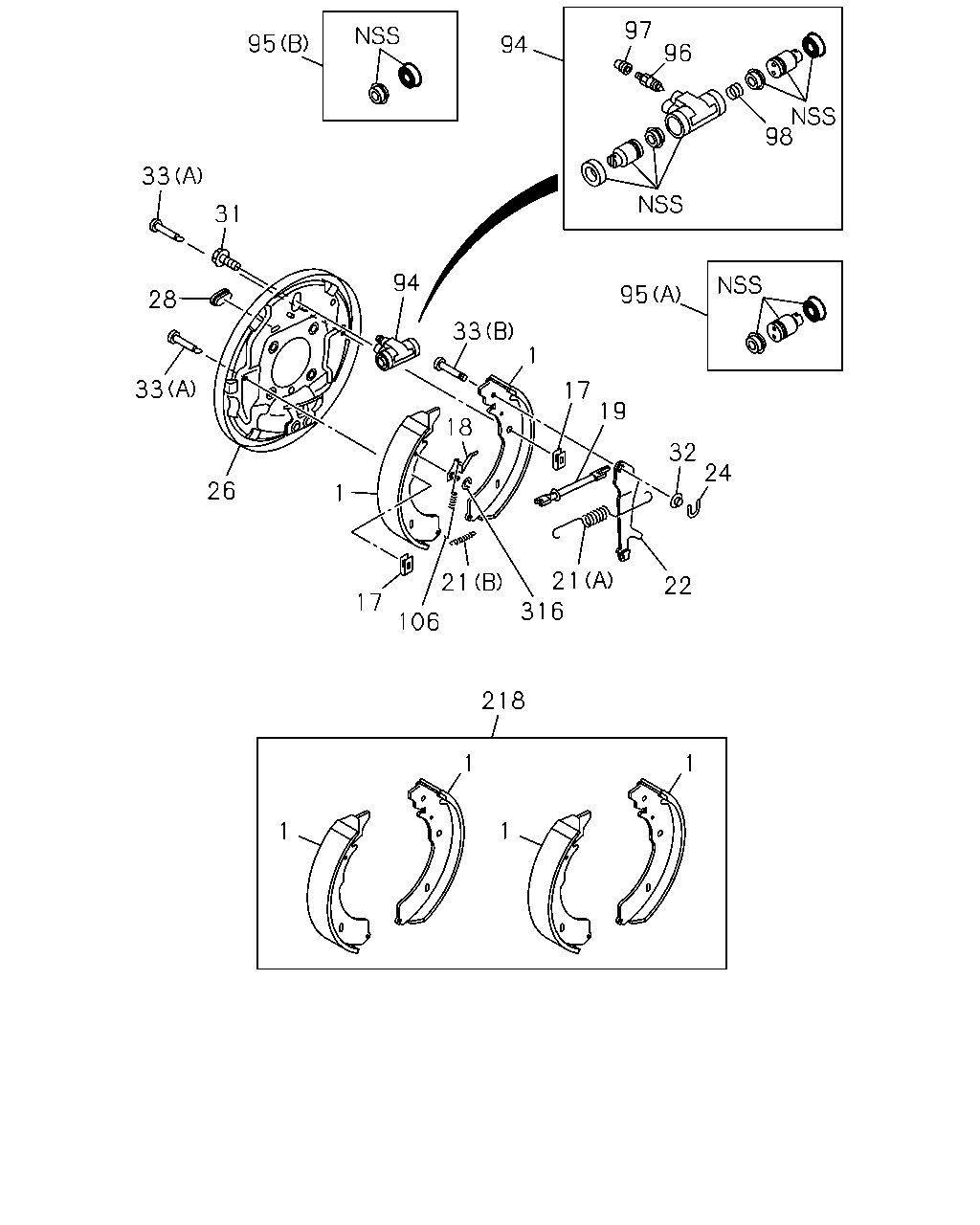

çizim 350756
95 94 97 98 95 33 31 28 33 26 1 17 218 1 1 1 1 316 22 21 21 24 32 19 17 1 33 94 18 96 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) TRAILING 		8-98167-405-0 02 1 1305-1305 ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-98167-406-0 01 1 1305-1305 ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-98167-407-0 01 1 1305-1305 ●
1 SHOE; BRK,RR
TRAILING 		8-97947-766-0 02 1 1305- ● ● ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) TRAILING 		8-97947-766-0 02 1 1305- ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) TRAILING 		8-97947-766-0 02 1 1305- ●
1 SHOE; BRK,RR
LEADING 		8-97947-767-0 01 1 1305- ● ● ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) LEADING 		8-97947-767-0 01 1 1305- ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) LEADING 		8-97947-767-0 01 1 1305- ●
1 SHOE; BRK,RR
LEADING 		8-97947-768-0 01 1 1305- ● ● ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) LEADING 		8-97947-768-0 01 1 1305- ●
1 SHOE; BRK,RR
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) LEADING 		8-97947-768-0 01 1 1305- ●
17 SPRING; SHOE HOLD DOWN 8-98164-787-0 04 1 1305- ● ● ● ●
18 LEVER; AUTO ADJ
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-996-0 01 1 1305-1305 ●
18 LEVER; AUTO ADJ
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98007-997-0 01 1 1305-1305 ●
18 LEVER; AUTO ADJ 8-97947-474-0 01 1 1305- ● ● ●
18 LEVER; AUTO ADJ
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-474-0 01 1 1305- ●
18 LEVER; AUTO ADJ
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-474-0 01 1 1305- ●
18 LEVER; AUTO ADJ 8-97947-475-0 01 1 1305- ● ● ●
18 LEVER; AUTO ADJ
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-475-0 01 1 1305- ●
18 LEVER; AUTO ADJ
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-475-0 01 1 1305- ●
19 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-400-0 01 1 1305-1305 ●
19 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-401-0 01 1 1305-1305 ●
19 ADJUSTER; RR BRK 8-97947-402-0 01 1 1305- ● ● ●
19 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-402-0 01 1 1305- ●
19 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-402-0 01 1 1305- ●
19 ADJUSTER; RR BRK 8-97947-403-0 01 1 1305- ● ● ●
19 ADJUSTER; RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-403-0 01 1 1305- ●
19 ADJUSTER; RR BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-403-0 01 1 1305- ●
21 SPRING; SHOE,RET
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-412-0 02 1 1305-1305 ●
21 SPRING; SHOE,RET
(A) 		8-97947-413-0 02 1 1305- ● ● ●
21 SPRING; SHOE,RET
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) (A) 		8-97947-413-0 02 1 1305- ●
21 SPRING; SHOE,RET
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-413-0 02 1 1305- ●
21 SPRING; SHOE,RET
(B) 		8-98008-002-0 02 1 1305- ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-390-0 01 1 1305-1305 ●
22 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-391-0 01 1 1305-1305 ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97947-392-0 01 1 1305- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-392-0 01 1 1305- ●
22 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-392-0 01 1 1305- ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97947-393-0 01 1 1305- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-393-0 01 1 1305- ●
22 LEVER; PARKING BRK,WHEEL BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-393-0 01 1 1305- ●
24 RETAINER; PARKING BRK 8-97301-493-0 02 1 1305- ● ● ● ●
26 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-404-2 01 1 1305-1305 ●
26 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-405-2 01 1 1305-1305 ●
26 PLATE; BACK,RR BRK 8-97947-406-2 01 1 1305- ● ● ●
26 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-406-2 01 1 1305- ●
26 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-406-2 01 1 1305- ●
26 PLATE; BACK,RR BRK 8-97947-407-2 01 1 1305- ● ● ●
26 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-407-2 01 1 1305- ●
26 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-407-2 01 1 1305- ●
28 COVER; ADJ HOLE 8-97301-477-0 04 1 1305- ● ● ● ●
31 BOLT; RR WHEEL CYL
M6X14 		8-97947-469-0 04 1 1305- ● ● ● ●
32 WASHER; LK 8-97947-470-0 02 1 1305- ● ● ● ●
33 PIN; SHOE HOLD DOWN
(A) 		8-97301-509-0 04 1 1305- ● ● ● ●
33 PIN; SHOE HOLD DOWN
(B) 		8-98008-034-0 02 1 1305- ● ● ● ●
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-478-0 02 1 1305-1305 ●
94 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 1305- ● ● ●
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97319-300-0 02 1 1305- ●
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97319-300-0 02 1 1305- ●
95 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) (A) W/PISTON 		5-87832-026-0 01 1 1305-1305 ●
95 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) (B) WO/PISTON 		5-87832-246-0 01 1 1305-1305 ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 1305- ● ● ●
95 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) (A) W/PISTON 		5-87832-068-0 01 1 1305- ●
95 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) (A) W/PISTON 		5-87832-068-0 01 1 1305- ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON 		5-87832-247-0 01 1 1305- ● ● ●
95 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) (B) WO/PISTON 		5-87832-247-0 01 1 1305- ●
95 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) (B) WO/PISTON 		5-87832-247-0 01 1 1305- ●
96 SCREW; BLEEDER,RR BRK 8-97301-484-0 02 1 1305- ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-97301-485-0 02 1 1305- ● ● ● ●
98 SPRING; RR WHEEL CYL 8-97301-483-0 02 1 1305- ● ● ● ●
106 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-003-0 01 1 1305-1305 ●
106 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-004-0 01 1 1305-1305 ●
106 SPRING; ADJ LEVER 8-98008-006-0 01 1 1305- ● ● ●
106 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-98008-006-0 01 1 1305- ●
106 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-98008-006-0 01 1 1305- ●
106 SPRING; ADJ LEVER 8-98008-007-0 01 1 1305- ● ● ●
106 SPRING; ADJ LEVER
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-98008-007-0 01 1 1305- ●
106 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-98008-007-0 01 1 1305- ●
218 SHOE KIT; BRK,RR
FINAL GEAR RATIO 41/11(GT4) EXC. HIGH RIDE SUSPENSION(7YC) 		5-87832-255-0 01 1 1305-1305 ●
218 SHOE KIT; BRK,RR 8-97947-802-0 01 1 1305- ● ● ●
218 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/12(GM0),FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 		8-97947-802-0 01 1 1305- ●
218 SHOE KIT; BRK,RR
FINAL GEAR RATIO 41/11(GT4) HIGH RIDE SUSPENSION(7YC) 		8-97947-802-0 01 1 1305- ●
316 RING; SNAP 8-97330-511-0 02 1 1305- ● ● ● ●
