Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

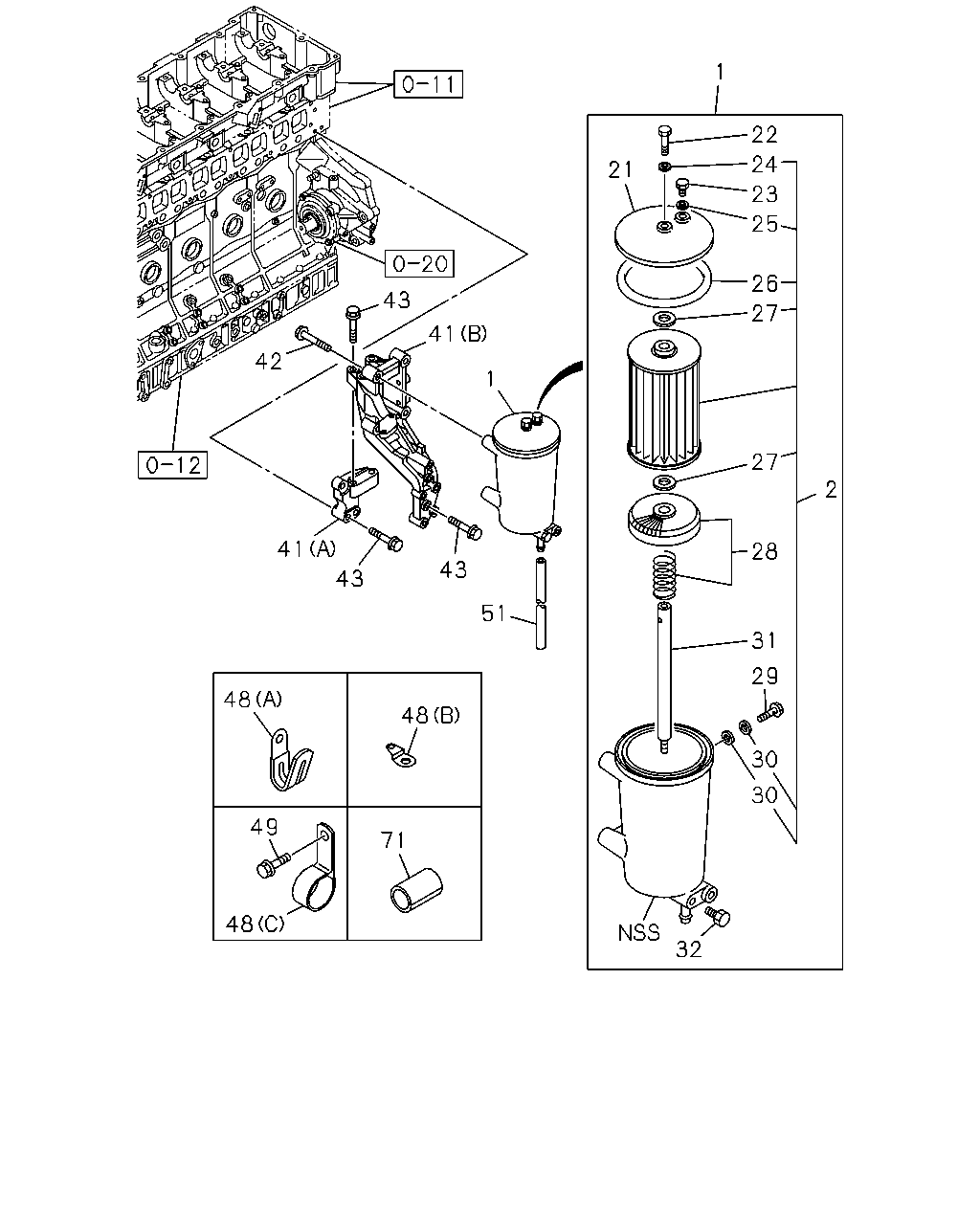

0-41 — FUEL FILTER AND BRACKET
(#119468) — 26 parça
22
23
24
25
26
27
27
2
28
31
29
30
30
32
71
48
49
48
48
51
43
43
41
42
41
43
21
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98175-164-0
01
1
1305-
2
ELEMENT KIT; FUEL FILTER
8-98174-903-0
01
1
1305-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
1305-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
1305-
23
PLUG; COVER
1-13219-074-0
01
1
1305-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
1305-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
1305-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
1305-
27
GASKET; ELEMENT
1-09630-007-0
02
1
1305-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
1305-
29
VALVE; OVERFLOW
1-13260-116-0
01
1
1305-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
1305-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
1305-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
1305-
41
BRACKET; FUEL FILTER
(A)
8-97603-935-1
01
1
1305-
41
BRACKET; FUEL FILTER
(B)
8-97606-620-1
01
1
1305-
42
BOLT; FUEL FILTER
M10X45 FLANGE THA
0-28051-045-0
04
1
1305-
43
BOLT; BRKT
M10X45 FLANGE THA
0-28151-045-0
07
1
1305-
48
CLIP; VINYL PIPE
(C) ID=11 L=20
0-95235-035-0
02
1
1305-1305
48
CLIP; VINYL PIPE
(C)
9-11229-070-0
01
1
1306-
48
CLIP; VINYL PIPE
(A) ID=21 L=47.5
8-94178-108-0
01
1
1305-
48
CLIP; VINYL PIPE
(B) L=250
8-98216-430-0
02
1
1305-
49
BOLT; CLIP
M8X16 FLANGE THA
0-28050-816-0
02
1
1305-1305
51
PIPE; VINYL
L=950 SERVICED BY L=10000
9-09914-909-0
01
1
1305-1305
51
PIPE; VINYL
L=600 SERVICED BY L=10000
9-09914-909-0
01
1
1306-
71
SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30
9-09956-682-0
02
1
1305-
