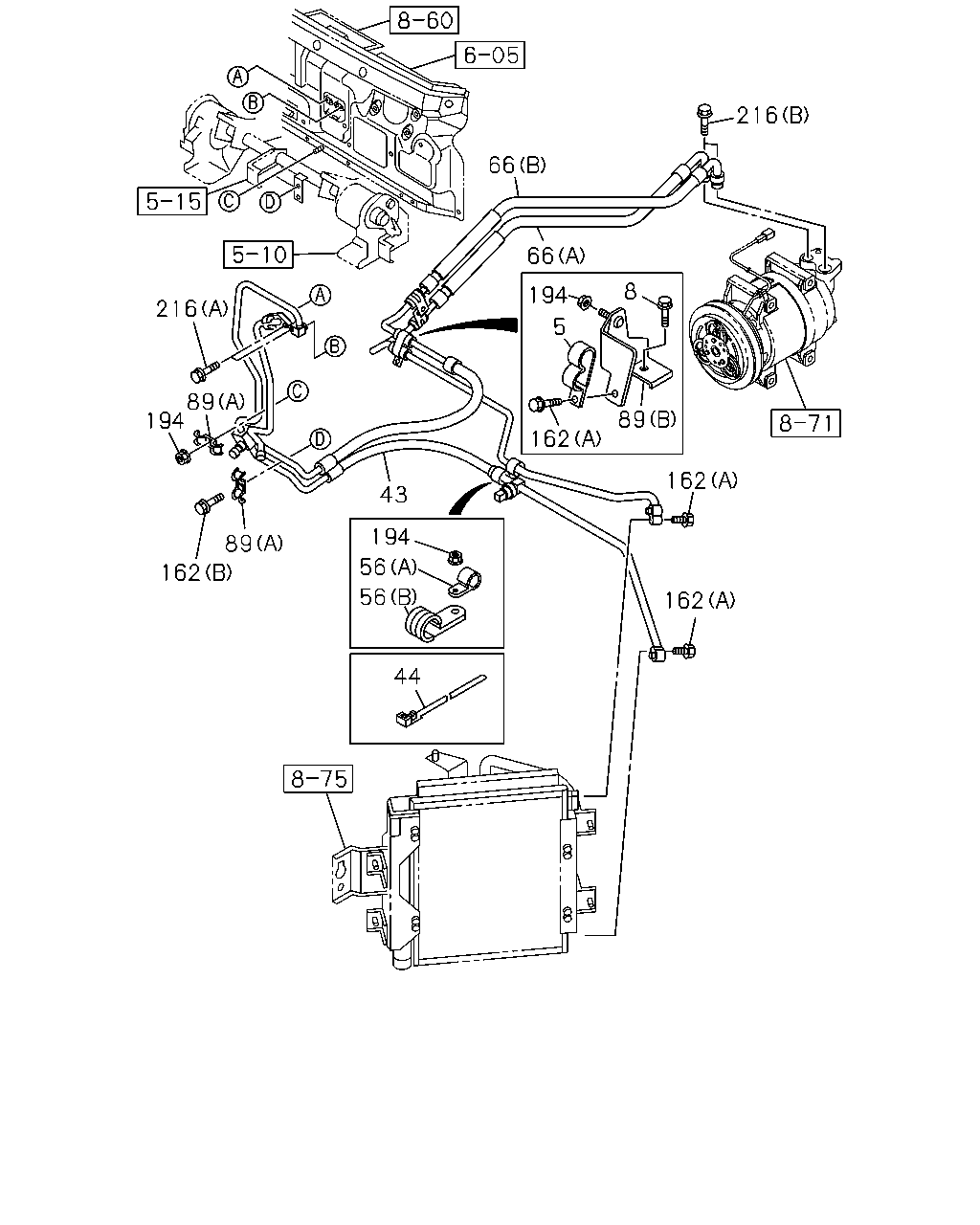

8-52 — PIPING; AIR CONDITIONING (#119464) — 28 parça

162 44 56 194 162 162 43 56 162 89 89 5 194 66 216 66 216 89 194 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; FLEX HOSE,A/C COOLER WO/HEATER<C65> IMA	8-98052-857-0	01	1	1304-	●	●
8	BOLT; CLIP COOLER WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE IMA	8-98179-006-0	01	1	1304-	●	●
44	CLIP; FLEX HOSE COOLER WO/HEATER<C65> L=250 IMA	5-09707-030-1	01	1	1304-	●	●
44	CLIP; FLEX HOSE COOLER WO/HEATER<C65> L=350 IMA	8-94152-256-1	01	1	1304-	●	●
56	CLIP; PIPE,A/C COOLER WO/HEATER<C65> (A) ID=13 L=20 IMA	0-95235-232-0	01	1	1304-	●	●
56	CLIP; PIPE,A/C COOLER WO/HEATER<C65> (B) IMA	8-98032-641-0	01	1	1304-	●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (B) HIGH PRESSURE	8-98098-289-0	01	1	1304-	●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A) LOW PRESSURE	8-98159-629-1	01	1	1304-	●	●
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (B) IMA	8-98002-365-2	01	1	1304-	●	●
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (A) IMA	8-98151-264-0	02	1	1304-	●	●
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	1304-	●	●
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (A) M6X25 FLANGE THA	0-28650-625-0	03	1	1304-	●	●
194	NUT; HOSE COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	03	1	1304-	●	●
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> (A) M6X30 FLANGE THA	0-28650-630-0	02	1	1304-	●	●
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●

148 147 43 66 50 202 50 67 67 66 148 147 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE IMA	8-98179-006-0	01	1	1304-	●	●
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<C65> ID=7.5 IMA	1-83539-316-0	02	1	1304-	●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (B) HIGH PRESSURE	8-98098-289-0	01	1	1304-	●	●
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A) LOW PRESSURE	8-98159-629-1	01	1	1304-	●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (A) ID=11.7 THA	8-97095-907-0	02	1	1304-	●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (B) ID=14.5 THA	8-97095-908-0	01	1	1304-	●	●
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (C) ID=17.6 THA	8-98036-895-0	01	1	1304-	●	●
147	CAP; FLEX HOSE COOLER WO/HEATER<C65> (B) CAP MARK H THA	8-97095-911-0	01	1	1304-	●	●
147	CAP; FLEX HOSE COOLER WO/HEATER<C65> (A) CAP MARK L THA	1-83539-331-0	01	1	1304-	●	●
148	VALVE; FLEX HOSE COOLER WO/HEATER<C65> (B) IMA	8-98031-629-0	01	1	1304-	●	●
148	VALVE; FLEX HOSE COOLER WO/HEATER<C65> (A) THA	8-97095-909-0	01	1	1304-	●	●
202	SWITCH; PRESSURE COOLER WO/HEATER<C65> IMA	1-83564-392-1	01	1	1304-	●	●
