◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#119463) — 93 parça
çizim 351464
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 1305-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1305-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1305-

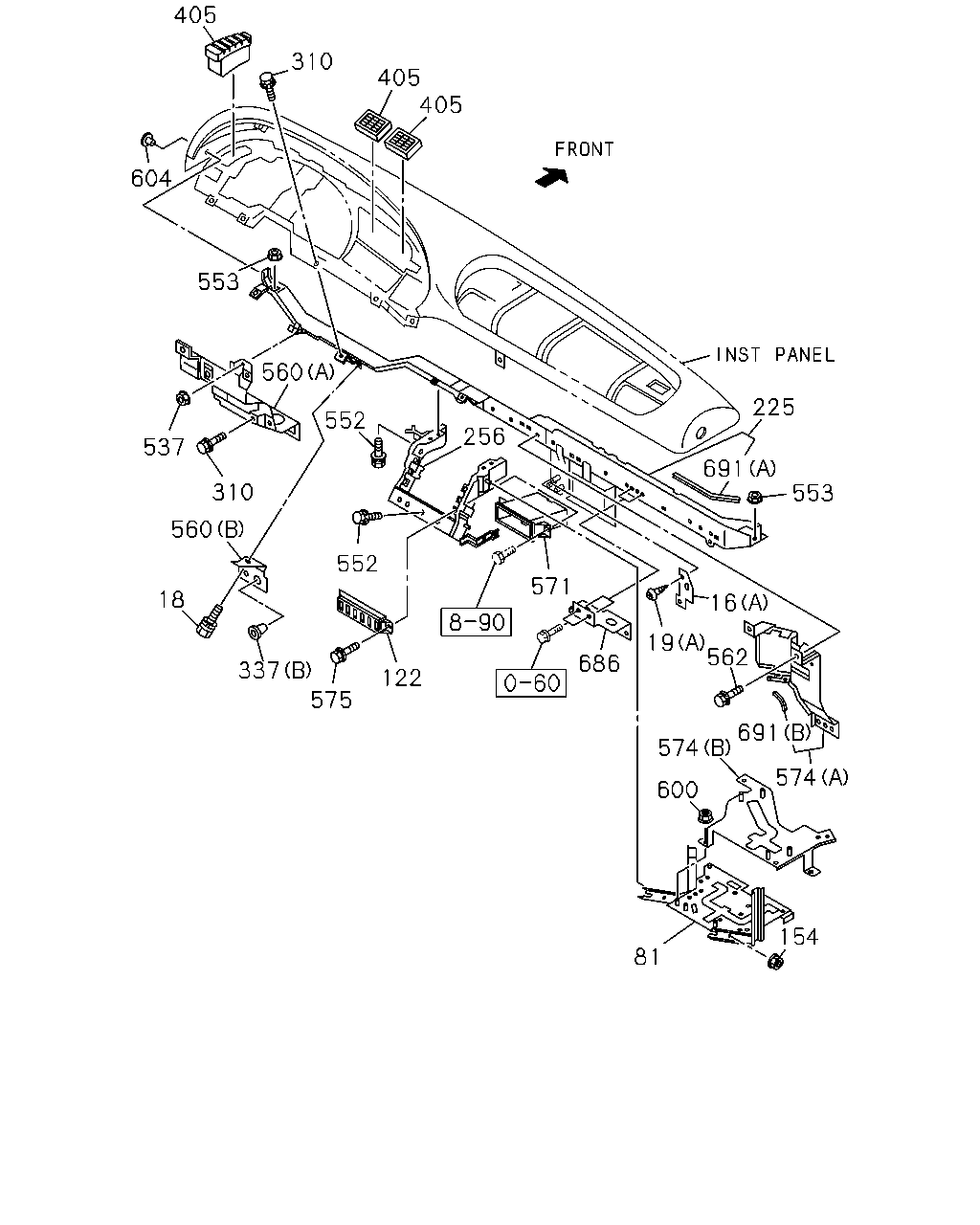

çizim 351481
405 310 405 405 553 604 560 537 552 256 571 552 310 560 18 337 122 575 686 16 562 19 691 574 600 574 154 81 553 691 225
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1305-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1305-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 1305-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1305-
19 SCREW; BRKT
(C) M6X16 		8-94479-534-0 04 1 1305-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1305-
81 BRACKET; ELEC CONT UNIT 8-98198-560-0 01 1 1305-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1305-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1305-
225 FRAME; FACIA 8-98228-413-1 01 1 1305-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1305-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1305-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 1305-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1305-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1305-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1305-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1305-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1305-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1305-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1305-
560 BRACKET
(C) 		8-98222-028-1 01 1 1305-
560 BRACKET
(A) 		8-98155-951-0 01 1 1305-
560 BRACKET
(B) 		8-98222-027-1 01 1 1305-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1305-
571 BEZEL; POCKET 1-72438-151-3 01 1 1305-
571 BEZEL; POCKET
EXC. RADIO AM/FM(U69) 		1-72438-151-3 01 1 1305-
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1305-
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1305-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1305-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1305-
604 CLIP; INST PAD 1-09983-123-0 01 1 1305-
686 BRACKET; SENSOR & RELAY 1-65681-227-1 01 1 1305-
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1305-
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1305-

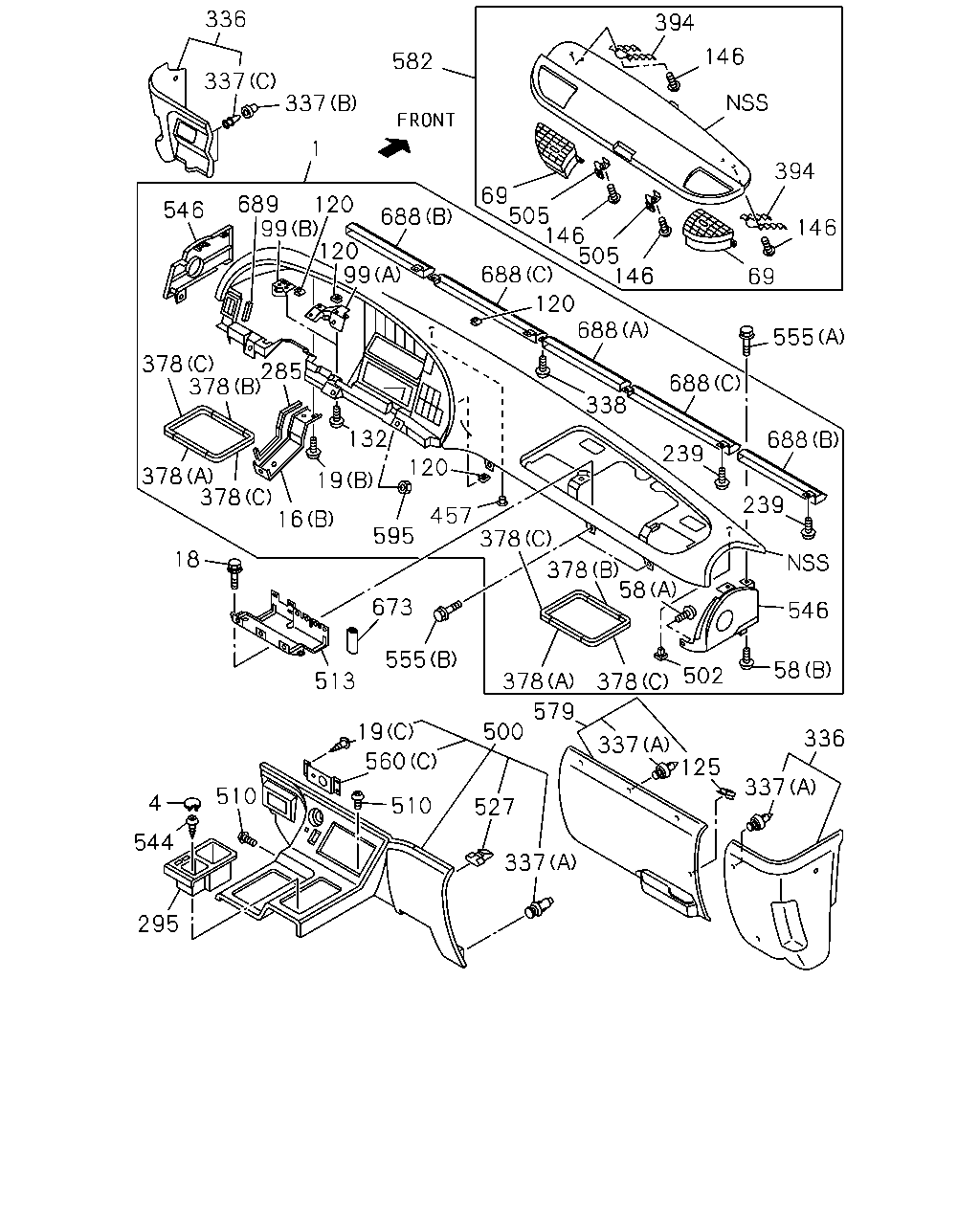

çizim 352693
4 544 295 510 510 560 19 500 527 337 579 337 125 337 336 513 555 673 18 378 378 502 58 546 239 239 338 58 378 378 457 595 16 19 132 120 378 378 378 378 285 546 689 99 120 120 99 688 688 688 688 120 688 555 69 146 394 146 394 69 505 146 505 146 582 337 337 336 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-370-2 01 1 1305-
4 COVER; INST PNL 1-72537-106-0 01 1 1305-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1305-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1305-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 1305-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1305-
19 SCREW; BRKT
(C) M6X16 		8-94479-534-0 04 1 1305-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1305-
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1305-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1305-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1305-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1305-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1305-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1305-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1305-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1305-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1305-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1305-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1305-
285 FINISHER; INST PANEL
SERVICED BY L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1305-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1305-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1305-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1305-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 1305-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1305-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1305-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1305-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1305-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1305-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1305-
394 HOLDER; PANEL 1-72558-048-0 02 1 1305-
457 PLATE; INST PANEL 1-72317-363-2 08 1 1305-
500 CLUSTER; INST CENTER 8-98222-024-0 01 1 1305-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1305-
505 LOCK; LID 1-72558-024-2 02 1 1305-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 03 1 1305-
513 BRACKET; RELAY 8-97865-168-3 01 1 1305-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 1305-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1305-
546 PANEL; INST,SUB 1-72317-354-4 01 1 1305-
546 PANEL; INST,SUB 1-72317-355-4 01 1 1305-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1305-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1305-
560 BRACKET
(C) 		8-98222-028-1 01 1 1305-
560 BRACKET
(A) 		8-98155-951-0 01 1 1305-
560 BRACKET
(B) 		8-98222-027-1 01 1 1305-
579 COVER; INST PNL 1-72438-195-1 01 1 1305-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1305-
595 NUT; HOOK 1-72418-013-0 06 1 1305-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1305-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1305-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1305-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1305-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1305-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1305-
689 SEAL; INST 1-72317-364-0 01 1 1305-
