Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#119462) — 131 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[322A] FIXING NO.1 (26 parça)
[322A] FIXING NO.2 (22 parça)
[322A] RELAY VALVE NO.1 (21 parça)
[322A] RELAY VALVE NO.2 (21 parça)
[322A] REPAIR KIT;AIR CONT GOV (1 parça)
[322A] FIXING NO.3 (39 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶

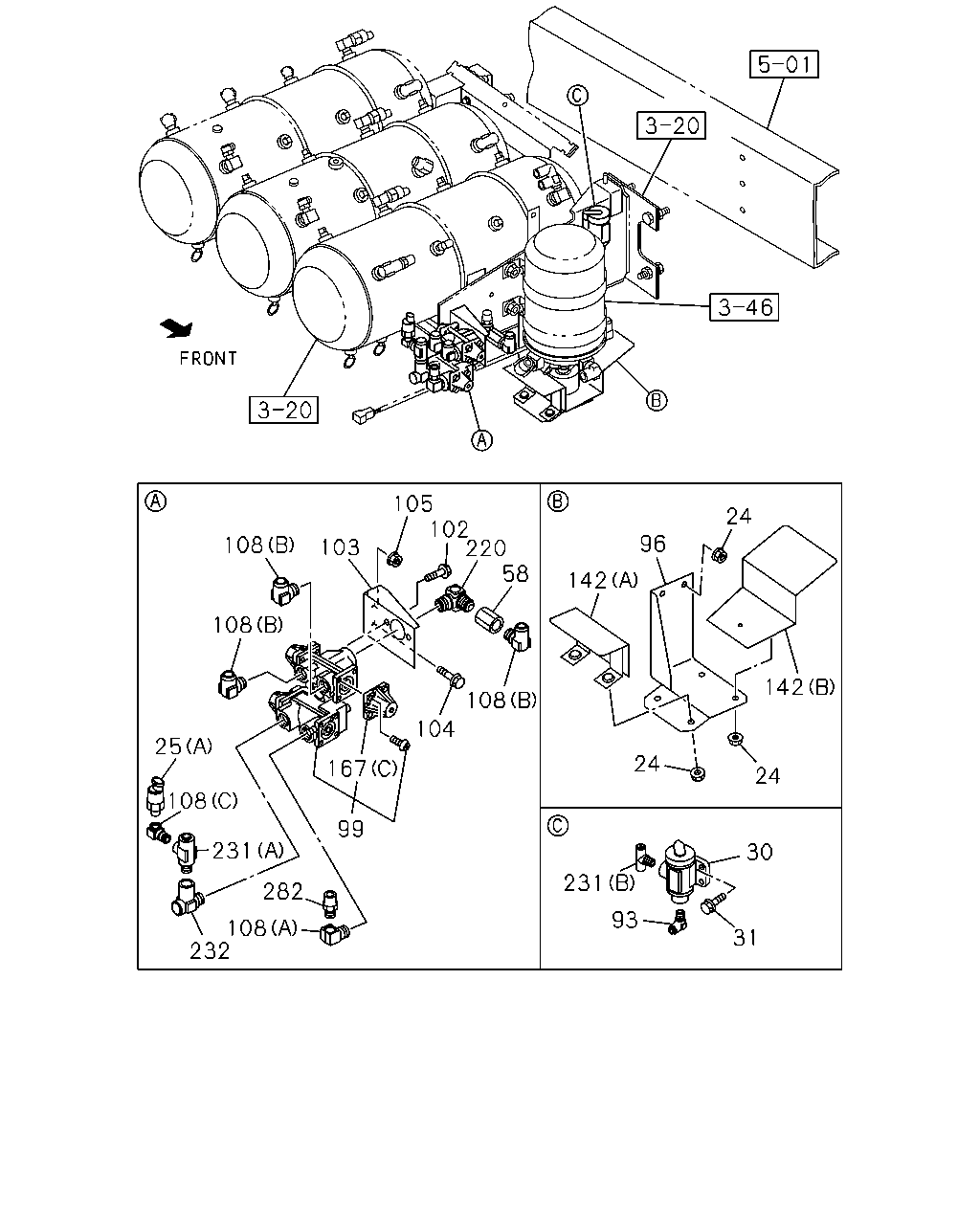

108
103
105
58
220
102
108
104
167
99
282
108
232
231
108
25
108
24
96
142
142
24
24
30
31
93
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
NUT
M8 FLANGE THA
0-91180-108-0
06
1
1305-
●
●
25
SWITCH; PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
1305-
●
●
25
SWITCH; PRESSURE
(B)
8-98010-856-1
01
1
1305-
●
●
30
GOVERNOR; AIR CONT
1-48350-063-2
01
1
1305-
●
●
31
BOLT; GOV TO FRAME
M8X30 FLANGE THA
0-28650-830-0
02
1
1305-
●
●
58
ADAPTER
M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1305-
●
●
93
CONNECTOR; GOV
DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1305-
●
●
96
BRACKET
THA
8-97926-469-0
01
1
1305-
●
●
99
VALVE; PROTECTION
1-48110-288-2
01
1
1305-
●
●
102
BOLT; PROTECTION VALVE
M8X16 FLANGE THA
0-28050-816-0
02
1
1305-
●
●
103
BRACKET; PROTECTION VALVE
8-98093-563-0
01
1
1305-
●
●
104
BOLT; BRKT,VALVE
M10X20 FLANGE THA
0-28651-020-0
01
1
1305-
●
●
105
NUT; BRKT,VALVE
M10 FLANGE THA
0-91180-210-0
01
1
1305-
●
●
108
CONNECTOR; ELBOW
(C) PT1/4 2WAY
1-09660-693-0
01
1
1305-
●
●
108
CONNECTOR; ELBOW
(A) PT3/8 ELBOW
1-09660-696-0
01
1
1305-
●
●
108
CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1305-
●
●
142
PROTECTOR; HEAT
(A)
8-98093-437-1
01
1
1305-
●
●
142
PROTECTOR; HEAT
(B)
8-98093-438-1
01
1
1305-
●
●
167
COVER; VALVE
(C)
1-48119-625-0
04
1
1305-
●
●
167
COVER; VALVE
(B)
1-48219-050-1
01
1
1305-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1305-
●
●
220
CONNECTOR; 3WAY
8-98031-238-0
01
1
1305-
●
●
231
CONNECTOR; NYLON TUBE
(A)
1-09661-027-0
01
1
1305-
●
●
231
CONNECTOR; NYLON TUBE
(B)
1-09661-073-0
01
1
1305-
●
●
232
VALVE; CHECK
8-98032-527-0
01
1
1305-
●
●
282
CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1305-
●
●

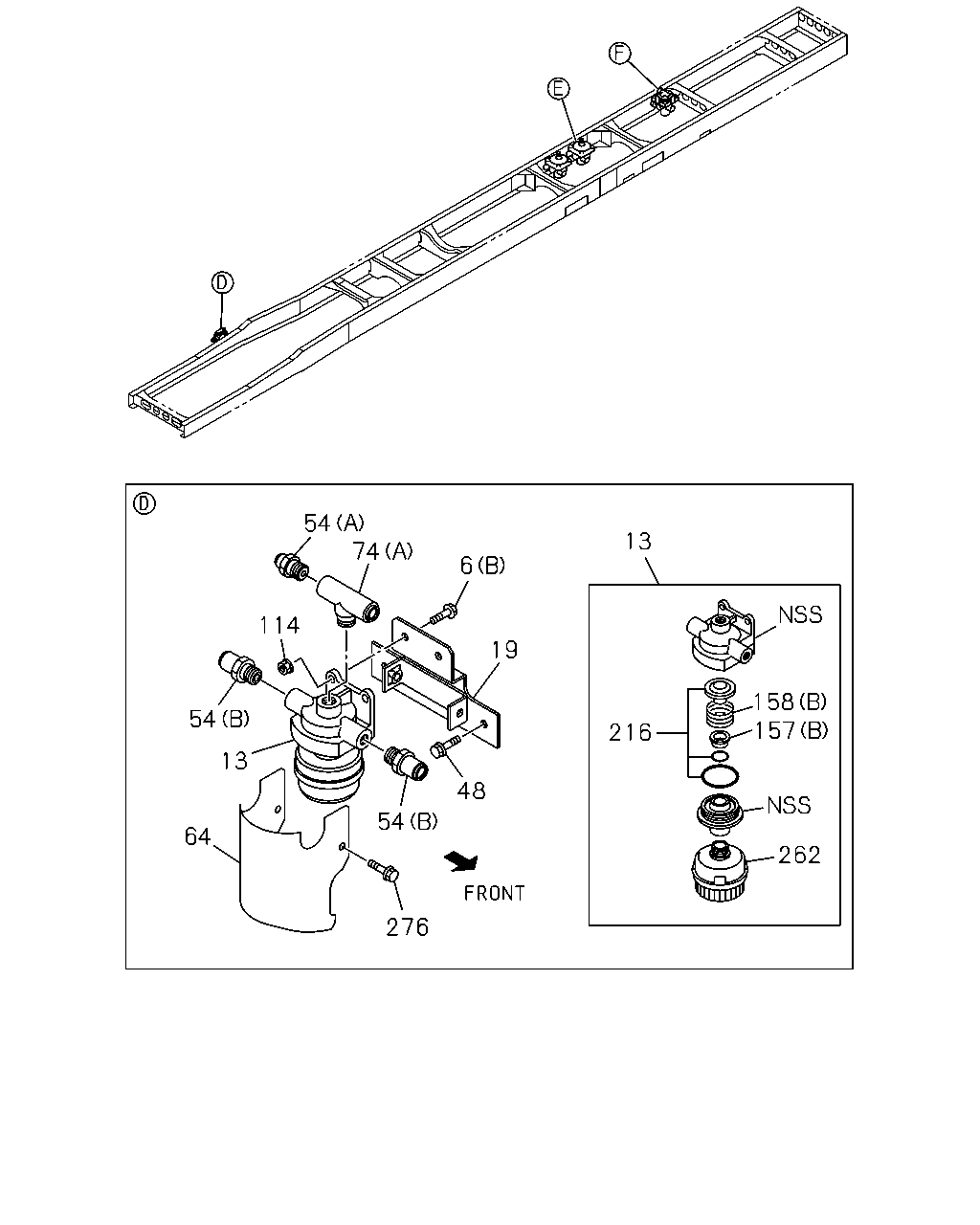

54
114
74
19
6
48
54
276
64
54
13
13
216
262
157
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
BOLT; VLV
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
●
●
6
BOLT; VLV
(A) M8X30 FLANGE THA
0-28650-830-0
02
1
1305-
●
●
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
1305-
●
●
19
BRACKET; QUICK RELEASE VLV
1-47471-014-0
01
1
1305-
●
●
48
BOLT; QUICK RELEASE VLV
M8X30 FLANGE THA
0-28650-830-0
02
1
1305-
●
●
54
CONNECTOR; QUICK RELEASE VLV
(A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1305-
●
●
54
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1305-
●
●
64
PROTECTOR; QUICK RELEASE VALVE
8-98043-421-0
01
1
1305-
●
●
74
CONNECTOR; 3WAY
(A)
1-09661-232-0
01
1
1305-
●
●
74
CONNECTOR; 3WAY
(C)
1-09656-708-0
01
1
1305-
●
74
CONNECTOR; 3WAY
(D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1305-
●
74
CONNECTOR; 3WAY
(B) PT3/8 3WAY
1-09661-300-0
01
1
1305-
●
114
NUT; VLV
M8 FLANGE THA
0-91180-108-0
02
1
1305-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1305-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
02
1
1305-
●
●
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1305-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1305-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
02
1
1305-
●
●
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1305-
●
●
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-484-0
01
1
1305-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1305-
●
●
276
BOLT; PROTECTOR
M8X20 FLANGE THA
0-28650-820-0
02
1
1305-
●
●

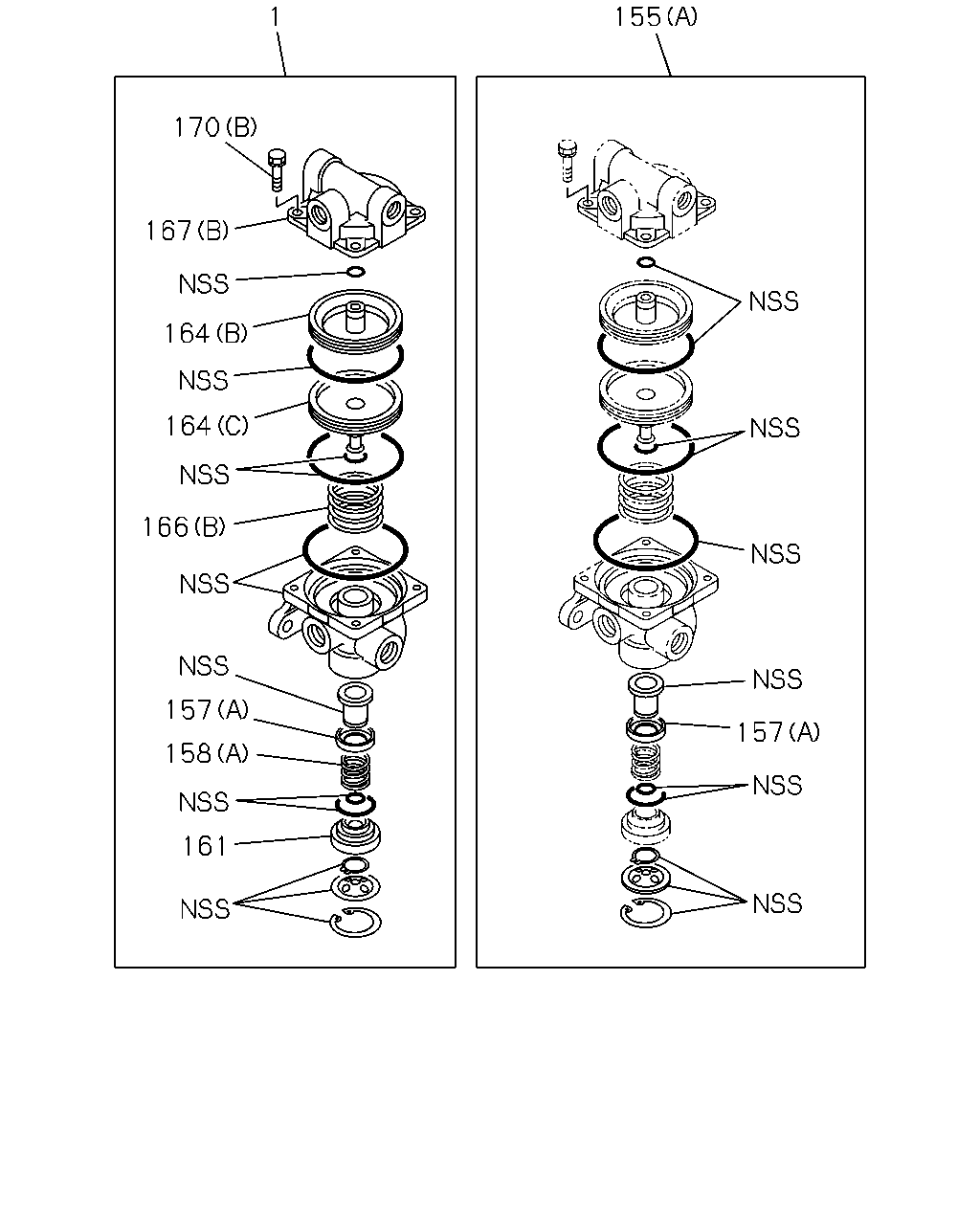

170
167
164
164
166
157
158
161
157
1
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; RELAY RWD RR
1-48240-041-1
01
1
1305-
●
●
155
REPAIR KIT; RELAY VALVE
(B)
1-85576-033-0
02
1
1305-
●
●
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-035-0
01
1
1305-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1305-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
02
1
1305-
●
●
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1305-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1305-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
02
1
1305-
●
●
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1305-
●
●
161
GUIDE; VALVE
1-48129-014-0
01
1
1305-
●
●
161
GUIDE; VALVE
1-48129-014-0
02
1
1305-
●
●
164
PISTON; RELAY VALVE
(C)
1-48219-032-0
01
1
1305-
●
●
164
PISTON; RELAY VALVE
(B)
1-48219-047-0
01
1
1305-
●
●
164
PISTON; RELAY VALVE
(A)
1-48219-071-0
02
1
1305-
●
●
166
SPRING; PISTON
(A)
1-47819-090-0
02
1
1305-
●
●
166
SPRING; PISTON
(B)
1-48219-048-0
01
1
1305-
●
●
167
COVER; VALVE
(C)
1-48119-625-0
04
1
1305-
●
●
167
COVER; VALVE
(B)
1-48219-050-1
01
1
1305-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1305-
●
●
170
SCREW; COVER TO BODY
(A)
1-48219-039-0
08
1
1305-
●
●
170
SCREW; COVER TO BODY
(B)
1-48219-041-0
04
1
1305-
●
●

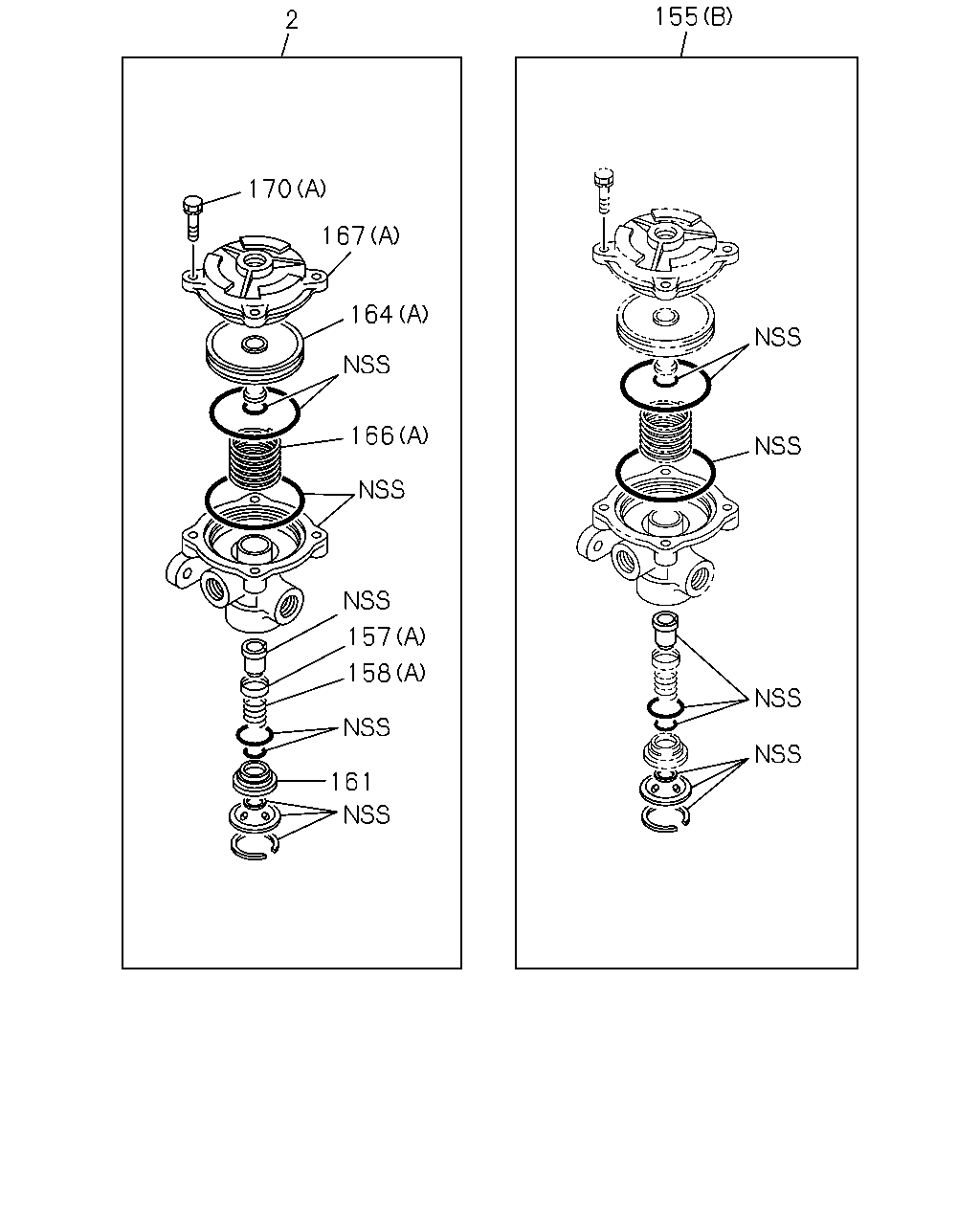

2
155
170
167
164
166
157
158
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
VALVE; RELAY
1-48210-875-0
02
1
1305-
●
●
155
REPAIR KIT; RELAY VALVE
(B)
1-85576-033-0
02
1
1305-
●
●
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-035-0
01
1
1305-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1305-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
02
1
1305-
●
●
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1305-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1305-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
02
1
1305-
●
●
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1305-
●
●
161
GUIDE; VALVE
1-48129-014-0
01
1
1305-
●
●
161
GUIDE; VALVE
1-48129-014-0
02
1
1305-
●
●
164
PISTON; RELAY VALVE
(C)
1-48219-032-0
01
1
1305-
●
●
164
PISTON; RELAY VALVE
(B)
1-48219-047-0
01
1
1305-
●
●
164
PISTON; RELAY VALVE
(A)
1-48219-071-0
02
1
1305-
●
●
166
SPRING; PISTON
(A)
1-47819-090-0
02
1
1305-
●
●
166
SPRING; PISTON
(B)
1-48219-048-0
01
1
1305-
●
●
167
COVER; VALVE
(C)
1-48119-625-0
04
1
1305-
●
●
167
COVER; VALVE
(B)
1-48219-050-1
01
1
1305-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1305-
●
●
170
SCREW; COVER TO BODY
(A)
1-48219-039-0
08
1
1305-
●
●
170
SCREW; COVER TO BODY
(B)
1-48219-041-0
04
1
1305-
●
●
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
1305-
●
●

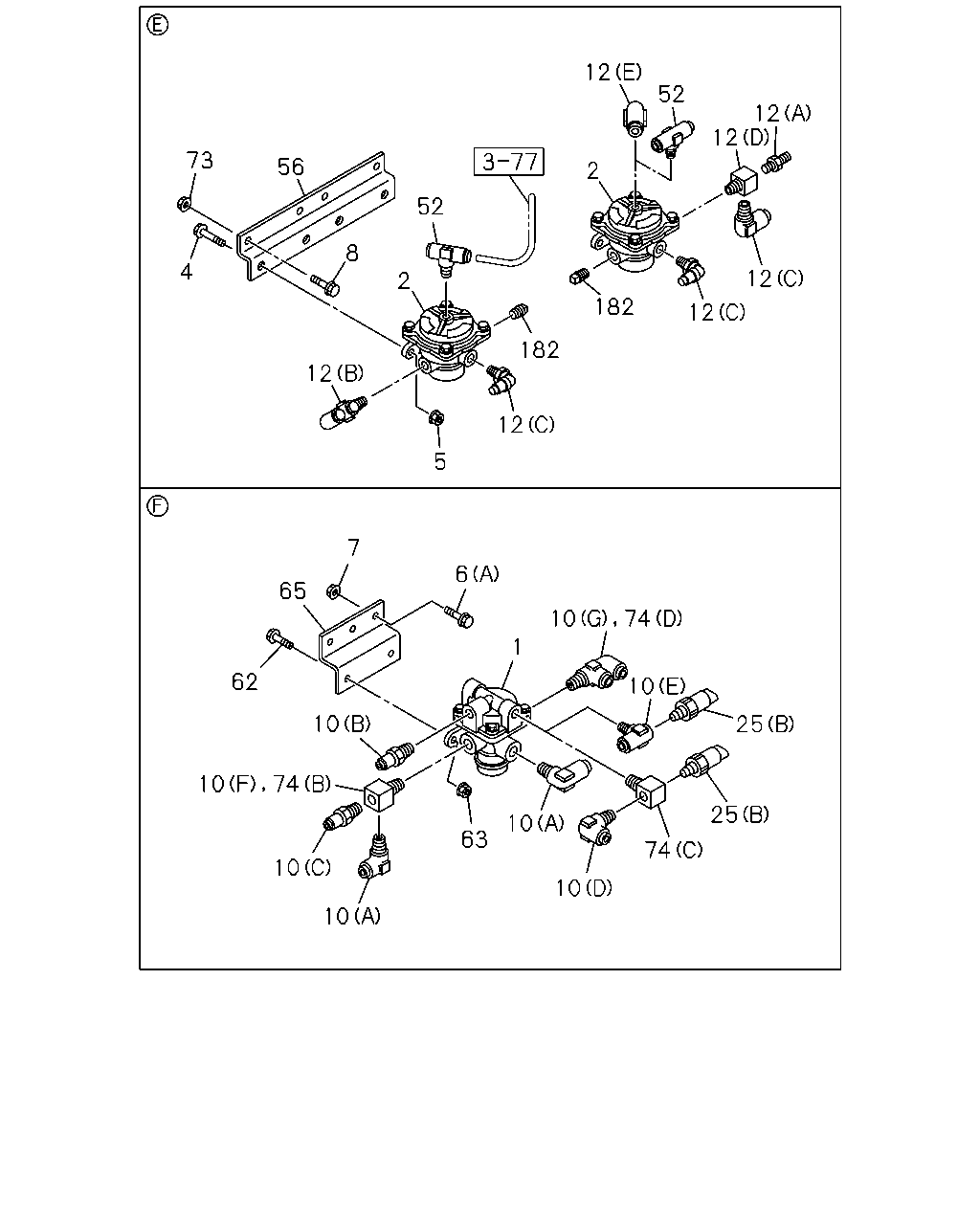

73
56
4
8
52
2
12
182
12
5
182
12
12
12
12
52
12
2
7
65
6
62
10
10
74
10
10
63
10
25
25
10
10
74
10
74
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; RELAY RWD RR
1-48240-041-1
01
1
1305-
●
●
2
VALVE; RELAY
1-48210-875-0
02
1
1305-
●
●
4
BOLT; RELAY VLV TO BRKT
M10X30 FLANGE THA
0-28651-030-0
04
1
1305-
●
●
5
NUT
M10 FLANGE THA
0-91180-210-0
04
1
1305-
●
●
6
BOLT; VLV
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
●
●
6
BOLT; VLV
(A) M8X30 FLANGE THA
0-28650-830-0
02
1
1305-
●
●
7
NUT; RELAY VLV
M8 FLANGE THA
0-91180-108-0
02
1
1305-
●
●
8
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
04
1
1305-
●
●
10
CONNECTOR
WHEEL BASE 5300MM<53W> (G) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1305-
●
10
CONNECTOR
WHEEL BASE 5300MM<53W> (F) PT3/8 3WAY
1-09661-300-0
01
1
1305-
●
10
CONNECTOR
WHEEL BASE 5300MM<53W> (E) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
1305-
●
10
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1305-
●
●
10
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1305-
●
●
10
CONNECTOR
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1305-
●
●
10
CONNECTOR
(D) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
(E) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1305-
●
12
CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1305-
●
12
CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
(B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
(D) PT3/8 3WAY
1-09661-300-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) PT3/8 3WAY
1-09661-300-0
01
1
1305-
●
12
CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM<BFA> (C) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1305-
●
25
SWITCH; PRESSURE
(A) STAMP 5.5
8-97609-249-0
01
1
1305-
●
●
25
SWITCH; PRESSURE
(B)
8-98010-856-1
01
1
1305-
●
●
52
CONNECTOR; RELAY VLV
DIN8X2 & R3/8 3WAY
1-09660-996-0
01
1
1305-
●
52
CONNECTOR; RELAY VLV
DIN8X2 & R3/8 3WAY
1-09660-996-0
02
1
1305-
●
56
BRACKET; RELAY VLV
1-47479-937-0
01
1
1305-
●
●
62
BOLT; BRKT FIX
M10X30 FLANGE THA
0-28651-030-0
02
1
1305-
●
●
63
NUT; BRKT FIX
M10 FLANGE THA
0-91180-210-0
02
1
1305-
●
●
65
BRACKET; RELAY VLV RR
1-47479-328-0
01
1
1305-
●
●
73
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1305-
●
●
74
CONNECTOR; 3WAY
(A)
1-09661-232-0
01
1
1305-
●
●
74
CONNECTOR; 3WAY
(C)
1-09656-708-0
01
1
1305-
●
74
CONNECTOR; 3WAY
(D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1305-
●
74
CONNECTOR; 3WAY
(B) PT3/8 3WAY
1-09661-300-0
01
1
1305-
●
182
PLUG; RELAY VLV
PT3/8
9-09204-517-0
02
1
1305-
●
●
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-1
01
1
1305-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
