Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#119461) — 55 parça
◀

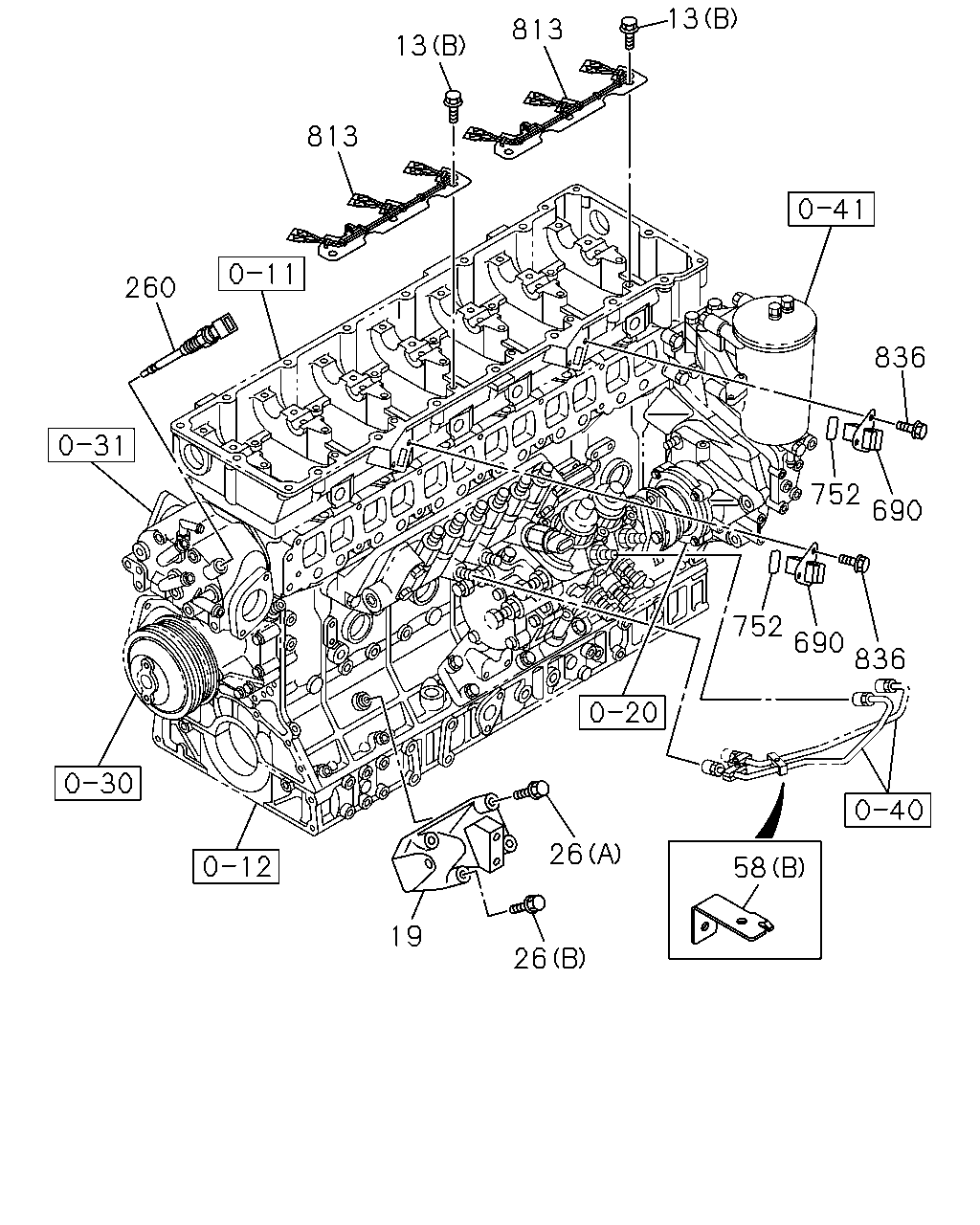

[060A] CYLINDER HEAD SIDE (13 parça)

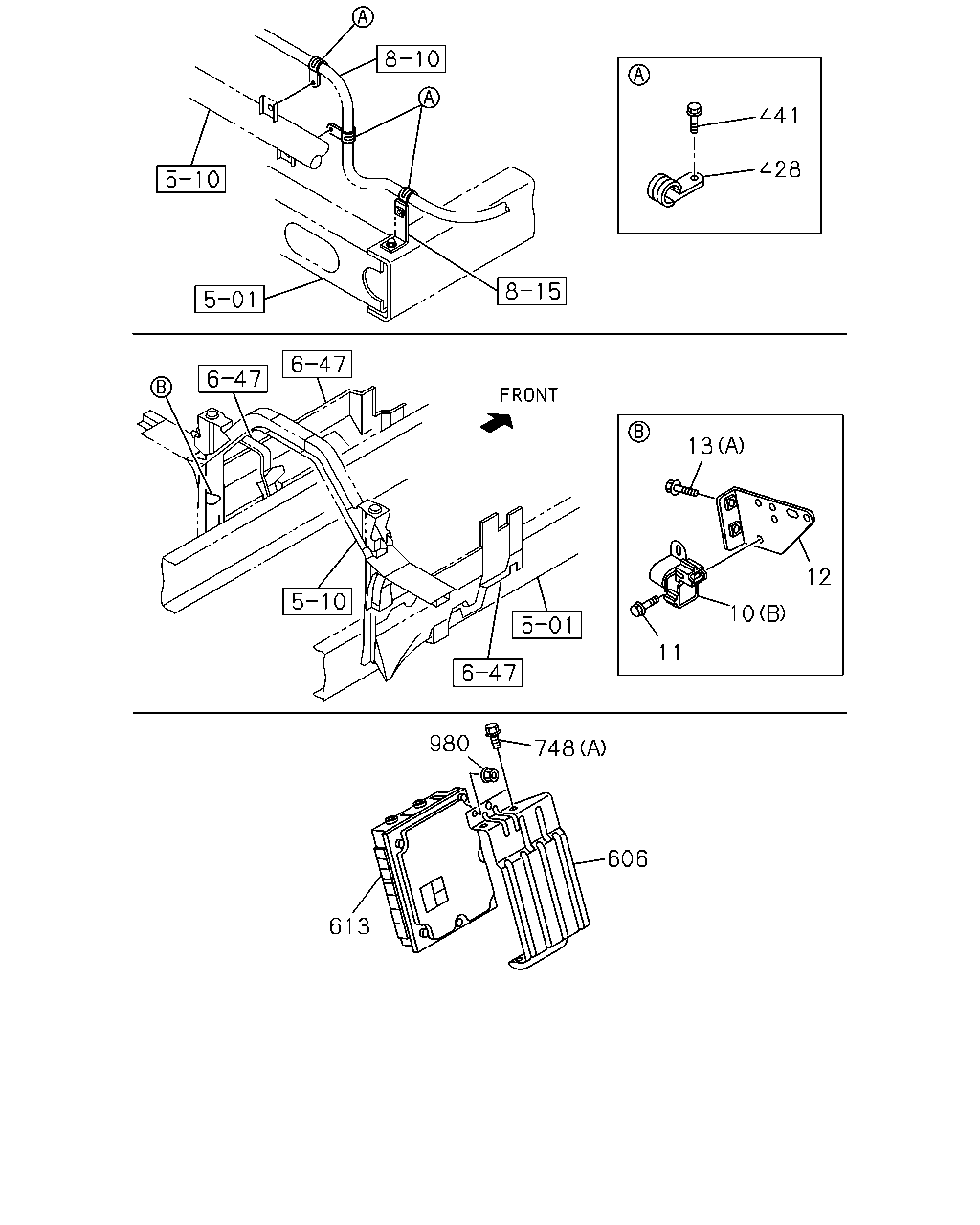

[060A] STARTER CUTOFF RELAY,ENG CONT UNIT,CLI (14 parça)

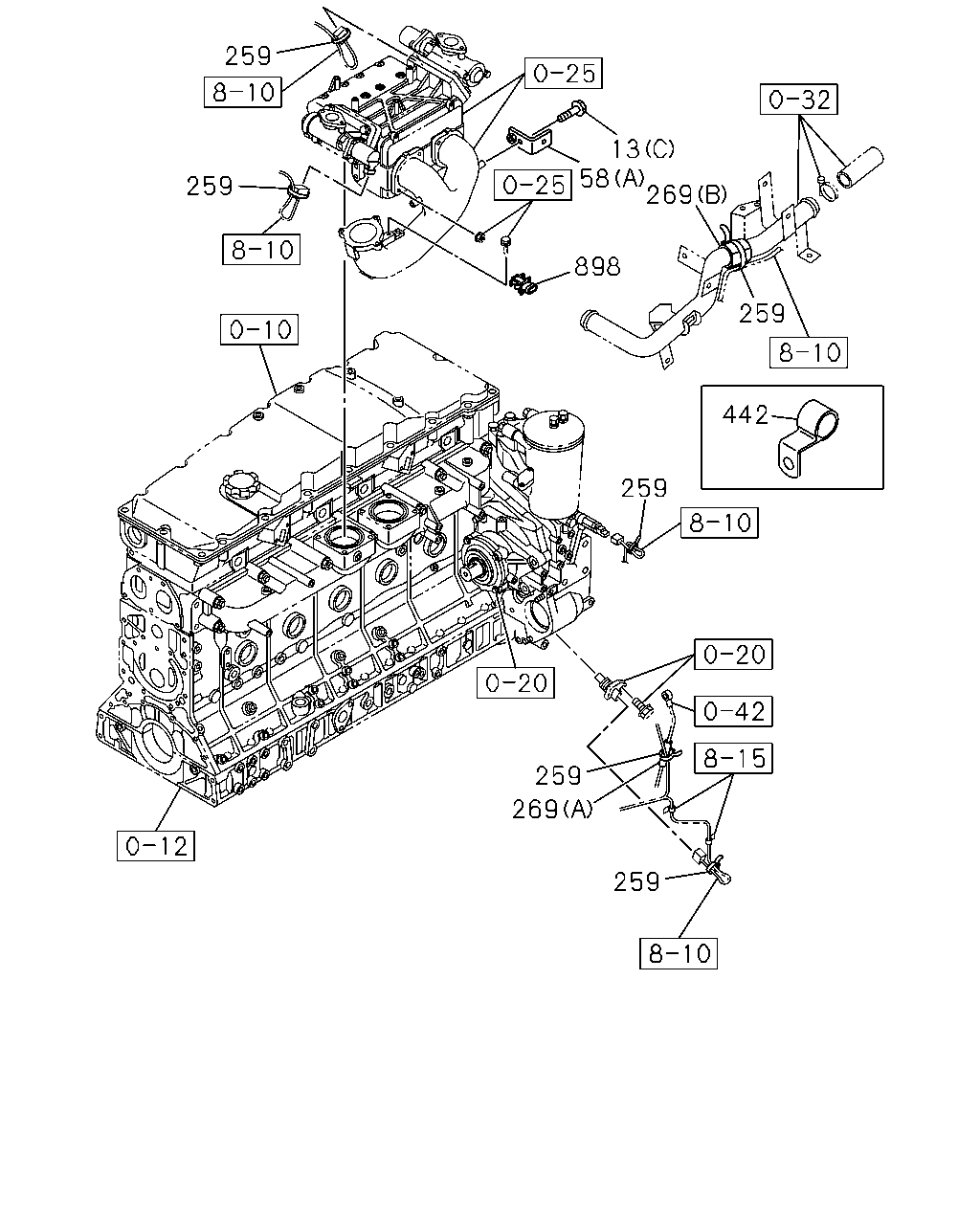

[060A] INLET MANIFOLD AND WATER PIPE SIDE (11 parça)

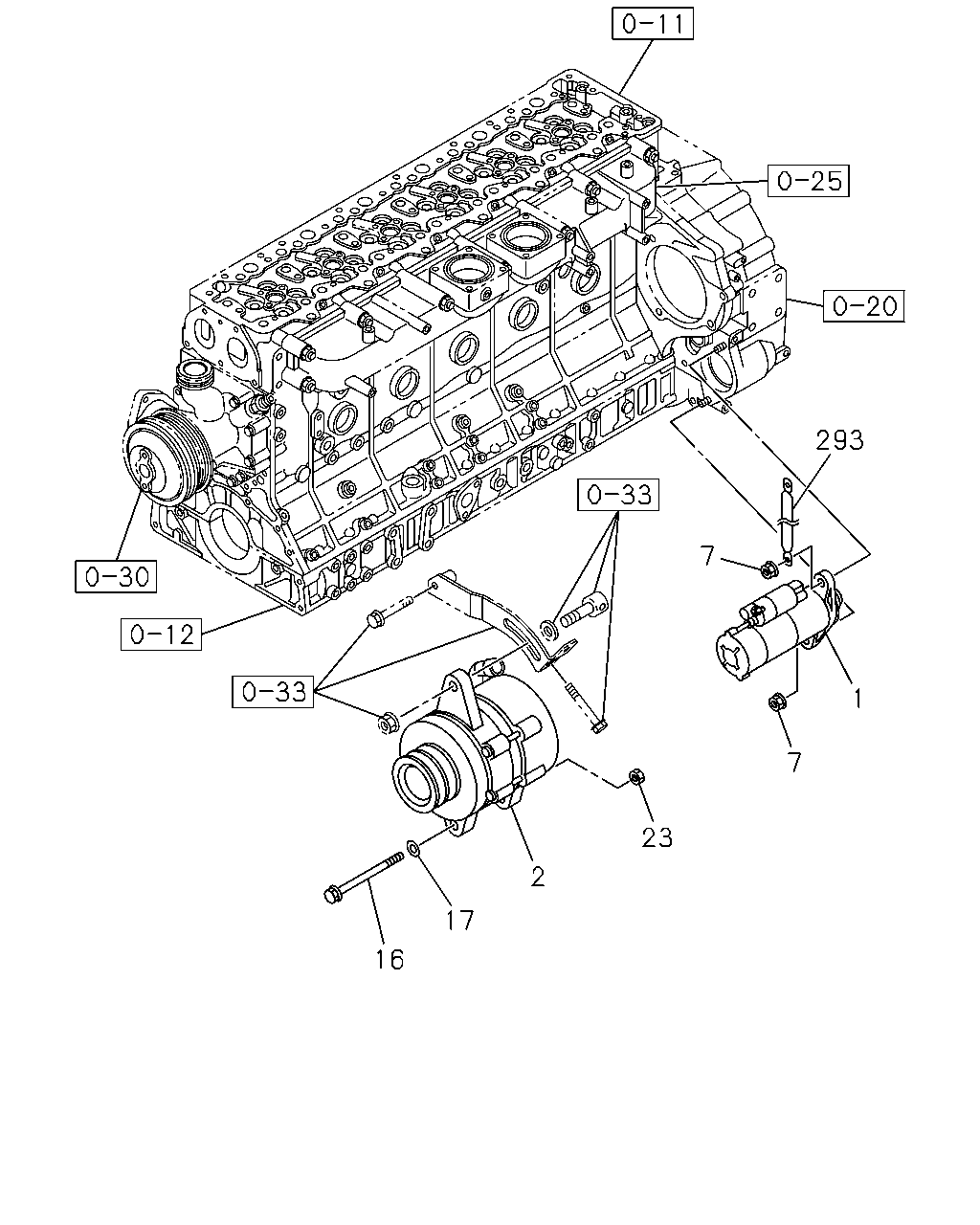

[060A] STARTER AND GENERATOR (7 parça)
[060A] RELAY;FRAME HARNESS (2 parça)

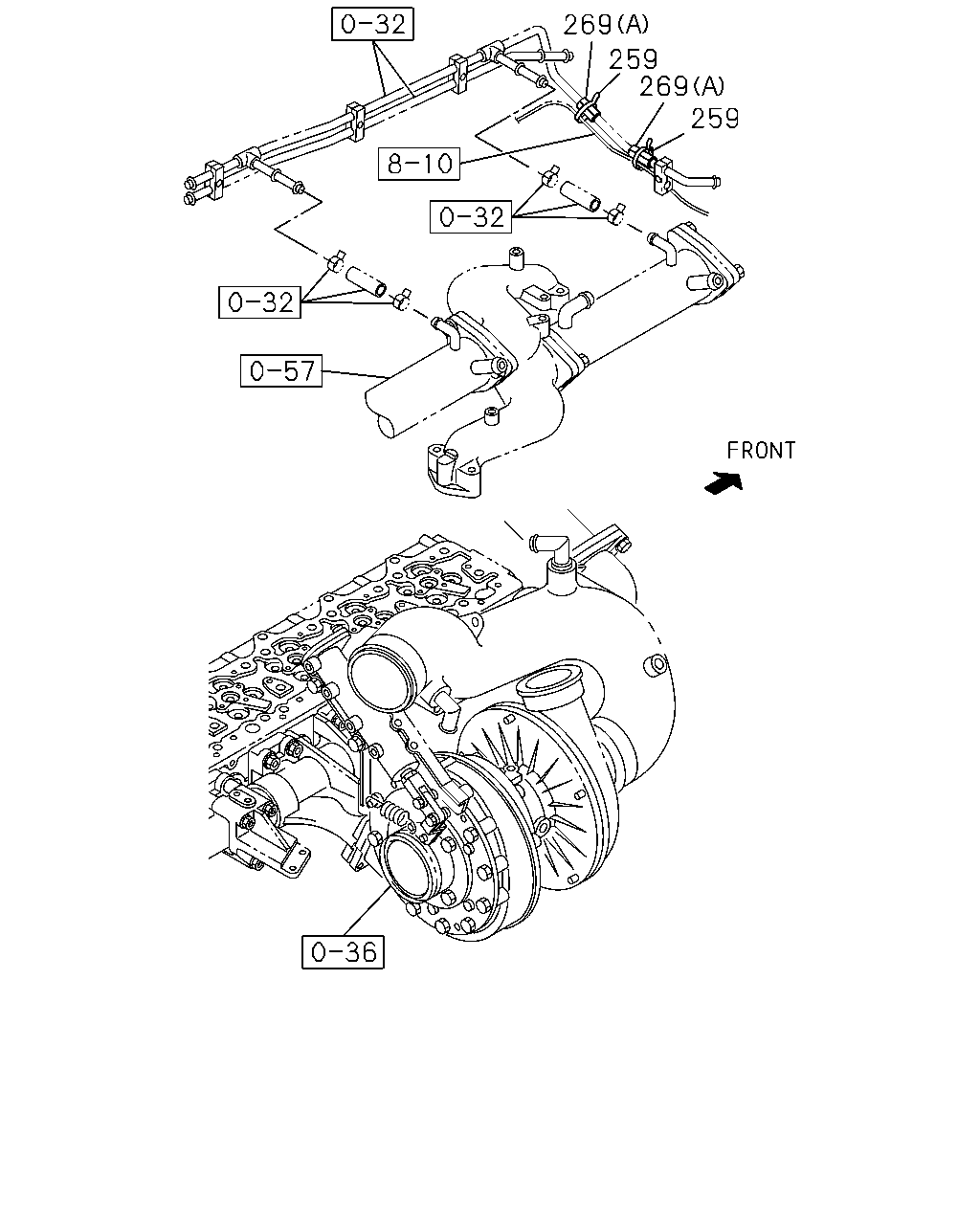

[060A] EGR COOLER SIDE (4 parça)

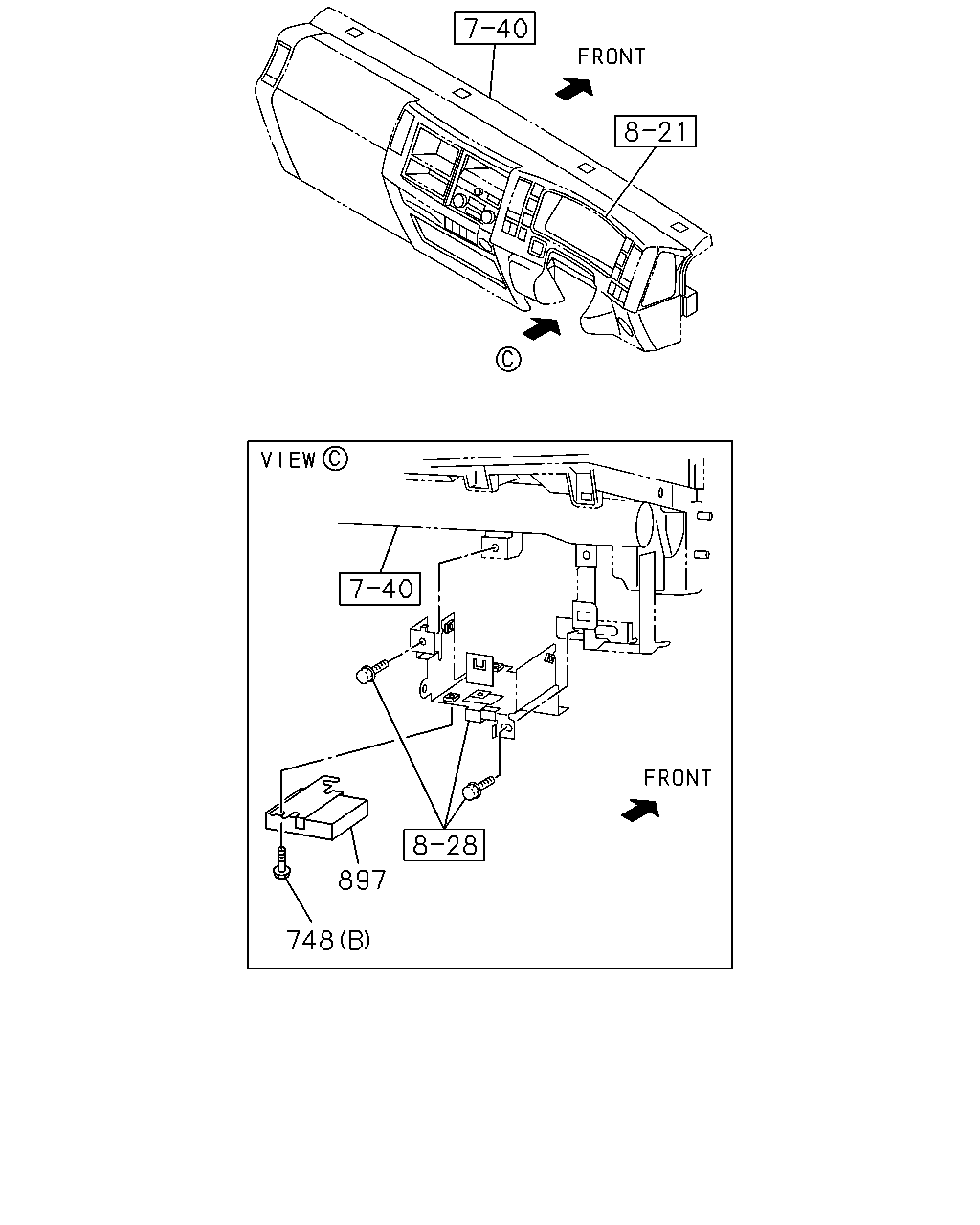

[060A] DRM (4 parça)
▶
13
813
13
813
260
836
690
752
690
836
752
26
26
19
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
(C) M8X16 FLANGE THA
0-28050-816-0
01
1
1305-
13
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
06
1
1305-
13
BOLT; BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
19
BRACKET; GEN
8-97605-943-0
01
1
1305-
26
BOLT; GEN BRKT
(A) M12X50 FLANGE THA
0-28151-250-0
03
1
1305-
26
BOLT; GEN BRKT
(B) M12X70 FLANGE
0-28151-270-0
01
1
1305-
58
BRACKET; CLIP
(A)
8-97612-496-0
01
1
1305-
58
BRACKET; CLIP
(B)
8-97633-825-1
01
1
1305-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
1305-
690
CONNECTOR
8-94390-858-1
02
1
1305-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1305-
813
HARNESS; INJECTOR
8-97603-762-1
02
1
1305-
836
BOLT; CONNECTOR
M8X12 FLANGE THA
0-28050-812-0
04
1
1305-
441
428
13
12
10
11
748
606
613
980
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1305-
10
RELAY; STARTER
(A) 24V 10A
8-98167-173-0
01
1
1305-
11
BOLT; RELAY STARTER
M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
12
BRACKET; STARTER RELAY
8-97620-875-2
01
1
1305-
13
BOLT; BRKT
(C) M8X16 FLANGE THA
0-28050-816-0
01
1
1305-
13
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
06
1
1305-
13
BOLT; BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
428
CLIP; HARNESS
ID=32 L=35
1-09701-244-0
03
1
1305-
441
BOLT; HARNESS TO FRAME
M8X20 FLANGE THA
0-28650-820-0
03
1
1305-
606
BRACKET; CONT UNIT
8-98168-567-0
01
1
1305-
613
CONTROL UNIT; ENG
8-97638-642-1
01
1
1305-
748
BOLT; CONT UNIT
(A) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1305-
748
BOLT; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 FLANGE THA
0-28650-616-0
02
1
1305-
980
NUT; CONT UNIT
M8 FLANGE THA
0-91180-108-0
04
1
1305-
259
259
259
259
898
58
13
259
269
259
442
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
(C) M8X16 FLANGE THA
0-28050-816-0
01
1
1305-
13
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
06
1
1305-
13
BOLT; BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
58
BRACKET; CLIP
(A)
8-97612-496-0
01
1
1305-
58
BRACKET; CLIP
(B)
8-97633-825-1
01
1
1305-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=150
8-97355-273-0
01
1
1305-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
10
1
1305-
269
SLEEVE; RUBBER,CABLE
(B) ID=38.1 L=25
1-09337-052-0
01
1
1305-
269
SLEEVE; RUBBER,CABLE
(A) ID=10 OD=14 L=30
9-09956-682-0
04
1
1305-
442
CLIP; GRAND
ID=15 H=24 L=20
1-09700-606-0
01
1
1305-
898
SENSOR; BOOST
8-98009-418-0
01
1
1305-
293
7
7
1
23
2
17
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT.
8-98222-203-2
01
1
1305-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO
8-98169-360-0
01
1
1305-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
1305-1402
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
1305-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1305-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
1305-
293
CABLE; STARTER EARTH
1-82650-409-1
01
1
1305-
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1305-
10
RELAY; STARTER
(A) 24V 10A
8-98167-173-0
01
1
1305-
269
259
269
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
259
CLIP; BAND,HARNESS TO OIL PIPE
L=150
8-97355-273-0
01
1
1305-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
10
1
1305-
269
SLEEVE; RUBBER,CABLE
(B) ID=38.1 L=25
1-09337-052-0
01
1
1305-
269
SLEEVE; RUBBER,CABLE
(A) ID=10 OD=14 L=30
9-09956-682-0
04
1
1305-
897
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
748
BOLT; CONT UNIT
(A) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1305-
748
BOLT; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 FLANGE THA
0-28650-616-0
02
1
1305-
897
DRM
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98013-144-8
01
1
1305-1306
897
DRM
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA
8-97948-260-1
01
1
1307-
