◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11525 - CYZ CHINA EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#119460) — 31 parça

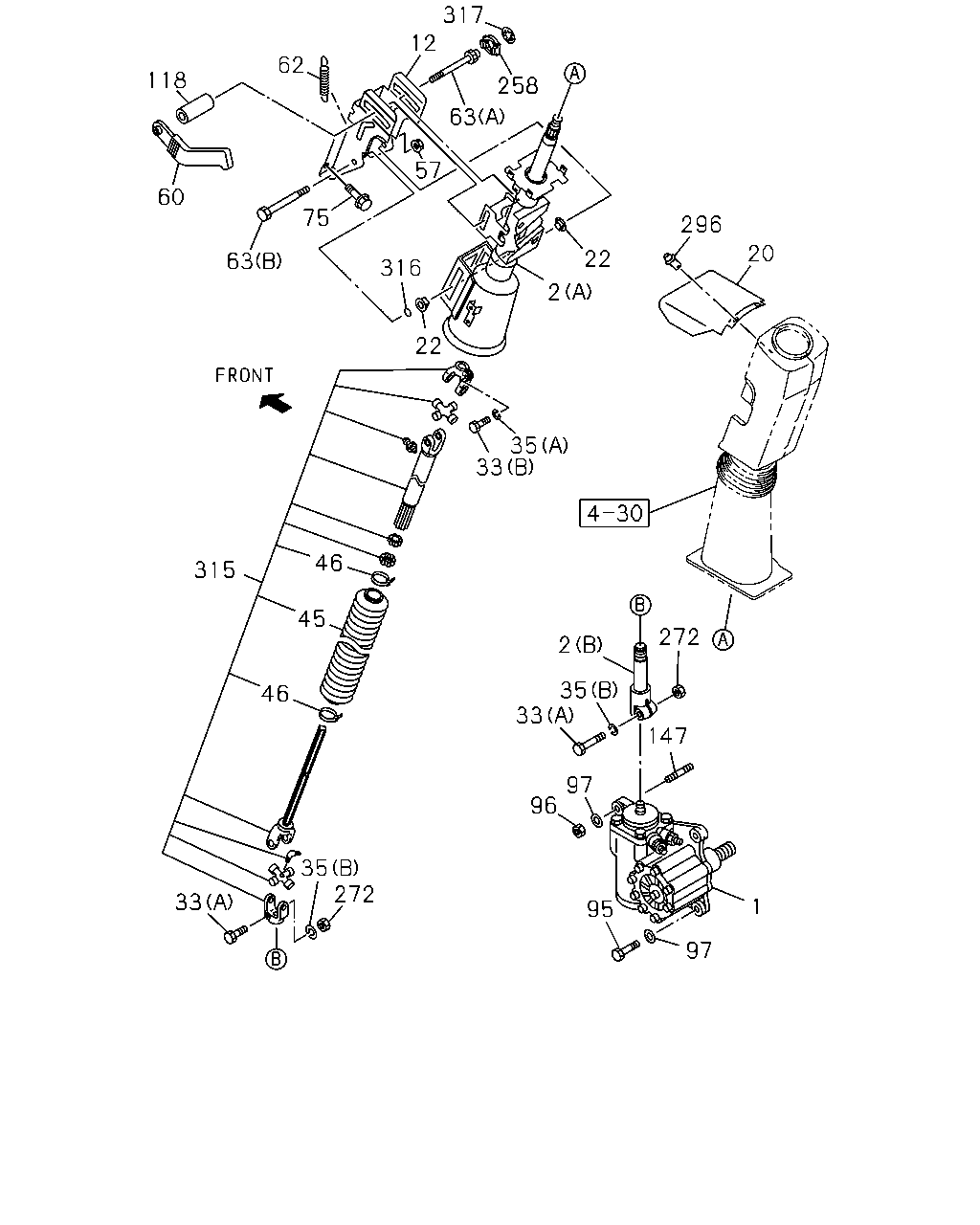

çizim 352005
272 35 33 95 97 1 97 96 33 2 272 147 35 33 35 2 22 296 258 20 22 46 45 46 315 63 75 316 57 63 317 12 62 118 60
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-957-2 01 1 1305-
2 SHAFT ASM; STRG
(A) 		1-44130-689-1 01 1 1305-
2 SHAFT ASM; STRG
(B) 		8-98198-611-1 01 1 1305-
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1305-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 1305-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1305-
33 BOLT; STRG SHAFT TO UNIT
(A) M10X50 		1-09000-786-0 02 1 1305-
33 BOLT; STRG SHAFT TO UNIT
(B) 		1-44139-153-0 01 1 1305-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		0-91510-810-0 02 1 1305-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 1305-
45 BOOT; STRG SHAFT 1-44139-163-0 01 1 1305-1409
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1410-
46 CLIP; BOOT 1-44139-156-0 02 1 1305-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1305-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1305-
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1305-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1305-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1305-
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 1305-
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 1305-
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 1305-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 1305-
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1305-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 1305-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1305-
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 02 1 1305-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 1305-
315 JOINT; SPLINE 1-44135-392-0 01 1 1305-1409
315 JOINT; SPLINE 1-44135-345-2 01 1 1410-
316 RING 1-44227-152-0 01 1 1305-
317 NUT; PUSH 1-44227-148-0 01 1 1305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
