Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#11946) — 557 parça

24 153 167 56 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0105-0106
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A>,FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0105-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-322-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-
167	BRACKET; UNION	1-71117-183-3	01	1	0105-

104 153 34 73 83 34 33 36 47 42 29 25 28 30 26 27 29 34 28 33 26 35 106 83 47 233 34 164 162 80 39 171 47 49 115 116 43 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0105-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-0106
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0105-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0105-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47479-261-0	01	1	0107-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47477-724-0	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0105-0106
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0601-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=500	1-09364-546-0	01	1	0105-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0105-0606
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0607-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	0105-0512
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	01	1	0601-0606
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0607-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-322-0	01	1	0109-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0607-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0105-
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0607-

90 90 25 172 115 29 116 106 106 51 213 51 29 50 81 25 50 29 80 26 29 25 116 191 115 206 111 158 172 206 53 92 63 95 29 193 128 63 53 53 52 190 206 147 207 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0105-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91180-212-0	01	1	0603-
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0105-0603
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	01	1	0601-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0607-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0105-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0105-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-0606
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	0-95234-865-0	01	1	0607-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0105-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE	1-09675-086-0	01	1	0105-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0105-0107
193	ABSORBER; CLU TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31820-023-0	01	1	0105-
206	CLIP; TUBE 6WF1 TC-C(1B8) ZF M/T<X9E> (D) ID=13 & 21	8-94417-626-0	01	1	0108-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	0601-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

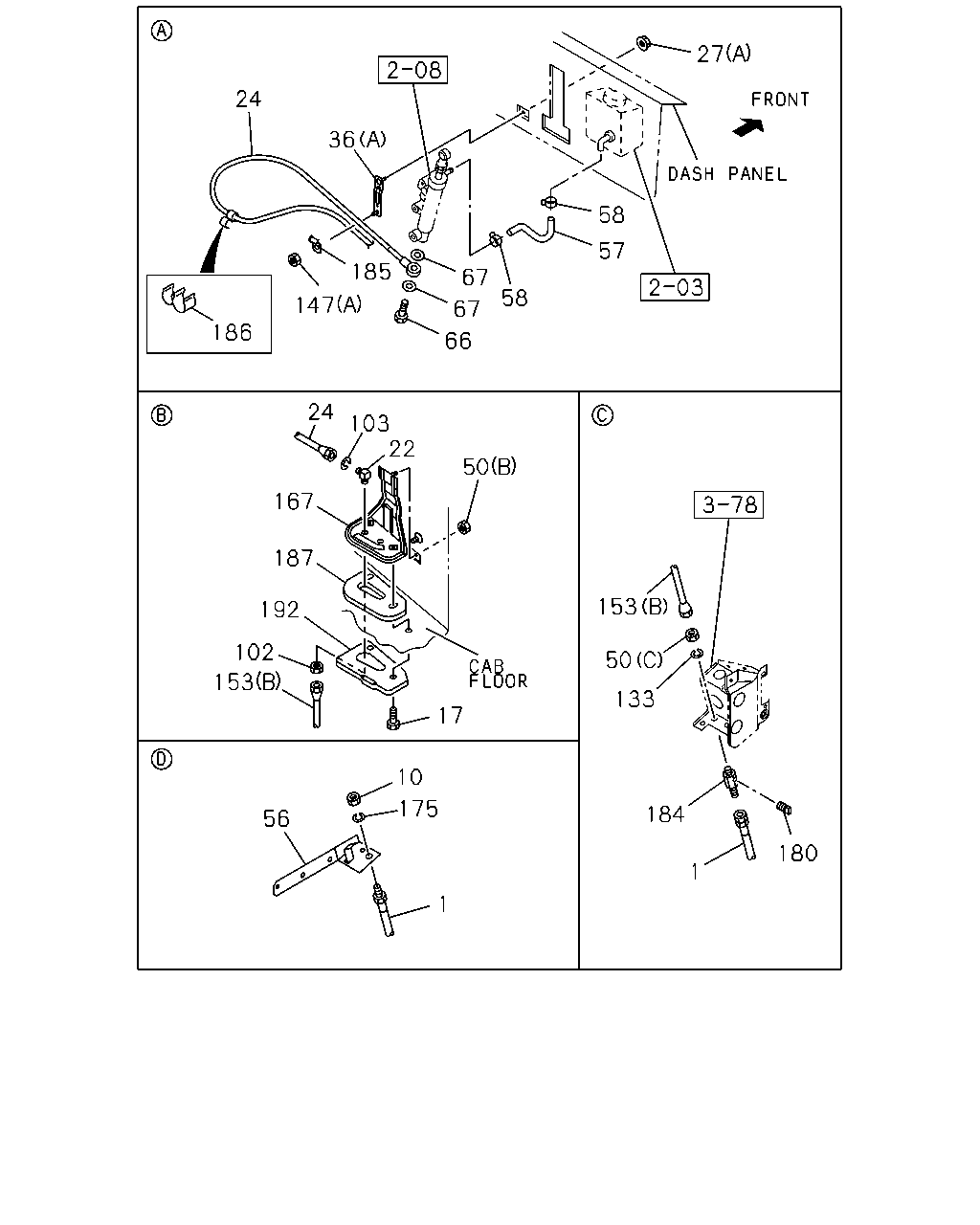

24 186 147 185 36 67 66 67 58 57 58 27 24 50 103 22 167 187 192 102 153 17 10 175 1 56 1 180 184 133 153 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0105-0106
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A>,FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0105-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0105-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0105-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91180-212-0	01	1	0603-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0105-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-
167	BRACKET; UNION	1-71117-183-3	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0105-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0105-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0105-
187	SEAL; BRKT	1-71117-222-0	01	1	0105-
192	PLATE	1-71117-221-0	01	1	0105-

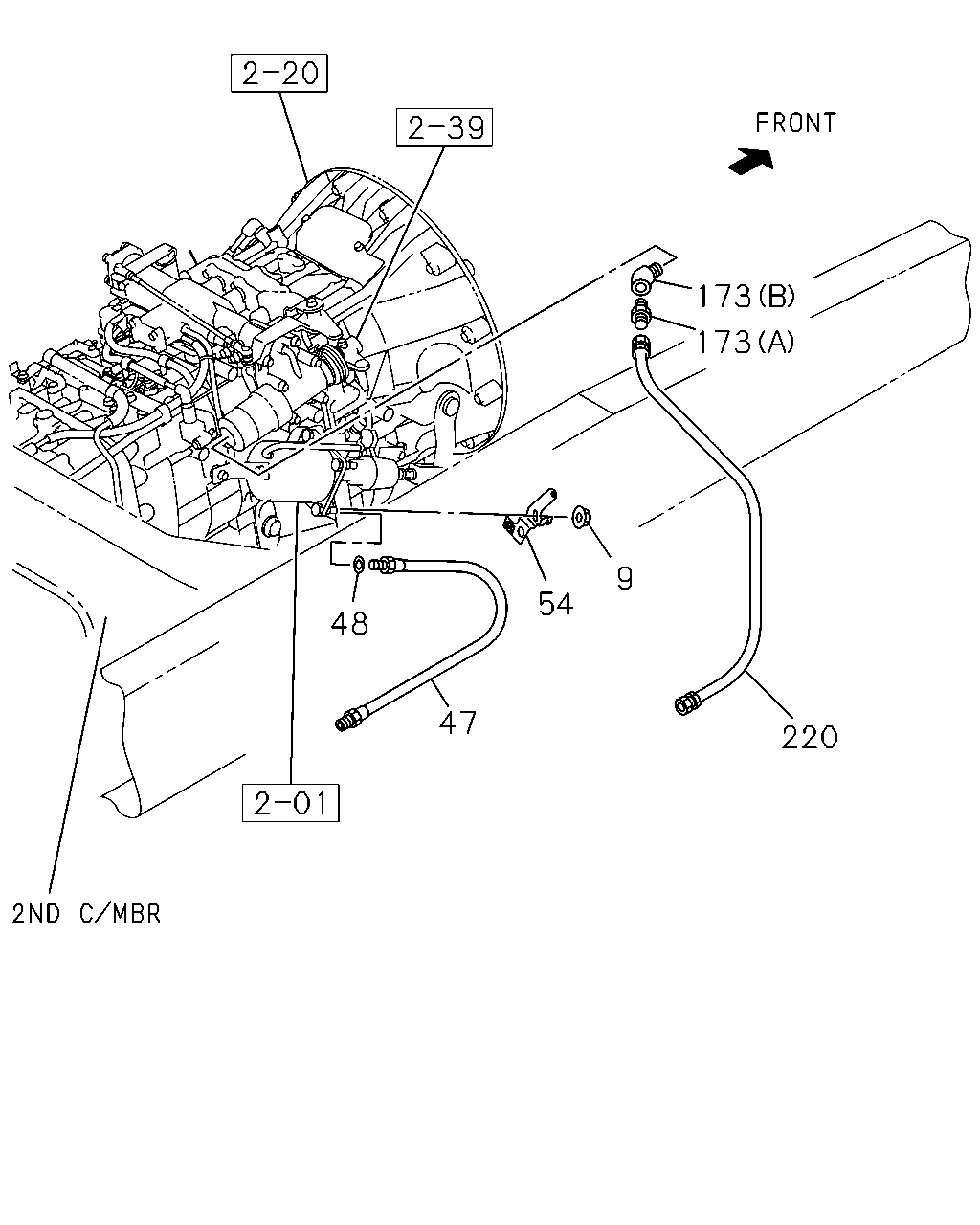

173 173 9 220 54 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0107-0602
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91180-210-0	02	1	0603-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=500	1-09364-546-0	01	1	0105-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-
54	BRACKET; AIR,FLEX HOSE MJD7S M/T(Y2Y)	1-47477-284-1	01	1	0107-
173	CONNECTOR ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
173	CONNECTOR ISUZU M/T<X9A> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0107-0204
173	CONNECTOR MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=340	1-09363-617-0	01	1	0107-0204
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=300	1-09363-611-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=270	1-09363-687-0	01	1	0107-

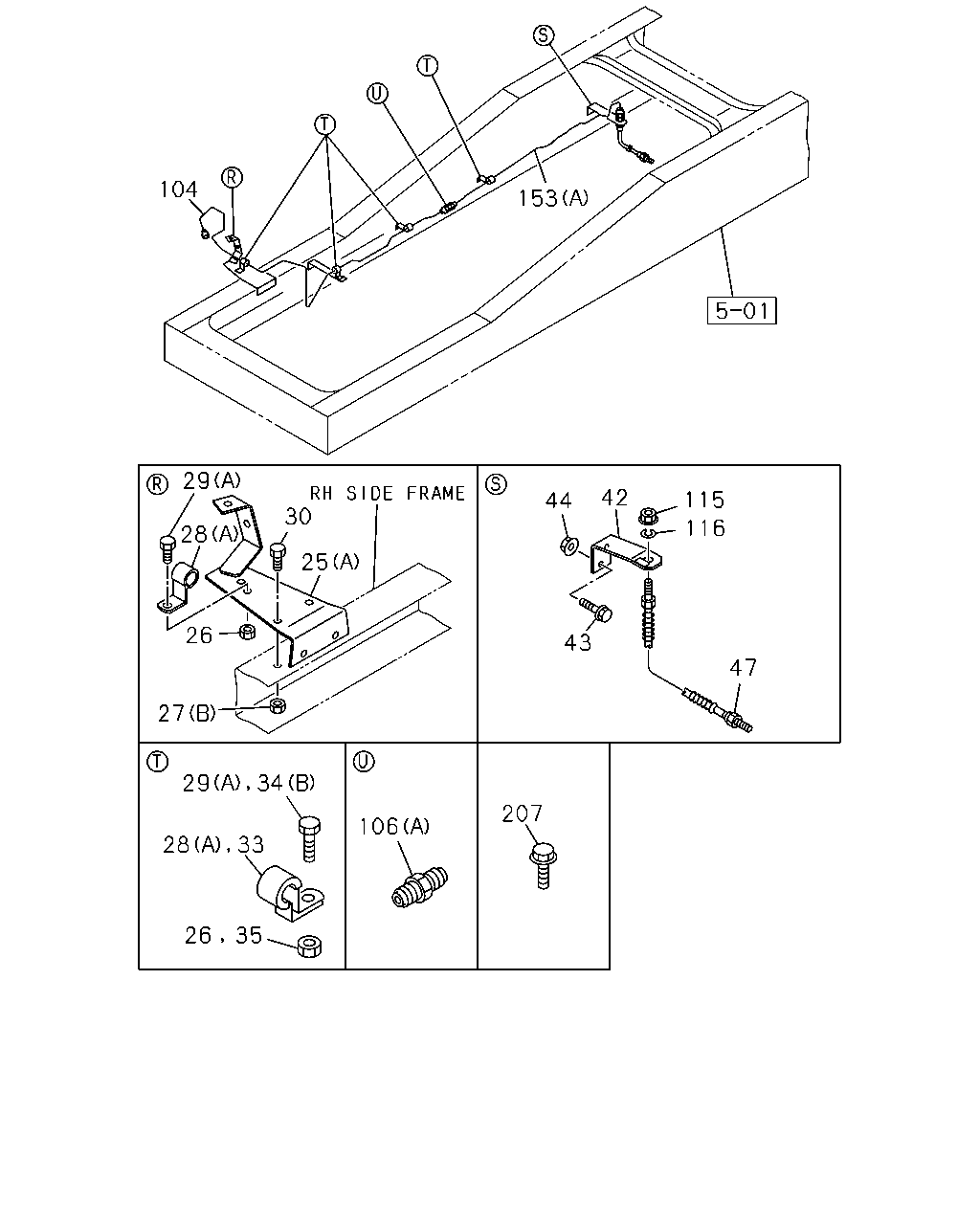

104 153 44 42 115 116 43 47 30 29 25 28 26 27 29 34 28 33 26 35 106 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0105-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-0106
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47479-261-0	01	1	0107-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47477-724-0	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0105-0106
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=500	1-09364-546-0	01	1	0105-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A>,FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-322-0	01	1	0109-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	0601-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-

30 30 32 31 33 111 50 153 116 34 33 32 35 115 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0602
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (A) L=50	1-47475-299-2	01	1	0105-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47475-881-0	01	1	0105-0106
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47477-669-1	01	1	0107-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0105-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0602
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-0106
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91150-212-0	01	1	0105-0602
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91180-212-0	01	1	0603-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0106
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-0106
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-

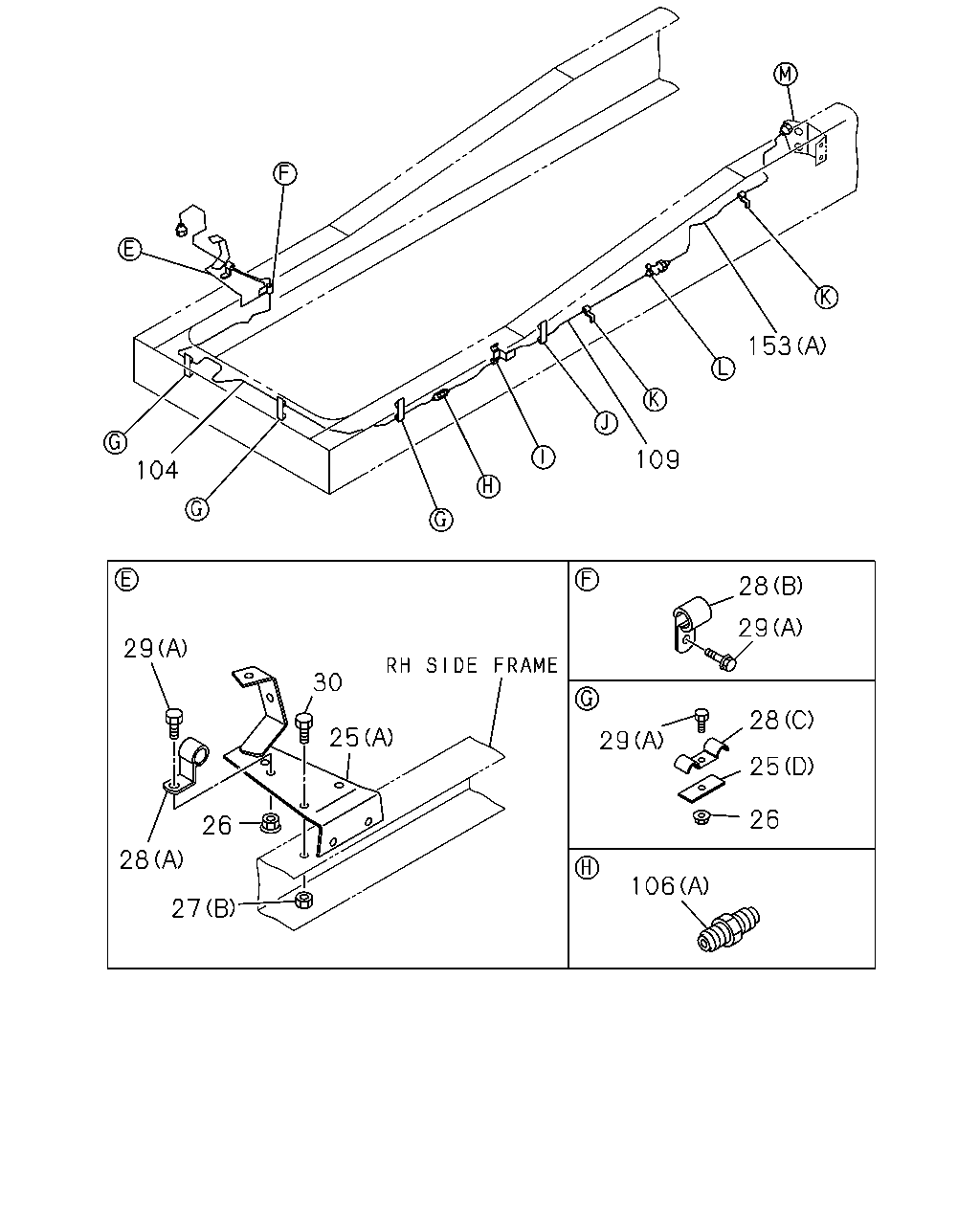

153 109 29 30 25 26 28 27 106 29 26 25 28 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0105-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0105-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0105-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0105-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0105-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
28	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-0106
28	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0105-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0106
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0106
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-0108
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1101 SERVICED BY L=1100	1-47426-387-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) SERVICED BY L=1400	1-47426-389-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
