1-01 — ACCELERATOR PEDAL AND CONTROL (#119456) — 21 parça

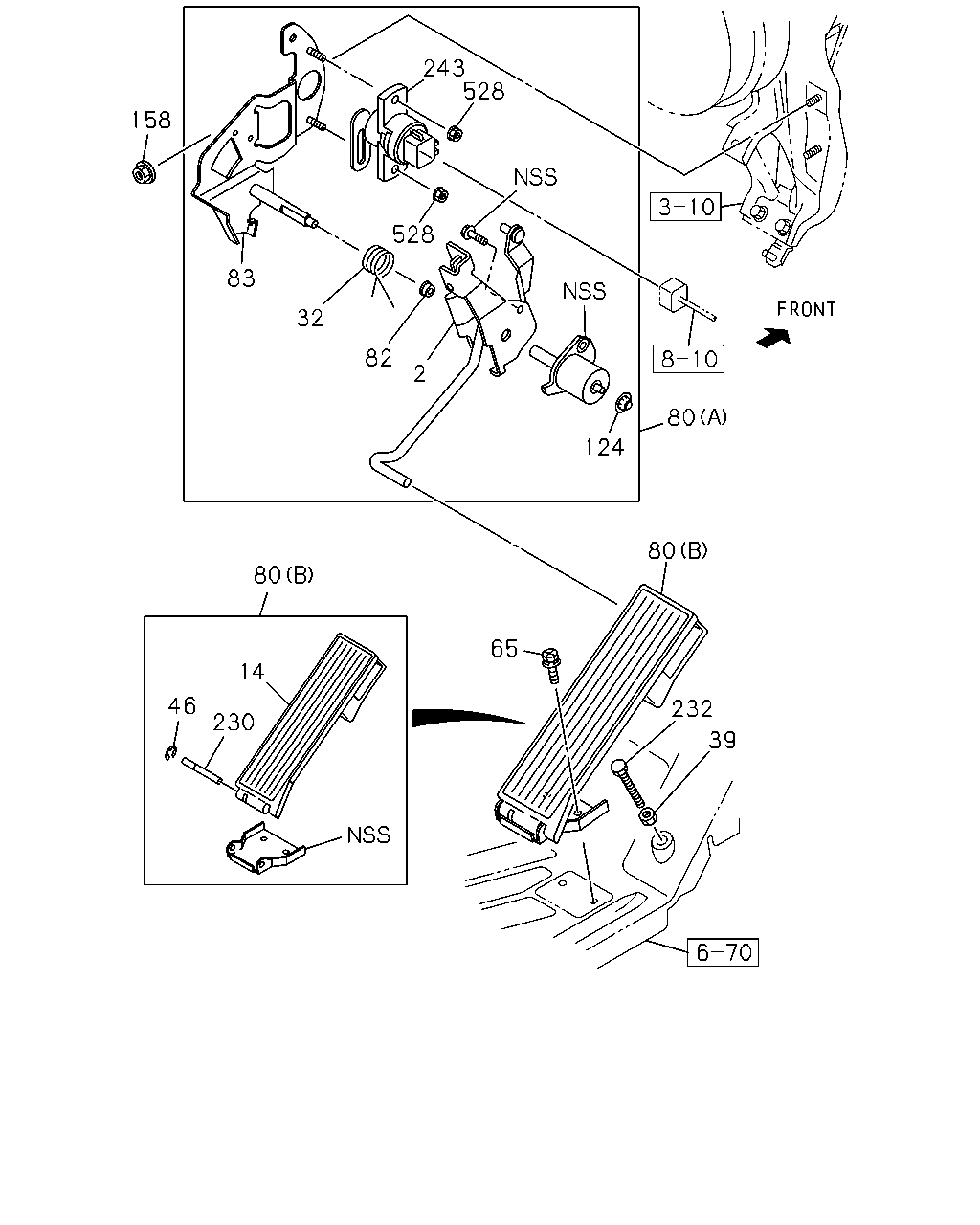

158 83 32 82 528 243 528 2 80 14 65 124 80 232 39 46 230 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT IMA	8-98002-158-2	01	1	1304-
14	PAD; PEDAL,ACCEL IMA	8-97853-062-2	01	1	1304-
32	SPRING; RETURN,ACCEL PEDAL IMA	8-98031-665-0	01	1	1304-
39	NUT; ACCEL PEDAL STOPPER M8 IMA	0-91110-508-0	01	1	1304-
46	RING; SNAP,ACCEL CONT PEDAL ID=4 IMA	0-91805-504-0	01	1	1304-
65	BOLT M8X16 W/LK&PL WASHER IMA	8-94310-730-0	02	1	1304-
80	LINK ASM; ENG CONT (A) IMA	8-97387-358-3	01	1	1304-
80	LINK ASM; ENG CONT (B) IMA	8-97853-061-2	01	1	1304-
82	BUSHING; ENG CONT LVR IMA	8-97581-053-0	01	1	1304-
83	BRACKET; CONT LINK IMA	8-98023-885-2	01	1	1304-
124	NUT; LEVER ID=7.9 PUSH NUT THA	8-94368-617-0	01	1	1304-
158	NUT; BRKT M8 FLANGE IMA	8-94279-060-0	02	1	1304-
230	PIN; JOINT,ACCEL PEDAL TO BRKT IMA	8-97853-064-0	01	1	1304-
232	BOLT; STOPPER,ACCEL PEDAL M8X45 IMA	8-97378-461-0	01	1	1304-
243	SENSOR; ACCEL IMA	8-98131-263-0	01	1	1304-
528	NUT; ACCEL SENSOR M5 IMA	8-94169-022-0	02	1	1304-

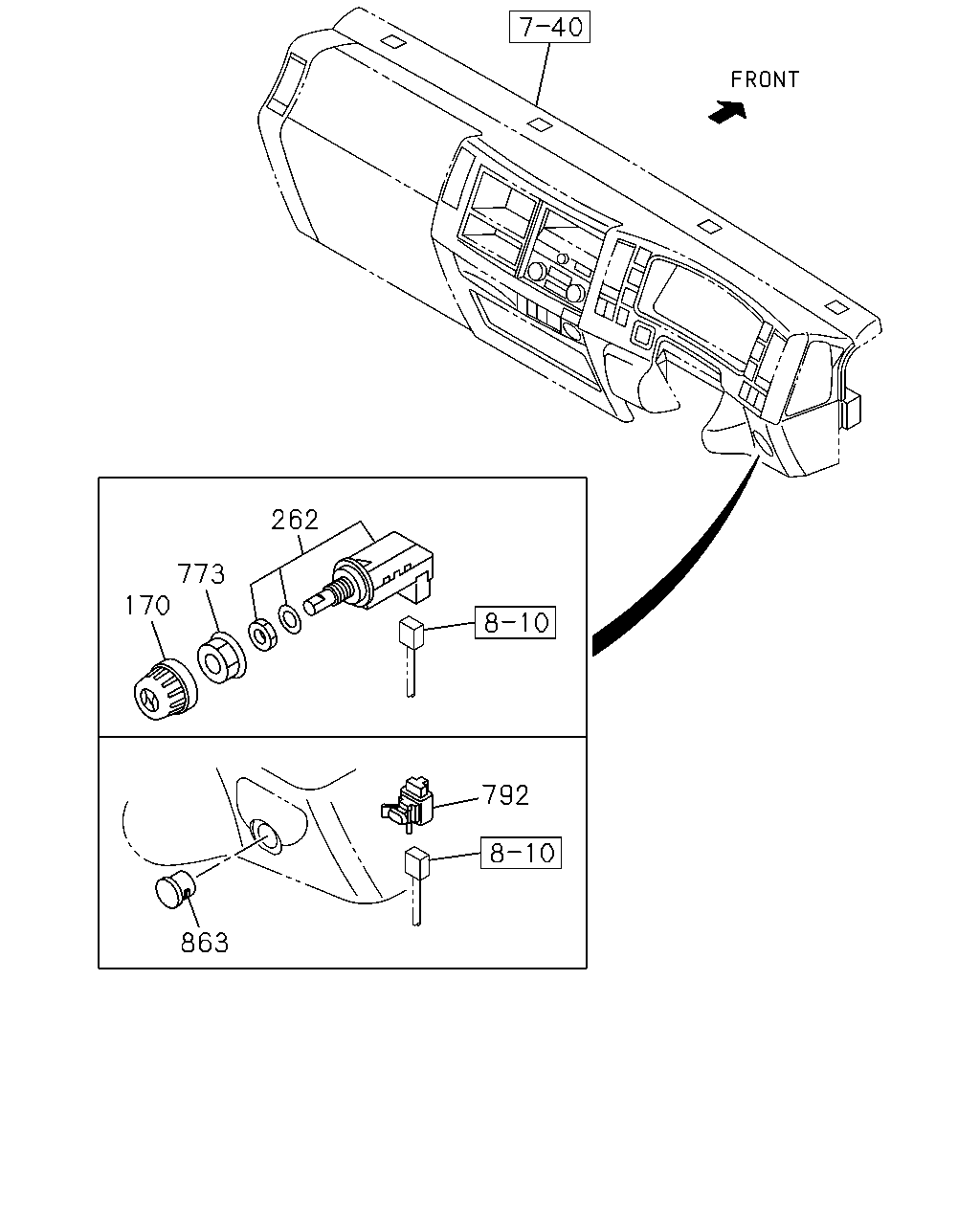

262 773 170 863 792

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	KNOB SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> IMA	8-98013-420-0	01	1	1304-
262	SWITCH; ACCEL,IDLE SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> IMA	8-98013-418-0	01	1	1304-
773	HOLDER; ACCEL PEDAL SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> IMA	8-97352-127-0	01	1	1304-
792	RESISTOR; IDLE EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-906-0	01	1	1304-
863	COVER; SENSOR EXC. SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> GRAY IMA	8-97408-816-0	01	1	1304-
