Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#119449) — 336 parça

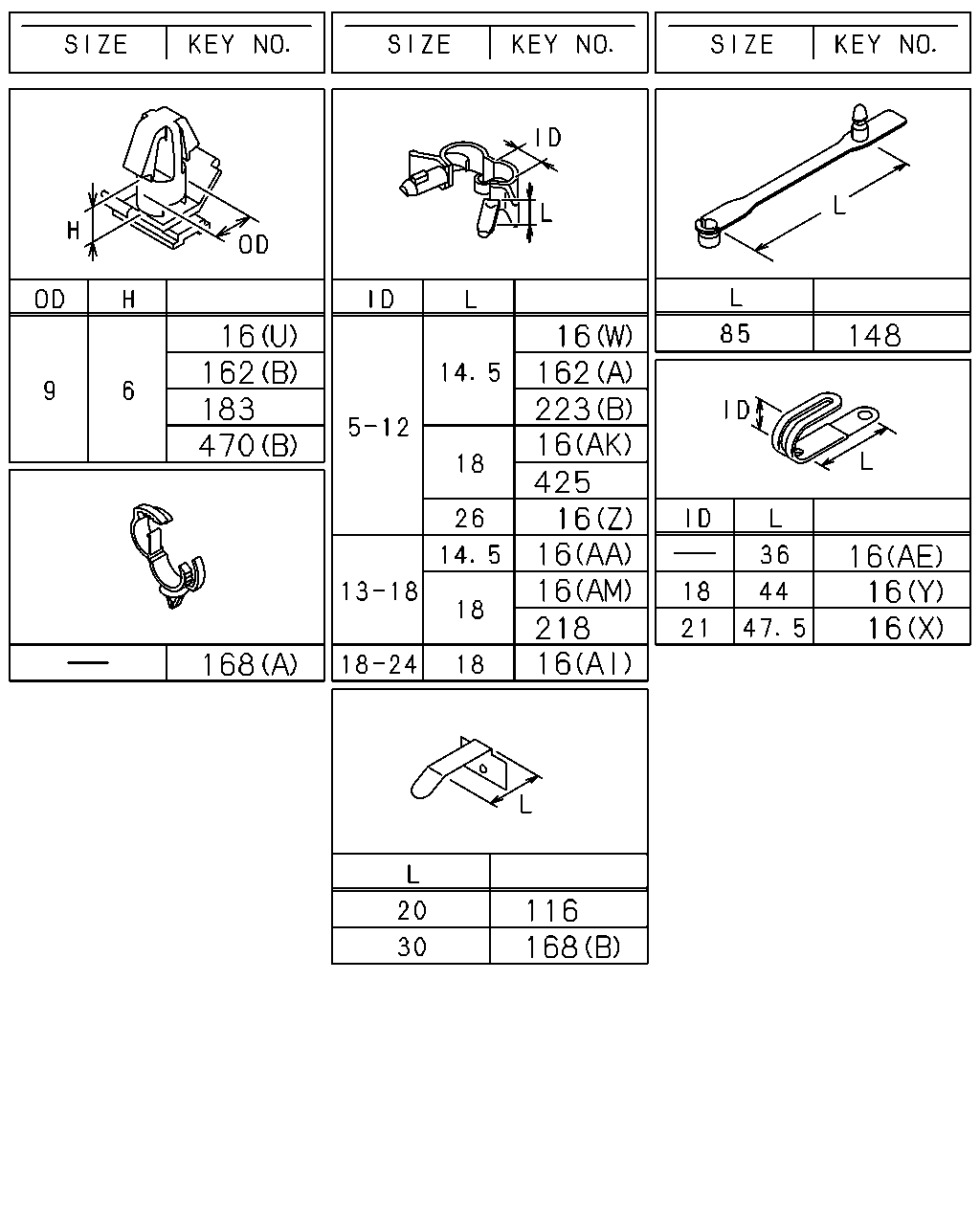

16 162 183 470 168 16 162 223 16 425 16 16 16 218 16 148 16 16 16 116 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS MJX16P M/T(Y3Z) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	07	1	1305-
16	CLIP; HARNESS (AM) ID=13-18 L=18	1-09709-291-0	01	1	1305-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1305-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1305-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1305-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1305-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1305-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	01	1	1305-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	04	1	1305-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1305-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1305-
16	CLIP; HARNESS (O) ID=25 L=75	1-09701-275-0	03	1	1305-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1305-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (Z) ID=5-12 L=26	1-09709-289-0	01	1	1305-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	05	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS (AD) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AD) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1305-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1305-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1305-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	01	1	1305-
16	CLIP; HARNESS (AJ) ID=10 L=16.5	8-98082-034-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	8-98216-430-0	10	1	1305-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1305-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	09	1	1305-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AF) ID=25 L=54	1-09700-392-1	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AG) ID=26 L=26	1-09701-236-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1305-
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) ID=11 L=20	0-95235-035-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AH) ID=16 L=40	0-95235-576-0	02	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (H) ID=19 L=20	0-95235-836-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	06	1	1305-1506
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	1305-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1305-
162	CLIP; SW HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-
162	CLIP; SW HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1305-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	1305-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1305-
183	CLIP; CONNECTOR OD=9 H=6	1-09709-178-0	01	1	1305-
218	CLIP; BAND,RR COMB ID=13-18 L=18	1-09709-291-0	06	1	1305-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1305-
425	CLIP; MODULATOR ID=5-12 L=18	1-09709-287-0	02	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1305-

522 520 423 119 43 24 294 219 515 552 515 294 524 515 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M6	0-91110-506-0	01	1	1305-
43	WASHER; LK,HARNESS ID=6.1	0-91510-506-0	01	1	1305-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	12	1	1305-
294	NUT (B) M6 FLANGE	0-91180-106-0	02	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	10	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1305-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1305-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1305-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1305-
515	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	06	1	1305-
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	1305-
522	WASHER; PL,HARNESS ID=6.4	9-09160-506-0	02	1	1305-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1305-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1305-

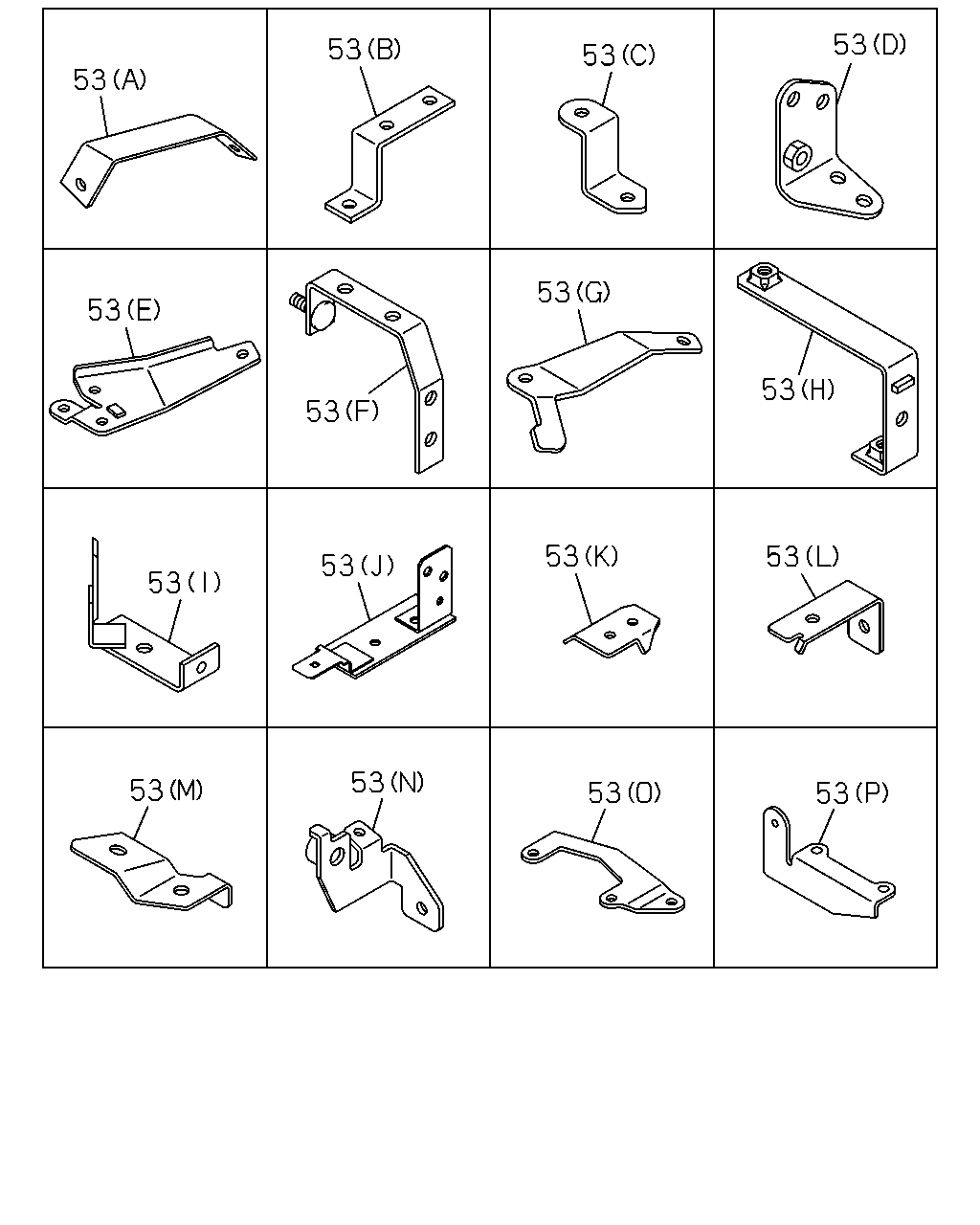

53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (A)	1-47479-537-0	07	1	1305-
53	BRACKET; HARNESS (F)	1-47479-800-0	01	1	1305-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	1305-
53	BRACKET; HARNESS (K)	8-97625-412-0	02	1	1305-
53	BRACKET; HARNESS (L)	8-97625-794-0	01	1	1305-
53	BRACKET; HARNESS (M)	8-97630-437-0	01	1	1305-
53	BRACKET; HARNESS (J)	8-97638-190-0	01	1	1305-
53	BRACKET; HARNESS (C)	8-97640-913-0	01	1	1305-
53	BRACKET; HARNESS (O)	8-98123-474-0	01	1	1305-
53	BRACKET; HARNESS (P)	8-98123-475-0	01	1	1305-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1305-
53	BRACKET; HARNESS (E)	8-98190-688-0	01	1	1305-
53	BRACKET; HARNESS (G)	8-98190-689-0	01	1	1305-
53	BRACKET; HARNESS (N)	8-98194-068-0	01	1	1305-
53	BRACKET; HARNESS (H)	8-98212-499-0	01	1	1305-
53	BRACKET; HARNESS (I)	8-98212-500-1	01	1	1305-

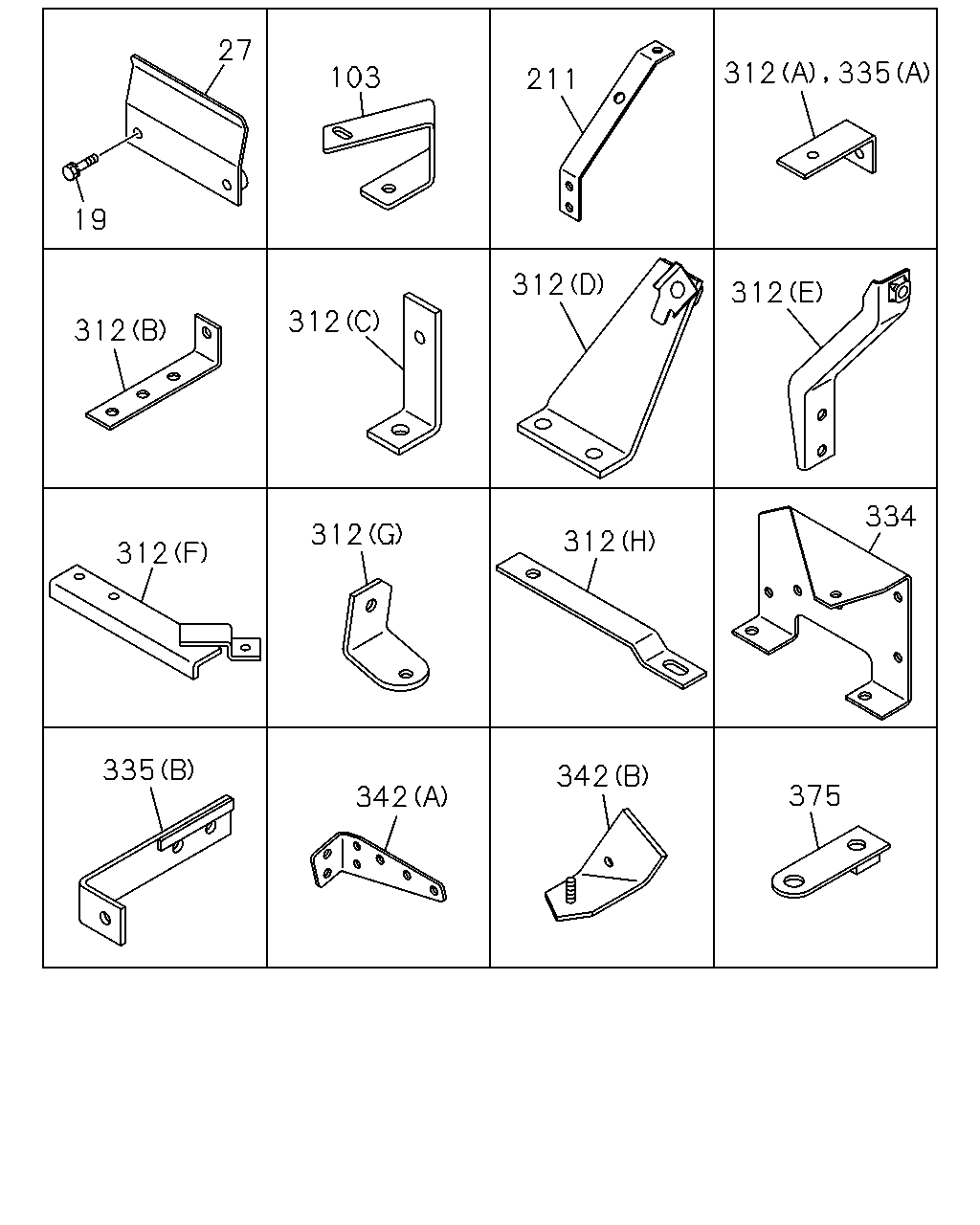

375 342 342 335 312 312 312 334 312 312 312 312 19 27 103 211 312 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X50 W/LK&PL WASHER	0-50640-850-0	02	1	1305-
27	PROTECTOR; EDGE	8-98201-145-0	01	1	1305-
103	BRACKET; HD LAMP HARNESS	8-98211-939-1	01	1	1305-
103	BRACKET; HD LAMP HARNESS	8-98211-940-1	01	1	1305-
211	BRACKET; AXLE HARNESS	1-47479-430-0	02	1	1305-
312	BRACKET; CLIP HARNESS (A)	1-47477-694-0	02	1	1305-
312	BRACKET; CLIP HARNESS (A) L=75	1-47478-323-0	01	1	1305-
312	BRACKET; CLIP HARNESS (B) L=120 H=35	1-82698-088-0	01	1	1305-
312	BRACKET; CLIP HARNESS (C) L=95	1-82699-085-0	01	1	1305-
312	BRACKET; CLIP HARNESS (D)	8-97636-337-0	01	1	1305-
312	BRACKET; CLIP HARNESS (E)	8-97636-868-1	02	1	1305-
312	BRACKET; CLIP HARNESS (F)	8-98201-133-0	01	1	1305-
312	BRACKET; CLIP HARNESS (G)	8-98201-134-0	01	1	1305-
312	BRACKET; CLIP HARNESS (H)	8-98201-136-0	01	1	1305-
334	BRACKET	8-98212-895-0	01	1	1305-
335	BRACKET; CONNECTOR (A) L=105 B=25	1-47476-161-0	01	1	1305-
335	BRACKET; CONNECTOR (B)	1-82698-663-0	01	1	1305-
342	BRACKET; HARNESS CAB MTG (B)	8-98240-938-0	01	1	1305-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1305-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1305-

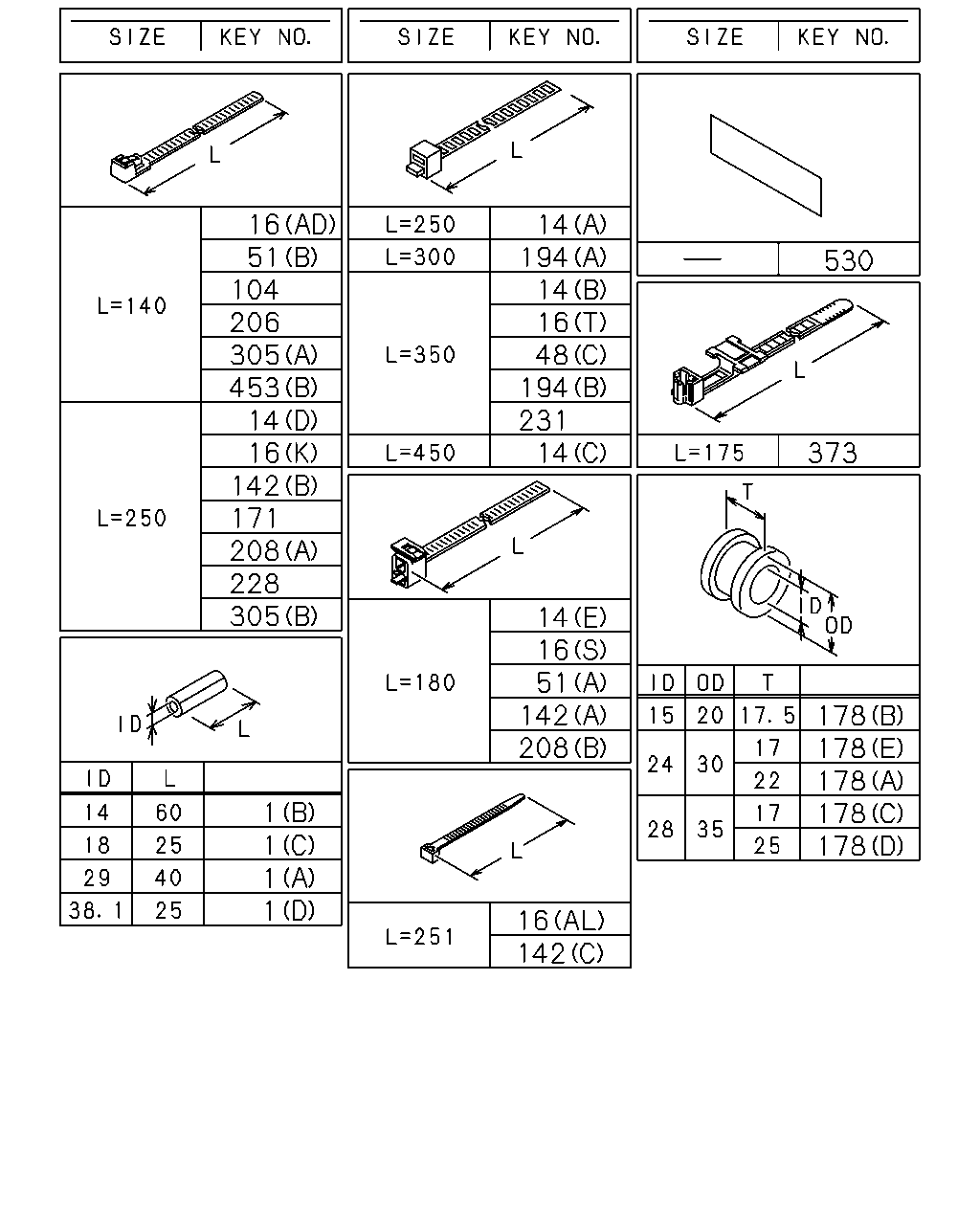

1 1 1 1 178 178 178 178 178 373 530 14 231 194 14 48 16 14 194 142 16 208 51 14 16 142 305 16 228 208 171 142 16 14 453 305 206 104 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	01	1	1305-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1305-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	02	1	1305-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 L=25	1-09337-052-0	01	1	1305-
1	SLEEVE; RUBBER (D) ID=38.1 L=25	1-09337-052-0	01	1	1305-
14	CLIP; BAND,HARNESS (D) L=250	5-09707-030-1	02	1	1305-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1305-
14	CLIP; BAND,HARNESS (C) L=450	1-09707-142-1	01	1	1305-
14	CLIP; BAND,HARNESS (E) L=180	1-09707-162-1	01	1	1305-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	07	1	1305-
16	CLIP; HARNESS (AM) ID=13-18 L=18	1-09709-291-0	01	1	1305-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1305-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1305-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1305-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1305-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1305-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	01	1	1305-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	04	1	1305-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1305-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1305-
16	CLIP; HARNESS (O) ID=25 L=75	1-09701-275-0	03	1	1305-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1305-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (Z) ID=5-12 L=26	1-09709-289-0	01	1	1305-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	05	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS (AD) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AD) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1305-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1305-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1305-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	01	1	1305-
16	CLIP; HARNESS (AJ) ID=10 L=16.5	8-98082-034-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	8-98216-430-0	10	1	1305-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1305-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	09	1	1305-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AF) ID=25 L=54	1-09700-392-1	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AG) ID=26 L=26	1-09701-236-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1305-
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) ID=11 L=20	0-95235-035-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AH) ID=16 L=40	0-95235-576-0	02	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (H) ID=19 L=20	0-95235-836-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	06	1	1305-1506
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
48	CLIP; FRAME HARNESS (A) ID=11 H=30 L=17	1-09700-113-0	01	1	1305-
48	CLIP; FRAME HARNESS (D) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-
48	CLIP; FRAME HARNESS (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1305-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1305-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	1305-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1305-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1305-
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	04	1	1305-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	01	1	1305-
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1305-
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	02	1	1305-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1305-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	01	1	1305-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	1305-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1305-
178	GROMMET; HARNESS (E) ID=24 OD=30 T=17	9-09956-092-1	01	1	1305-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1305-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1305-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1305-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1305-
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	1305-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1305-
208	CLIP; HARNESS,MAG VLV (A) L=250	5-09707-030-1	01	1	1305-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1305-
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1305-
231	CLIP; BAND,OIL PRESS L=350	1-09707-183-0	01	1	1305-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	04	1	1305-
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1305-
373	CLIP; BAND,GEN HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175	1-09707-176-1	01	1	1305-
453	CLIP; CABLE HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1305-
453	CLIP; CABLE HARNESS (B) L=140	5-09707-031-1	01	1	1305-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	1305-
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	1305-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1305-

38 150 150 139 38 242 38 139 242 242 242 38 313 242 38 139 313 139 242 38 242 139 358 86 480 480 38 516 239 377 386 88 386 38 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1305-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	1305-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	1305-
38	BOLT; CLIP,HARNESS (B) M8X30 FLANGE	0-28650-830-0	04	1	1305-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1305-
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1305-
38	BOLT; CLIP,HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M6X10 FLANGE	0-28050-610-0	01	1	1305-
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (D) M8X20 FLANGE	0-28650-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (D) M8X20 FLANGE	0-28650-820-0	05	1	1305-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1305-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1305-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1305-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1305-
139	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	02	1	1305-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1305-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1305-
139	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	05	1	1305-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	05	1	1305-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	09	1	1305-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1305-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1305-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	02	1	1305-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28050-825-0	01	1	1305-
242	BOLT; BRKT,HARNESS (F) M6X16 FLANGE	0-28650-616-0	02	1	1305-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	1305-
242	BOLT; BRKT,HARNESS (G) M8X35 FLANGE	0-28650-835-0	01	1	1305-
242	BOLT; BRKT,HARNESS (E) M10X25 FLANGE	0-28651-025-0	01	1	1305-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1305-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1305-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1305-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1305-
377	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	01	1	1305-
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1305-
386	BOLT; GRAND HARNESS (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1305-
480	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	1305-
480	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1305-
516	BOLT; HARNESS M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	1305-

128 16 16 48 16 48 16 16 48 16 16 235 16 16 128 16 16 16 16 16 16 16 16 470 453 16 16 16 16 16 16 16 235 48 223 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS MJX16P M/T(Y3Z) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	07	1	1305-
16	CLIP; HARNESS (AM) ID=13-18 L=18	1-09709-291-0	01	1	1305-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1305-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1305-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1305-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1305-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1305-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	01	1	1305-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	04	1	1305-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1305-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1305-
16	CLIP; HARNESS (O) ID=25 L=75	1-09701-275-0	03	1	1305-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1305-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (Z) ID=5-12 L=26	1-09709-289-0	01	1	1305-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	05	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS (AD) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AD) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1305-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1305-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1305-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	01	1	1305-
16	CLIP; HARNESS (AJ) ID=10 L=16.5	8-98082-034-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	8-98216-430-0	10	1	1305-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1305-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	09	1	1305-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AF) ID=25 L=54	1-09700-392-1	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AG) ID=26 L=26	1-09701-236-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1305-
16	CLIP; HARNESS MJT7S M/T(Y3E) (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) ID=11 L=20	0-95235-035-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AH) ID=16 L=40	0-95235-576-0	02	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (H) ID=19 L=20	0-95235-836-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	06	1	1305-1506
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
16	CLIP; HARNESS MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (U) OD=9 H=6	1-09709-178-0	03	1	1507-
48	CLIP; FRAME HARNESS (A) ID=11 H=30 L=17	1-09700-113-0	01	1	1305-
48	CLIP; FRAME HARNESS (D) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-
48	CLIP; FRAME HARNESS (E) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
48	CLIP; FRAME HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1305-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1305-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	1305-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1305-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1305-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1305-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7S M/T(Y3E) (A) ID=10 H=25 L=20	1-09700-519-0	01	1	1305-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX16P M/T(Y3Z) (B) ID=11 L=28	9-09917-544-0	01	1	1305-
453	CLIP; CABLE HARNESS (A) ID=15 L=65	1-09700-466-0	01	1	1305-
453	CLIP; CABLE HARNESS (B) L=140	5-09707-031-1	01	1	1305-1305
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1305-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
