◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51483 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#119447) — 86 parça

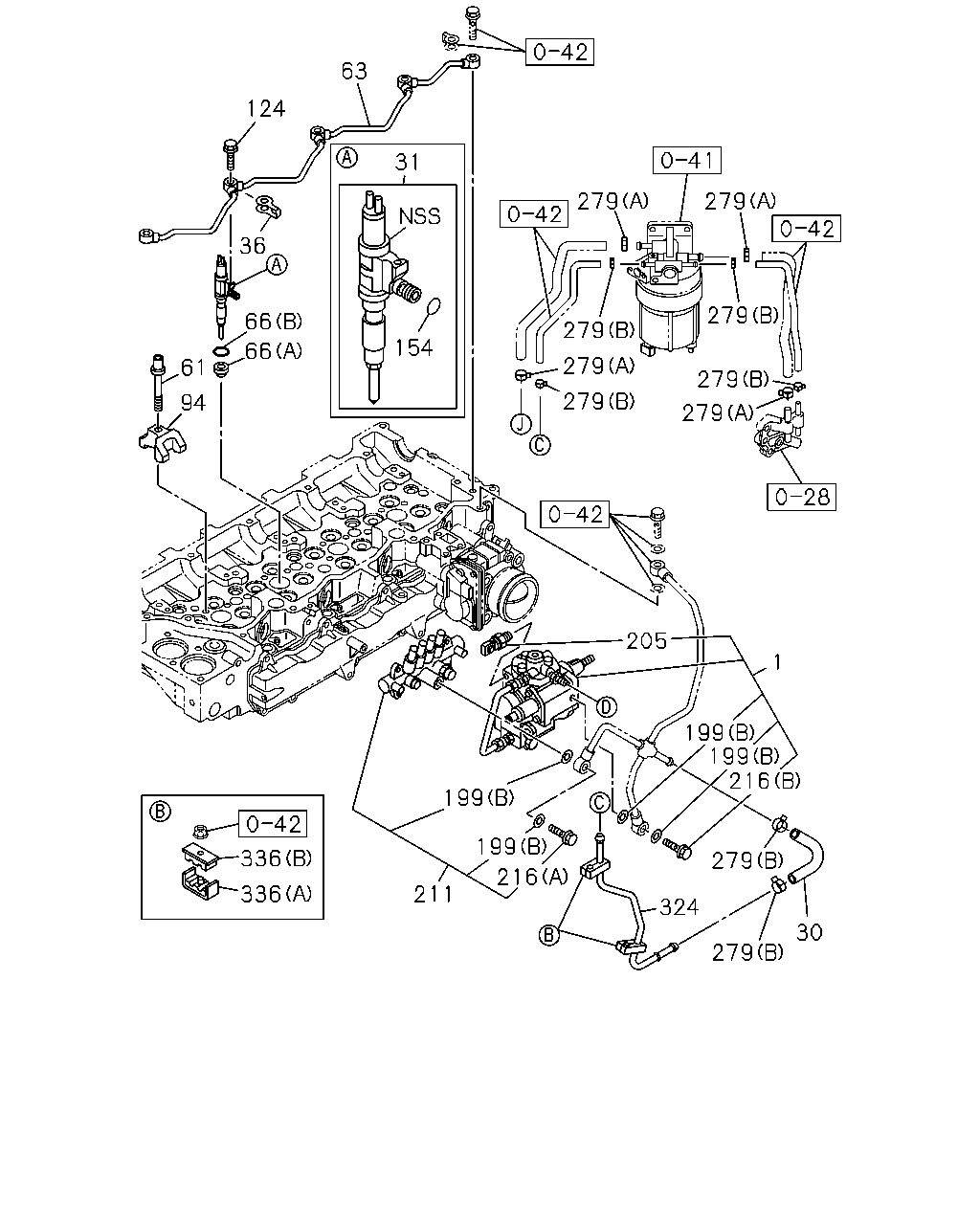

çizim 350269
279 216 199 199 1 205 199 199 216 211 336 336 94 61 66 66 36 124 63 31 154 324 30 279 279 279 279 279 279 279 279 279
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
IMA 		8-97386-557-5 01 1 1304- ● ●
30 HOSE; RUBBER,FUEL LEAK
IMA 		8-98036-320-2 01 1 1304- ● ●
31 NOZZLE ASM; INJ
IMA 		8-97609-788-6 04 1 1304- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 IMA 		8-98065-992-0 04 1 1304- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 IMA 		8-98008-895-0 04 1 1304- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF
IMA 		8-97306-081-0 01 1 1304- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 IMA 		8-94173-412-0 04 1 1304- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 IMA 		8-98079-248-0 04 1 1304- ● ●
94 BRACKET; INJ NOZZLE
IMA 		8-98028-999-1 04 1 1304- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT IMA 		1-09675-037-1 04 1 1304- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 IMA 		0-95690-111-0 04 1 1304- ● ●
199 GASKET; EYE BOLT
(A) IMA 		1-15619-507-0 02 1 1304- ● ●
199 GASKET; EYE BOLT
(B) IMA 		8-97602-218-0 04 1 1304- ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 1304- ● ●
211 RAIL ASM; COMMON
IMA 		8-98011-888-2 01 1 1304- ● ●
216 BOLT; EYE
(C) IMA 		5-15759-003-0 01 1 1304- ● ●
216 BOLT; EYE
(B) IMA 		8-97351-388-0 01 1 1304- ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 1304- ● ●
279 CLIP; FUEL HOSE
(A) ID=16 THA 		8-97329-628-0 04 1 1304- ● ●
279 CLIP; FUEL HOSE
(B) ID=11.5 IMA 		8-97375-638-0 06 1 1304- ● ●
324 PIPE; FUEL RETURN
IMA 		8-98036-173-0 01 1 1304- ● ●
336 CLIP; FUEL PIPE
(A) IMA 		8-97603-522-0 02 1 1304- ● ●
336 CLIP; FUEL PIPE
(B) IMA 		8-97603-523-0 02 1 1304- ● ●

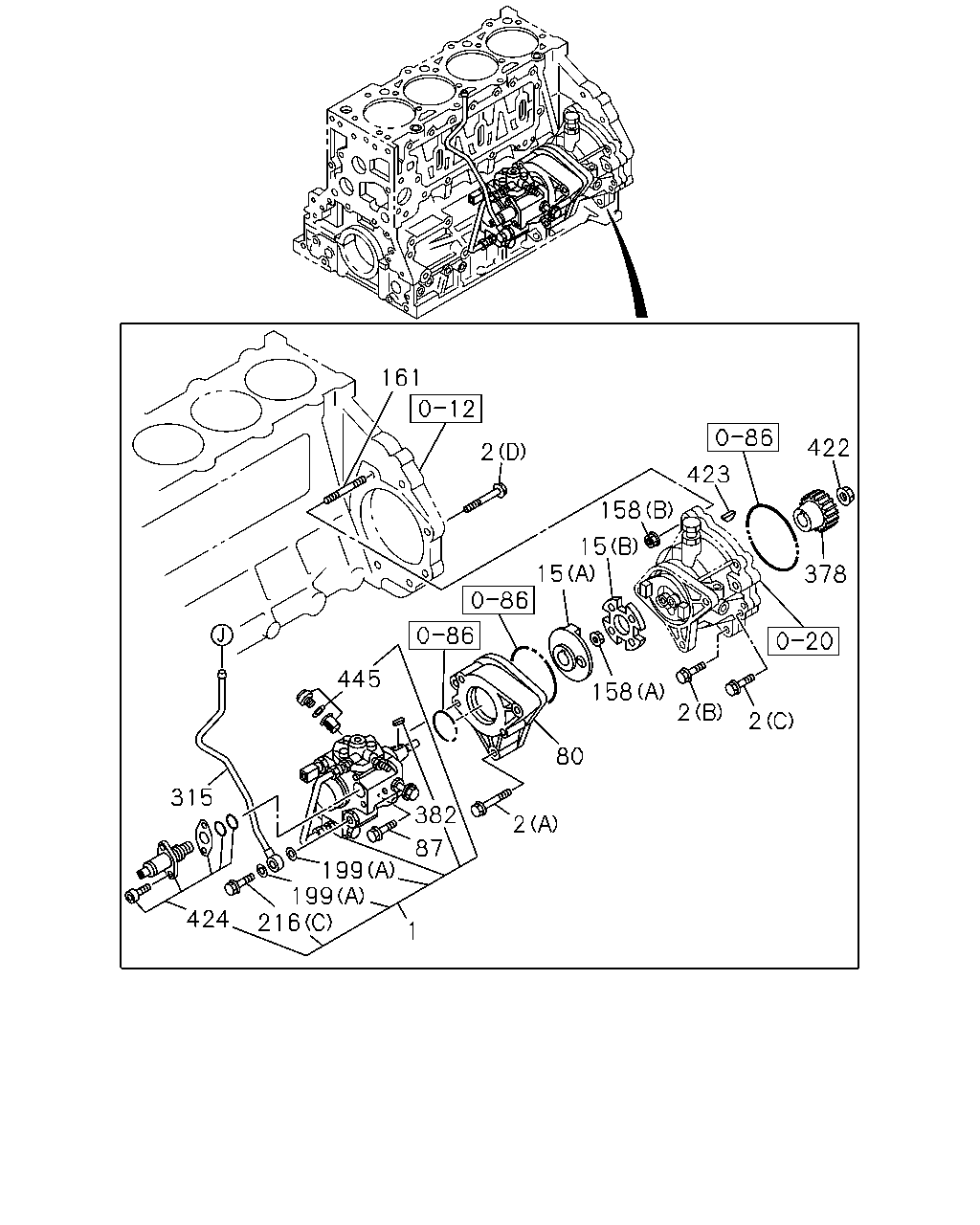

çizim 351910
161 445 80 158 2 2 378 423 158 15 15 422 382 199 199 216 424 315 87 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
IMA 		8-97386-557-5 01 1 1304- ● ●
2 BOLT; INJ PUMP
(A) M10X60 FLANGE THA 		0-28051-060-0 03 1 1304- ● ●
2 BOLT; INJ PUMP
(B) M10X70 FLANGE IMA 		0-28151-070-0 01 1 1304- ● ●
2 BOLT; INJ PUMP
(C) M12X70 FLANGE IMA 		0-28151-270-0 01 1 1304- ● ●
2 BOLT; INJ PUMP
(D) M12X95 FLANGE IMA 		8-94396-485-1 01 1 1304- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. (A) IMA 		8-97306-054-0 01 1 1304- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. (B) IMA 		8-97306-059-1 01 1 1304- ● ●
80 BRACKET; PUMP
IMA 		8-98061-699-0 01 1 1304- ● ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 1304- ● ●
158 NUT; INJ PUMP
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
158 NUT; INJ PUMP
(A) M14 FLANGE THA 		0-91180-114-0 01 1 1304- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 IMA 		8-97066-386-1 02 1 1304- ● ●
199 GASKET; EYE BOLT
(A) IMA 		1-15619-507-0 02 1 1304- ● ●
199 GASKET; EYE BOLT
(B) IMA 		8-97602-218-0 04 1 1304- ● ●
216 BOLT; EYE
(C) IMA 		5-15759-003-0 01 1 1304- ● ●
216 BOLT; EYE
(B) IMA 		8-97351-388-0 01 1 1304- ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 1304- ● ●
315 PIPE; FUEL,SUCTION
IMA 		8-98126-333-0 01 1 1304- ● ●
378 GEAR; PUMP
Z=35 IMA 		8-98017-915-0 01 1 1304- ● ●
382 KEY; DRIVE SHAFT
IMA 		8-98161-995-0 01 1 1304- ● ●
422 NUT; GEAR
M18 IMA 		8-97141-154-0 01 1 1304- ● ●
423 KEY; GEAR
IMA 		9-08055-519-0 01 1 1304- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
IMA 		8-98145-501-1 01 1 1304- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 1304- ● ●

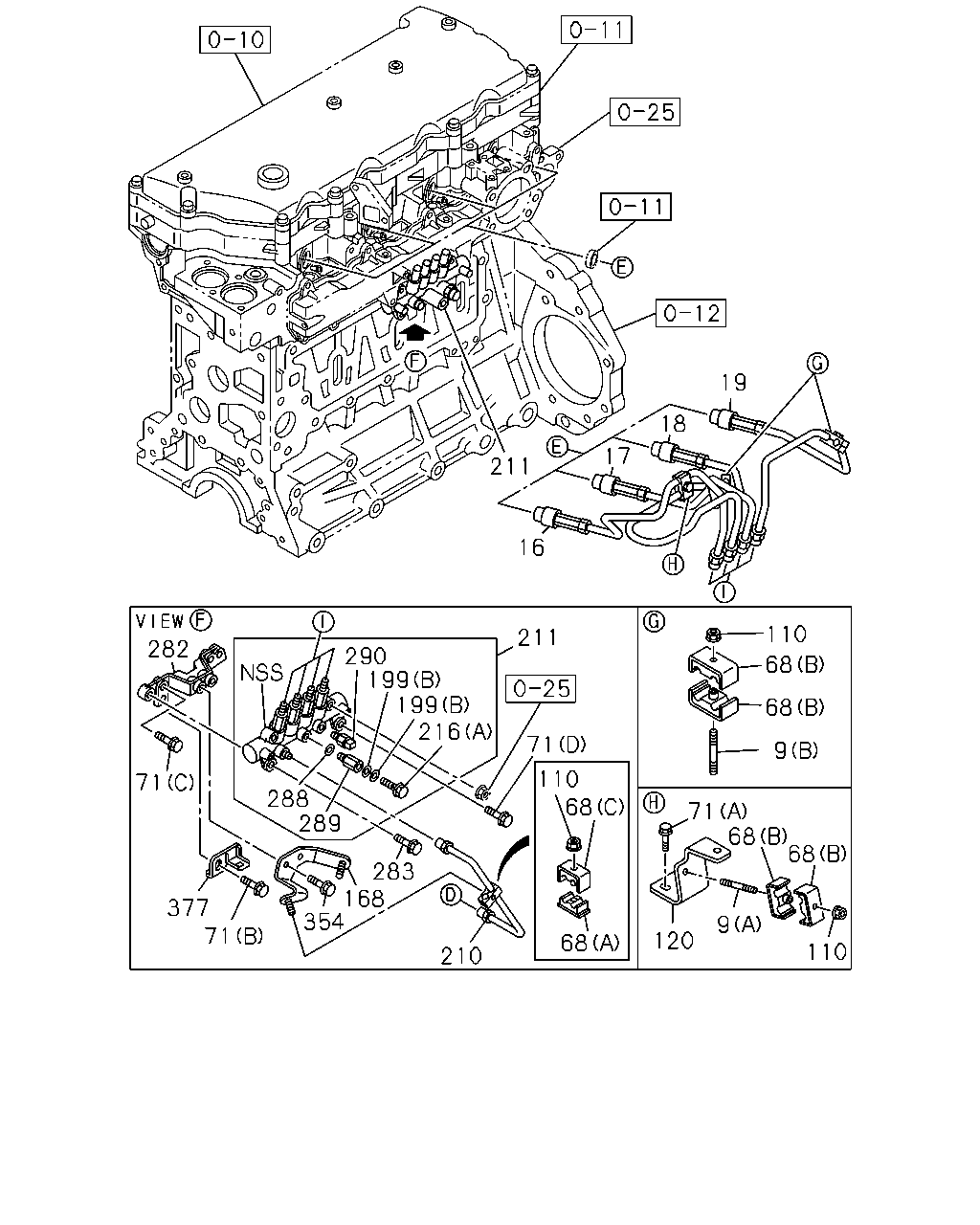

çizim 351923
68 68 9 110 211 71 68 68 210 283 216 377 354 289 168 288 71 282 290 199 199 71 110 68 9 120 110 68 18 17 16 211 19 71
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(B) M6X30 L=38 THA 		0-41010-630-0 02 1 1304- ● ●
9 STUD; CLIP
(A) M6X35 L=43 IMA 		8-97203-278-0 01 1 1304- ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1304-1404 ● ●
16 PIPE; INJ NO.1
IMA 		8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1304-1404 ● ●
17 PIPE; INJ NO.2
IMA 		8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1304-1404 ● ●
18 PIPE; INJ NO.3
IMA 		8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1304-1404 ● ●
19 PIPE; INJ NO.4
IMA 		8-98271-205-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
(C) IMA 		1-09701-195-3 01 1 1304- ● ●
68 CLIP; INJ PIPE
(A) IMA 		1-09701-196-2 01 1 1304- ● ●
68 CLIP; INJ PIPE
(B) IMA 		8-98039-293-0 06 1 1304-1405 ● ●
68 CLIP; INJ PIPE
(B) IMA 		8-98148-996-2 06 1 1406- ● ●
71 BOLT; BRKT
(B) M6X10 FLANGE THA 		0-28050-610-0 02 1 1304- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1304- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1304- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1304- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 1304- ● ●
120 BRACKET; INJ PIPE
IMA 		8-98041-601-0 01 1 1304- ● ●
168 BRACKET; FUEL PIPE
IMA 		8-98036-175-1 01 1 1304- ● ●
199 GASKET; EYE BOLT
(A) IMA 		1-15619-507-0 02 1 1304- ● ●
199 GASKET; EYE BOLT
(B) IMA 		8-97602-218-0 04 1 1304- ● ●
210 PIPE; INJ,C/R
IMA 		8-98036-176-1 01 1 1304- ● ●
211 RAIL ASM; COMMON
IMA 		8-98011-888-2 01 1 1304- ● ●
216 BOLT; EYE
(C) IMA 		5-15759-003-0 01 1 1304- ● ●
216 BOLT; EYE
(B) IMA 		8-97351-388-0 01 1 1304- ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 1304- ● ●
282 BRACKET; COMMON RAIL
IMA 		8-98157-115-0 01 1 1304- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 1304- ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 1304- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1304- ● ●
290 SENSOR; PRESS
IMA 		8-98119-790-0 01 1 1304- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1304- ● ●
377 BRACKET; HARNESS
IMA 		8-97310-438-1 02 1 1304- ● ●
