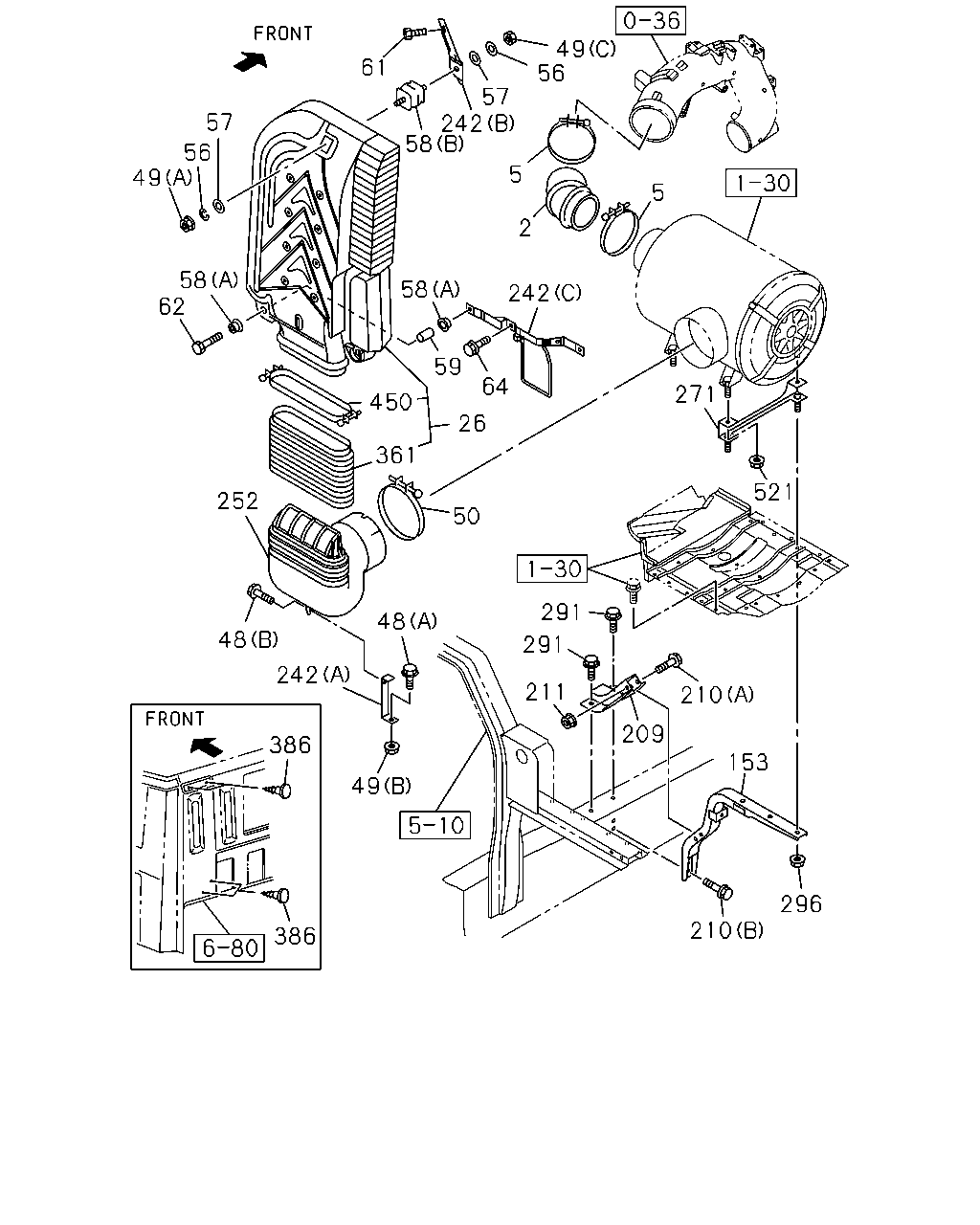

1-31 — AIR DUCT
(#119436) — 33 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-R
57
56
49
58
62
58
2
5
58
242
57
56
49
5
242
59
64
26
361
450
271
521
50
252
48
48
242
291
291
211
209
210
153
296
210
49
386
386
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; ACL
8-98168-974-0
01
1
1305-
●
●
5
CLIP; AIR DUCT
ID=130-169
1-09707-157-0
02
1
1305-
●
●
26
DUCT; AIR INT
8-98122-904-2
01
1
1305-
●
●
48
BOLT; AIR DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1305-
●
●
48
BOLT; AIR DUCT
(A) M10X25 FLANGE
0-28651-025-0
01
1
1305-
●
●
49
NUT; AIR DUCT
(B) M10 FLANGE
0-91180-210-0
01
1
1305-
●
●
49
NUT; AIR DUCT
(C) M8 FLANGE
1-09984-122-0
01
1
1305-
●
●
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1305-
●
●
50
CLIP; JOINT HOSE
ID=183.5
1-09707-098-2
01
1
1305-
●
●
56
WASHER; LK,AIR INT DUCT
ID=8.2
1-09985-177-0
02
1
1305-
●
●
57
WASHER; PL,AIR INT DUCT
ID=8.4 OD=22
1-09985-188-0
02
1
1305-
●
●
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1305-
●
●
58
SUPPORT; AIR INL DUCT
(B)
8-97080-149-0
01
1
1305-
●
●
59
TUBE; DIST,AIR INT DUCT
1-79998-228-0
02
1
1305-
●
●
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1305-
●
●
62
BOLT; AIR INT DUCT
M10X60
1-09030-044-1
02
1
1305-
●
●
64
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1305-
●
●
153
BRACKET; ACL,FRT
1-53419-299-0
01
1
1305-
●
●
209
BRACKET; ACL
1-53419-276-0
01
1
1305-
●
●
210
BOLT; ACL BRKT
(A) M8X70 FLANGE
0-28050-870-0
02
1
1305-
●
●
210
BOLT; ACL BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
1305-
●
●
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1305-
●
●
242
BRACKET; AIR DUCT
(A)
1-23957-006-0
01
1
1305-
●
●
242
BRACKET; AIR DUCT
(B)
1-53419-325-1
01
1
1305-
●
●
242
BRACKET; AIR DUCT
(C)
8-98041-994-1
01
1
1305-
●
●
252
DUCT; AIR INT
8-98196-998-0
01
1
1305-
●
●
271
SPACER; BRKT,ACL
1-53419-343-1
02
1
1305-
●
●
291
BOLT; ACL
M12X30 FLANGE
0-28051-230-0
02
1
1305-
●
●
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1305-
●
●
361
RUBBER; CUSHION,AIR DUCT
1-14230-149-2
01
1
1305-
●
●
386
PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5
1-76378-157-0
04
1
1305-
●
●
450
CLAMP; HOSE
1-14239-237-0
01
1
1305-
●
●
521
NUT; SPACER
M8 FLANGE
0-91180-108-0
04
1
1305-
●
●
