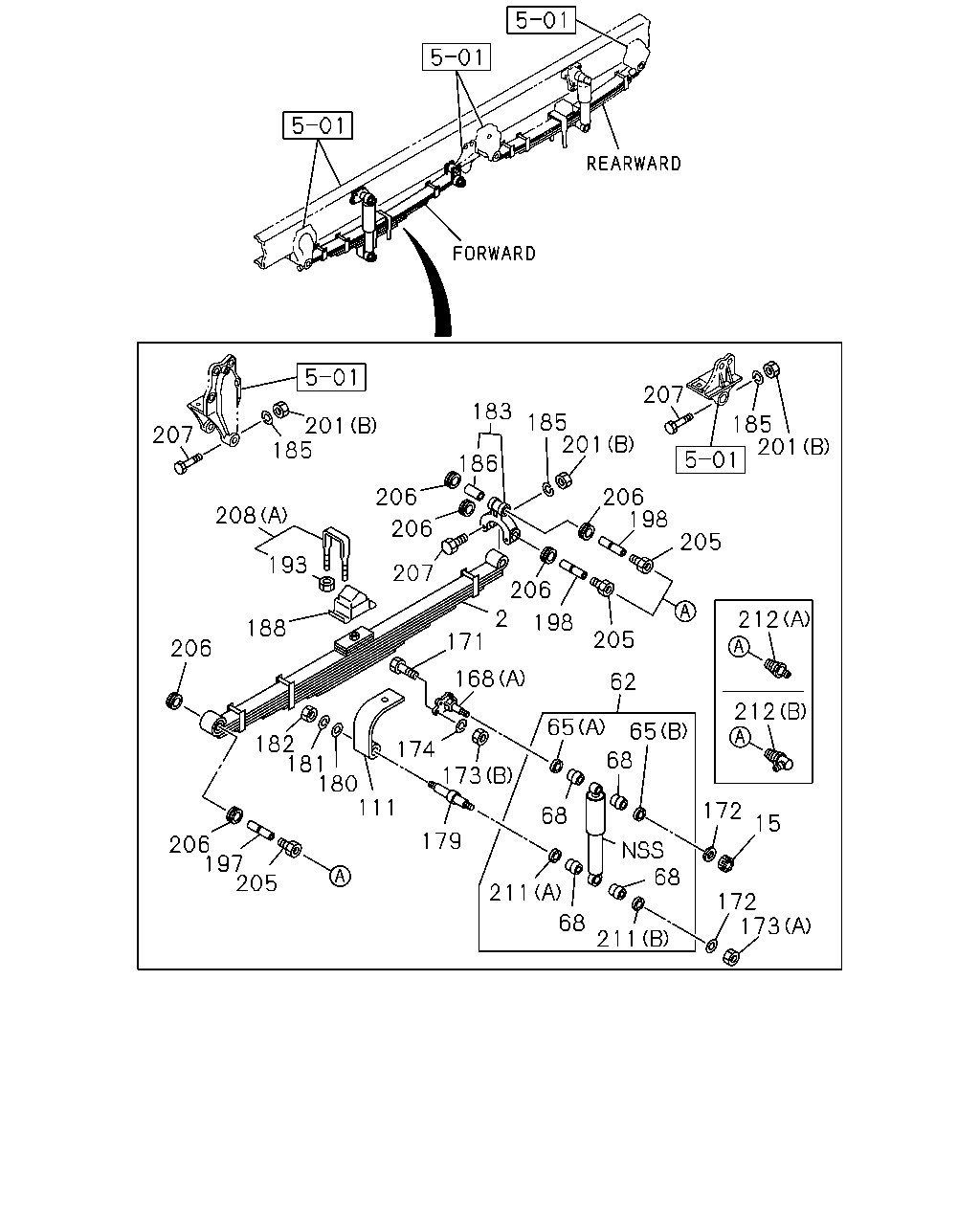

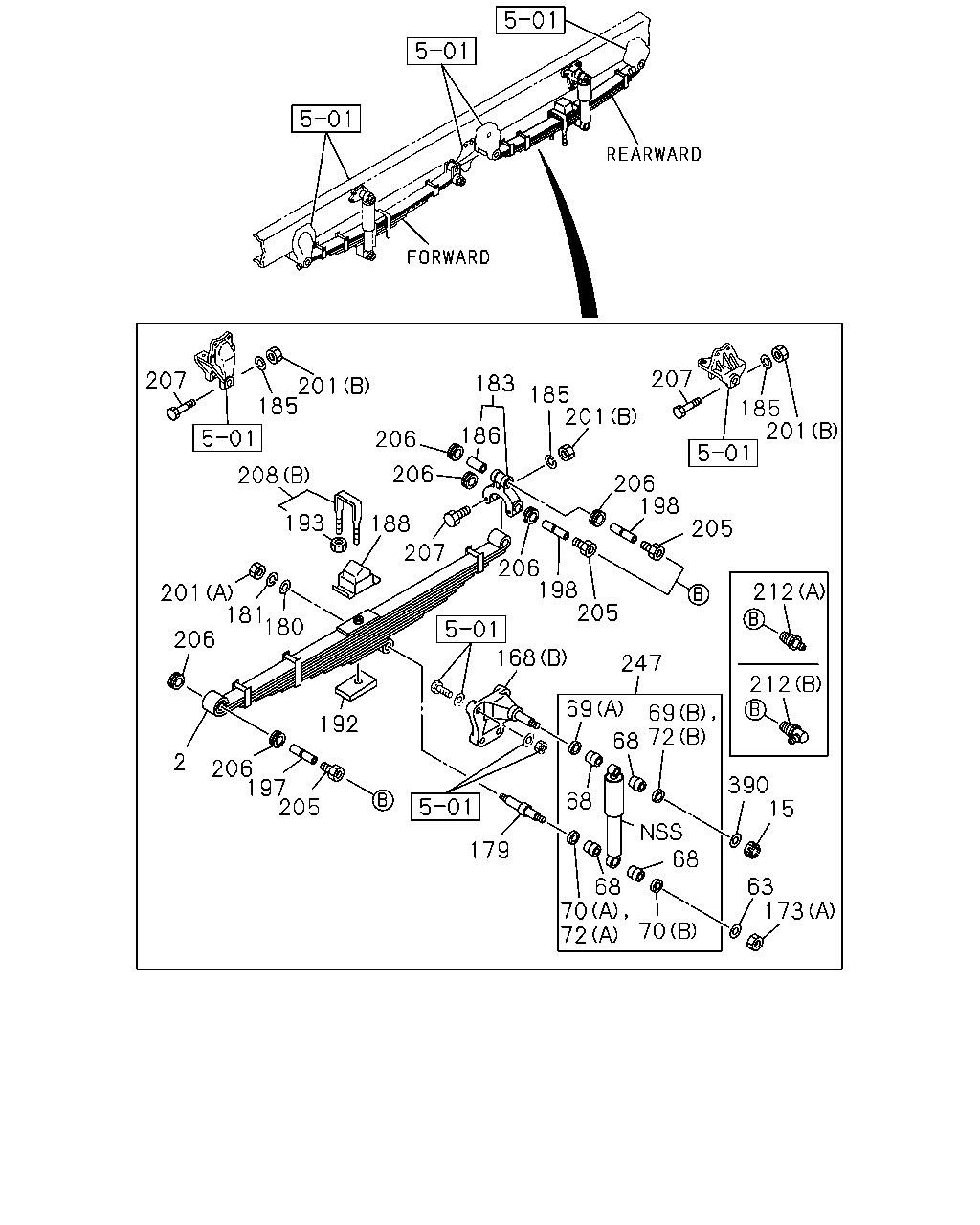

2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MULTI LEAF SUSPENSION FRT<SAQ>
FORWARD
8-LEAF
|
8-98157-782-0 |
02 |
1 |
1305- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
MULTI LEAF SUSPENSION FRT<SAQ>
REARWARD
9-LEAF
|
8-98157-784-0 |
02 |
1 |
1305- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. MULTI LEAF SUSPENSION FRT<SAQ>
FORWARD
4-LEAF
|
8-98157-780-0 |
02 |
1 |
1305- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. MULTI LEAF SUSPENSION FRT<SAQ>
REARWARD
5-LEAF
|
8-98157-783-0 |
02 |
1 |
1305- |
| |
15 |
NUT; S/ABS,UPR
M20
|
0-91110-520-0 |
04 |
1 |
1305- |
| |
63 |
WASHER; PL,S/ABS,LWR
ID=21
|
0-91610-520-0 |
02 |
1 |
1305- |
| |
68 |
BUSHING; S/ABS
|
9-51631-026-0 |
16 |
1 |
1305- |
| |
69 |
WASHER; UPR,S/ABS
(A)
ID=27
|
9-51631-027-0 |
02 |
1 |
1305- |
| |
69 |
WASHER; UPR,S/ABS
EXC. MULTI LEAF SUSPENSION FRT<SAQ>
(B)
ID=21
|
9-51631-028-0 |
02 |
1 |
1305- |
| |
70 |
WASHER; LWR,S/ABS
(B)
ID=21
|
9-51631-028-0 |
02 |
1 |
1305- |
| |
70 |
WASHER; LWR,S/ABS
EXC. MULTI LEAF SUSPENSION FRT<SAQ>
(A)
ID=27
|
9-51631-027-0 |
02 |
1 |
1305- |
| |
72 |
WASHER; CENTER,S/ABS UPR BUSHING
MULTI LEAF SUSPENSION FRT<SAQ>
(A)
ID=27
|
9-51631-027-0 |
02 |
1 |
1305- |
| |
72 |
WASHER; CENTER,S/ABS UPR BUSHING
MULTI LEAF SUSPENSION FRT<SAQ>
(B)
ID=21
|
9-51631-028-0 |
02 |
1 |
1305- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
(A)
|
8-98182-383-0 |
02 |
1 |
1305- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
(B)
|
8-98182-384-0 |
02 |
1 |
1305- |
| |
173 |
NUT; S/ABS
(B)
M14
|
0-91110-514-0 |
08 |
1 |
1305- |
| |
173 |
NUT; S/ABS
(A)
M20
|
0-91110-520-0 |
04 |
1 |
1305- |
| |
179 |
PIN
|
1-51682-094-1 |
04 |
1 |
1305- |
| |
180 |
WASHER; PL,PIN
ID=25
|
1-09503-169-0 |
04 |
1 |
1305- |
| |
181 |
WASHER; LK,PIN
ID=24.5
|
8-98177-166-0 |
04 |
1 |
1305-1305 |
| |
181 |
WASHER; LK,PIN
ID=24.5
|
0-91510-524-0 |
04 |
1 |
1305- |
| |
183 |
SHACKLE; FRT SUSP
|
1-51162-029-5 |
04 |
1 |
1305- |
| |
185 |
WASHER; LK,PIN
ID=12.2
|
0-91510-612-0 |
24 |
1 |
1305- |
| |
186 |
BUSHING; SHACKLE
OD=38
|
8-98081-829-0 |
04 |
1 |
1305- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
|
1-51172-081-1 |
04 |
1 |
1305- |
| |
192 |
PIECE; DIST
|
1-51177-281-1 |
02 |
1 |
1305-1308 |
| |
192 |
PIECE; DIST
|
8-98200-748-0 |
02 |
1 |
1309- |
| |
193 |
NUT; U BOLT
M22
|
8-98179-318-0 |
16 |
1 |
1305- |
| |
197 |
PIN; FRT SPR,FRT
|
1-51161-031-0 |
04 |
1 |
1305- |
| |
198 |
PIN; FRT SPR & SHACKLE,FWD FRT
|
1-51161-031-0 |
08 |
1 |
1305- |
| |
201 |
NUT; PIN LK
(B)
M12
|
0-91110-512-0 |
24 |
1 |
1305- |
| |
201 |
NUT; PIN LK
(A)
M24
|
0-91110-524-0 |
02 |
1 |
1305- |
| |
205 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
12 |
1 |
1305- |
| |
206 |
WASHER; LK,SPRING PIN
ID=32.4
|
1-51169-018-0 |
24 |
1 |
1305- |
| |
207 |
BOLT; SPR TO SHACKLE
M12X80
|
0-10856-280-0 |
24 |
1 |
1305- |
| |
208 |
U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ>
(B)
L=240
|
1-87870-376-2 |
04 |
1 |
1305- |
| |
208 |
U-BOLT SET; FRT SPRING
(A)
L=270
|
1-87870-327-2 |
04 |
1 |
1305- |
| |
208 |
U-BOLT SET; FRT SPRING
EXC. MULTI LEAF SUSPENSION FRT<SAQ>
(B)
L=270
|
1-87870-327-2 |
04 |
1 |
1305- |
| |
212 |
NIPPLE; GREASE,ELBOW
(A)
PT1/8 STRAIGHT
|
0-90301-410-0 |
05 |
1 |
1305- |
| |
212 |
NIPPLE; GREASE,ELBOW
(B)
PT1/8 ELBOW
|
0-90301-610-0 |
07 |
1 |
1305- |
| |
247 |
ABSORBER ASM; SHOCK,RWD FRT
MULTI LEAF SUSPENSION FRT<SAQ>
|
1-51630-783-0 |
02 |
1 |
1305- |
| |
247 |
ABSORBER ASM; SHOCK,RWD FRT
EXC. MULTI LEAF SUSPENSION FRT<SAQ>
|
8-98162-765-0 |
02 |
1 |
1305- |
| |
390 |
WASHER; PL,S/ABS,UPR
ID=21
|
0-91610-520-0 |
02 |
1 |
1305- |
