1 |

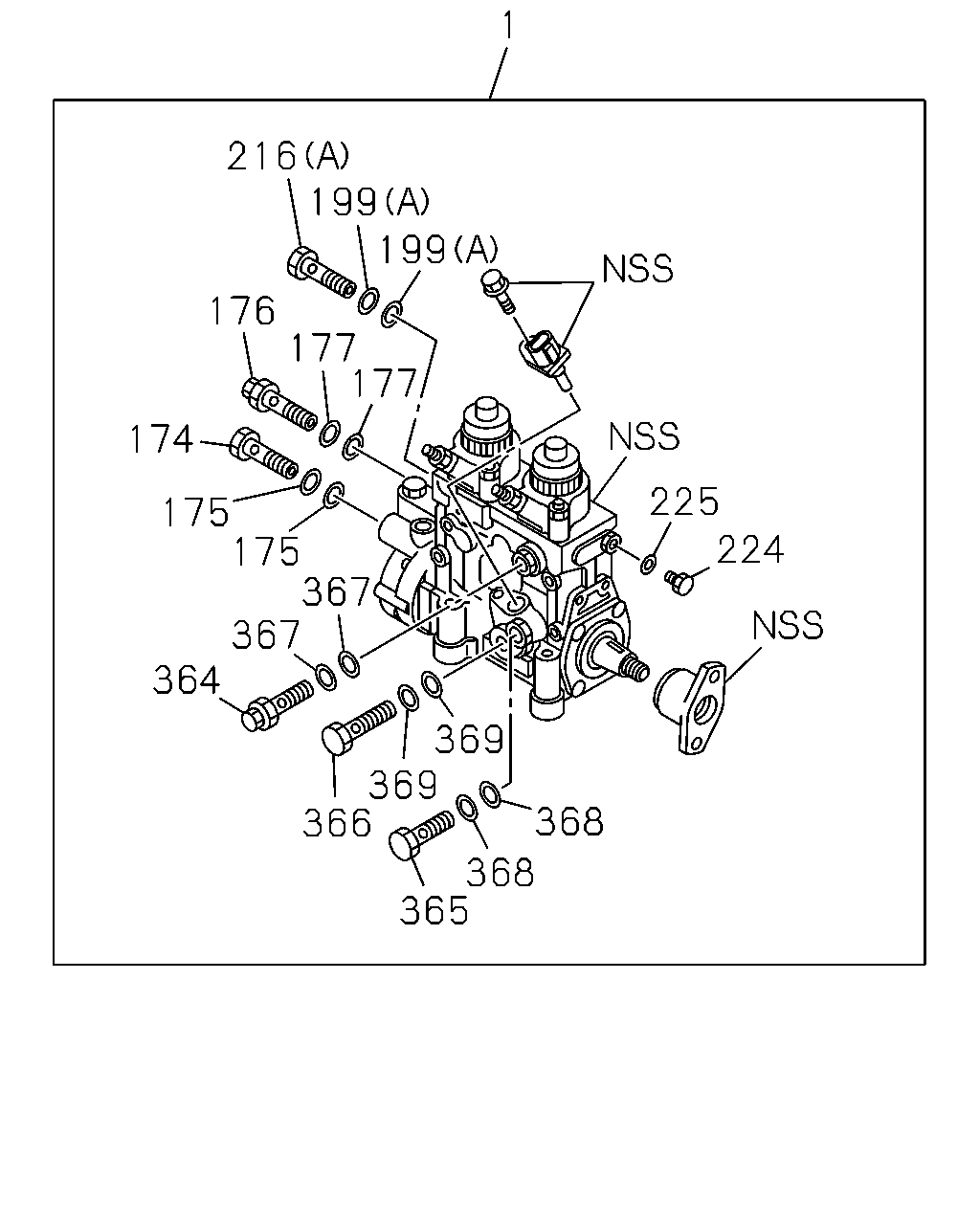

PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-98013-910-4 |
01 |
1 |
1305-1312 |
| |
1 |
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-98176-117-2 |
01 |
1 |
1401- |
| |
2 |

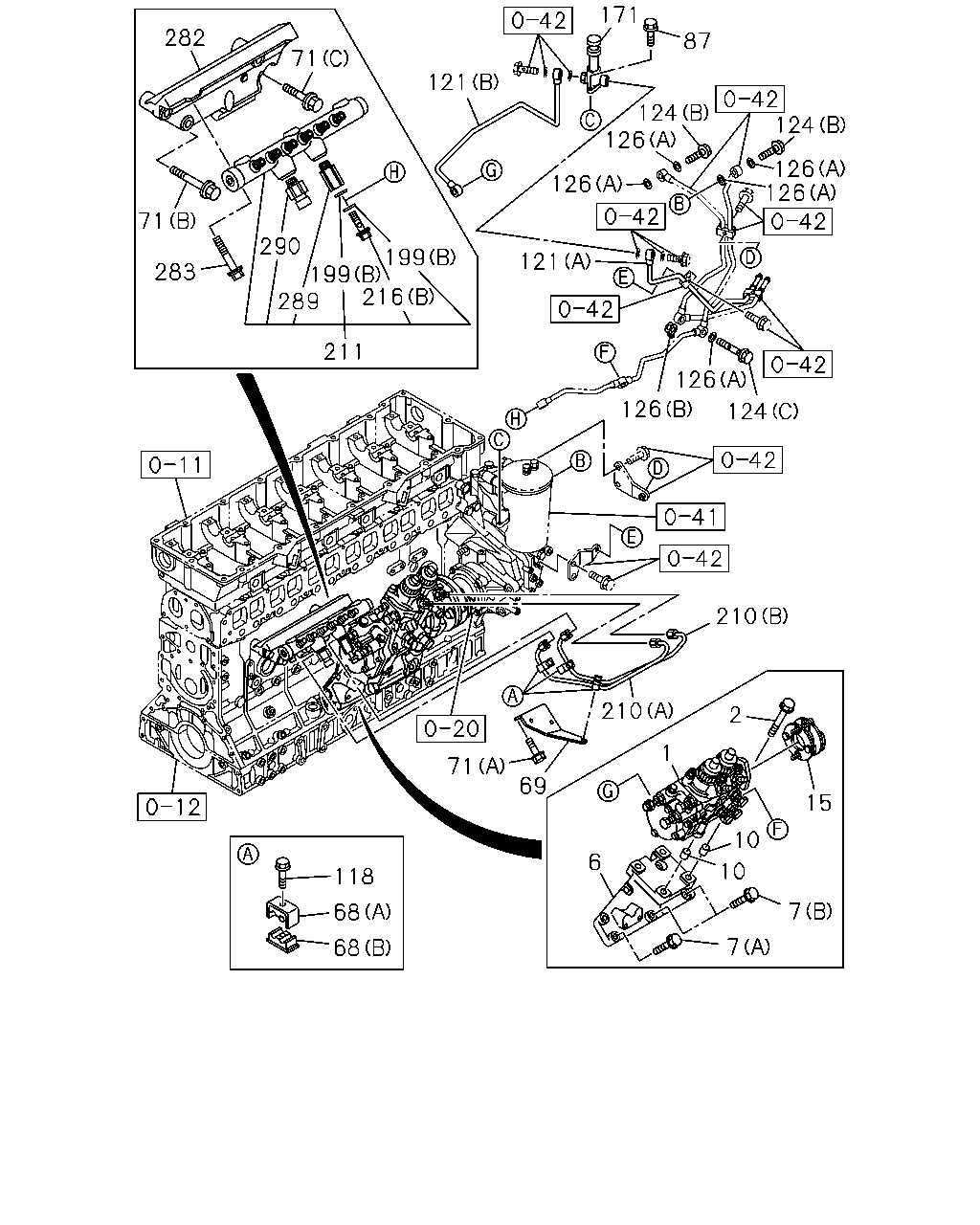

BOLT; INJ PUMP
M8X90 FLANGE
|
0-28060-890-0 |
04 |
1 |
1305- |
| |
6 |
BRACKET; INJ PUMP TO C/BL
|
8-97603-738-1 |
01 |
1 |
1305- |
| |
7 |
BOLT; INJ PUMP BRKT
(A)
M12X40 FLANGE
THA
|
0-28151-240-0 |
04 |
1 |
1305- |
| |
7 |
BOLT; INJ PUMP BRKT
(B)
M12X70 FLANGE
|
0-28151-270-0 |
02 |
1 |
1305- |
| |
10 |
DOWEL; INJ PUMP
|
1-11229-012-1 |
02 |
1 |
1305- |
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
1-15780-202-1 |
01 |
1 |
1305-1312 |
| |
15 |
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
|
8-97610-800-0 |
01 |
1 |
1401- |
| |
68 |
CLIP; INJ PIPE
(A)
|
8-97330-118-3 |
10 |
1 |
1305- |
| |
68 |
CLIP; INJ PIPE
(B)
|
8-97330-119-3 |
10 |
1 |
1305- |
| |
69 |
BRACKET; INJ PIPE CLIP
|
8-98175-342-0 |
01 |
1 |
1305- |
| |
71 |
BOLT; BRKT
(A)
M8X20 FLANGE
THA
|
0-28050-820-0 |
02 |
1 |
1305- |
| |
71 |
BOLT; BRKT
(C)
M10X40 FLANGE
|
0-28151-040-0 |
01 |
1 |
1305- |
| |
71 |
BOLT; BRKT
(B)
M10X60 FLANGE
|
0-28151-060-0 |
03 |
1 |
1305- |
| |
87 |
BOLT; PUMP
M8X25 FLANGE
THA
|
0-28650-825-0 |
02 |
1 |
1305- |
| |
118 |
BOLT; CLIP,INJ PIPE
M6X30 FLANGE
THA
|
0-28650-630-0 |
07 |
1 |
1305- |
| |
118 |
BOLT; CLIP,INJ PIPE
M6X35 FLANGE
THA
|
0-28650-635-0 |
03 |
1 |
1305- |
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
(A)
|
8-97606-231-0 |
01 |
1 |
1305-1403 |
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
(A)
|
8-98257-406-0 |
01 |
1 |
1404- |
| |
121 |
PIPE; FUEL,FEED PUMP,SUCTION
(B)
|
8-97606-232-0 |
01 |
1 |
1305- |
| |
124 |
BOLT; EYE LEAK OFF PIPE
(A)
M8X18 EYE-BOLT
|
1-09675-037-1 |
06 |
1 |
1305- |
| |
124 |
BOLT; EYE LEAK OFF PIPE
(B)
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
1305-1405 |
| |
124 |
BOLT; EYE LEAK OFF PIPE
(B)
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
1406- |
| |
124 |
BOLT; EYE LEAK OFF PIPE
(C)
M14X43
|
8-98037-829-0 |
01 |
1 |
1305- |
| |
126 |
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=14.2 OD=25
|
1-09630-141-0 |
05 |
1 |
1305-1405 |
| |
126 |
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=14.2 OD=25
|
1-09630-141-0 |
03 |
1 |
1406- |
| |
126 |
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=14.2 OD=21
|
8-97251-047-0 |
01 |
1 |
1305- |
| |
171 |
PUMP ASM; FUEL FEED
|
1-15761-012-0 |
01 |
1 |
1305-1403 |
| |
171 |
PUMP ASM; FUEL FEED
|
8-98257-686-0 |
01 |
1 |
1404- |
| |
199 |
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
1-15619-507-0 |
02 |
1 |
1305- |
| |
199 |
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
|
8-97602-218-0 |
02 |
1 |
1305- |
| |
210 |
PIPE; INJ,C/R
(A)
|
8-98170-937-1 |
01 |
1 |
1305- |
| |
210 |
PIPE; INJ,C/R
(B)
|
8-98170-938-1 |
01 |
1 |
1305- |
| |
211 |
RAIL ASM; COMMON
|
8-97622-718-1 |
01 |
1 |
1305- |
| |
216 |
BOLT; EYE
(A)
|
5-15759-003-0 |
01 |
1 |
1305- |
| |
216 |
BOLT; EYE
(B)
|
8-98043-033-0 |
01 |
1 |
1305- |
| |
282 |
BRACKET; COMMON RAIL
|
8-98098-851-1 |
01 |
1 |
1305- |
| |
283 |
BOLT; COMMON RAIL
M10X50 FLANGE
THA
|
0-28151-050-0 |
02 |
1 |
1305- |
| |
289 |
LIMITER; FUEL PRESS
|
8-98097-606-0 |
01 |
1 |
1305- |
| |
290 |
SENSOR; PRESS
|
8-97318-684-0 |
01 |
1 |
1305- |
