2-30 — GEAR SHIFTER AND QUADRANT BOX (#119423) — 190 parça

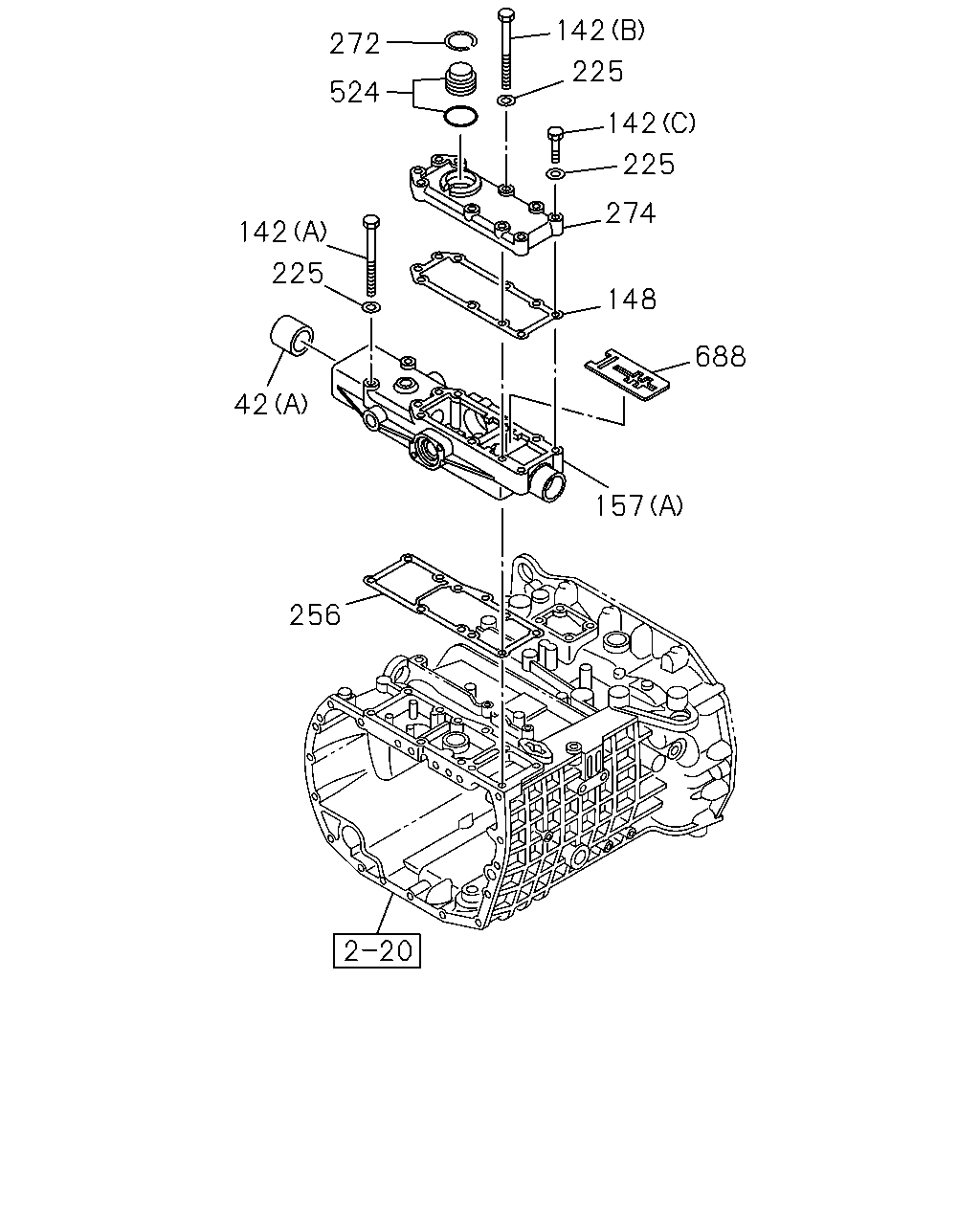

çizim 350651
256 157 688 148 274 225 142 225 142 272 142 42 225 524
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1305-1305
42 CAP; QUAD BOX
(B) IMA 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
(A) IMA 		1-33549-538-0 01 1 1305-
142 BOLT; QUAD BOX
(B) 		1-33549-486-0 06 1 1305-1305
142 BOLT; QUAD BOX
(B) M8X75 IMA 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
(A) M8X75 		1-09089-015-0 02 1 1305-1305
142 BOLT; QUAD BOX
(A) M8X100 IMA 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
(C) 		1-34129-116-0 04 1 1305-1305
142 BOLT; QUAD BOX
(C) M8X40 IMA 		1-33549-587-0 04 1 1306-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33542-064-0 01 1 1305-
157 BOX; QUAD,TRANS
(A) IMA 		1-33549-570-0 01 1 1305-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1305-1305
157 BOX; QUAD,TRANS
(B) IMA 		1-33549-604-0 01 1 1306-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1305-1305
225 WASHER; LK,QUAD BOX
IMA 		1-33549-583-0 14 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33542-065-0 01 1 1305-
272 RING; SNAP,QUAD BOX
IMA 		1-44519-217-0 01 1 1305-
274 COVER; SHAFT,QUAD BOX
IMA 		1-33549-579-0 01 1 1305-
524 DETENT; QUAD BOX
IMA 		1-33549-501-0 01 1 1305-
688 SHIFT; INTERLOCK
IMA 		1-33549-572-0 01 1 1305-
çizim 350670
292 48 296 296 292 295 292 323 505 505 292 315 317 317 433 433 320 319 321
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1305-
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 1305-
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 1305-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1305-
296 ROD END
L=45.5 		1-09760-118-1 02 1 1305-
315 LEVER; SELECT 8-98061-898-0 01 1 1305-
317 BUSHING; LEVER 1-09330-119-0 02 1 1305-
319 BRACKET; SELECT LEVER 8-98065-843-0 01 1 1305-
320 SHAFT; LEVER 8-98065-840-0 01 1 1305-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE THA 		0-28055-811-0 02 1 1305-
323 NUT; LK,SELECT LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1305-
433 GASKET; BUSHING 1-09623-594-0 02 1 1305-
505 SPACER; BRKT
T=5 		9-14149-173-0 01 1 1305-
505 SPACER; BRKT
L=28 		9-83625-376-0 01 1 1305-

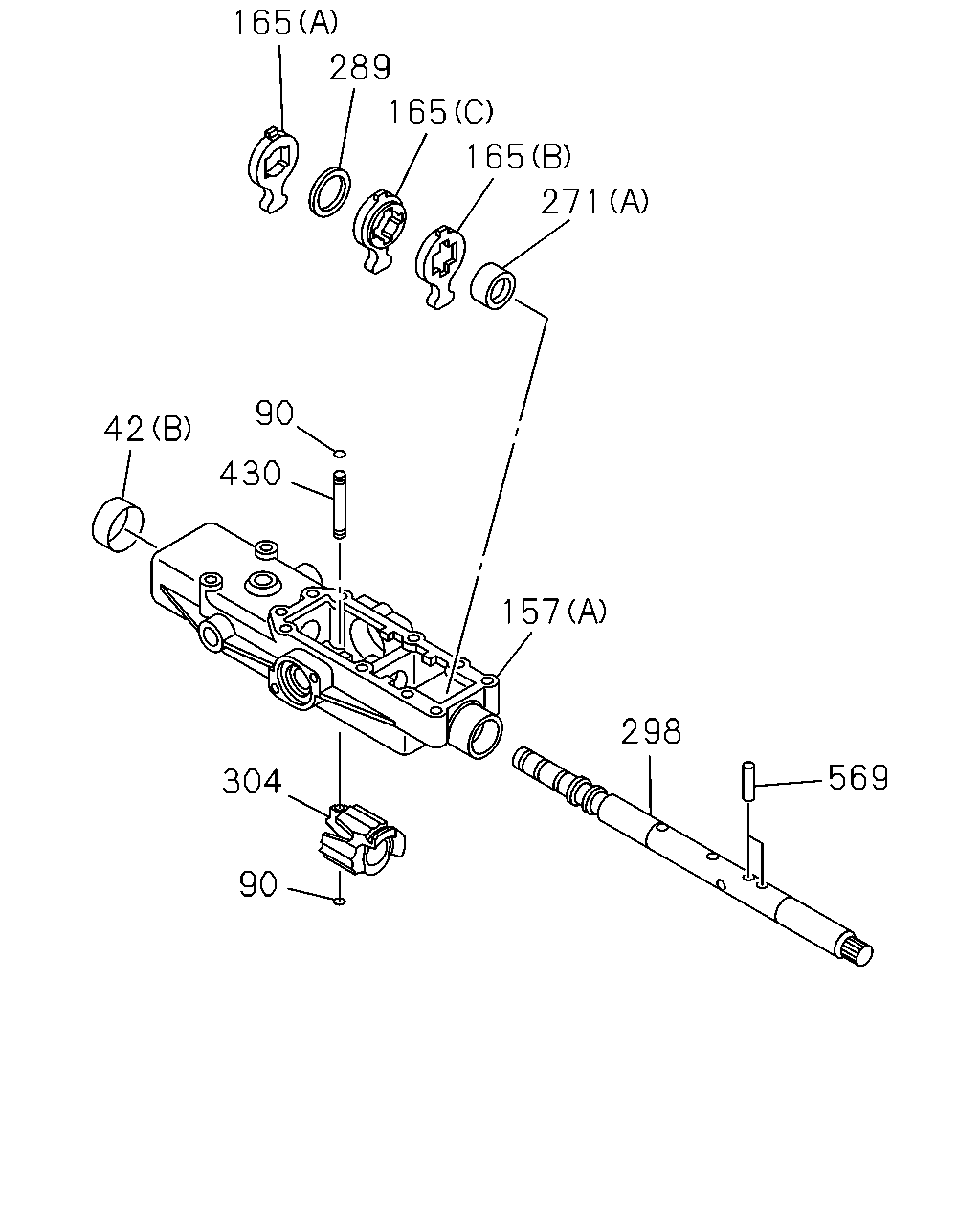

çizim 350672
165 289 165 165 271 90 42 430 157 298 569 304 90
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1305-1305
42 CAP; QUAD BOX
(B) IMA 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
(A) IMA 		1-33549-538-0 01 1 1305-
90 RING; SNAP,SHIFT ROD
IMA 		1-33549-494-0 02 1 1305-
157 BOX; QUAD,TRANS
(A) IMA 		1-33549-570-0 01 1 1305-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1305-1305
157 BOX; QUAD,TRANS
(B) IMA 		1-33549-604-0 01 1 1306-
165 LEVER; SHIFT
(B) IMA 		1-33549-488-0 01 1 1305-
165 LEVER; SHIFT
(C) IMA 		1-33549-489-0 01 1 1305-
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1305-1305
165 LEVER; SHIFT
(A) IMA 		1-33549-603-0 01 1 1306-
271 BUSHING; QUAD BOX
(A) IMA 		1-33549-124-0 01 1 1305-
271 BUSHING; QUAD BOX
(B) IMA 		1-33549-537-0 01 1 1305-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33549-491-0 01 1 1305-
298 SHAFT; SHIFT LEVER
IMA 		1-33522-211-0 01 1 1305-
304 BLOCK; SHIFT SHAFT
IMA 		1-33549-492-0 01 1 1305-
430 PIN; SPR,SHIFT ROD
IMA 		1-33549-493-0 01 1 1305-
569 PIN; QUADRANT BOX
IMA 		1-33529-128-0 02 1 1305-

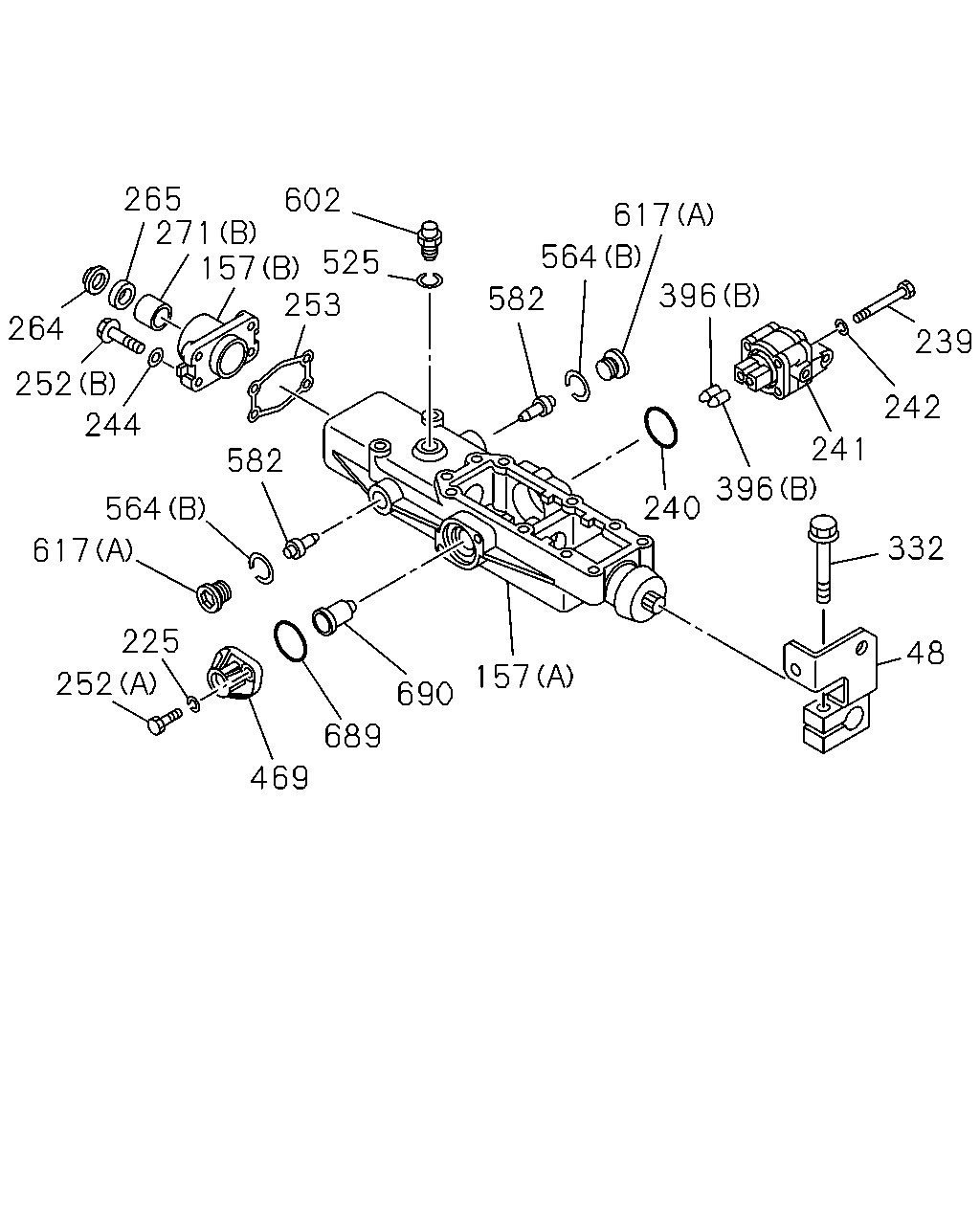

çizim 350674
157 690 689 469 252 225 617 564 244 582 252 264 265 271 157 602 253 525 582 564 617 394 240 396 241 242 239 332 48
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1305-
157 BOX; QUAD,TRANS
(A) IMA 		1-33549-570-0 01 1 1305-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1305-1305
157 BOX; QUAD,TRANS
(B) IMA 		1-33549-604-0 01 1 1306-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1305-1305
225 WASHER; LK,QUAD BOX
IMA 		1-33549-583-0 14 1 1306-
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 1305-1305
239 BOLT; CUT OFF VALVE
IMA 		1-33549-585-0 04 1 1306-
240 GASKET; CUT OFF VALVE
IMA 		1-33549-198-0 01 1 1305-
241 VALVE; CUT OFF
IMA 		1-33549-495-0 01 1 1305-
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 1305-1305
242 WASHER; CUT OFF VALVE
IMA 		1-33549-583-0 04 1 1306-
244 WASHER; LK,COVER 1-33549-159-0 04 1 1305-1305
244 WASHER; LK,COVER
IMA 		1-33549-583-0 04 1 1306-
252 BOLT; SIDE COVER
(B) M8X35 		1-33119-271-0 04 1 1305-1305
252 BOLT; SIDE COVER
(B) M8X35 IMA 		1-33549-586-0 04 1 1306-
252 BOLT; SIDE COVER
(A) M8X30 		1-33549-172-0 02 1 1305-1305
252 BOLT; SIDE COVER
(A) M8X30 IMA 		1-33549-581-0 02 1 1306-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33544-054-0 01 1 1305-
264 SEAL; DUST,SHAFT
IMA 		1-33549-327-0 01 1 1305-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33549-328-0 01 1 1305-
271 BUSHING; QUAD BOX
(A) IMA 		1-33549-124-0 01 1 1305-
271 BUSHING; QUAD BOX
(B) IMA 		1-33549-537-0 01 1 1305-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA 		0-28650-840-0 01 1 1305-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1305-1305
394 SWITCH; RANGE CHANGE
IMA 		1-33119-627-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1305-1305
396 PLUNGER; SHIFT ROD
(A) IMA 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) IMA 		1-33529-085-0 02 1 1305-
469 COVER; SPRING,QUAD BOX
IMA 		1-33549-216-0 01 1 1305-
525 RING; DETENT
IMA 		1-33119-286-0 01 1 1305-
564 SEAL; RING
(B) IMA 		1-33119-249-0 02 1 1305-
564 SEAL; RING
(A) IMA 		1-33549-578-0 01 1 1305-
582 BOLT; SPRING GUIDE
IMA 		1-33549-487-0 02 1 1305-
602 PLUNGER; DETENT 1-34539-113-0 01 1 1305-1305
602 PLUNGER; DETENT
IMA 		1-33119-618-0 01 1 1306-
617 PLUG
(A) 		1-33119-171-0 02 1 1305-1305
617 PLUG
(A) IMA 		1-33119-619-0 02 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1305-1305
617 PLUG
(B) IMA 		1-33539-109-0 01 1 1306-
689 GASKET; COVER
IMA 		1-33542-063-0 01 1 1305-
690 PIN; STOP
IMA 		1-33549-496-0 01 1 1305-

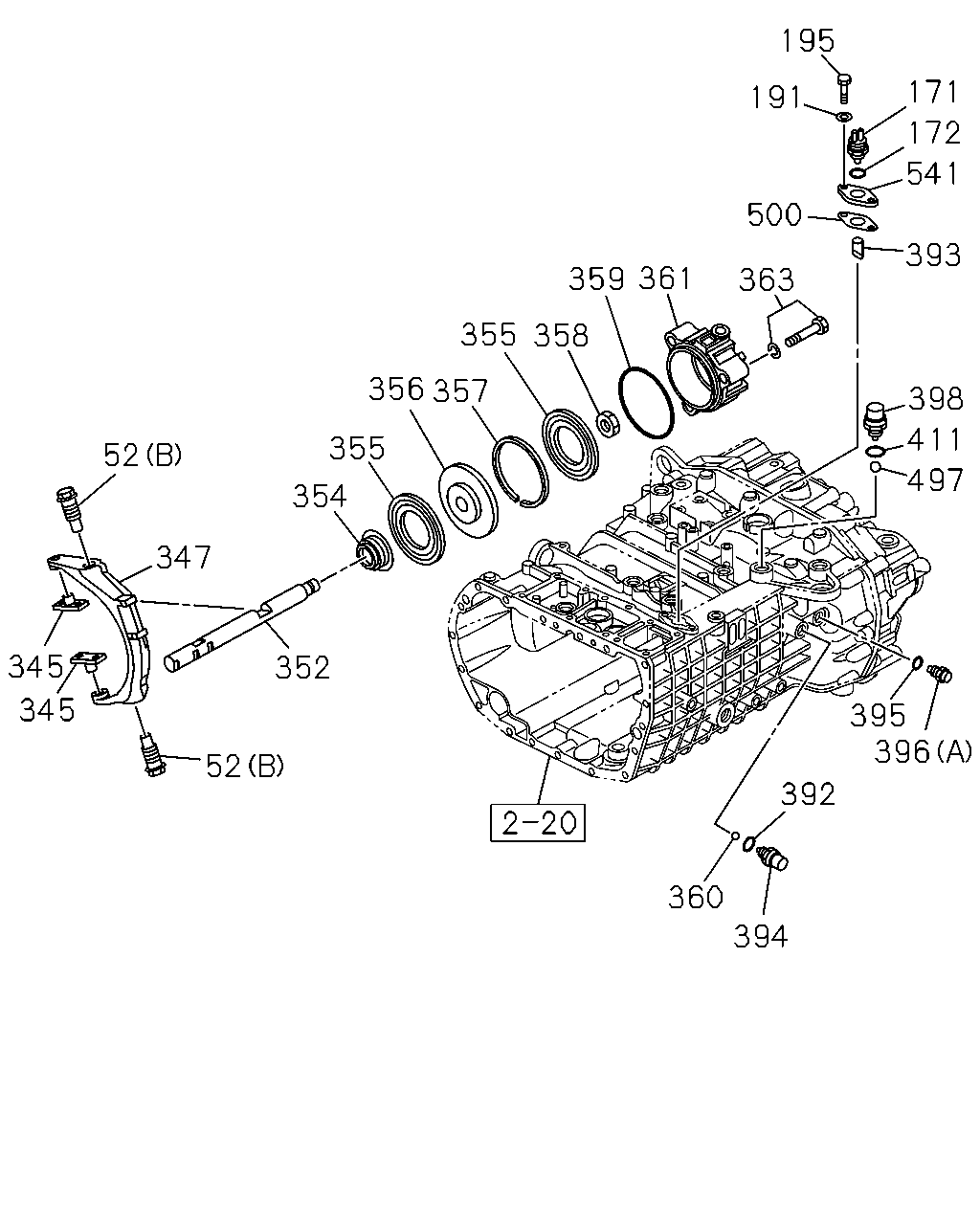

çizim 350678
195 191 171 172 541 500 393 363 361 359 358 355 357 356 355 354 52 347 352 52 345 345 360 394 392 396 395 497 411 398
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1305-1305
52 BOLT; SHIFT ARM
(A) IMA 		1-33519-190-0 07 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1305-1305
52 BOLT; SHIFT ARM
(B) IMA 		1-33519-196-0 02 1 1306-
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1305-1305
171 SWITCH; NEUTRAL
IMA 		1-33119-627-0 01 1 1306-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33119-249-0 01 1 1305-
191 WASHER; LK 1-33549-577-0 02 1 1305-1305
191 WASHER; LK
IMA 		1-33549-583-0 02 1 1306-
195 BOLT
IMA 		1-33119-593-0 02 1 1305-
345 BLOCK; SHIFT,RANGE CHANGE
IMA 		1-33519-095-0 02 1 1305-
347 ARM; SHIFT,RANGE CHANGE
IMA 		1-33511-529-0 01 1 1305-
352 ROD; SHIFT,RANGE CHANGE
IMA 		1-33531-495-0 01 1 1305-1305
352 ROD; SHIFT,RANGE CHANGE
IMA 		1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL
IMA 		1-33519-045-0 01 1 1305-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1305-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1305-1305
356 PISTON; AIR CYL
IMA 		1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1305-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1305-1305
358 NUT; SHIFT ROD
IMA 		1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL
IMA 		1-33519-093-0 01 1 1305-
360 BALL; AIR CYL
IMA 		1-33119-252-0 01 1 1305-
361 CYLINDER; AIR,SHIFT
IMA 		1-33519-092-0 01 1 1305-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1305-1305
363 BOLT; AIR CYL
M10X70 IMA 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33119-249-0 01 1 1305-
393 PIN; SW
IMA 		1-33119-298-0 01 1 1305-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1305-1305
394 SWITCH; RANGE CHANGE
IMA 		1-33119-627-0 01 1 1306-
395 GASKET; PLUNGER
IMA 		1-33549-497-0 01 1 1305-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1305-1305
396 PLUNGER; SHIFT ROD
(A) IMA 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) IMA 		1-33529-085-0 02 1 1305-
398 SWITCH; REV LAMP
IMA 		1-38119-062-0 01 1 1305-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). IMA 		1-33119-249-0 01 1 1305-
497 BALL; SWITCH
IMA 		1-33119-252-0 01 1 1305-
500 GASKET; SW
IMA 		1-33119-299-0 01 1 1305-
541 PLATE; SWITCH
IMA 		1-33119-300-0 01 1 1305-

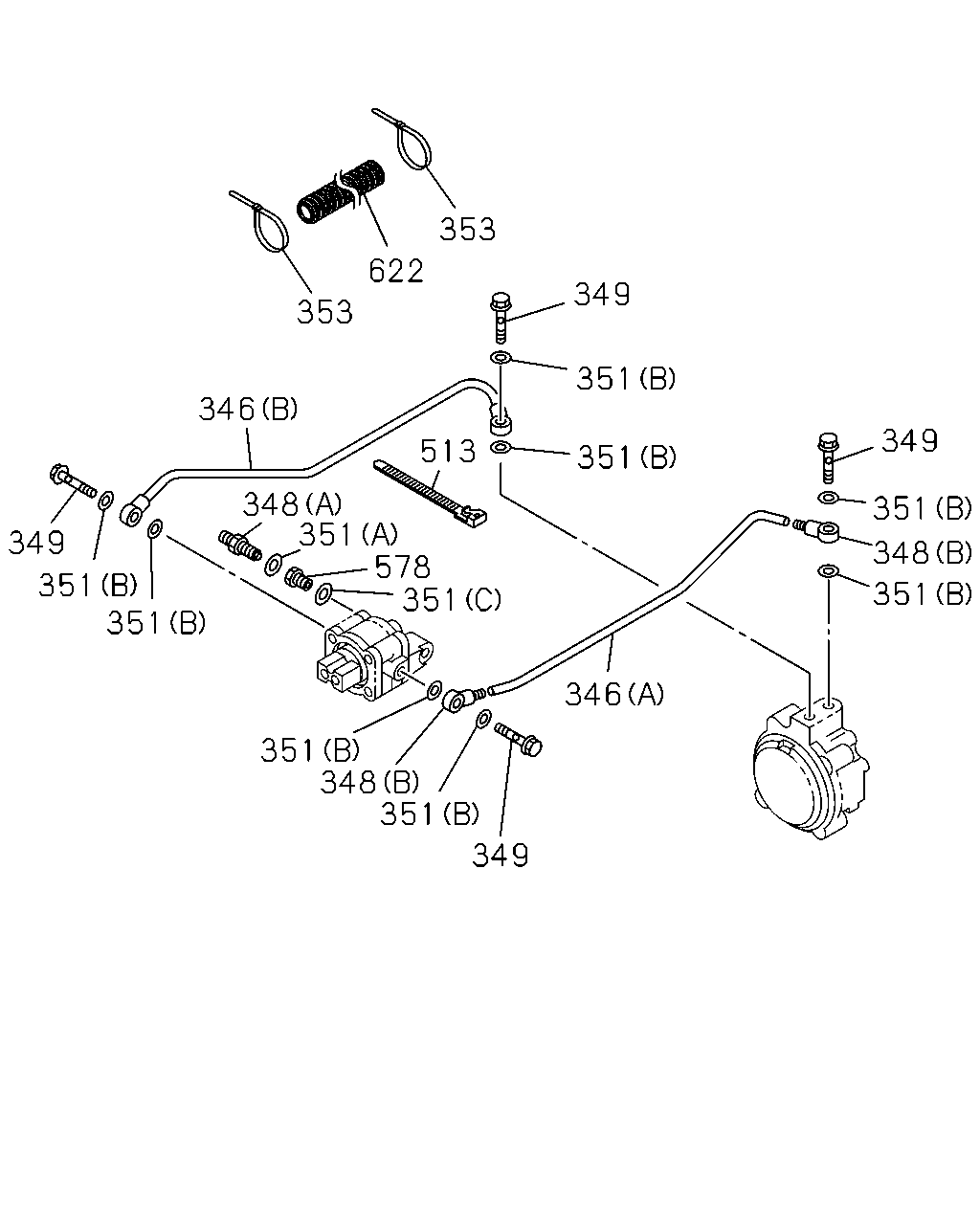

çizim 350683
353 622 353 346 349 351 351 351 348 351 349 346 351 348 351 349 351 578 351 348 351 351 349 513
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-400-0 01 1 1305-1305
346 HOSE; AIR
(A) IMA 		1-33549-618-0 01 1 1306-
346 HOSE; AIR
(B) 		1-33549-443-0 01 1 1305-1305
346 HOSE; AIR
(B) IMA 		1-33549-598-0 01 1 1306-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1305-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-139-0 02 1 1305-1305
348 CONNECTOR; AIR HOSE
(B) IMA 		1-33549-593-0 02 1 1306-
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1305-1305
349 BOLT; EYE,AIR HOSE
M14 IMA 		1-33549-592-0 04 1 1306-
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 1305-1312
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(C) IMA 		1-33549-554-0 01 1 1305-
351 GASKET; CONNECTOR
(B) IMA 		1-33549-578-0 08 1 1305-
353 CLIP; AIR HOSE
IMA 		1-33549-530-0 02 1 1305-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1305-
578 CONNECTOR
IMA 		1-33549-553-0 01 1 1305-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1305-

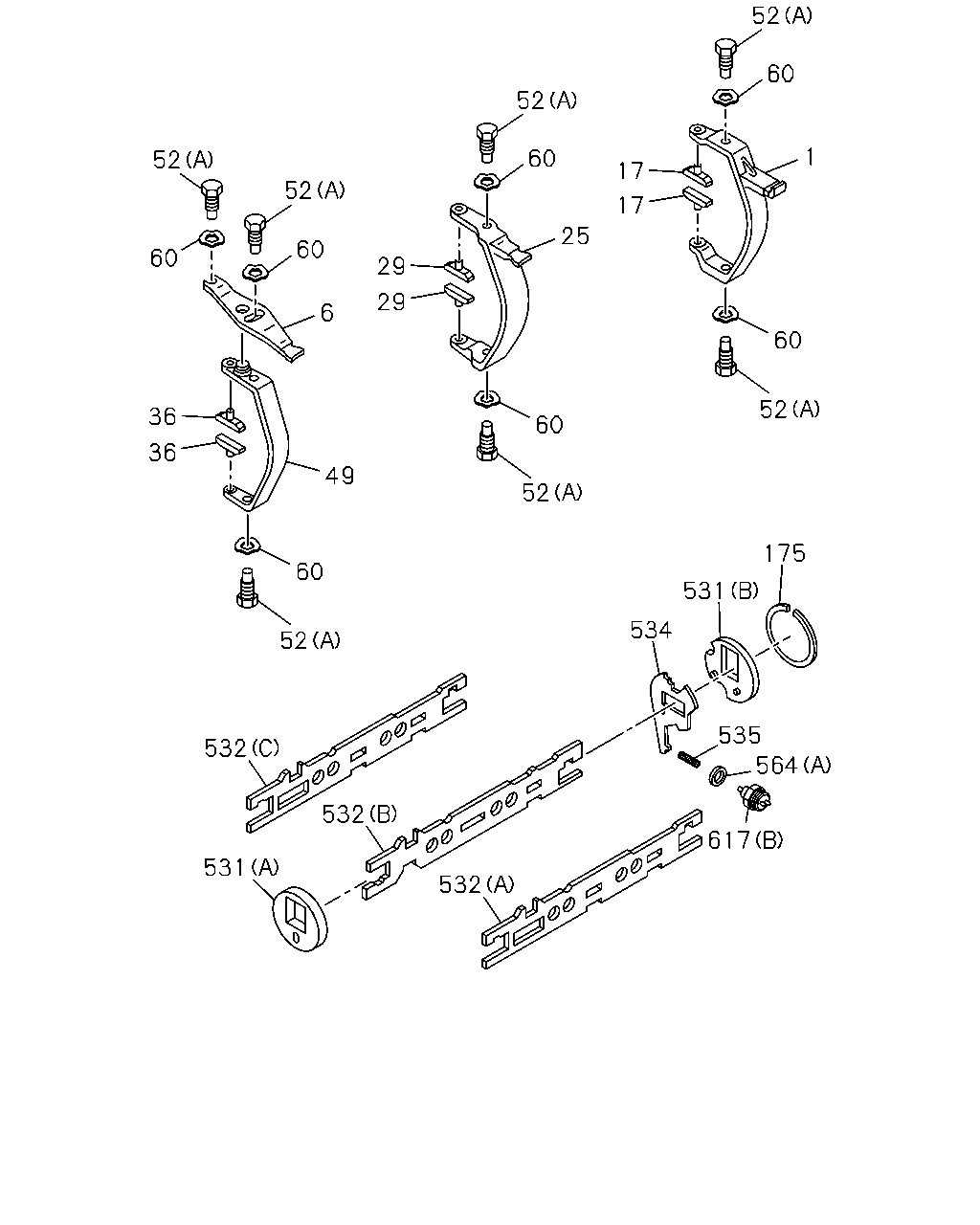

çizim 352121
52 60 36 36 49 60 52 532 531 532 52 52 52 52 29 60 6 60 52 1 17 17 25 60 60 175 531 534 564 617 535 532 60 29
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
IMA 		1-33511-657-0 01 1 1305-
6 LEVER; RELAY
IMA 		1-33511-658-0 01 1 1305-
17 BLOCK; SHIFT,1ST & REV
IMA 		1-33519-172-0 02 1 1305-
25 ARM; SHIFT,2ND & 3RD
IMA 		1-33511-642-0 01 1 1305-
29 BLOCK; SHIFT,2ND & 3RD
IMA 		1-33519-081-0 02 1 1305-
36 BLOCK; SHIFT,4TH & 5TH
IMA 		1-33519-170-0 02 1 1305-
49 ARM; SHIFT,4TH & 5TH
IMA 		1-33511-640-0 01 1 1305-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1305-1305
52 BOLT; SHIFT ARM
(A) IMA 		1-33519-190-0 07 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1305-1305
52 BOLT; SHIFT ARM
(B) IMA 		1-33519-196-0 02 1 1306-
60 WASHER; LK 1-33519-085-0 07 1 1305-1305
175 RING; STOPPER,SHIFT LEVER
IMA 		1-33539-103-0 01 1 1305-
531 PLATE; BEARING
(A) IMA 		1-33539-044-0 01 1 1305-
531 PLATE; BEARING
(B) IMA 		1-33539-047-0 01 1 1305-
532 PLATE; SHIFT FORK
(A) IMA 		1-33531-492-0 01 1 1305-
532 PLATE; SHIFT FORK
(B) IMA 		1-33531-493-0 01 1 1305-
532 PLATE; SHIFT FORK
(C) IMA 		1-33531-494-0 01 1 1305-
534 LEVER; LOCK,SHIFT PLATE
IMA 		1-33539-087-0 01 1 1305-
535 SPRING; LEVER
IMA 		1-33539-049-0 01 1 1305-
564 SEAL; RING
(B) IMA 		1-33119-249-0 02 1 1305-
564 SEAL; RING
(A) IMA 		1-33549-578-0 01 1 1305-
617 PLUG
(A) 		1-33119-171-0 02 1 1305-1305
617 PLUG
(A) IMA 		1-33119-619-0 02 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1305-1305
617 PLUG
(B) IMA 		1-33539-109-0 01 1 1306-
çizim 352122
303 19 277 19 277 277 303 19 157 298 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(D) IMA 		1-33539-028-0 01 1 1305-
19 SPRING; COIL COMP
(B) IMA 		1-33539-030-0 02 1 1305-
19 SPRING; COIL COMP
(C) IMA 		1-33539-092-0 01 1 1305-
19 SPRING; COIL COMP
(A) IMA 		1-33549-221-0 01 1 1305-
157 BOX; QUAD,TRANS
(A) IMA 		1-33549-570-0 01 1 1305-
157 BOX; QUAD,TRANS
(B) 		1-33549-574-0 01 1 1305-1305
157 BOX; QUAD,TRANS
(B) IMA 		1-33549-604-0 01 1 1306-
277 PLATE; SPRING SEAT
(B) 		1-33539-039-0 02 1 1305-1305
277 PLATE; SPRING SEAT
(B) IMA 		1-33539-107-0 02 1 1306-
277 PLATE; SPRING SEAT
(A) 		1-33539-042-0 01 1 1305-1305
298 SHAFT; SHIFT LEVER
IMA 		1-33522-211-0 01 1 1305-
303 RING; SNAP,SHAFT
IMA 		1-33539-040-0 02 1 1305-

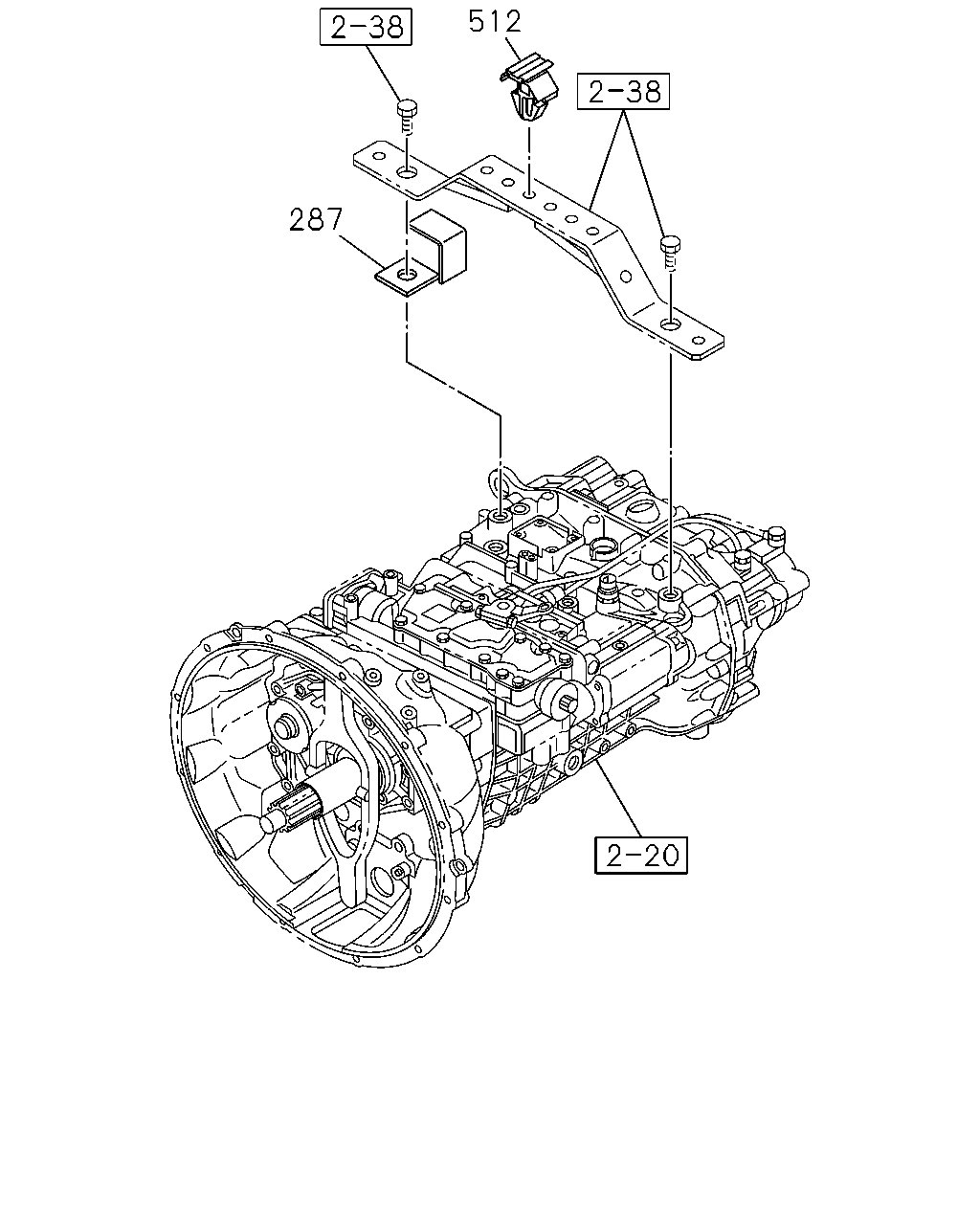

çizim 352725
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1305-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
