Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#11942) — 226 parça

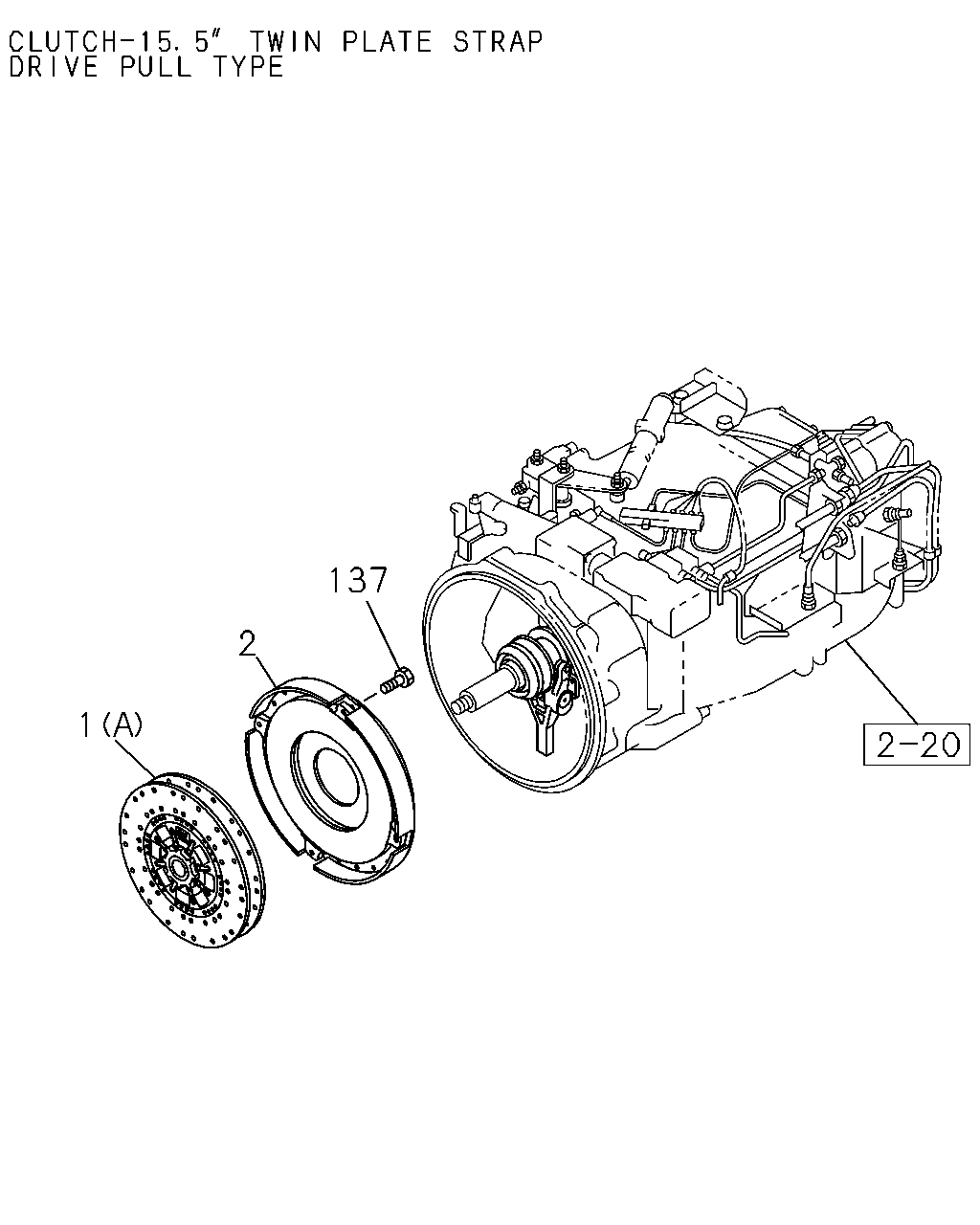

1 2 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) FRONT 15.5"	1-31240-905-0	01	1	0105-	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-883-0	01	1	0105-0106	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-883-0	01	1	0107-	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-884-0	01	1	0105-0106	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-884-0	01	1	0107-	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-885-0	01	1	0105-		●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-886-0	01	1	0105-		●
2	PLATE ASM; PRESSURE,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31220-351-0	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-293-3	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	0105-		●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28186-011-0	12	1	0105-0512	●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28156-011-0	12	1	0601-	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0105-0512	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0105-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-	●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0105-0512	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0105-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0105-0512	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0105-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0601-		●

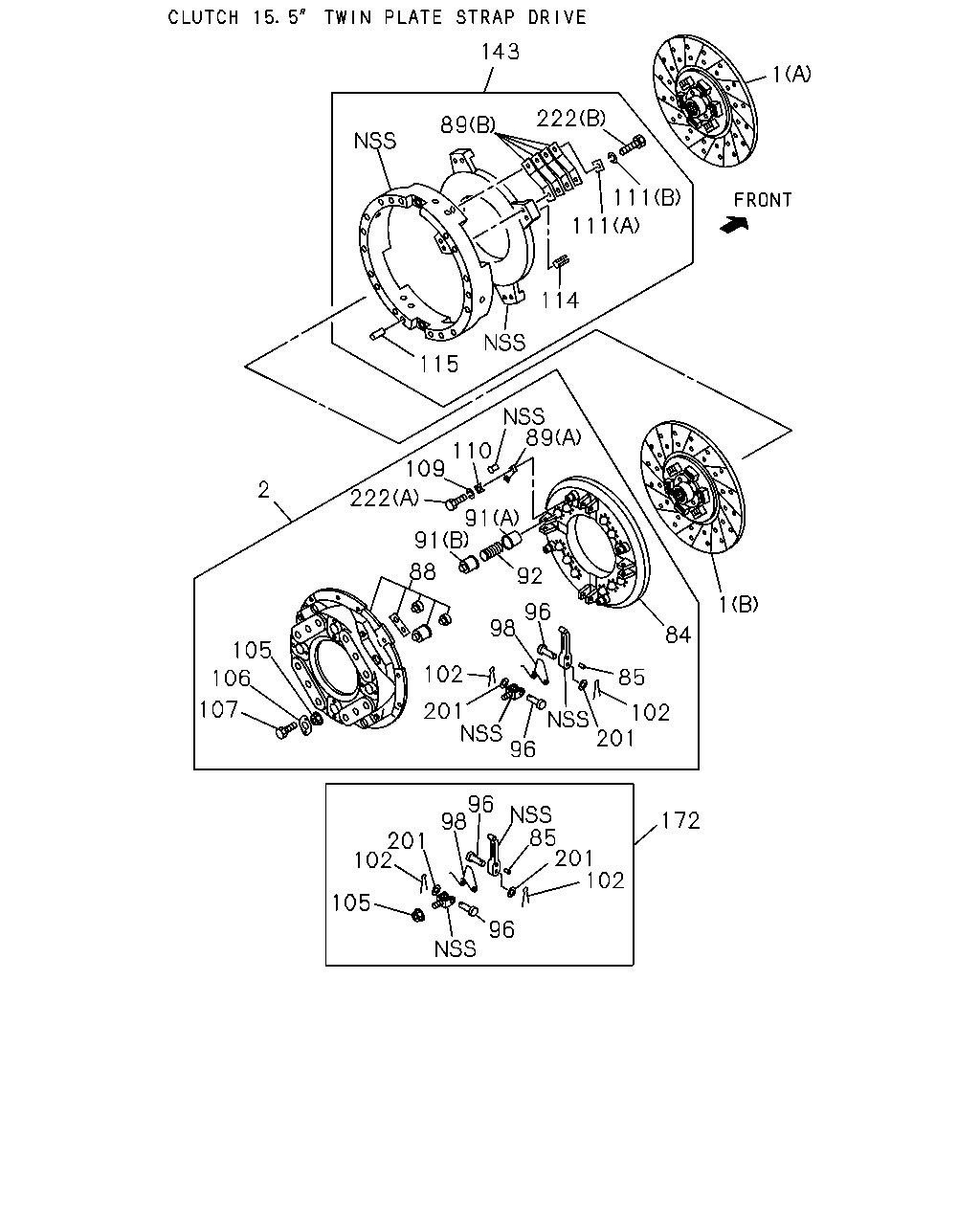

143 1 111 222 111 114 115 2 110 109 222 1 91 91 92 88 96 98 84 85 102 105 106 107 201 201 102 172 96 96 98 85 201 102 201 102 105 96 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) FRONT 15.5"	1-31240-905-0	01	1	0105-	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-883-0	01	1	0105-0106	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) FRONT 15.5"	1-31240-883-0	01	1	0107-	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-884-0	01	1	0105-0106	●
1	DISC; CLUTCH CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) REAR 15.5"	1-31240-884-0	01	1	0107-	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-885-0	01	1	0105-		●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-886-0	01	1	0105-		●
2	PLATE ASM; PRESSURE,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31220-351-0	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-293-3	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	0105-		●
84	PLATE; PRESSURE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-092-0	01	1	0105-	●
84	PLATE; PRESSURE	1-31221-092-0	01	1	0105-		●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	0105-0106	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0105-0106		●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	0107-0205	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0107-0205		●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0206-	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0206-		●
88	COVER SUB ASM; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31211-034-1	01	1	0105-	●
88	COVER SUB ASM; CLU	1-31211-034-1	01	1	0105-		●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31229-010-0	12	1	0105-0106	●
89	PLATE; STRAP (B)	1-31229-010-0	12	1	0105-0106		●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31229-010-0	12	1	0107-	●
89	PLATE; STRAP (B)	1-31229-010-0	12	1	0107-		●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31229-048-0	20	1	0105-0106	●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31229-048-0	20	1	0107-	●
89	PLATE; STRAP (A)	1-31229-048-0	16	1	0105-		●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	0105-0106	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0105-0106		●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	0107-	●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0107-		●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	0105-0106	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0105-0106		●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	0107-	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0107-		●
92	SPRING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-062-0	12	1	0105-0106	●
92	SPRING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-062-0	12	1	0107-	●
92	SPRING; CLU	1-31214-042-0	12	1	0105-		●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	0105-0106	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0105-0106		●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	0107-0308	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0107-0308		●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0309-		●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0105-0106	●
98	SPRING; RETURN	1-31233-007-0	04	1	0105-0106		●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0107-	●
98	SPRING; RETURN	1-31233-007-0	04	1	0107-		●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0105-0106	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0105-0106		●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0107-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0107-		●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	0105-0106	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0105-0106		●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	0107-0205	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0107-0205		●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0206-	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-		●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0105-0106	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0106		●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0107-	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-		●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0106	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0106		●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-0205	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-0205		●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0206-	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-		●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0105-0106	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0105-0106		●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0107-0603	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0107-0603		●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	0-91510-512-0	04	1	0604-	●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-		●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0105-0106	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0105-0106		●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0107-	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0107-		●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	0105-0106	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0105-0106		●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	0107-	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0107-		●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	0105-0106	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0105-0106		●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	0107-0603	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0107-0603		●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	0-91510-512-0	08	1	0604-	●
111	WASHER; PL,STRAP (B) ID=12.2	0-91510-512-0	08	1	0604-		●
114	PIN; STRAIGHT,INTERMEDIATE PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09748-033-0	04	1	0105-0106	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0105-0106		●
114	PIN; STRAIGHT,INTERMEDIATE PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09748-033-0	04	1	0107-	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0107-		●
115	PIN; STRAIGHT,FLYWHEEL,SPACER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) D=10 L=25	1-09740-039-1	02	1	0105-0106	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0105-0106		●
115	PIN; STRAIGHT,FLYWHEEL,SPACER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) D=10 L=25	1-09740-039-1	02	1	0107-	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0107-		●
143	PLATE; INTERMEDIATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-110-0	01	1	0105-	●
143	PLATE; INTERMEDIATE	1-31221-108-0	01	1	0105-		●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-809-0	01	1	0105-0205	●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	0105-0205		●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-113-0	01	1	0206-0305	●
172	LEVER KIT; RELEASE,CLU	1-87831-113-0	01	1	0206-0305		●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-174-1	01	1	0306-	●
172	LEVER KIT; RELEASE,CLU	1-87831-174-1	01	1	0306-		●
201	WASHER; PIN LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	0105-0106	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0105-0106		●
201	WASHER; PIN LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	0107-	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0107-		●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0105-0106	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0105-0106		●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0107-	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0107-		●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	0105-0106	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0105-0106		●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	0107-	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0107-		●

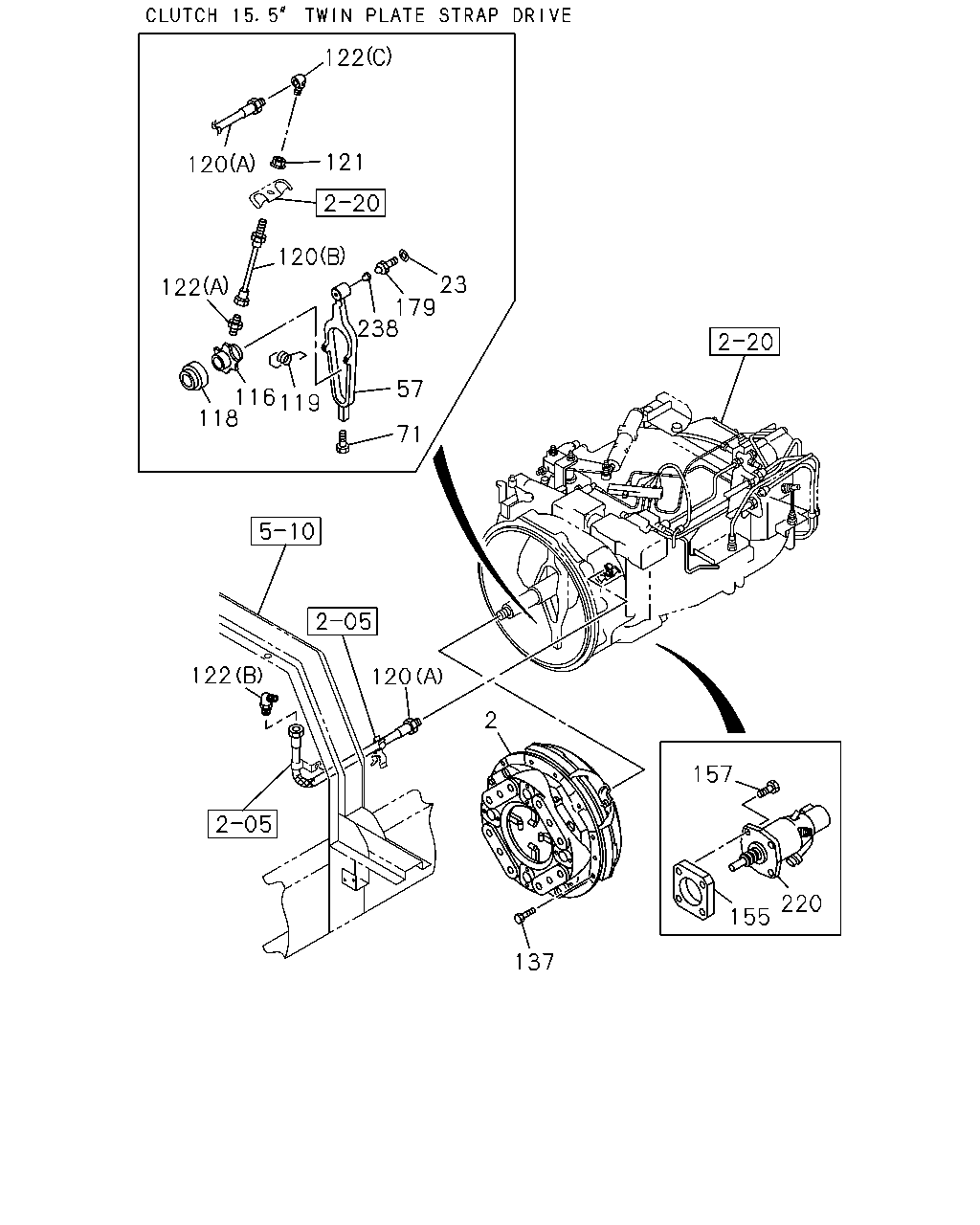

122 120 121 120 122 23 179 238 57 116 118 71 122 120 2 157 155 220 137 119

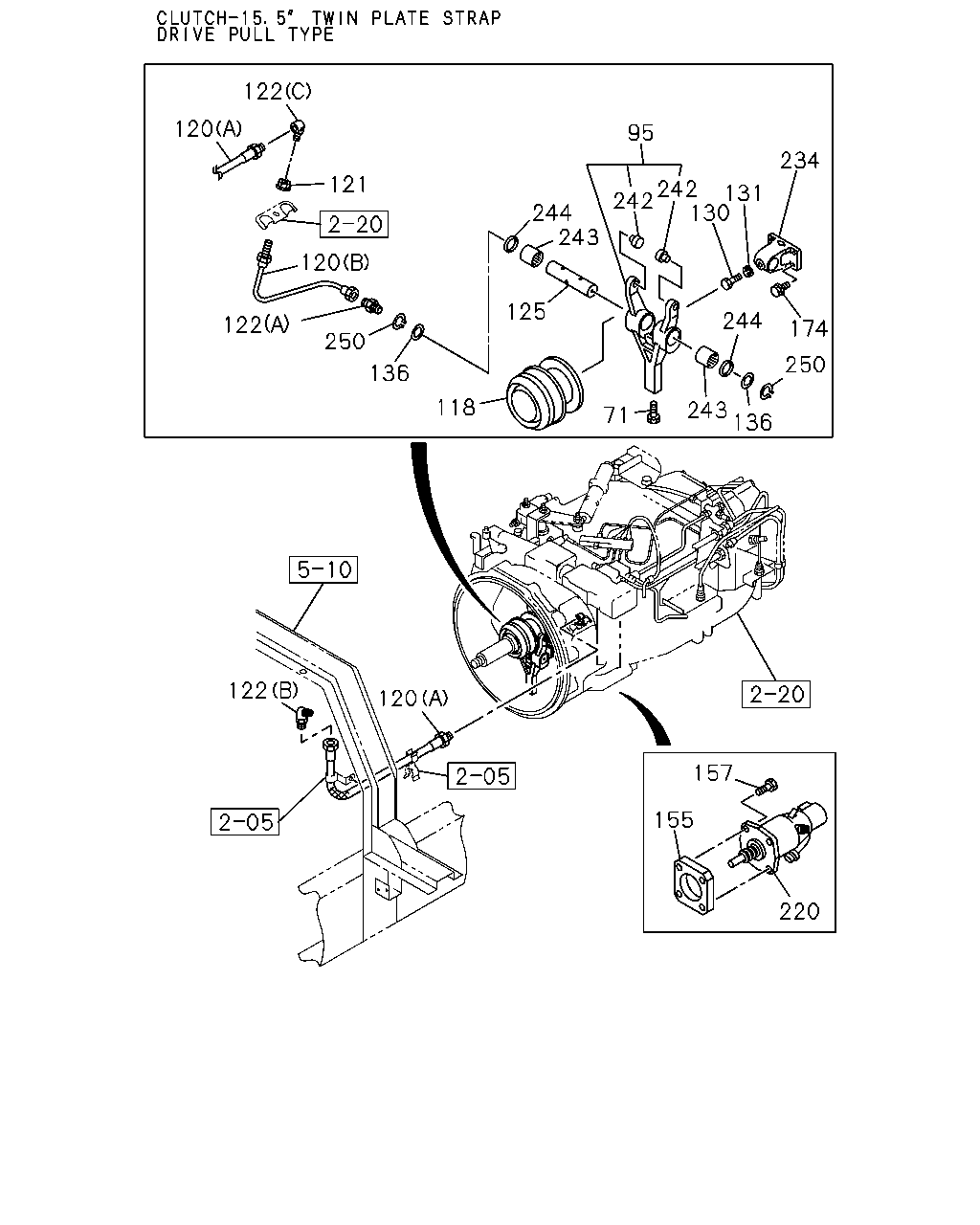

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PLATE ASM; PRESSURE,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31220-351-0	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-293-3	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-286-3	01	1	0105-		●
23	WASHER; LK,SUPPORT,CLU FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31349-027-0	01	1	0105-	●
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	0105-		●
57	FORK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31341-041-0	01	1	0105-	●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	0105-		●
71	BOLT M4X6	9-93490-406-0	01	1	0105-	●	●
116	BLOCK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31321-087-0	01	1	0105-	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	0105-		●
118	BEARING; CLU RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31310-011-0	01	1	0105-	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-080-0	01	1	0105-0111	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	0105-0111		●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-116-0	01	1	0112-	●
118	BEARING; CLU RELEASE	1-09820-116-0	01	1	0112-		●
119	SPRING; SHIFT FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31329-020-0	02	1	0105-	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	0105-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) L=400	1-09364-934-0	01	1	0105-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=270	1-09364-903-0	01	1	0105-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=270	1-09364-903-0	01	1	0105-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0105-	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0105-0602	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91180-216-0	01	1	0603-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0105-0106	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0106	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28186-011-0	12	1	0105-0512	●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28156-011-0	12	1	0601-	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0105-0512	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0105-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-	●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0105-0512	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0105-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0105-0512	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0105-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0601-		●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0105-	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58310-840-0	04	1	0105-0512	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58330-840-0	04	1	0601-	●	●
179	SUPPORT; CLU FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31349-026-0	01	1	0105-	●
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	0105-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0105-	●	●
238	CUP; SUPPORT,CLU FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31349-025-0	01	1	0105-	●
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	0105-		●

122 120 121 120 122 250 136 118 125 244 243 242 242 130 95 131 234 244 174 71 243 250 136 122 120 157 155 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	BOLT M4X6	9-93490-406-0	01	1	0105-	●	●
95	LEVER; RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31340-068-2	01	1	0105-	●
118	BEARING; CLU RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31310-011-0	01	1	0105-	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-080-0	01	1	0105-0111	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	0105-0111		●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-116-0	01	1	0112-	●
118	BEARING; CLU RELEASE	1-09820-116-0	01	1	0112-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) L=400	1-09364-934-0	01	1	0105-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=270	1-09364-903-0	01	1	0105-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=270	1-09364-903-0	01	1	0105-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0105-	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0105-0602	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91180-216-0	01	1	0603-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0105-0106	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0106	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
125	SHAFT; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31342-295-0	01	1	0105-	●
130	SCREW; SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-09129-016-0	01	1	0105-	●
131	WASHER; LK,SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=8.2	9-09150-508-0	01	1	0105-0106	●
131	WASHER; LK,SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=8.2	9-09150-508-0	01	1	0107-0603	●
131	WASHER; LK,SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=8.2	0-91510-508-0	01	1	0604-	●
136	WASHER; PL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=31	9-09160-530-0	02	1	0105-	●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0105-	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58310-840-0	04	1	0105-0512	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58330-840-0	04	1	0601-	●	●
174	BOLT; BRKT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M8X23 FLANGE	8-94174-559-2	04	1	0105-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0105-	●	●
234	BRACKET; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31345-004-0	01	1	0105-	●
242	BEARING; CAM FOLLOWER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31349-060-1	02	1	0105-	●
243	BEARING; RELEASE LEVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-09811-087-0	02	1	0105-	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-09625-003-0	02	1	0105-	●
250	RING; SNAP,SHAFT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=27.9	9-09180-030-0	02	1	0105-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
