Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11525 - CYZ CHINA EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

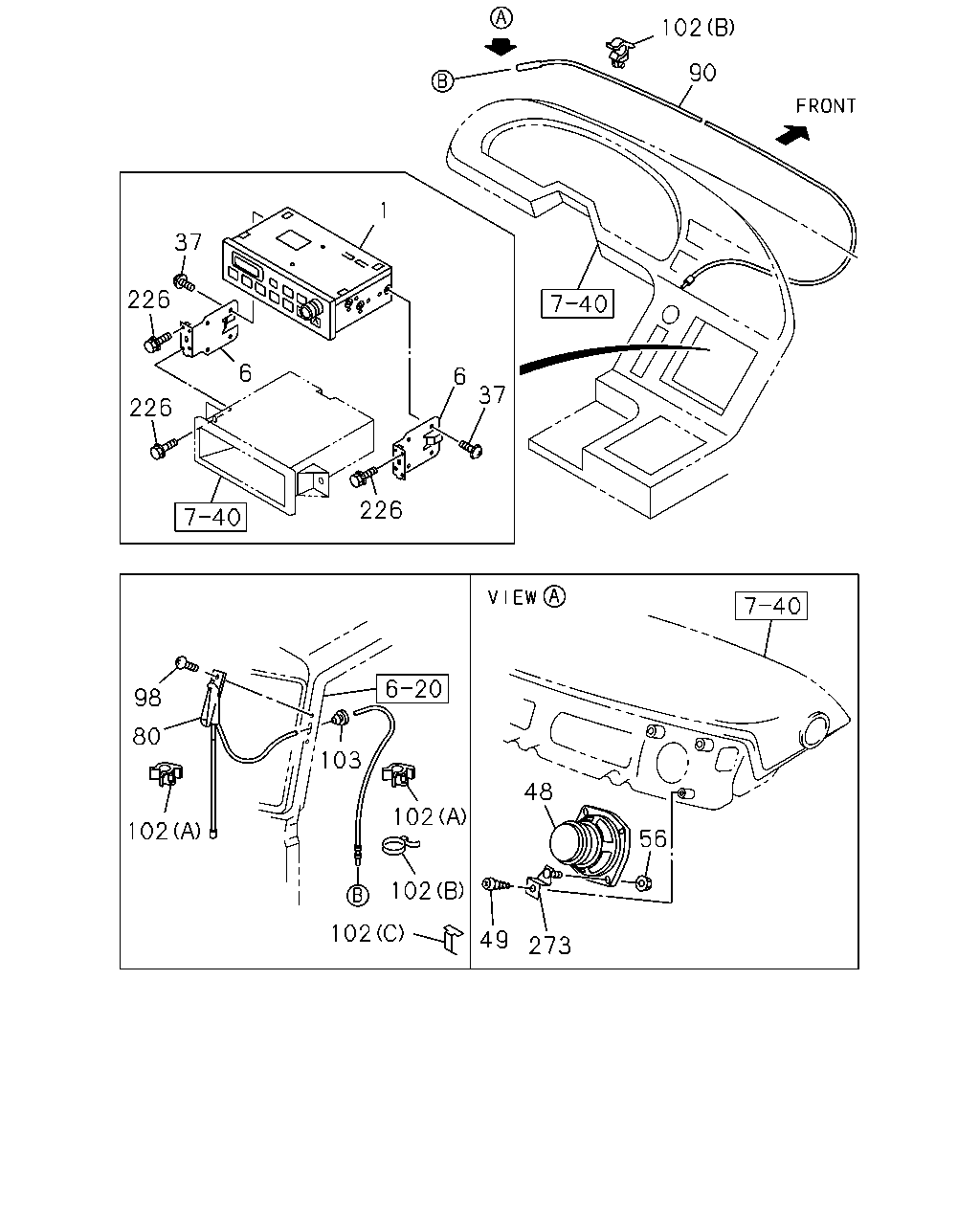

8-90 — RADIO AND TV
(#119419) — 16 parça
102
90
48
56
273
49
102
102
102
103
102
80
98
226
6
37
1
6
226
226
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM/FM(U69) CLARION AM/FM
8-98029-605-0
01
1
1305-
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
1305-
37
SCREW; CASSETTE & RADIO
RADIO AM/FM(U69) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1305-
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-98140-326-1
02
1
1305-
49
SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14
8-94279-325-0
06
1
1305-
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE
1-09984-170-0
02
1
1305-
80
ANTENNA
8-98210-874-1
01
1
1305-
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
1305-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
1305-
102
CLIP; CABLE
(C) L=20 SET=10 PIECE
1-09987-246-2
01
1
1410-
102
CLIP; CABLE
(A) W/PACKING ID=4.8
1-73907-618-0
05
1
1305-
102
CLIP; CABLE
(A) WO/PACKING ID=4.8
8-94128-483-0
02
1
1305-
102
CLIP; CABLE
EXC. RADIO AM/FM(U69) (B) L=140
5-09707-031-1
01
1
1305-
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
1305-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
1305-
273
BRACKET; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
1-65671-788-0
02
1
1305-
