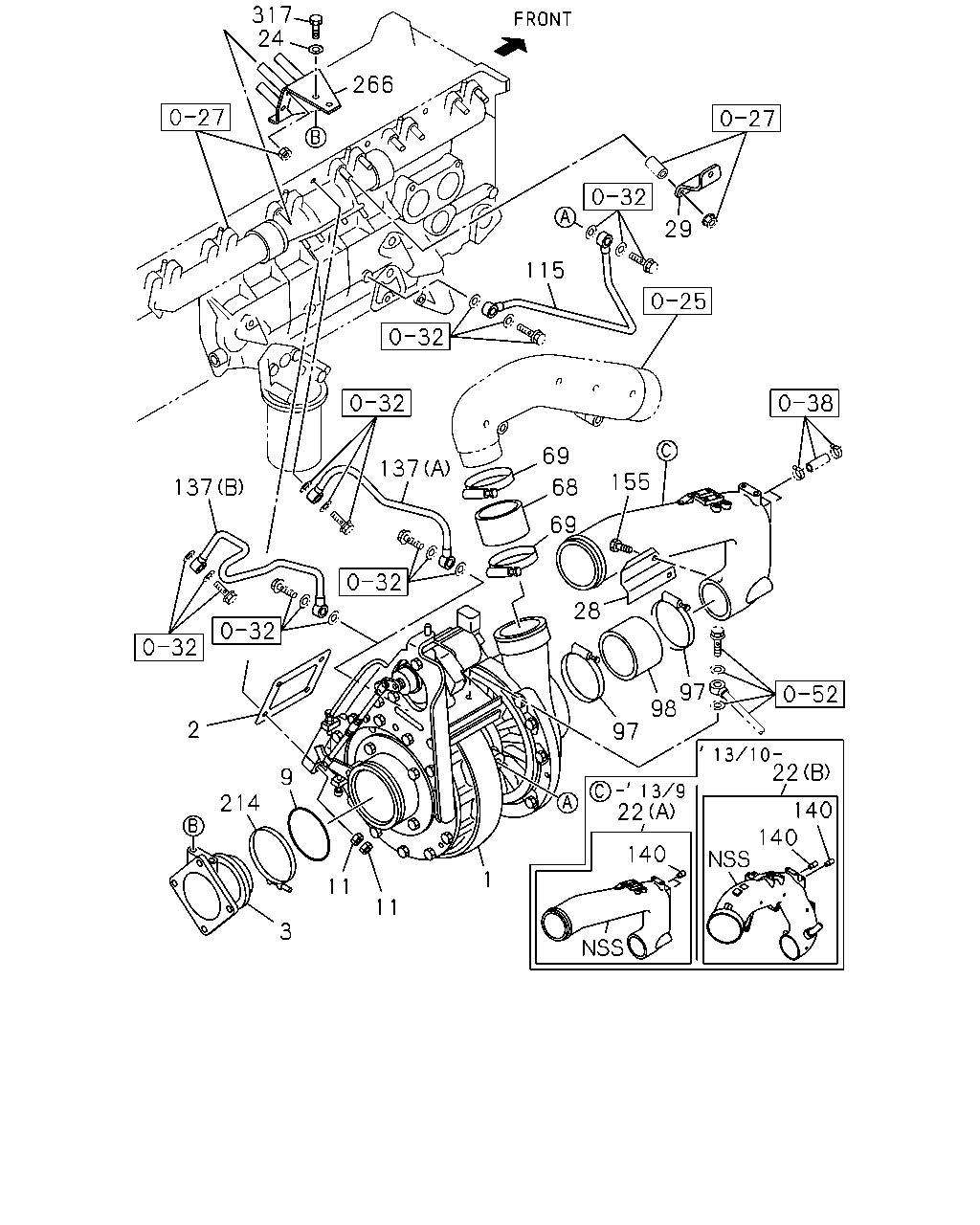

0-36 — TURBOCHARGER SYSTEM (#119417) — 23 parça

317 266 24 115 29 155 69 137 137 68 28 69 97 98 97 22 140 140 140 22 1 11 11 3 9 214 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM	1-14400-457-7	01	1	1305-	●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98162-161-0	01	1	1305-	●	●
3	PIPE; EXH,TURBOCHARGER	8-97616-134-1	01	1	1305-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84	8-97618-761-1	01	1	1305-	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	1305-	●	●
22	DUCT; INL,ACL TO TURBOCHARGER (A)	8-98124-025-1	01	1	1305-1309	●	●
22	DUCT; INL,ACL TO TURBOCHARGER (B)	8-98254-523-1	01	1	1310-	●	●
24	WASHER; PL,PIPE ID=10.5 OD=22	1-09500-007-0	02	1	1305-	●	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-272-0	01	1	1305-	●	●
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-473-0	01	1	1305-	●	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	8-98169-678-0	01	1	1305-	●	●
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	8-98096-592-0	02	1	1305-	●	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-142	1-09707-139-0	02	1	1305-	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-988-0	01	1	1305-	●	●
115	PIPE; WATER,TURBOCHARGER OUT	1-13722-040-0	01	1	1305-	●	●
137	PIPE; WATER,TURBOCHARGER IN (A)	1-13722-041-2	01	1	1305-1412	●	●
137	PIPE; WATER,TURBOCHARGER IN (B)	8-98300-237-0	01	1	1501-	●	●
140	PIPE; AIR PIPE	9-14119-228-1	02	1	1305-	●	●
155	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	02	1	1305-	●	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE	8-98006-007-1	01	1	1305-	●	●
266	BRACKET; EXH PIPE	8-97606-662-1	01	1	1305-	●	●
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	1305-	●	●

309

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	309	BOLT; TURBOCHARGER M6X20 FLANGE	0-28650-620-0	02	1	1305-	●	●
