Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#119413) — 15 parça
◀
[825A] SWITCH(NO.1) (4 parça)
[825A] RELAY;CAB HARNESS (3 parça)
[825A] RELAY;FRAME HARNESS (1 parça)
[825A] SWITCH(NO.2) (7 parça)
▶

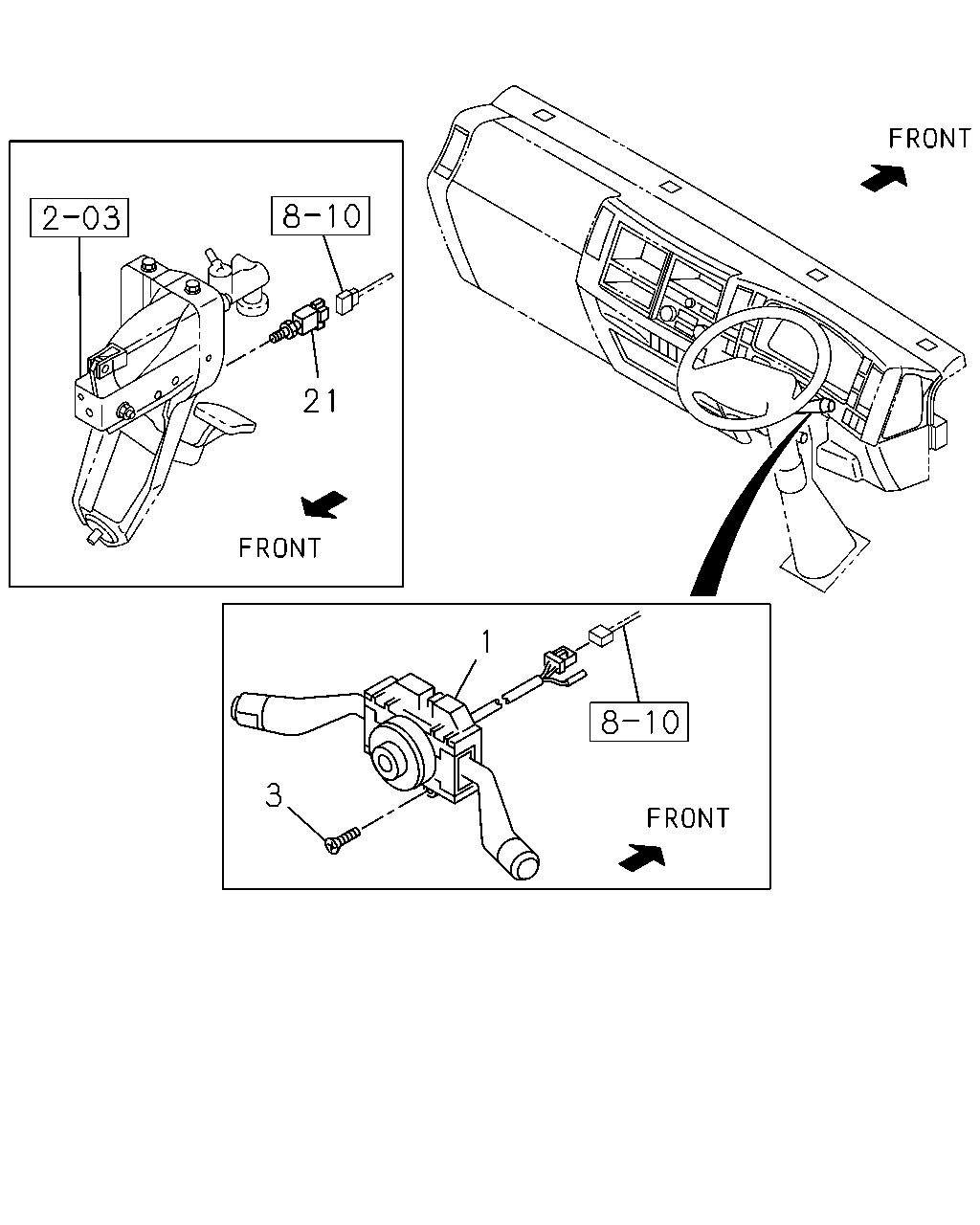

21
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98069-995-1
01
1
1304-1310
1
SWITCH; COMB
IMA
8-98243-729-0
01
1
1311-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES IMA
8-98061-743-0
02
1
1304-
21
SWITCH; CLU
IMA
8-97358-248-0
01
1
1304-

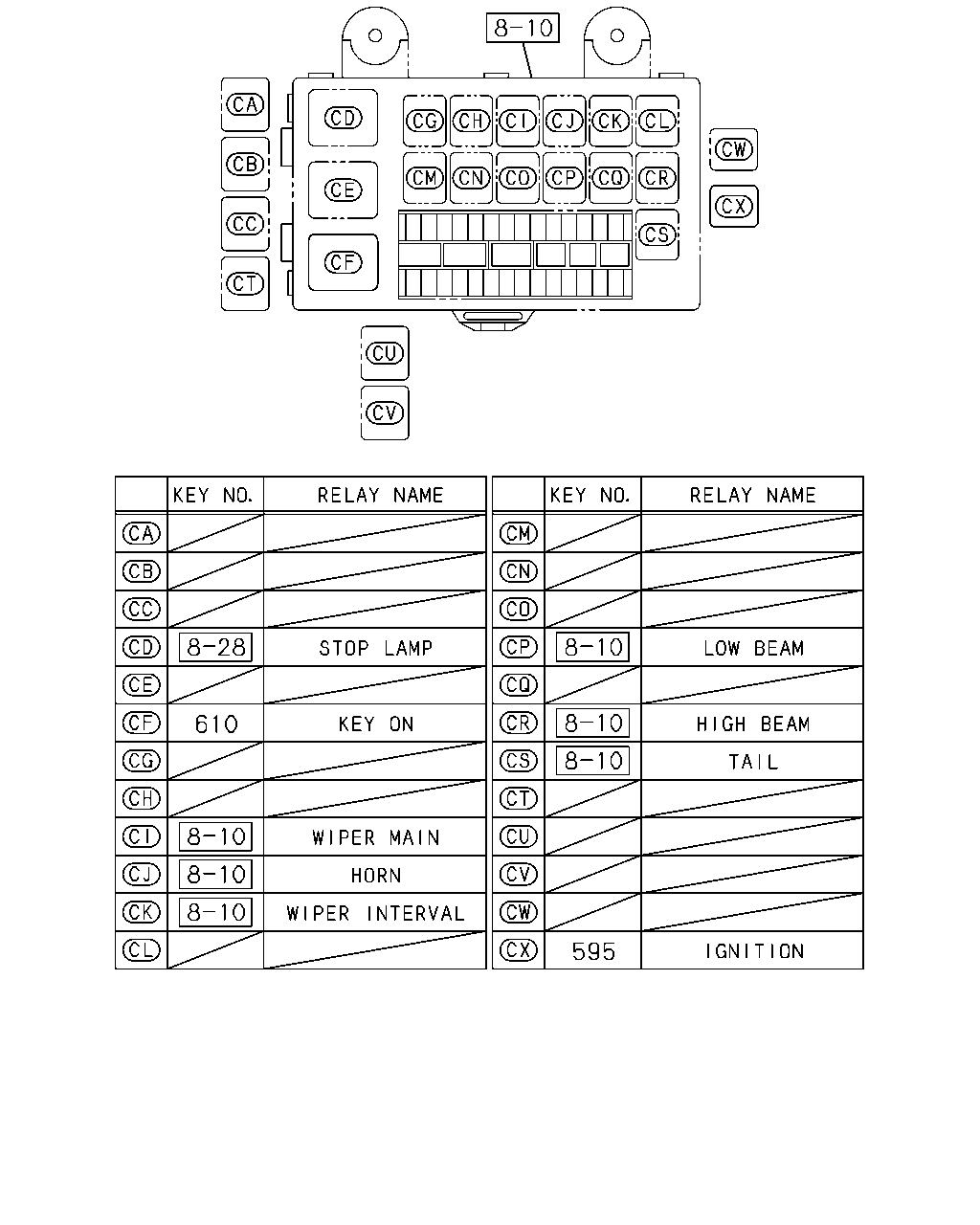

610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
595
RELAY; IGNITION
24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
610
RELAY; KEY ON
24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
610
RELAY; KEY ON
24V 12.5A PANASONIC IMA
8-97262-933-0
01
1
1304-
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
RELAY; EXH BRAKE CONT
24V 10A PANASONIC IMA
8-97173-035-1
01
1
1304-

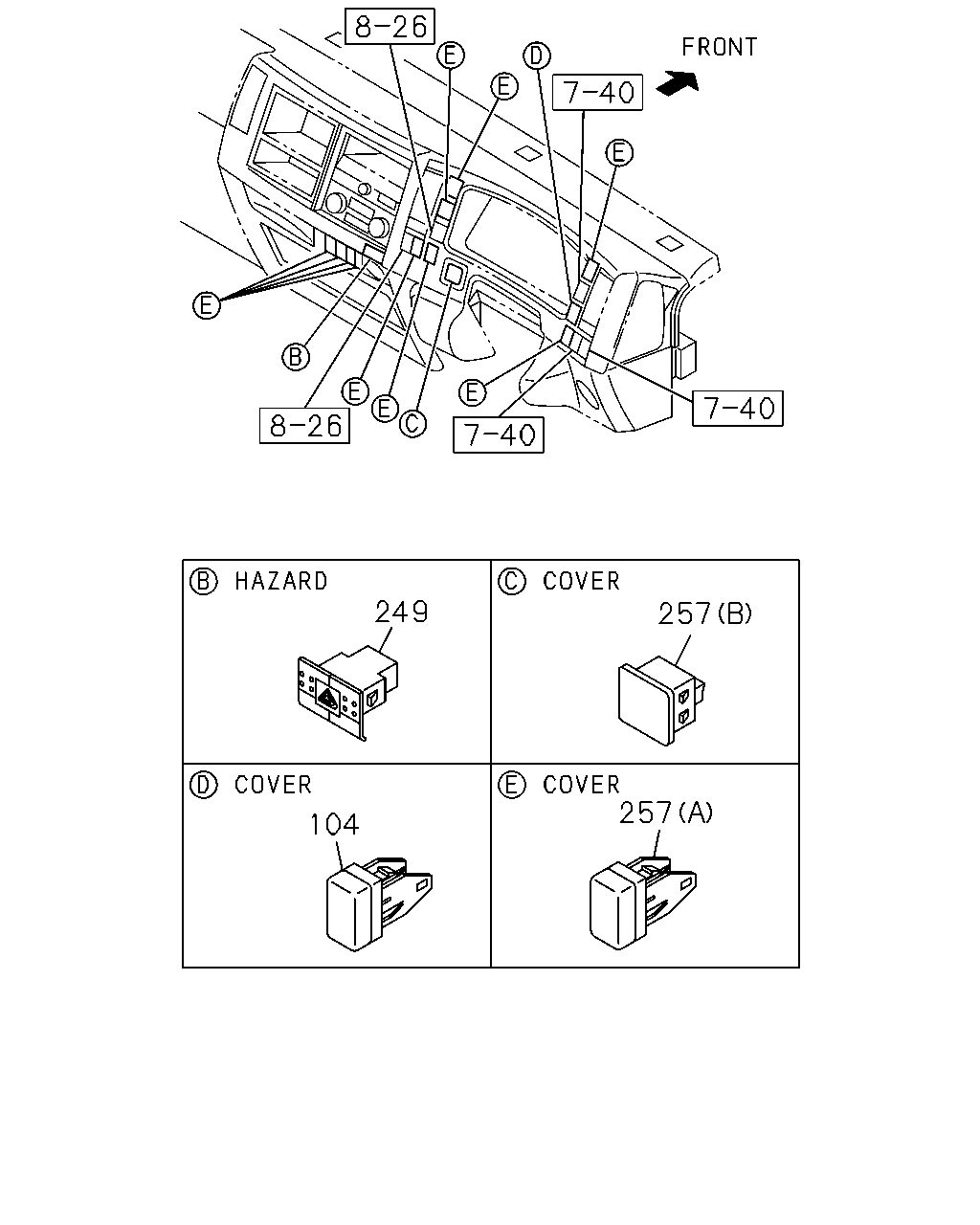

249
257
104
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
COVER; SW HOLE,FOG LAMP
IMA
8-98025-954-1
01
1
1304-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1304-1308
249
SWITCH; HAZARD
THA
8-97948-258-0
01
1
1309-
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
08
1
1304-
257
COVER; HOLE,SW
(B) IMA
8-98029-914-1
01
1
1304-
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
01
1
1304-
257
COVER; HOLE,SW
(A) IMA
8-98025-954-1
01
1
1304-
