◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51483 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#119410) — 95 parça

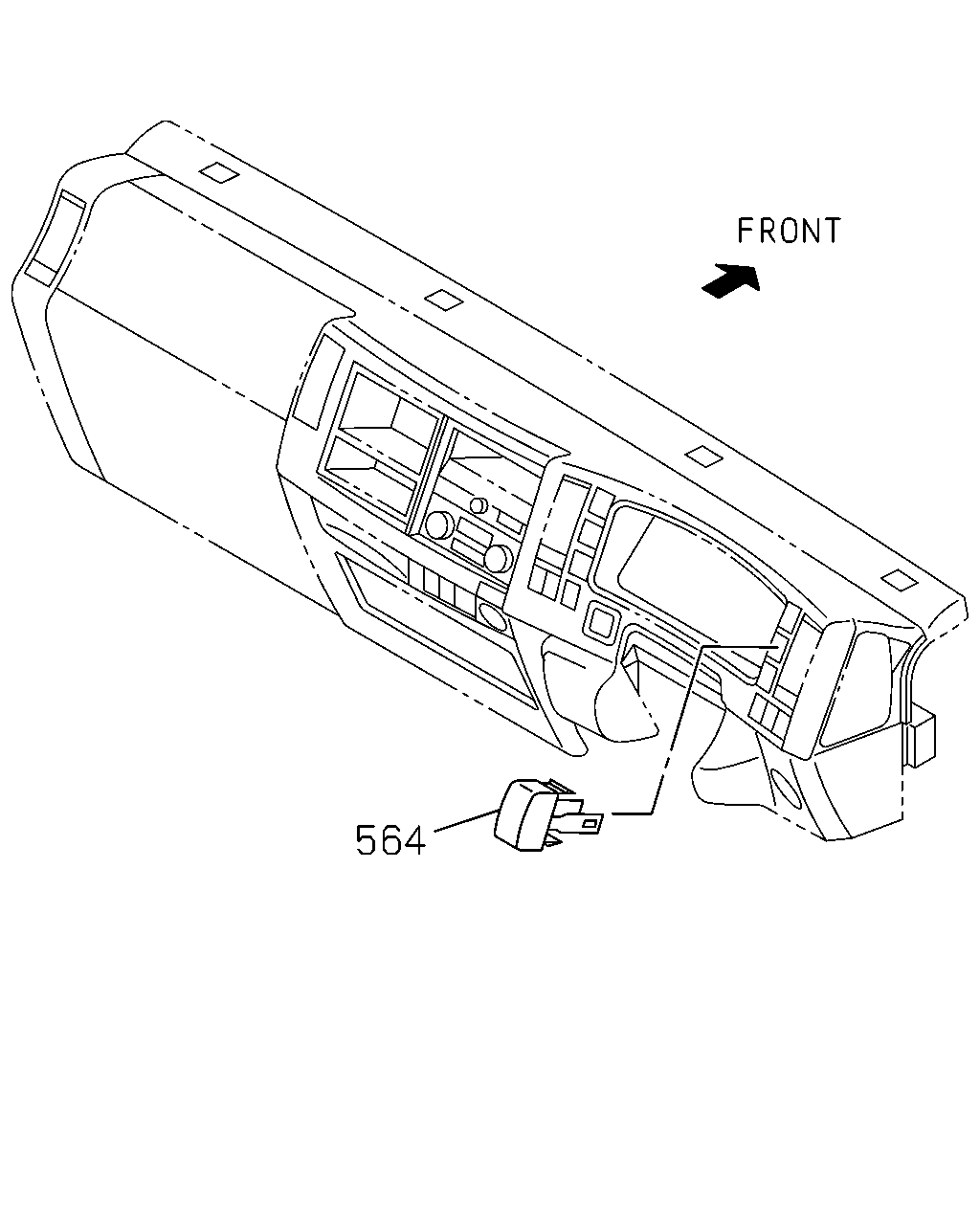

çizim 351476
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 COVER; SW
IMA 		8-98025-954-1 03 1 1304- ● ●

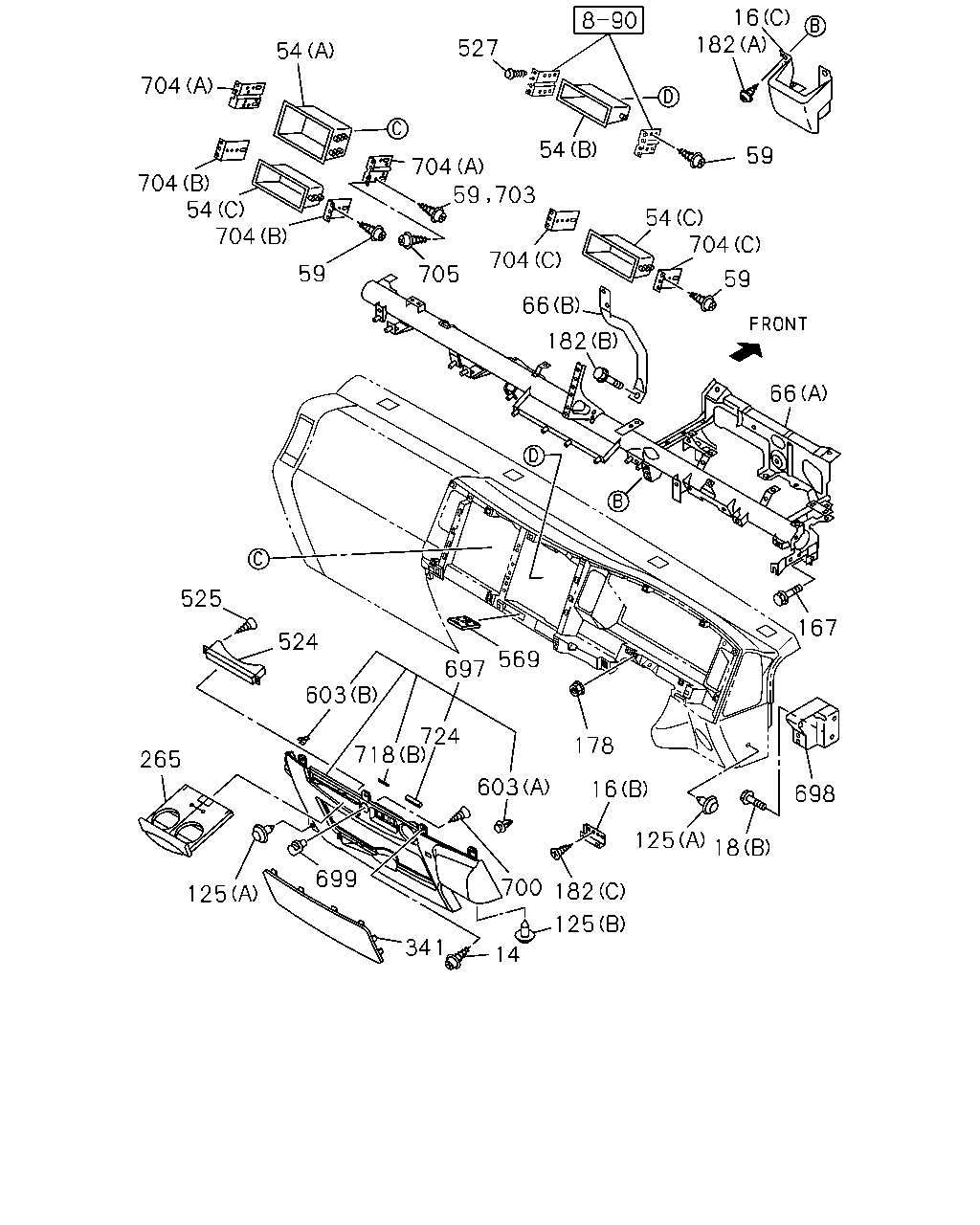

çizim 352202
66 59 704 54 59 182 16 54 527 703 704 704 705 59 66 54 704 704 704 54 59 182 178 569 697 603 603 16 125 18 698 167 182 125 700 14 341 718 524 724 699 125 265 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 04 1 1304- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) IMA 		8-97585-532-0 01 1 1304- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) IMA 		8-97585-612-2 01 1 1304- ● ●
16 BRACKET; INST PNL
(C) IMA 		8-98053-711-0 01 1 1304- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1304- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1304- ● ●
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1304- ● ●
54 POCKET; CENTER CLUSTER
EXC. COOLER WO/HEATER<C65> (C) THA 		8-97926-412-0 01 1 1304- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1304- ● ●
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-414-0 01 1 1304- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 04 1 1304- ● ●
59 SCREW; CLUSTER POCKET
EXC. COOLER WO/HEATER<C65> T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 02 1 1304- ● ●
66 REINFORCEMENT; INST PANEL
(B) IMA 		8-97585-578-1 01 1 1304- ● ●
66 REINFORCEMENT; INST PANEL
(A) IMA 		8-98199-358-1 01 1 1304- ● ●
125 CLIP; INST PANEL
(B) GRAY IMA 		8-97408-063-0 02 1 1304- ● ●
125 CLIP; INST PANEL
(A) GRAY IMA 		8-97408-817-0 02 1 1304- ● ●
125 CLIP; INST PANEL
(C) GRAY IMA 		8-97419-968-1 02 1 1304- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE IMA 		8-97264-766-0 04 1 1304- ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 03 1 1304- ● ●
182 BOLT; BRKT,INST PANEL
COOLER WO/HEATER<C65> (C) T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 02 1 1304- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1304- ● ●
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER IMA 		8-97359-709-0 01 1 1304- ● ●
265 HOLDER; CUP
GRAY IMA 		8-97418-528-0 01 1 1304- ● ●
341 LID; FUSE BOX
GRAY IMA 		8-97423-658-0 01 1 1304- ● ●
524 STAND ASM; CUP,INST
IMA 		8-98054-414-0 01 1 1304- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 03 1 1304- ● ●
527 CLIP; INST CLUSTER
EXC. COOLER WO/HEATER<C65> DARK GRAY IMA 		8-97098-326-0 01 1 1304- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1304- ● ●
603 CLIP; COVER
(A) IMA 		8-98004-025-0 01 1 1304- ● ●
603 CLIP; COVER
(B) IMA 		8-98021-271-0 10 1 1304- ● ●
697 PANEL; INST CENTER
GRAY IMA 		8-97423-656-1 01 1 1304- ● ●
698 BRACKET; INST BAR SIDE
IMA 		8-98089-256-1 01 1 1304- ● ●
698 BRACKET; INST BAR SIDE
IMA 		8-98089-257-1 01 1 1304- ● ●
699 HOOK; INST PANEL
GRAY IMA 		8-97408-927-0 01 1 1304- ● ●
700 BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 01 1 1304- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 04 1 1304- ● ●
704 BRACKET; CENTER POCKET
(B) IMA 		8-97585-616-2 02 1 1304- ● ●
704 BRACKET; CENTER POCKET
(A) IMA 		8-97585-618-2 02 1 1304- ● ●
704 BRACKET; CENTER POCKET
EXC. COOLER WO/HEATER<C65> (C) 		8-98107-549-0 02 1 1304- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 08 1 1304- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. COOLER WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 01 1 1304- ● ●
718 SEAL; COVER
(A) 30X15 IMA 		8-98097-696-0 01 1 1304- ● ●
718 SEAL; COVER
(B) 5X30 IMA 		8-98176-199-0 01 1 1304- ● ●
718 SEAL; COVER
(B) 8X80 IMA 		8-98200-040-0 01 1 1304- ● ●
718 SEAL; COVER
(B) 4X35 IMA 		8-98200-041-0 01 1 1304- ● ●
724 INSULATOR; INST PANEL
IMA 		8-98200-042-0 01 1 1304- ● ●

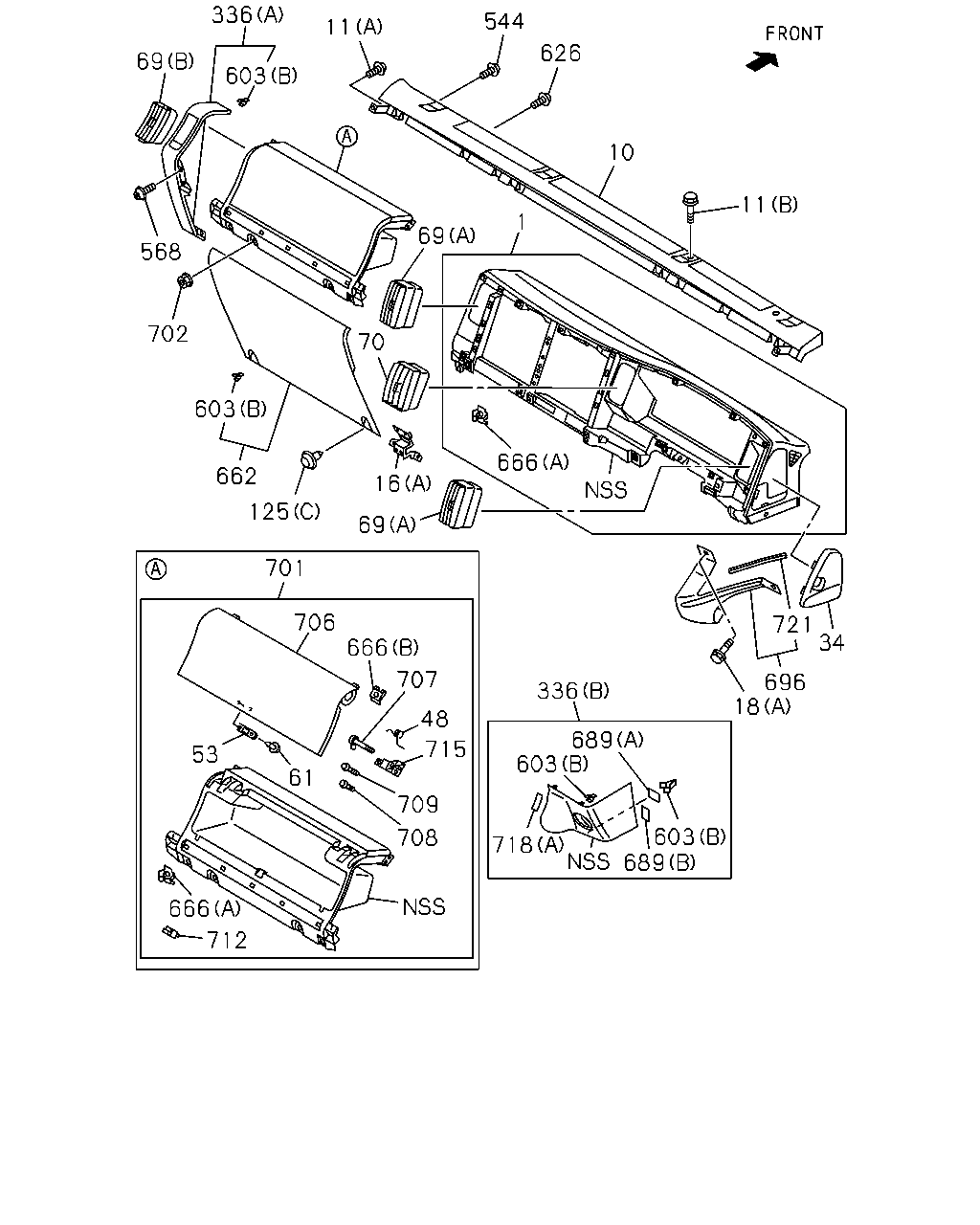

çizim 352688
34 721 696 18 603 689 718 603 336 666 11 10 626 544 11 336 603 69 568 702 603 662 69 125 16 70 689 715 707 666 706 701 53 61 709 708 712 666 1 69 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
THA 		8-97926-375-1 01 1 1304- ● ●
10 PANEL ASM; GARNISH
GRAY IMA 		8-97419-683-5 01 1 1304- ● ●
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 08 1 1304- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER IMA 		8-98018-440-0 04 1 1304- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) IMA 		8-97585-532-0 01 1 1304- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) IMA 		8-97585-612-2 01 1 1304- ● ●
16 BRACKET; INST PNL
(C) IMA 		8-98053-711-0 01 1 1304- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1304- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1304- ● ●
34 LID; OIL TANK
GRAY IMA 		8-97405-260-1 01 1 1304- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1304- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1304- ● ●
53 STRIKER; GLOVE BOX
THA 		8-97926-403-1 01 1 1304- ● ●
61 SCREW; GLOVE BOX
M4X85 THA 		8-97926-404-0 01 1 1304- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) IMA 		8-98028-561-2 02 1 1304- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) IMA 		8-98028-562-2 01 1 1304- ● ●
70 GRILLE; CENTER,AIR OUTLET
IMA 		8-98028-563-2 01 1 1304- ● ●
125 CLIP; INST PANEL
(B) GRAY IMA 		8-97408-063-0 02 1 1304- ● ●
125 CLIP; INST PANEL
(A) GRAY IMA 		8-97408-817-0 02 1 1304- ● ●
125 CLIP; INST PANEL
(C) GRAY IMA 		8-97419-968-1 02 1 1304- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY IMA 		8-97405-259-4 01 1 1304- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY IMA 		8-97414-688-1 01 1 1304- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 03 1 1304- ● ●
568 BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 01 1 1304- ● ●
603 CLIP; COVER
(A) IMA 		8-98004-025-0 01 1 1304- ● ●
603 CLIP; COVER
(B) IMA 		8-98021-271-0 10 1 1304- ● ●
626 RETAINER
OD=15 BLACK IMA 		8-94279-804-0 02 1 1304- ● ●
662 COVER; LWR,INST PANEL
GRAY IMA 		8-97414-904-2 01 1 1304- ● ●
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 30 1 1304- ● ●
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 02 1 1304- ● ●
666 INSERT; INST PANEL
(B) M5 THA 		8-97926-400-0 04 1 1304- ● ●
689 SEAL; INST
(A) 7X31 IMA 		8-98061-777-0 01 1 1304- ● ●
689 SEAL; INST
(B) 18X170 IMA 		8-98061-778-1 01 1 1304- ● ●
696 BRACKET; KNEE
IMA 		8-98199-366-0 01 1 1304- ● ●
701 TRAY; INST
THA 		8-97926-382-1 01 1 1304- ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1304- ● ●
706 LID; TRAY INST
THA 		8-97926-402-1 01 1 1304- ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1304- ● ●
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1304- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1304- ● ●
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1304- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1304- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1304- ● ●
718 SEAL; COVER
(A) 30X15 IMA 		8-98097-696-0 01 1 1304- ● ●
718 SEAL; COVER
(B) 5X30 IMA 		8-98176-199-0 01 1 1304- ● ●
718 SEAL; COVER
(B) 8X80 IMA 		8-98200-040-0 01 1 1304- ● ●
718 SEAL; COVER
(B) 4X35 IMA 		8-98200-041-0 01 1 1304- ● ●
721 FINISHER; BRKT,KNEE
L=75 IMA 		8-98176-240-0 01 1 1304- ● ●
