Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10878 - EXZ RHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

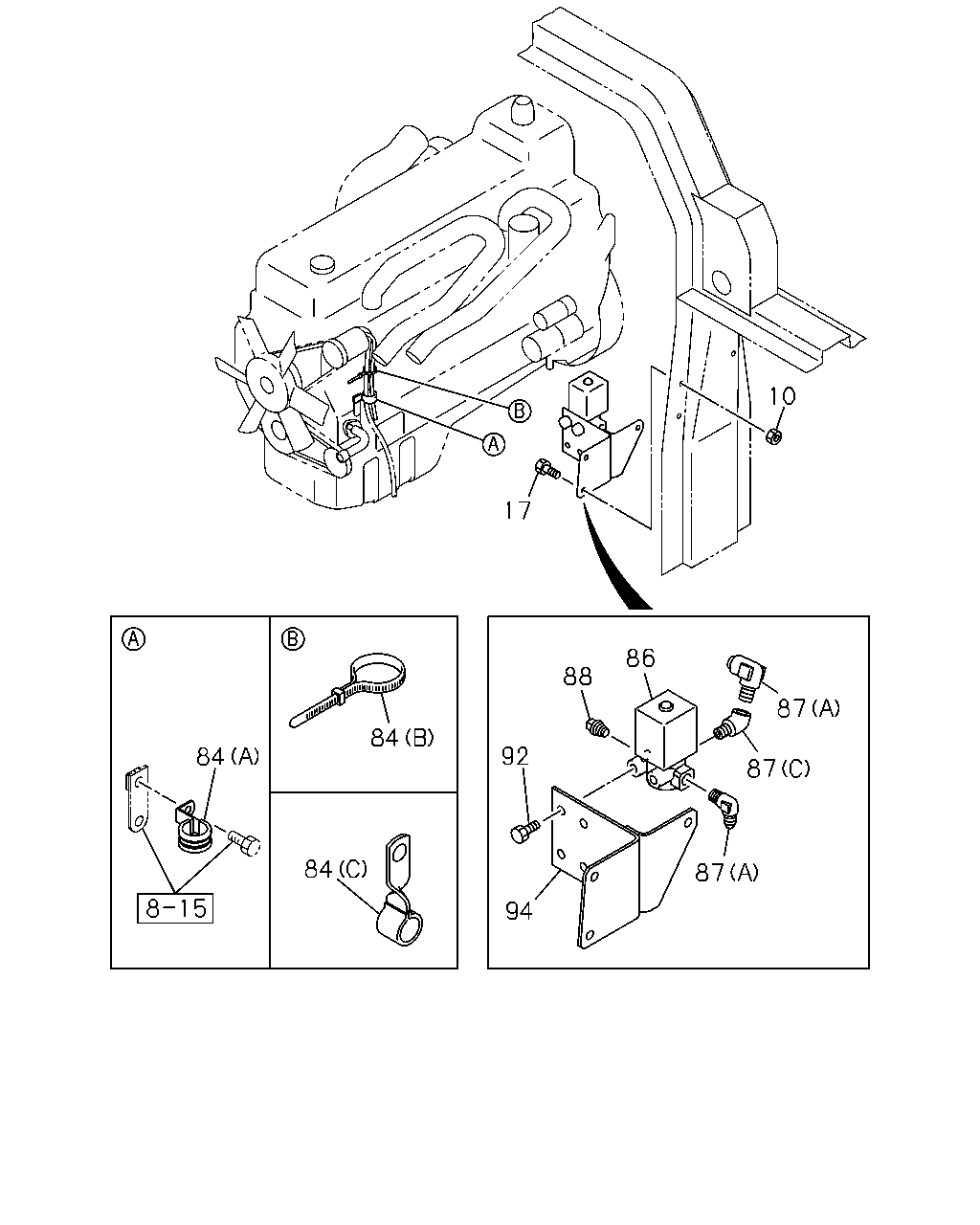

1-56 — EXHAUST BRAKE SYSTEM
(#11941) — 62 parça
Tümü
A - 6WA1 TC-C
B - 6WG1 TC-N
C - 6WG1 TC-C
D - 6WF1 TC-C
◀
[156A] 6WF1 (31 parça)
[156A] 6WA1,6WG1 (31 parça)
▶
92
17
94
10
87
87
86
88
84
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
0105-0602
●
●
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
01
1
0105-0602
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91180-108-0
01
1
0603-
●
10
NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> M10 FLANGE
0-91150-210-0
01
1
0105-0602
●
10
NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> M10 FLANGE
0-91180-210-0
01
1
0603-
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
0105-0512
●
●
●
17
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0601-
●
●
●
17
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0105-0512
●
17
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0601-
●
84
CLIP; HARNESS
(A) ID=19 L=50
9-09525-886-0
01
1
0201-0606
●
●
●
●
84
CLIP; HARNESS
(A) ID=19 L=50
0-95235-886-0
01
1
0607-
●
●
●
●
84
CLIP; HARNESS
(C) ID=20 L=50
1-09700-679-1
01
1
0105-
●
●
●
●
84
CLIP; HARNESS
(A) ID=28 H=45 L=30
1-09700-948-0
02
1
0105-0106
●
●
●
●
84
CLIP; HARNESS
(A) ID=22 L=32
1-09700-126-1
02
1
0107-0112
●
●
●
●
84
CLIP; HARNESS
(A) ID=22 L=32
1-09700-126-1
01
1
0201-
●
●
●
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0105-
●
●
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
0105-
●
●
●
●
87
CONNECTOR
(C) R1/4 & RC1/4
1-09664-211-0
01
1
0201-
●
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0105-
●
●
●
87
CONNECTOR
(B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0105-0106
●
87
CONNECTOR
EXC. EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0107-
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0105-
●
87
CONNECTOR
EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0107-
●
88
PLUG
PT1/4
9-99204-513-0
01
1
0105-0106
●
●
●
●
88
PLUG
PT1/4
9-99204-513-0
01
1
0107-
●
●
●
88
PLUG
EXC. EURO3 SPECIFICATION<NJX> PT1/4
9-99204-513-0
01
1
0107-
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
0105-0512
●
●
●
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-273-0
01
1
0105-
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-277-2
01
1
0105-
●
84
84
84
86
88
87
87
87
94
92
17
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
0105-0602
●
●
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
01
1
0105-0602
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91180-108-0
01
1
0603-
●
10
NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> M10 FLANGE
0-91150-210-0
01
1
0105-0602
●
10
NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> M10 FLANGE
0-91180-210-0
01
1
0603-
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
0105-0512
●
●
●
17
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0601-
●
●
●
17
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0105-0512
●
17
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0601-
●
84
CLIP; HARNESS
(A) ID=19 L=50
9-09525-886-0
01
1
0201-0606
●
●
●
●
84
CLIP; HARNESS
(A) ID=19 L=50
0-95235-886-0
01
1
0607-
●
●
●
●
84
CLIP; HARNESS
(C) ID=20 L=50
1-09700-679-1
01
1
0105-
●
●
●
●
84
CLIP; HARNESS
(A) ID=28 H=45 L=30
1-09700-948-0
02
1
0105-0106
●
●
●
●
84
CLIP; HARNESS
(A) ID=22 L=32
1-09700-126-1
02
1
0107-0112
●
●
●
●
84
CLIP; HARNESS
(A) ID=22 L=32
1-09700-126-1
01
1
0201-
●
●
●
●
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0105-
●
●
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
0105-
●
●
●
●
87
CONNECTOR
(C) R1/4 & RC1/4
1-09664-211-0
01
1
0201-
●
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0105-
●
●
●
87
CONNECTOR
(B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0105-0106
●
87
CONNECTOR
EXC. EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0107-
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0105-
●
87
CONNECTOR
EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0107-
●
88
PLUG
PT1/4
9-99204-513-0
01
1
0105-0106
●
●
●
●
88
PLUG
PT1/4
9-99204-513-0
01
1
0107-
●
●
●
88
PLUG
EXC. EURO3 SPECIFICATION<NJX> PT1/4
9-99204-513-0
01
1
0107-
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
0105-0512
●
●
●
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-273-0
01
1
0105-
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-277-2
01
1
0105-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
