Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#119407) — 29 parça
◀

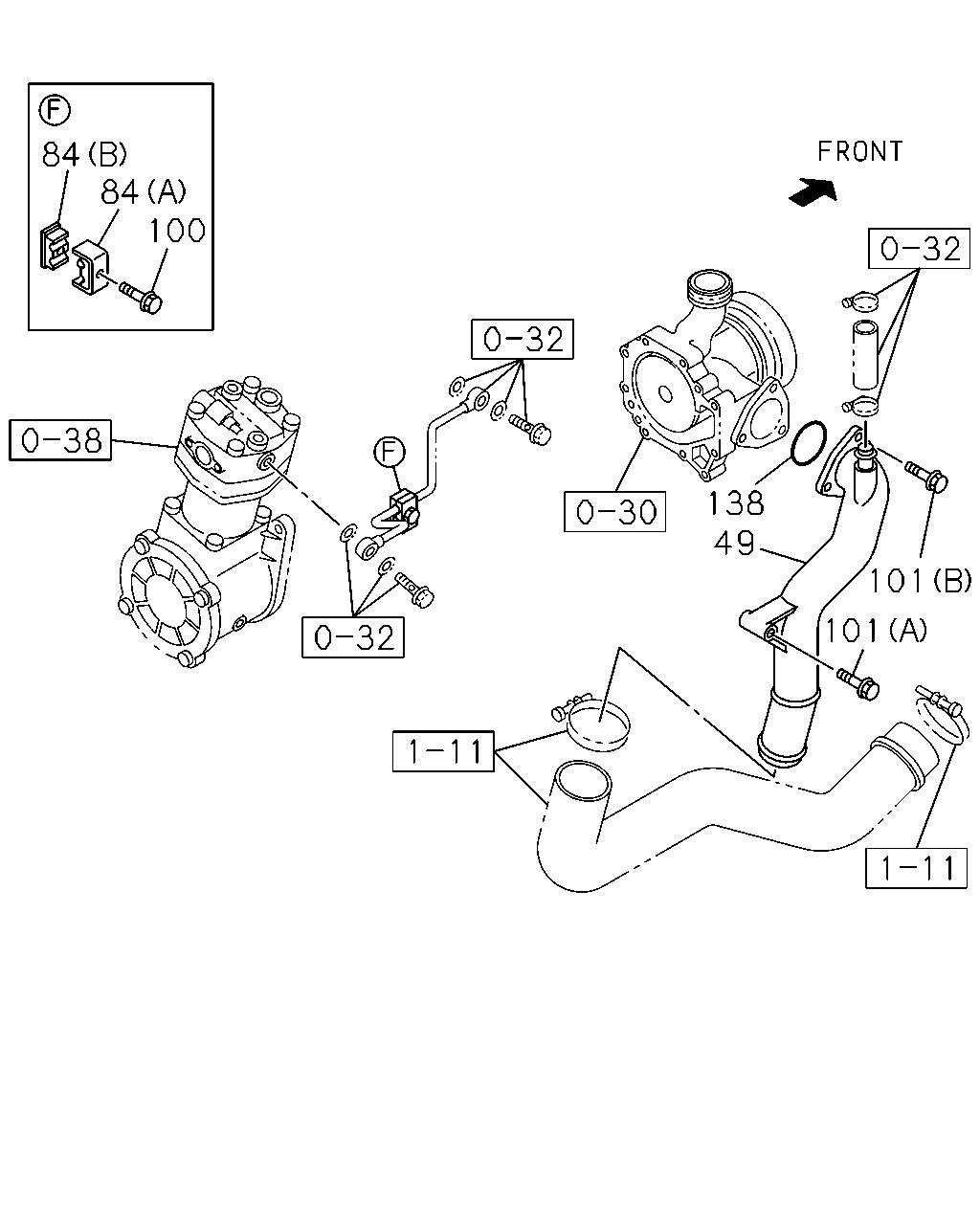

[031A] WATER DUCT (8 parça)

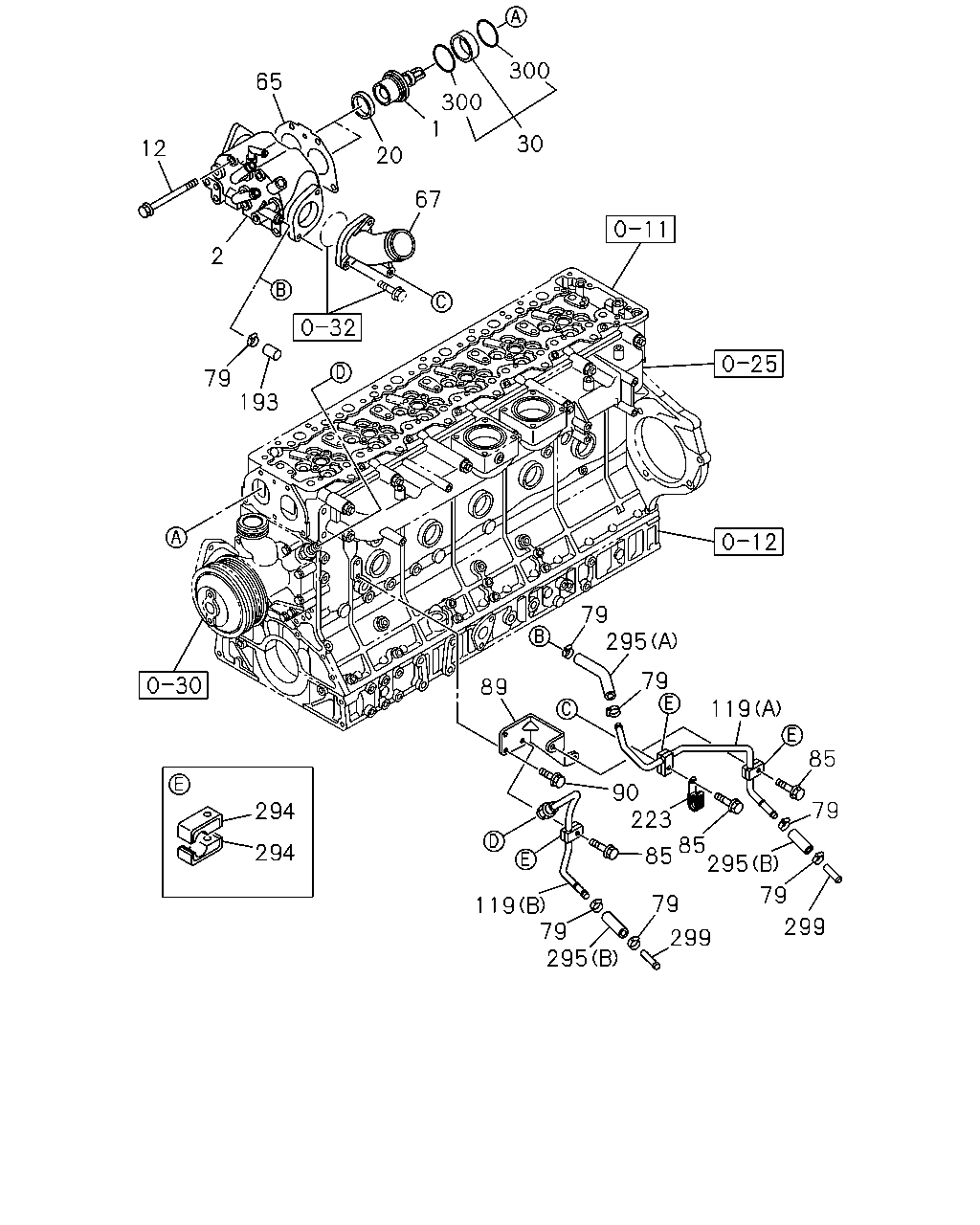

[031A] THERMOSTAT AND HOUSING (21 parça)
▶
84
84
100
138
49
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
PIPE; WATER OUTLET
8-97604-542-0
01
1
1305-1308
49
PIPE; WATER OUTLET
8-98252-190-0
01
1
1309-
84
CLIP; WATER PIPE
(A)
1-09701-174-0
01
1
1305-
84
CLIP; WATER PIPE
(B)
1-09701-175-0
01
1
1305-
100
BOLT; WATER PIPE
M6X35 FLANGE THA
0-28650-635-0
01
1
1305-
101
BOLT; PIPE
(A) M12X60 FLANGE
0-28151-260-0
01
1
1305-
101
BOLT; PIPE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1305-
138
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6
9-09565-271-0
01
1
1305-
295
79
119
85
79
299
79
295
85
223
90
85
79
299
295
79
119
89
79
193
79
2
12
65
20
1
300
300
30
67
294
294
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82 CELSIUS
8-98271-161-0
02
1
1305-
2
HOUSING; THERMOSTAT
8-98043-957-2
01
1
1305-1306
2
HOUSING; THERMOSTAT
8-98236-233-0
01
1
1307-
12
BOLT; HSG
M10X120 FLANGE
0-28156-012-0
05
1
1305-
20
RING; SEAL
1-13779-011-0
02
1
1305-
30
SPACER
8-98158-701-0
02
1
1305-
65
GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98089-091-0
01
1
1305-
67
DUCT; WATER,OUTLET
8-97603-796-0
01
1
1305-
79
CLIP; RUBBER HOSE
ID=25
8-97177-581-0
08
1
1305-
85
BOLT; CLIP
M8X45 FLANGE THA
0-28050-845-0
03
1
1305-
89
BRACKET
8-97606-634-0
01
1
1305-
90
BOLT; BRKT
M10X20 FLANGE THA
0-28151-020-0
02
1
1305-
119
PIPE; HTR
(A)
8-97606-632-1
01
1
1305-
119
PIPE; HTR
(B)
8-97606-633-0
01
1
1305-
193
CAP; RUBBER
ID=15 L=42
8-94231-115-0
02
1
1305-
223
CLIP; HARNESS
8-94136-604-0
01
1
1305-
294
CLIP; HTR PIPE
1-09701-284-0
06
1
1305-
295
HOSE; RUBBER,HTR
(B) SERVICED BY L=3000
0-03566-300-0
02
1
1305-
295
HOSE; RUBBER,HTR
(A)
8-97608-473-0
01
1
1305-
299
PIPE; JOINT
8-98216-509-0
02
1
1305-
300
GASKET; SPACER
8-98088-101-0
04
1
1305-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
