0-22 — ENGINE MOUNTING (#119406) — 22 parça

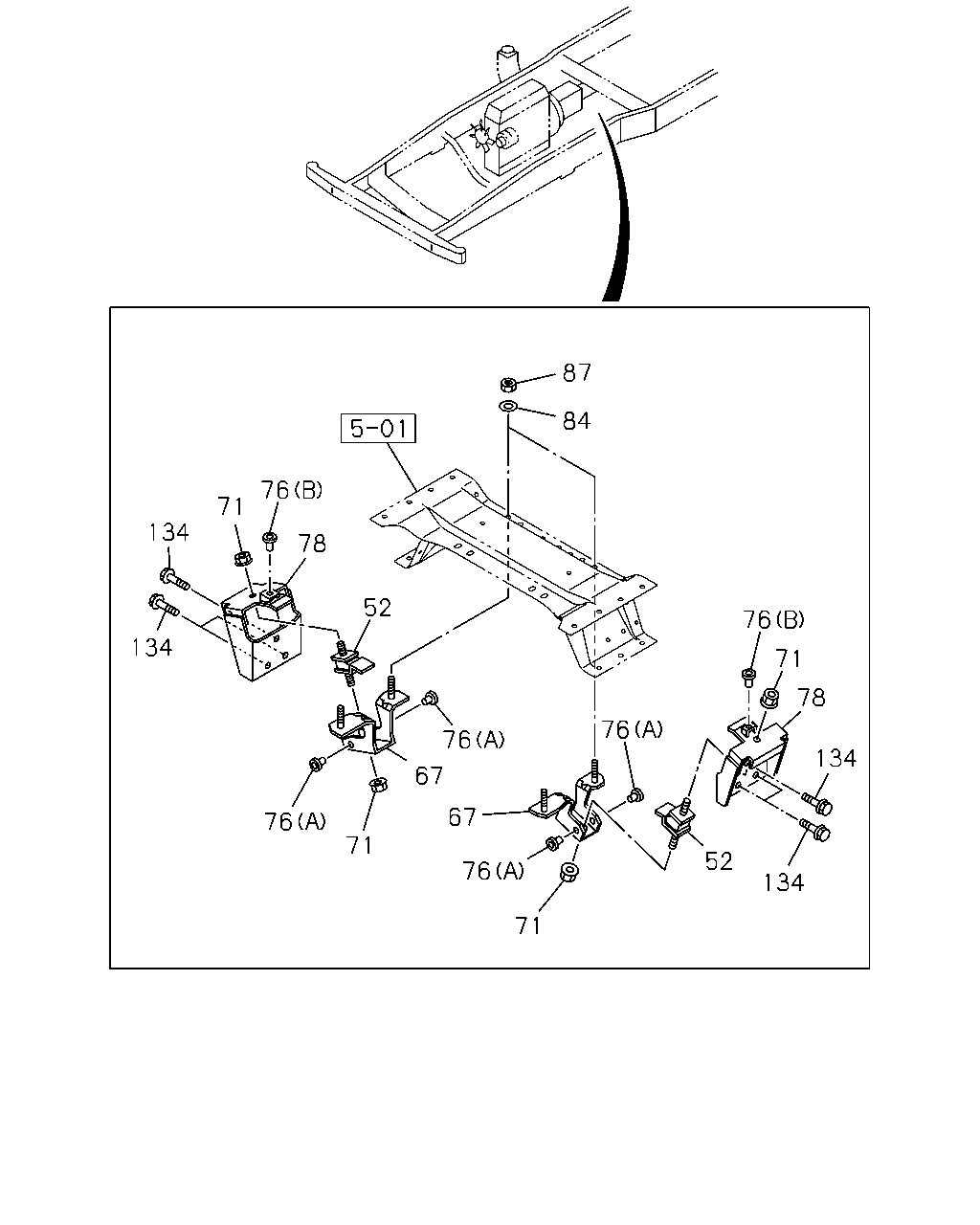

87 84 76 71 78 134 134 52 76 76 67 67 76 71 71 76 52 78 76 71 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	RUBBER; CUSHION,ENG MTG,RR IMA	8-94111-903-1	02	1	1304-	●
52	RUBBER; CUSHION,ENG MTG,RR IMA	8-97039-277-0	02	1	1304-		●
67	BRACKET; SUPPORT,ENG MTG,RR IMA	8-97255-776-1	01	1	1304-	●
67	BRACKET; SUPPORT,ENG MTG,RR IMA	8-97255-778-1	01	1	1304-	●
67	BRACKET; SUPPORT,ENG MTG,RR IMA	8-97180-457-0	01	1	1304-		●
67	BRACKET; SUPPORT,ENG MTG,RR IMA	8-97180-458-0	01	1	1304-		●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE THA	0-91180-110-0	04	1	1304-	●	●
76	STOPPER; ENG MTG RUBBER (B) IMA	8-94111-904-0	02	1	1304-	●	●
76	STOPPER; ENG MTG RUBBER (A) IMA	8-97039-947-1	04	1	1304-	●	●
78	BRACKET; ENG MTG,RR IMA	8-97255-756-1	02	1	1304-	●
78	BRACKET; ENG MTG,RR IMA	8-97211-475-0	01	1	1304-		●
78	BRACKET; ENG MTG,RR IMA	8-97234-719-0	01	1	1304-		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32 IMA	0-91614-810-0	04	1	1304-	●	●
87	NUT; ENG MTG RR M10 FLANGE THA	0-91180-110-0	04	1	1304-	●	●
134	BOLT; SUPPORT BRKT M12X25 FLANGE IMA	0-28751-225-0	06	1	1304-	●	●

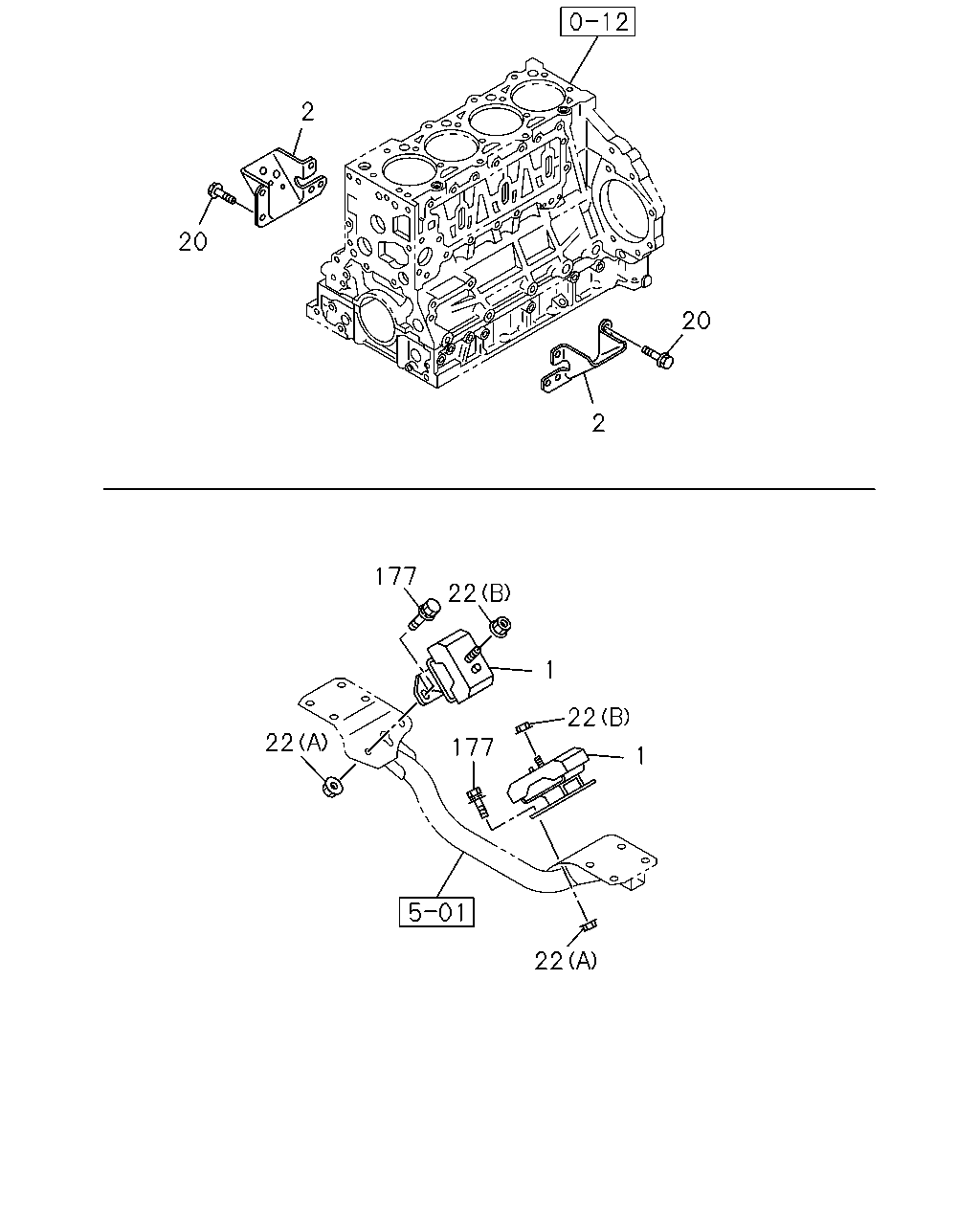

2 20 2 20 177 22 177 1 22 22 1 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	8-98203-633-0	01	1	1304-	●	●
1	RUBBER; ENG FOOT,FRT	8-98203-634-0	01	1	1304-	●	●
2	FOOT; ENG IMA	8-97228-669-2	02	1	1304-	●	●
20	BOLT; ENG FOOT M10X20 FLANGE IMA	0-28161-020-0	08	1	1304-	●	●
22	NUT; CUSHION RUBBER TO BRKT (A) M10 FLANGE THA	0-91180-210-0	04	1	1304-	●	●
22	NUT; CUSHION RUBBER TO BRKT (B) M12 FLANGE THA	0-91180-112-0	02	1	1304-	●	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5 IMA	8-94468-733-1	04	1	1304-	●	●
