1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#11940) — 214 parça
çizim 24439
42 74 139 139 6 76
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 0105- ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 0105- ●
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(A) 		8-98024-270-0 01 1 0509- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-154-0 01 1 0105- ● ●
6 VALVE; EXH BRAKE
(A) 		1-22190-646-0 01 1 0105- ● ●
42 HOSE; FLEX,EXH BRK
L=320 		1-09363-656-0 01 1 0105- ● ● ●
42 HOSE; FLEX,EXH BRK
L=430 		1-09363-677-0 01 1 0105- ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ●
76 PIPE ASM; AIR UNION TO UNION 1-49122-911-0 01 1 0105- ● ● ● ●
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0105- ●

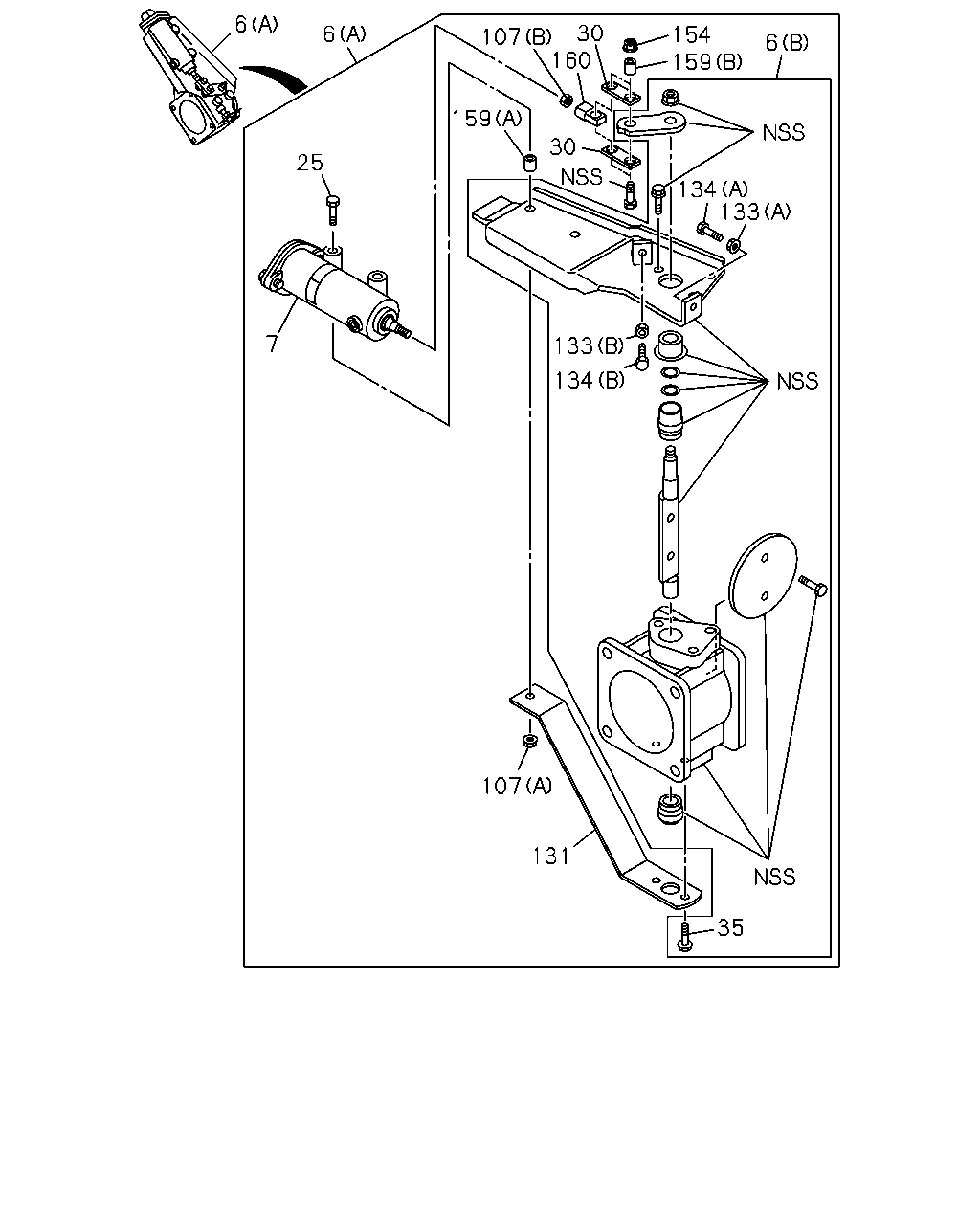

çizim 78198
6 6 25 7 107 159 30 154 6 160 159 30 134 133 133 134 131 35 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 0105- ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 0105- ●
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(A) 		8-98024-270-0 01 1 0509- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-154-0 01 1 0105- ● ●
6 VALVE; EXH BRAKE
(A) 		1-22190-646-0 01 1 0105- ● ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 0105- ●
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0105-0109 ●
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508 ●
7 CYLINDER ASM; CONT 1-22190-642-0 01 1 0105- ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 0105-0206 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 0207- ●
25 BOLT; CONT CYL 1-09000-744-0 02 1 0105-0109 ●
25 BOLT; CONT CYL 1-09000-743-0 02 1 0110-0508 ●
25 BOLT; CONT CYL 1-19519-244-0 02 1 0105- ● ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 0105- ●
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0105-0508 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0105- ● ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 0105- ● ● ●
35 BOLT; PLATE FIX 1-22199-174-0 02 1 0105-0508 ●
107 NUT; CONT CYL
(B) M10 		9-09111-410-0 01 1 0110-0508 ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 0105-0206 ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 0105- ●
107 NUT; CONT CYL
(A) 		1-09440-079-0 02 1 0105-0508 ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0105-0109 ● ● ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0110- ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 0105-0206 ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 0207- ● ● ●
131 PLATE; BODY 1-22189-359-0 01 1 0105-0508 ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 0105- ● ● ●
133 NUT; LK
(B) M10 FLANGE 		0-91150-110-0 01 1 0105- ● ● ●
133 NUT; LK
(A) 		1-09440-078-0 01 1 0105-0508 ●
133 NUT; LK
(B) 		1-09440-079-0 01 1 0105-0508 ●
134 BOLT; STOPPER
(C) M8X30 		1-09000-112-1 02 1 0105- ● ● ●
134 BOLT; STOPPER
(A) M8X30 		1-09000-112-1 01 1 0105-0508 ●
134 BOLT; STOPPER
(B) 		1-09000-742-0 01 1 0105-0508 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0105- ● ● ●
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0105-0508 ●
159 COLLAR; CONT CYL
(C) 		1-22199-151-0 02 1 0105- ● ● ●
159 COLLAR; CONT CYL
(A) 		1-22189-360-0 02 1 0105-0109 ●
159 COLLAR; CONT CYL
(B) 		1-22197-151-0 02 1 0105-0508 ●
160 JOINT; CONT CYL 1-22189-363-0 01 1 0110-0508 ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0105-0109 ● ● ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0110- ● ● ●

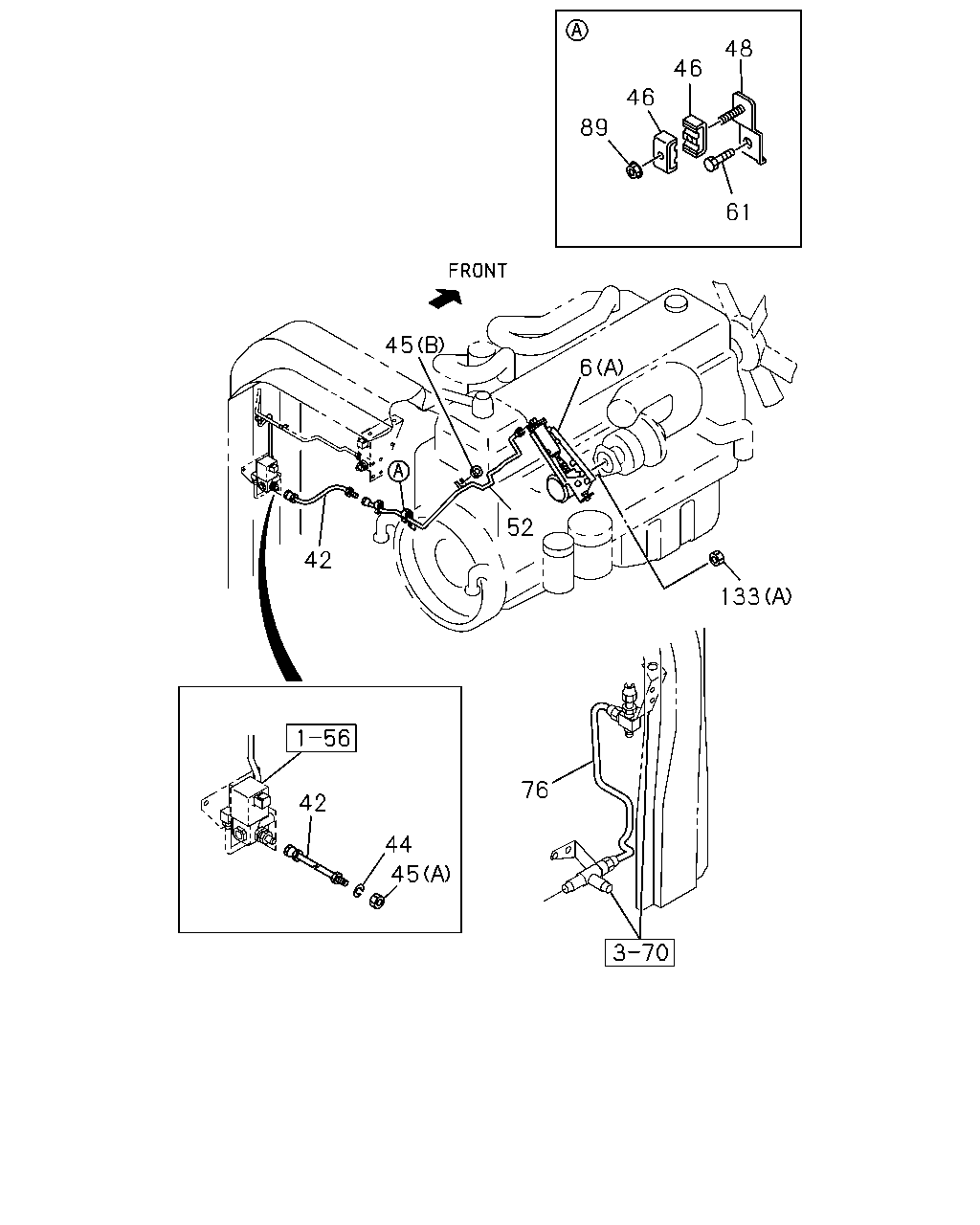

çizim 79569
89 46 46 48 61 45 6 52 42 133 76 42 44 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 0105- ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 0105- ●
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(A) 		8-98024-270-0 01 1 0509- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-154-0 01 1 0105- ● ●
6 VALVE; EXH BRAKE
(A) 		1-22190-646-0 01 1 0105- ● ●
42 HOSE; FLEX,EXH BRK
L=320 		1-09363-656-0 01 1 0105- ● ● ●
42 HOSE; FLEX,EXH BRK
L=430 		1-09363-677-0 01 1 0105- ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0105-0603 ● ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
45 NUT; FLEX HOSE
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ●
45 NUT; FLEX HOSE
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
45 NUT; FLEX HOSE
(A) M12 		9-09840-280-0 01 1 0105- ● ● ●
46 CLIP; AIR PIPE 1-09701-132-1 02 1 0105- ● ● ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 0105- ● ● ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-904-0 01 1 0105- ● ● ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 0105-0512 ● ● ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28951-420-0 01 1 0601- ● ● ●
76 PIPE ASM; AIR UNION TO UNION 1-49122-911-0 01 1 0105- ● ● ● ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602 ● ● ●
89 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 0105- ● ● ●
133 NUT; LK
(B) M10 FLANGE 		0-91150-110-0 01 1 0105- ● ● ●
133 NUT; LK
(A) 		1-09440-078-0 01 1 0105-0508 ●
133 NUT; LK
(B) 		1-09440-079-0 01 1 0105-0508 ●

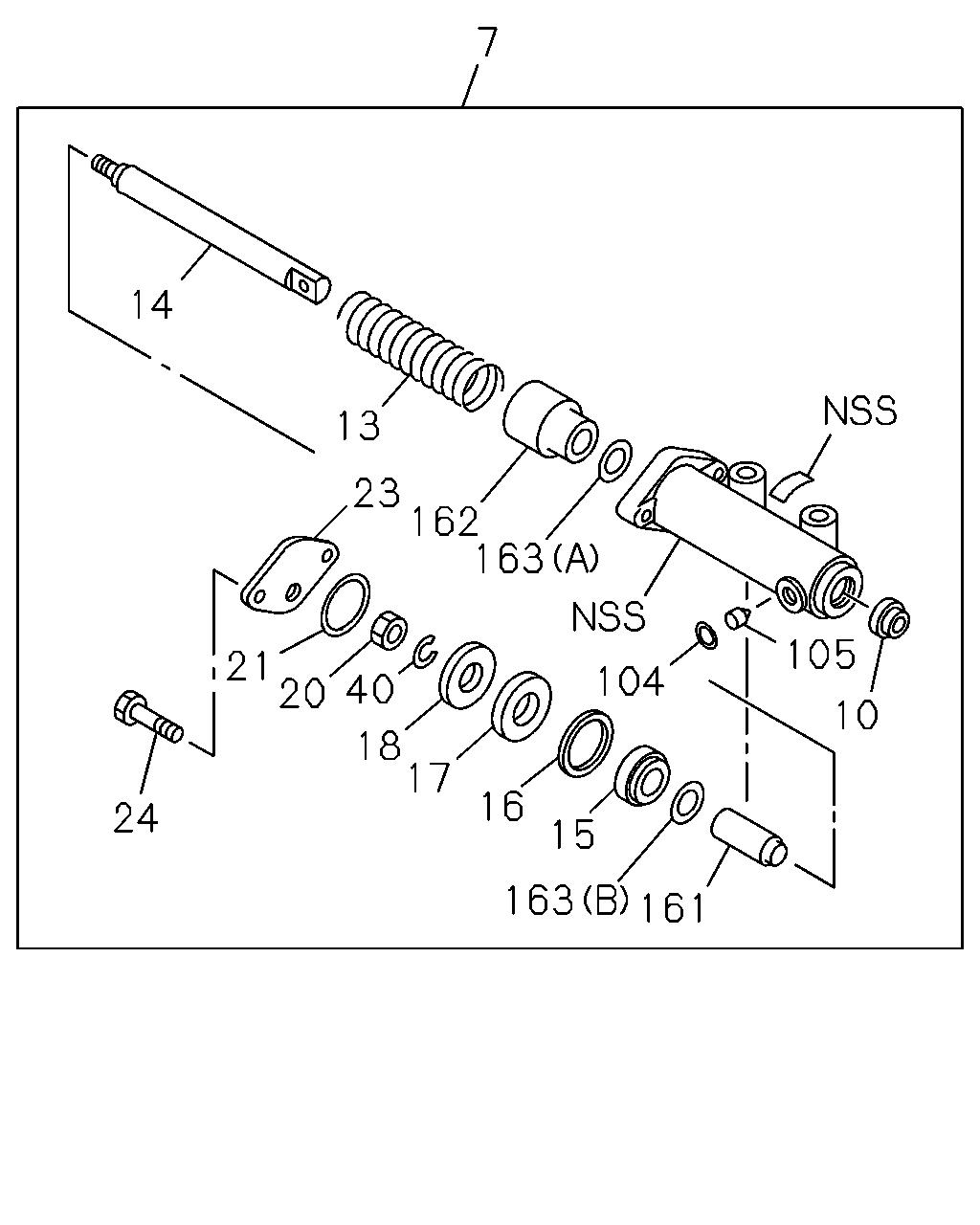

çizim 80615
7 14 13 23 163 21 20 40 18 17 16 15 163 161 10 105 104 24 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 0105- ●
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0105-0109 ●
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508 ●
7 CYLINDER ASM; CONT 1-22190-642-0 01 1 0105- ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 0105-0206 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0105-0206 ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0207-0508 ● ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0509- ● ● ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 0105- ●
13 SPRING; CONT CYL 1-22199-234-0 01 1 0105-0109 ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 0105-0109 ● ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 0110-0508 ● ● ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 0509- ● ●
14 SHAFT; CONT CYL 1-22199-208-0 01 1 0110-0508 ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 0105-0206 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0105-0109 ● ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0110-0206 ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0207- ● ● ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 0105-0206 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 0207- ●
15 PLATE; CONT CYL 1-22199-233-0 01 1 0105-0109 ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 0105-0109 ● ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 0110-0508 ● ● ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 0509- ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0105-0206 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0207- ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0105-0109 ●
16 RING; WEAR,CONT CYL 1-22189-345-0 01 1 0110-0508 ●
16 RING; WEAR,CONT CYL 1-22199-169-0 01 1 0105- ● ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 0105-0206 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0207- ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0105-0109 ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 0105-0109 ● ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 0110-0508 ● ● ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 0509- ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0105-0206 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0105-0206 ●
20 NUT; CONT CYL 1-09440-078-0 01 1 0105-0508 ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0105-0206 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0207- ● ● ●
21 GASKET; COVER 9-88510-372-0 01 1 0105-0206 ●
21 GASKET; COVER 1-22199-072-0 01 1 0207- ●
21 GASKET; COVER 1-22199-072-0 01 1 0105-0109 ●
21 GASKET; COVER 1-22199-171-0 01 1 0105-0109 ● ●
21 GASKET; COVER 1-22199-171-0 01 1 0110-0508 ● ● ●
21 GASKET; COVER 1-22199-171-0 01 1 0509- ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0105- ●
23 COVER; CONT CYL 8-97600-319-0 01 1 0105-0109 ●
23 COVER; CONT CYL 1-22199-172-0 01 1 0105-0109 ● ●
23 COVER; CONT CYL 1-22199-172-0 01 1 0110-0508 ● ● ●
23 COVER; CONT CYL 1-22199-172-0 01 1 0509- ● ●
24 BOLT; COVER 1-22199-217-0 02 1 0207- ●
24 BOLT; COVER 1-22199-155-0 02 1 0105-0206 ● ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0207- ● ●
24 BOLT; COVER 1-22199-174-0 02 1 0105-0508 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0105-0206 ●
104 RING; RET 9-88510-331-0 01 1 0105-0508 ● ● ● ●
104 RING; RET 9-88510-331-0 01 1 0509- ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0105-0508 ● ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0509- ● ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0105-0508 ● ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0509- ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0105-0508 ● ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0509- ● ●
163 WASHER; CONT CYL
(B) 		1-22199-209-0 01 1 0110-0508 ●
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 0105-0206 ● ● ●
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 0207-0508 ● ● ● ●
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 0509- ● ● ●
163 WASHER; CONT CYL
(B) 		1-22199-179-0 01 1 0105- ● ●

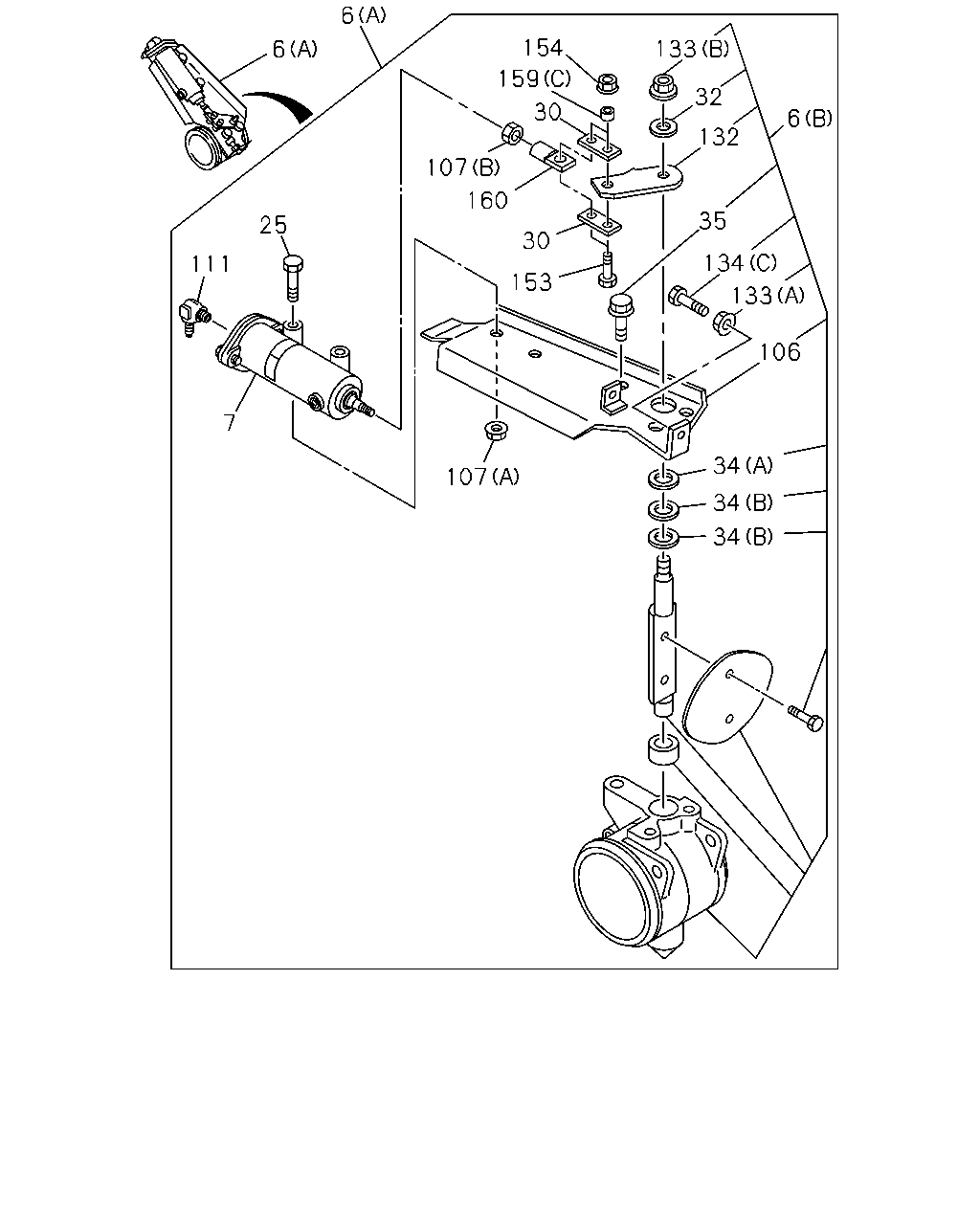

çizim 80853
6 6 25 111 7 107 153 30 160 107 30 159 154 133 32 6 132 35 134 133 106 34 34 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 VALVE; EXH BRAKE
(A) 		1-14144-603-3 01 1 0105- ●
6 VALVE; EXH BRAKE
(B) 		1-14144-616-0 01 1 0105- ●
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(A) 		8-98024-270-0 01 1 0509- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0105-0109 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-154-0 01 1 0105- ● ●
6 VALVE; EXH BRAKE
(A) 		1-22190-646-0 01 1 0105- ● ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 0105- ●
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0105-0109 ●
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508 ●
7 CYLINDER ASM; CONT 1-22190-642-0 01 1 0105- ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 0105-0206 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 0207- ●
25 BOLT; CONT CYL 1-09000-744-0 02 1 0105-0109 ●
25 BOLT; CONT CYL 1-09000-743-0 02 1 0110-0508 ●
25 BOLT; CONT CYL 1-19519-244-0 02 1 0105- ● ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 0105- ●
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0105-0508 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0105- ● ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 0105- ● ● ●
34 RING; SEAL
(A) ID=21 		1-22189-158-0 01 1 0105- ● ● ●
34 RING; SEAL
(B) ID=18.8 		1-22189-159-0 02 1 0105- ● ● ●
35 BOLT; PLATE FIX
M10X20 		0-28021-020-0 03 1 0105- ● ● ●
35 BOLT; PLATE FIX 1-22199-174-0 02 1 0105-0508 ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 0105- ●
106 BRACKET; CONT CYL 1-22186-144-0 01 1 0105- ● ●
107 NUT; CONT CYL
(B) M10 		9-09111-410-0 01 1 0110-0508 ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 0105-0206 ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 0105- ●
107 NUT; CONT CYL
(A) 		1-09440-079-0 02 1 0105-0508 ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0105-0109 ● ● ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0110- ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 0105-0206 ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 0207- ● ● ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 0105- ● ● ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 0105- ● ● ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 0105- ● ● ●
133 NUT; LK
(B) M10 FLANGE 		0-91150-110-0 01 1 0105- ● ● ●
133 NUT; LK
(A) 		1-09440-078-0 01 1 0105-0508 ●
133 NUT; LK
(B) 		1-09440-079-0 01 1 0105-0508 ●
134 BOLT; STOPPER
(C) M8X30 		1-09000-112-1 02 1 0105- ● ● ●
134 BOLT; STOPPER
(A) M8X30 		1-09000-112-1 01 1 0105-0508 ●
134 BOLT; STOPPER
(B) 		1-09000-742-0 01 1 0105-0508 ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 0105-0206 ●
153 BOLT; CLEVIS,CONT CYL
M8X25 FLANGE 		0-28080-825-0 02 1 0105-0206 ● ●
153 BOLT; CLEVIS,CONT CYL
M8X25 FLANGE 		0-28080-825-0 02 1 0207- ● ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0105- ● ● ●
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0105-0508 ●
159 COLLAR; CONT CYL
(C) 		1-22199-151-0 02 1 0105- ● ● ●
159 COLLAR; CONT CYL
(A) 		1-22189-360-0 02 1 0105-0109 ●
159 COLLAR; CONT CYL
(B) 		1-22197-151-0 02 1 0105-0508 ●
160 JOINT; CONT CYL 1-22189-363-0 01 1 0110-0508 ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0105-0109 ● ● ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0110- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
