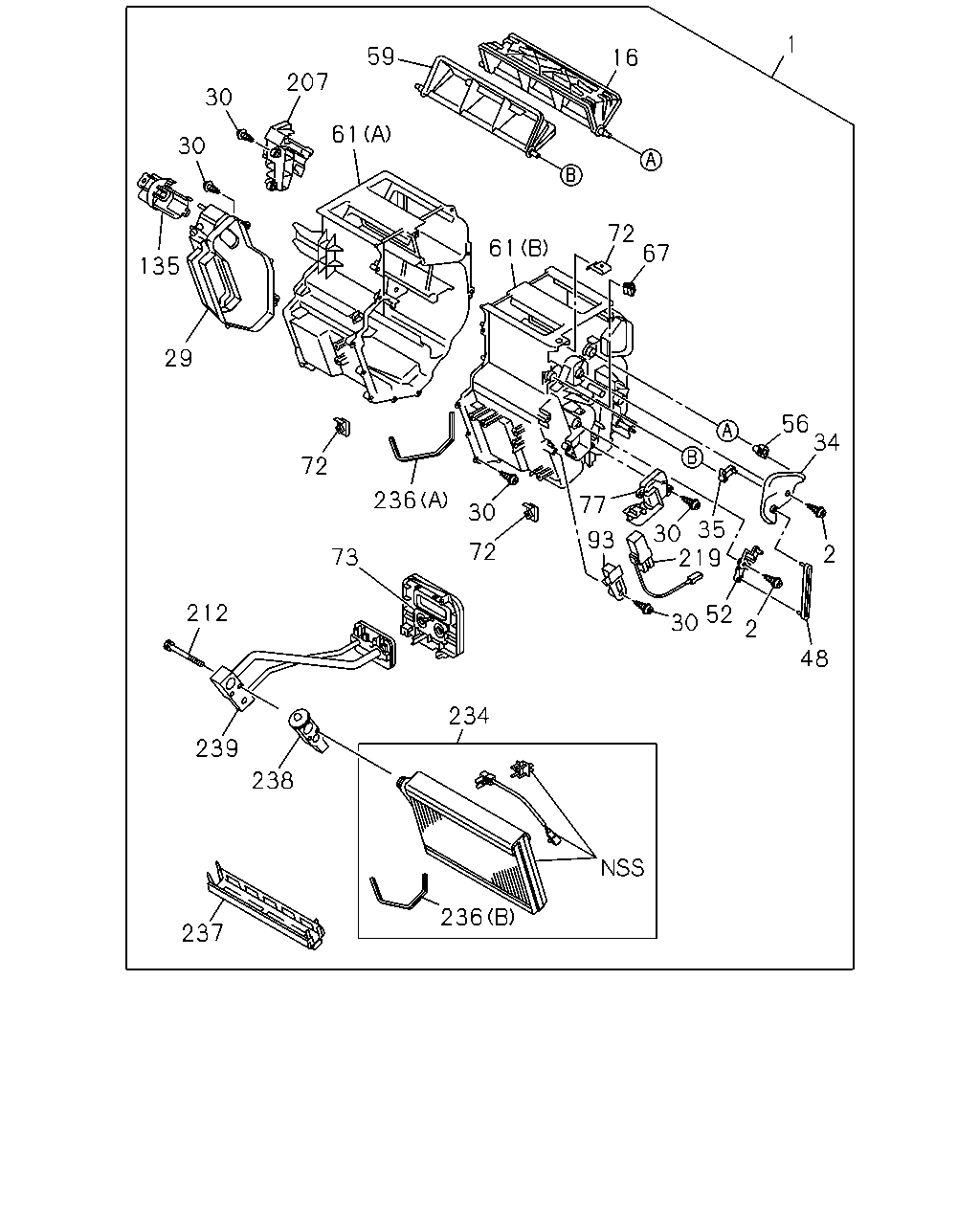

8-60 — HEATER UNIT; FRONT (#119393) — 28 parça

48 34 56 2 2 52 30 219 30 35 93 77 72 30 236 73 234 236 238 239 212 29 237 72 207 30 30 135 61 59 16 1 72 61 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT COOLER WO/HEATER<C65> IMA	8-98057-980-2	01	1	1304-	●	●
2	SCREW; LEVER COOLER WO/HEATER<C65> M4X16 IMA	8-98047-416-0	02	1	1304-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR COOLER WO/HEATER<C65> IMA	8-98047-387-0	01	1	1304-	●	●
29	COVER; HTR UNIT COOLER WO/HEATER<C65> IMA	8-98074-119-0	01	1	1304-	●	●
30	SCREW; HTR UNIT COOLER WO/HEATER<C65> M4X16 TAPPING IMA	8-97957-708-0	27	1	1304-	●	●
34	LEVER; SHUTTER,HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-389-0	01	1	1304-	●	●
35	LEVER; SHUTTER,HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-392-0	01	1	1304-	●	●
48	LEVER; HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-391-0	01	1	1304-	●	●
52	LEVER; SHUTTER,HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-390-0	01	1	1304-	●	●
56	LEVER; SHUTTER,HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-393-0	01	1	1304-	●	●
59	SHUTTER; HTR UNIT,SIDE COOLER WO/HEATER<C65> IMA	8-98047-386-0	01	1	1304-	●	●
61	CASE; HTR UNIT COOLER WO/HEATER<C65> (A) IMA	8-98077-422-0	01	1	1304-	●	●
61	CASE; HTR UNIT COOLER WO/HEATER<C65> (B) IMA	8-98077-423-0	01	1	1304-	●	●
67	CLIP; HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-417-0	01	1	1304-	●	●
72	NUT; CASE,HTR UNIT COOLER WO/HEATER<C65> M6 IMA	8-98047-428-0	03	1	1304-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER<C65> IMA	8-98077-420-0	01	1	1304-	●	●
77	COVER; HTR CASE COOLER WO/HEATER<C65> IMA	8-98047-414-0	01	1	1304-	●	●
93	PLATE; HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-427-0	01	1	1304-	●	●
135	COVER; HTR COOLER WO/HEATER<C65> IMA	8-98047-384-0	01	1	1304-	●	●
207	CLAMP; HTR UNIT COOLER WO/HEATER<C65> IMA	8-98047-379-0	01	1	1304-	●	●
212	BOLT; HTR UNIT COOLER WO/HEATER<C65> M5X61 IMA	8-98047-415-0	02	1	1304-	●	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER<C65> IMA	8-98064-733-0	01	1	1304-	●	●
234	EVAPORATOR ASM; HEATER COOLER WO/HEATER<C65> IMA	8-98074-116-1	01	1	1304-	●	●
236	GASKET; HEATER COOLER WO/HEATER<C65> (A) IMA	8-98047-420-0	01	1	1304-	●	●
236	GASKET; HEATER COOLER WO/HEATER<C65> (B) IMA	8-98047-421-0	01	1	1304-	●	●
237	INSULATOR; EVAPORATOR COOLER WO/HEATER<C65> IMA	8-98047-382-0	01	1	1304-	●	●
238	VALVE; EXPANSION COOLER WO/HEATER<C65> IMA	8-98047-383-0	01	1	1304-	●	●
239	TUBE ASM; HEATER COOLER WO/HEATER<C65> IMA	8-98074-115-0	01	1	1304-	●	●
