Sayfa 1-50 - Isuzu EPC

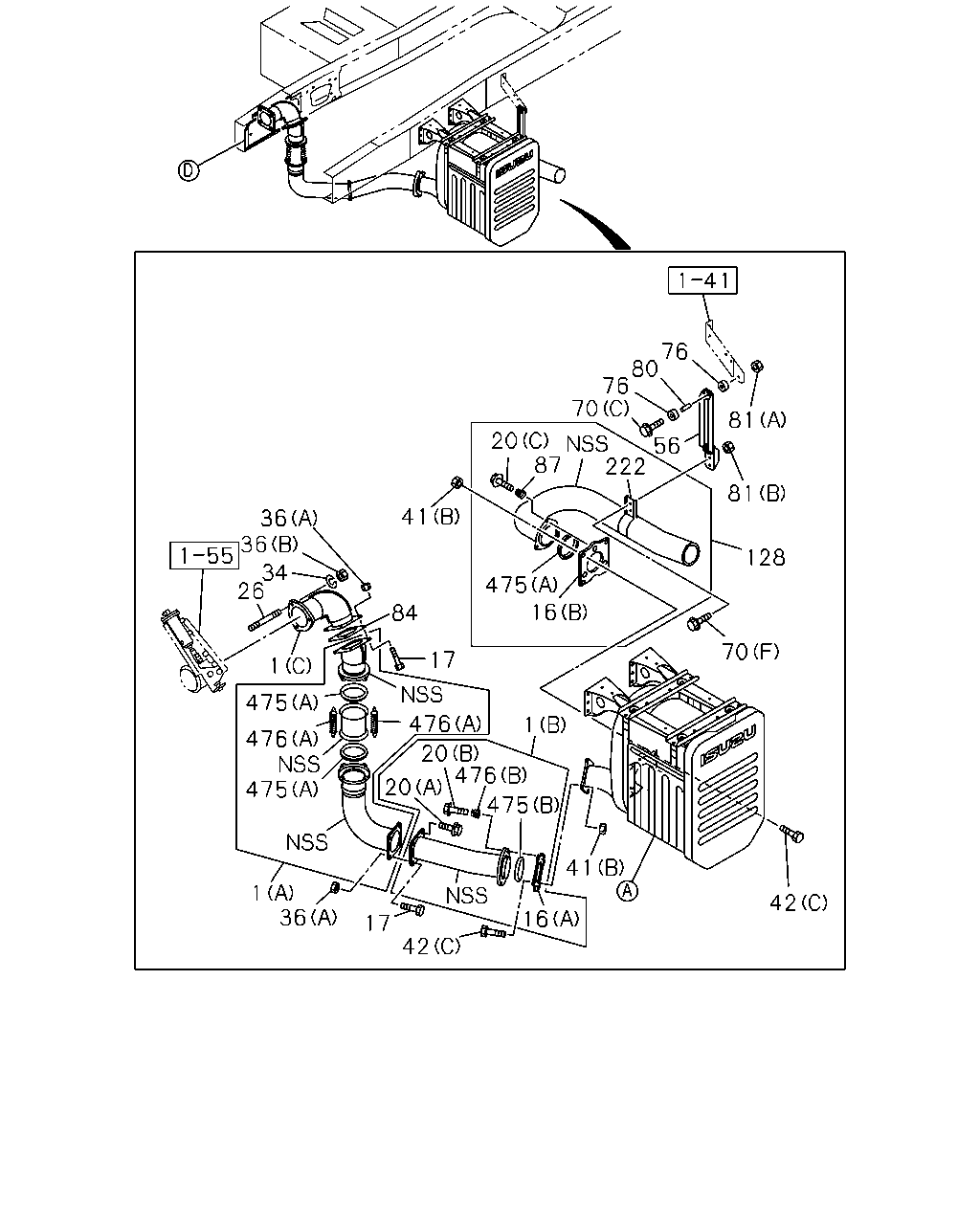

1-50 — EXHAUST PIPE AND SILENCER (#11939) — 360 parça

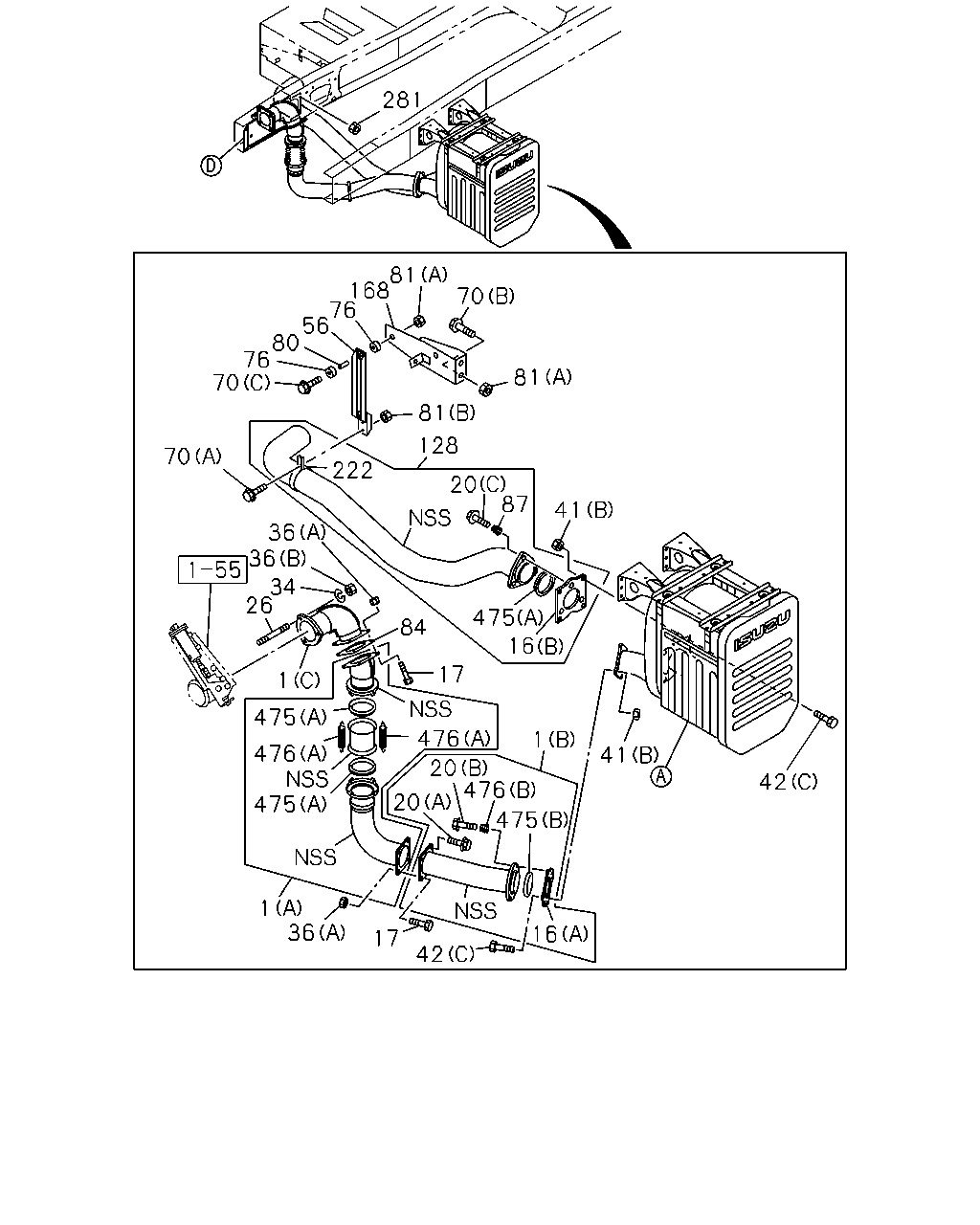

281 70 81 168 76 56 80 76 70 81 81 222 70 128 41 20 87 36 36 34 26 475 84 16 17 1 41 1 476 475 476 475 20 476 475 20 1 36 17 42 16 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-191-1	01	1	0105-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-862-0	01	1	0105-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C)	1-22122-227-1	01	1	0105-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-22122-818-0	01	1	0105-
1	PIPE; EXH 6WF1 TC-C(1B8) (C)	1-22122-976-0	01	1	0105-
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-487-0	01	1	0105-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0105-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0105-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0105-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0105-0512
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28661-230-0	01	1	0601-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X51.4	1-09009-167-0	03	1	0105-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	8-94436-943-0	02	1	0105-
26	STUD; EXH MANIF 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M12X140 L=160	1-09302-163-0	03	1	0210-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0105-0209
26	STUD; EXH MANIF 6WF1 TC-C(1B8) M12X140 L=160	1-09302-163-0	04	1	0210-
34	WASHER; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=13 OD=26	1-09556-020-0	03	1	0210-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	03	1	0105-0209
34	WASHER; EXH PIPE 6WF1 TC-C(1B8) ID=13 OD=26	1-09556-020-0	04	1	0210-
36	NUT; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M12	1-09400-131-0	03	1	0210-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0105-0209
36	NUT; EXH PIPE 6WF1 TC-C(1B8) (B) M12	1-09400-131-0	04	1	0210-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0105-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	08	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0105-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0301-0512
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0105-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	03	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0105-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22151-812-0	01	1	0105-0312
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22152-070-0	01	1	0401-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>	1-22151-788-0	01	1	0105-
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0105-0109
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	0105-0109
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-939-0	01	1	0110-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	04	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	04	1	0601-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28081-060-0	04	1	0105-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0105-0503
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	01	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	01	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X25 FLANGE	0-28681-025-0	04	1	0105-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28080-850-0	02	1	0105-0512
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28050-850-0	02	1	0601-
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0105-
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0105-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	04	1	0105-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91150-212-0	08	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91180-210-0	02	1	0603-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0105-
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0105-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	0105-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22122-841-3	01	1	0105-
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>	1-22123-207-1	01	1	0105-
168	BRACKET; EXH PIPE,FRT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22131-847-0	01	1	0105-
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0105-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0105-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-0	01	1	0105-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0105-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0105-

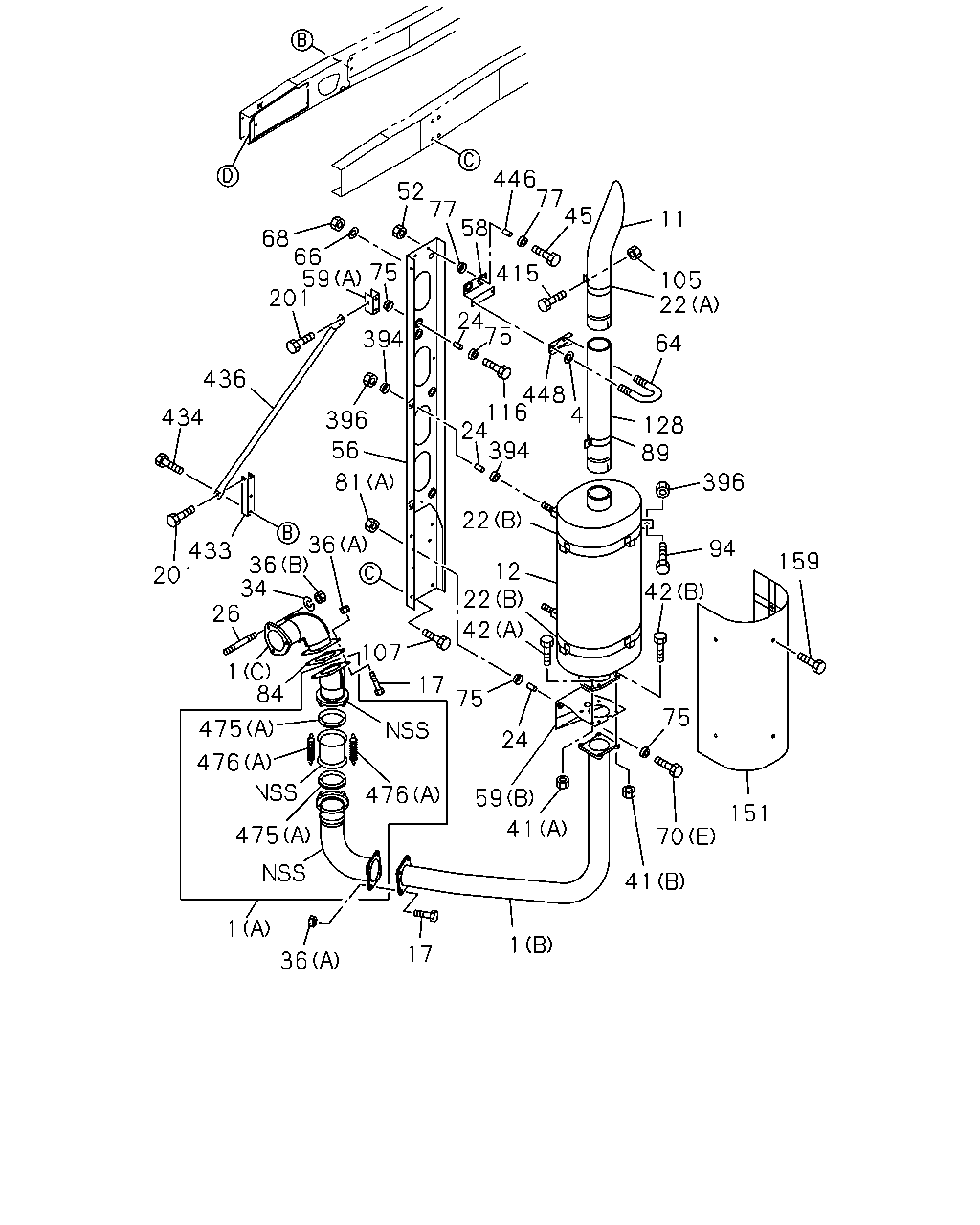

52 446 11 77 45 77 68 58 105 415 66 201 59 75 22 24 64 75 394 436 448 128 4 116 396 24 89 396 159 94 394 434 56 22 81 42 12 36 433 201 22 42 36 34 107 26 1 84 17 75 24 59 41 75 151 70 41 1 17 36 1 476 475 476 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-191-1	01	1	0105-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-862-0	01	1	0105-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C)	1-22122-227-1	01	1	0105-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-22122-818-0	01	1	0105-
1	PIPE; EXH 6WF1 TC-C(1B8) (C)	1-22122-976-0	01	1	0105-
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-487-0	01	1	0105-
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	0105-0605
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	0606-
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	0105-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0105-
12	SILENCER ASM; EXH 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0105-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0105-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0105-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-266-1	01	1	0105-
22	CLAMP; EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	0105-
22	CLAMP; EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B)	1-22133-270-0	02	1	0105-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	0105-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0105-
26	STUD; EXH MANIF 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M12X140 L=160	1-09302-163-0	03	1	0210-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0105-0209
26	STUD; EXH MANIF 6WF1 TC-C(1B8) M12X140 L=160	1-09302-163-0	04	1	0210-
34	WASHER; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=13 OD=26	1-09556-020-0	03	1	0210-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	03	1	0105-0209
34	WASHER; EXH PIPE 6WF1 TC-C(1B8) ID=13 OD=26	1-09556-020-0	04	1	0210-
36	NUT; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M12	1-09400-131-0	03	1	0210-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0105-0209
36	NUT; EXH PIPE 6WF1 TC-C(1B8) (B) M12	1-09400-131-0	04	1	0210-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0105-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	08	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0105-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0301-0512
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0105-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	03	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0105-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	0105-0512
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	0601-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	0105-0602
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	0603-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22151-812-0	01	1	0105-0312
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22152-070-0	01	1	0401-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>	1-22151-788-0	01	1	0105-
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0105-0109
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	0105-0109
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-939-0	01	1	0110-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	0105-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	0105-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	0105-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22151-710-1	02	1	0105-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	0105-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	0105-0603
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	0604-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0105-0602
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	04	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	04	1	0601-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28081-060-0	04	1	0105-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0105-0503
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	01	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	01	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X25 FLANGE	0-28681-025-0	04	1	0105-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28080-850-0	02	1	0105-0512
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28050-850-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0105-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0105-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0105-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	04	1	0105-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91150-212-0	08	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91180-210-0	02	1	0603-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0105-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	0105-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	0105-0512
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	03	1	0601-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	0105-0602
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	0603-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	0105-0111
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0105-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	0105-0512
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	0601-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	0105-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22122-841-3	01	1	0105-
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>	1-22123-207-1	01	1	0105-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-334-0	01	1	0105-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0105-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0105-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	04	1	0105-0512
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28651-025-0	04	1	0601-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	0105-
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	0105-0602
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	06	1	0603-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	0105-0512
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	01	1	0601-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-811-0	01	1	0105-0310
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22152-071-0	01	1	0311-0408
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22152-154-0	01	1	0409-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	02	1	0105-0310
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	04	1	0311-0512
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28650-830-0	04	1	0601-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-798-2	02	1	0105-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	0105-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-0	01	1	0105-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0105-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0105-

76 81 80 20 76 70 222 87 56 81 41 475 12 16 36 36 26 34 84 17 70 42 1 41 16 17 42 475 20 36 1 476 475 475 476 1 476 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-191-1	01	1	0105-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-862-0	01	1	0105-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C)	1-22122-227-1	01	1	0105-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-22122-818-0	01	1	0105-
1	PIPE; EXH 6WF1 TC-C(1B8) (C)	1-22122-976-0	01	1	0105-
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-487-0	01	1	0105-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0105-
12	SILENCER ASM; EXH 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0105-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0105-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0105-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0105-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0105-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0105-0512
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28661-230-0	01	1	0601-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X51.4	1-09009-167-0	03	1	0105-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	8-94436-943-0	02	1	0105-
26	STUD; EXH MANIF 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M12X140 L=160	1-09302-163-0	03	1	0210-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0105-0209
26	STUD; EXH MANIF 6WF1 TC-C(1B8) M12X140 L=160	1-09302-163-0	04	1	0210-
34	WASHER; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=13 OD=26	1-09556-020-0	03	1	0210-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	03	1	0105-0209
34	WASHER; EXH PIPE 6WF1 TC-C(1B8) ID=13 OD=26	1-09556-020-0	04	1	0210-
36	NUT; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M12	1-09400-131-0	03	1	0210-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0105-0209
36	NUT; EXH PIPE 6WF1 TC-C(1B8) (B) M12	1-09400-131-0	04	1	0210-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0105-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	08	1	0105-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0105-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0301-0512
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0105-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	03	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0105-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22151-812-0	01	1	0105-0312
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR>	1-22152-070-0	01	1	0401-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>	1-22151-788-0	01	1	0105-
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0105-0109
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	0105-0109
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-939-0	01	1	0110-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	04	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	04	1	0601-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28081-060-0	04	1	0105-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0105-0503
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	01	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	01	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X25 FLANGE	0-28681-025-0	04	1	0105-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28080-850-0	02	1	0105-0512
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28050-850-0	02	1	0601-
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0105-
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0105-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	04	1	0105-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91150-212-0	08	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91180-210-0	02	1	0603-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0105-
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0105-
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0105-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-0	01	1	0105-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0105-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0105-

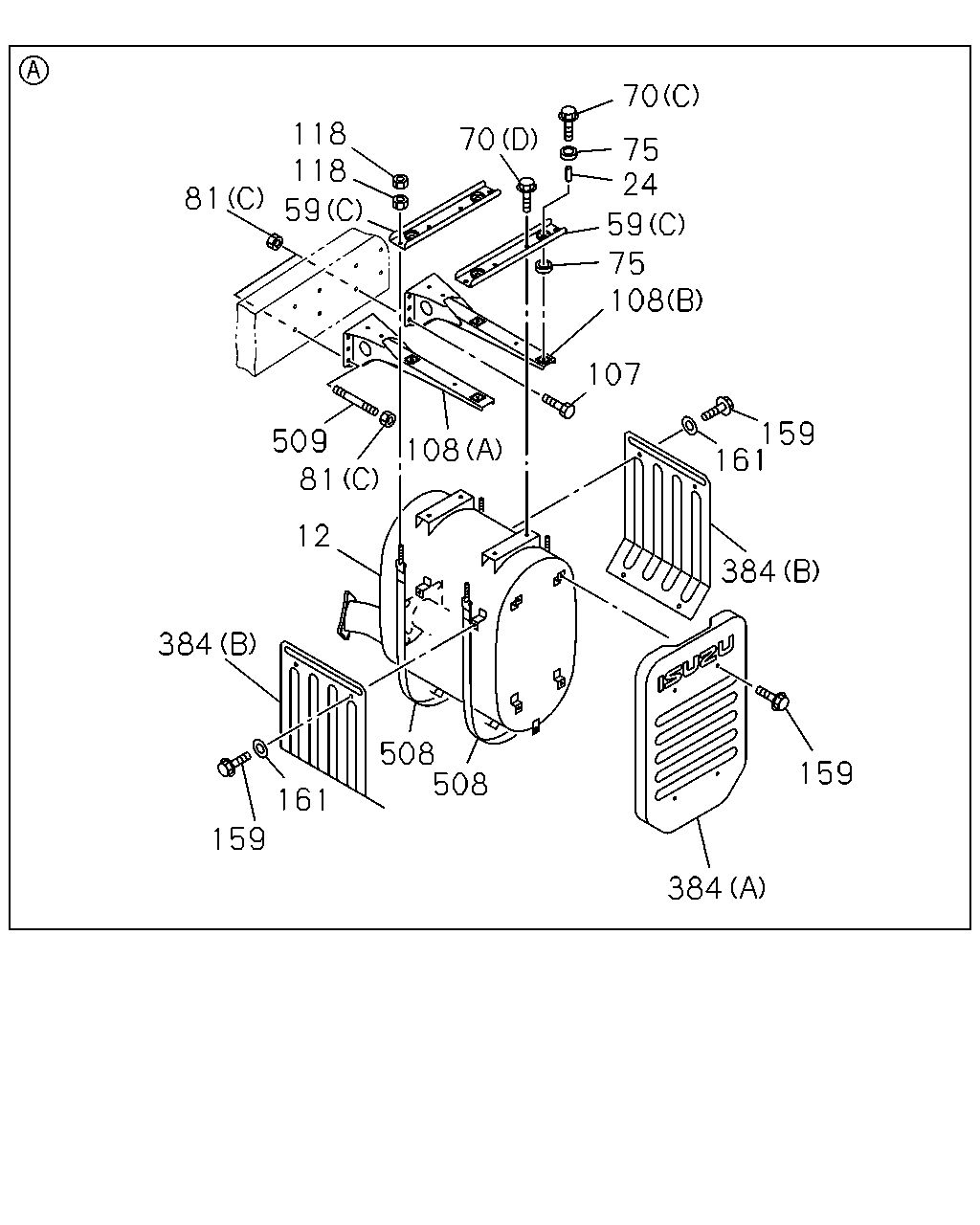

118 70 70 75 118 81 59 24 75 59 108 107 159 384 108 161 509 12 81 159 384 508 508 161 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0105-
12	SILENCER ASM; EXH 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0105-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0105-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	0105-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0105-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	0105-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	0105-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22151-710-1	02	1	0105-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	04	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	04	1	0601-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28081-060-0	04	1	0105-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (E) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	05	1	0105-0503
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28081-050-0	01	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X50 FLANGE	0-28051-050-0	01	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X25 FLANGE	0-28681-025-0	04	1	0105-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28080-850-0	02	1	0105-0512
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (F) M8X50 FLANGE	0-28050-850-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0105-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0105-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	04	1	0105-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91150-212-0	08	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLEHORIZONTAL TURN LEFT<SBR> (A) M10 FLANGE	0-91180-210-0	02	1	0603-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	0105-0111
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0105-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	0105-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	0105-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	0105-0512
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	0601-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0105-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0105-
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0105-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-378-3	01	1	0105-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-379-1	02	1	0105-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	0105-0408
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	0409-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	0105-0303
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	0304-

483 281 158 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0105-
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0105-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0105-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
