8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#119388) — 14 parça

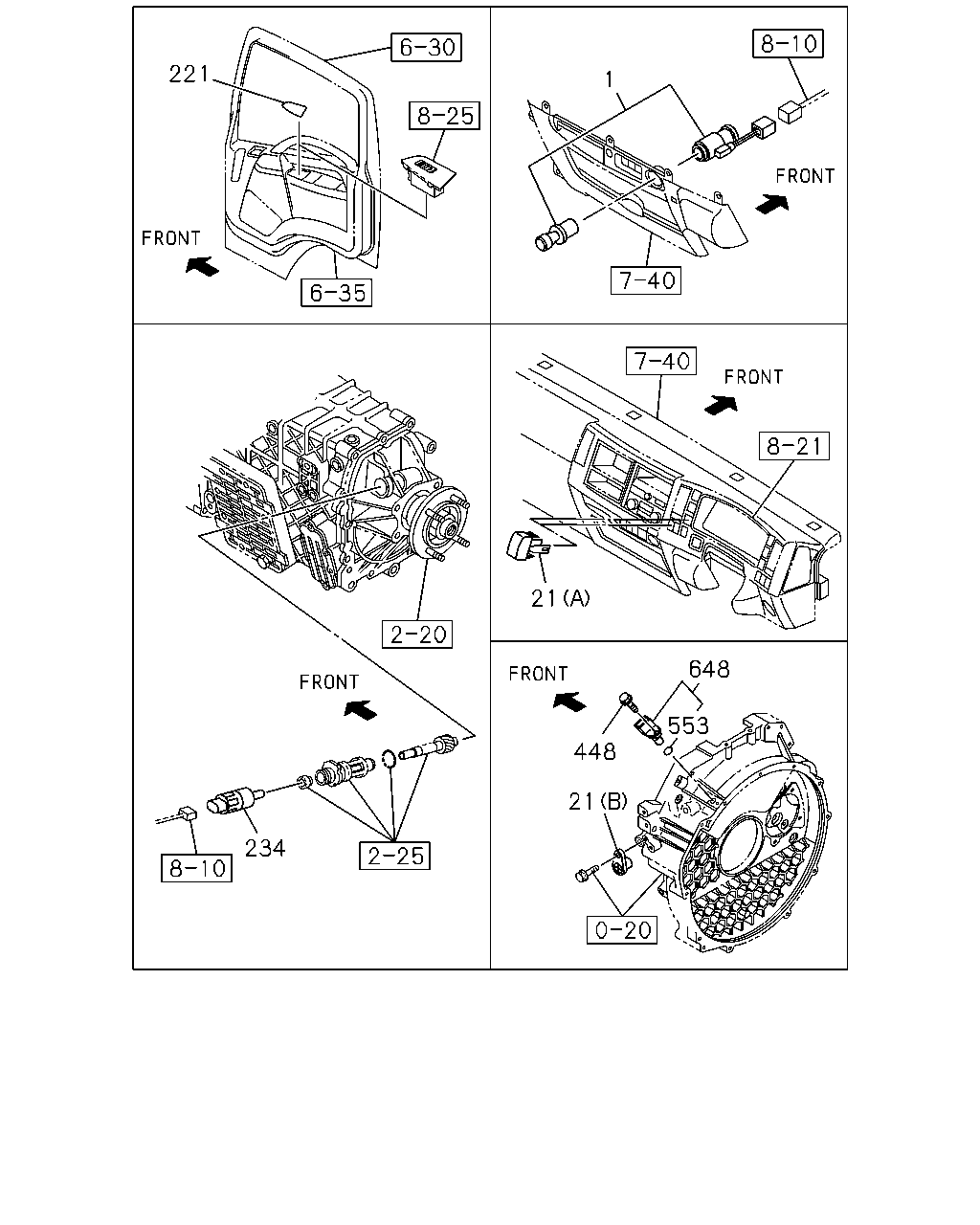

çizim 351687
221 234 448 21 648 553 1 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
IMA 		8-98142-962-0 01 1 1304- ● ●
21 COVER; HOLE
(B) IMA 		8-97101-974-0 01 1 1304- ● ●
21 COVER; HOLE
(A) IMA 		8-98025-954-1 02 1 1304- ● ●
221 COVER; HOLE,DOOR LOCK SW
IMA 		8-98029-915-2 01 1 1304- ● ●
221 COVER; HOLE,DOOR LOCK SW
IMA 		8-98029-916-2 01 1 1304- ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM IMA 		8-97328-058-1 01 1 1304- ● ●
448 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1304- ● ●
553 GASKET
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1304- ● ●
648 SENSOR; CRANK ANGLE
IMA 		8-97606-943-0 01 1 1304- ● ●
çizim 352311
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(A) IMA 		8-98022-170-1 01 1 1304- ● ●
67 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1304-1404 ● ●
67 BRACKET; CONT UNIT
(B) IMA 		8-98217-377-0 01 1 1405- ● ●
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 1304- ● ●
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1304- ● ●
