◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#119384) — 21 parça

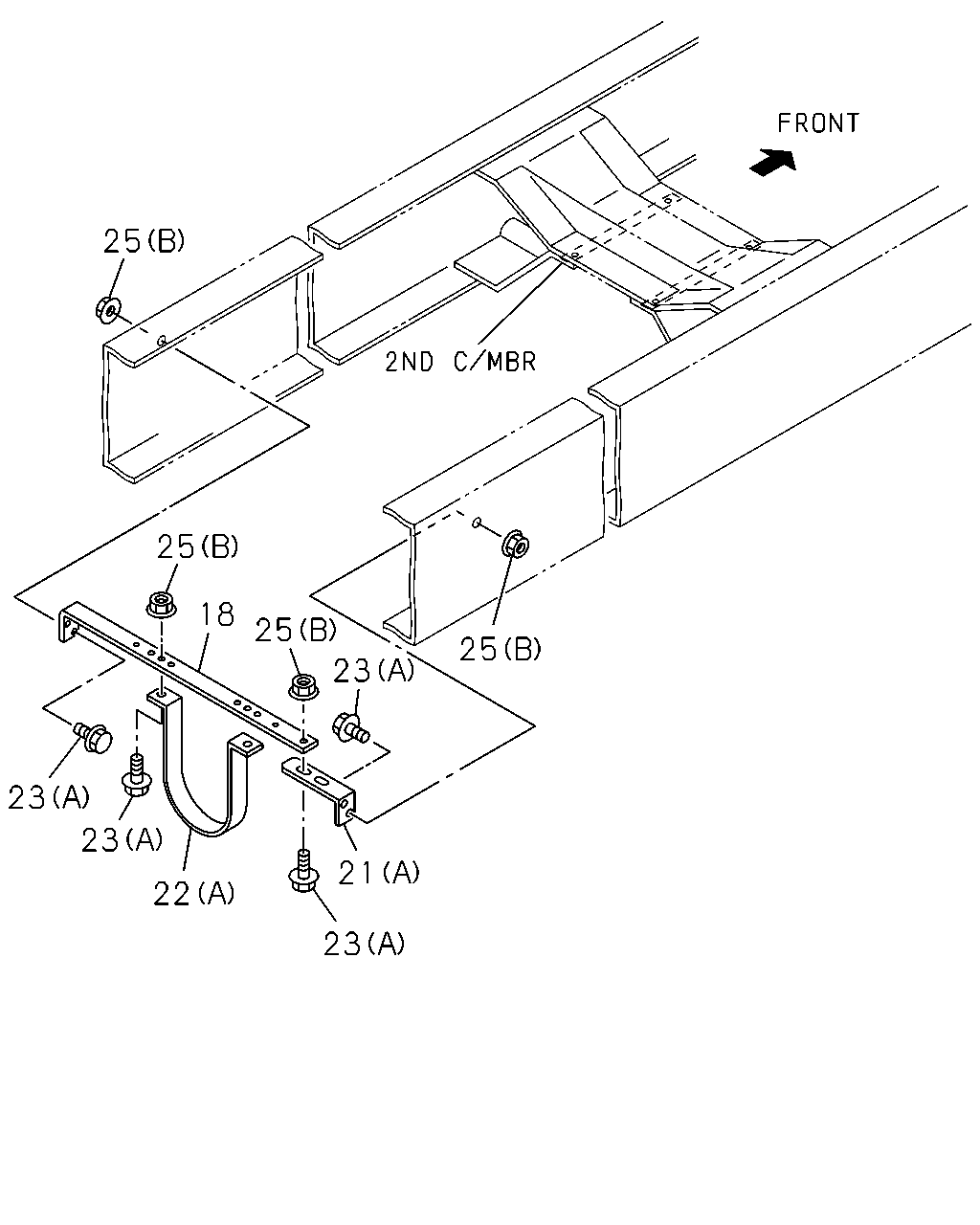

çizim 350999
25 25 18 25 25 23 23 23 22 21 23
BalonParca AdiParca NoAdetTipApplied Date A B
18 BRACKET; PROP SHAFT GUARD
WHEEL BASE 5300MM<53W> THA 		1-53279-249-0 01 1 1305- ●
21 BRACKET; PROP GUARD
WHEEL BASE 5300MM<53W> (A) 		1-53279-248-0 01 1 1305- ●
21 BRACKET; PROP GUARD
WHEEL BASE 4700MM<47W> (B) 		1-53279-267-3 01 1 1305- ●
22 GUARD; PROP SHAFT
WHEEL BASE 5300MM<53W> (A) 		1-53279-262-0 01 1 1305- ●
22 GUARD; PROP SHAFT
WHEEL BASE 4700MM<47W> (B) THA 		1-53279-166-0 01 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X30 FLANGE THA 		0-28651-030-0 03 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X40 FLANGE THA 		0-28651-040-0 04 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (B) M8X35 FLANGE THA 		0-28050-835-0 02 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1305- ●
25 NUT; GUARD
WHEEL BASE 5300MM<53W> (B) M10 FLANGE THA 		0-91180-210-0 07 1 1305- ●
25 NUT; GUARD
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 04 1 1305- ●
çizim 351009
25 21 23 23 22
BalonParca AdiParca NoAdetTipApplied Date A B
21 BRACKET; PROP GUARD
WHEEL BASE 5300MM<53W> (A) 		1-53279-248-0 01 1 1305- ●
21 BRACKET; PROP GUARD
WHEEL BASE 4700MM<47W> (B) 		1-53279-267-3 01 1 1305- ●
22 GUARD; PROP SHAFT
WHEEL BASE 5300MM<53W> (A) 		1-53279-262-0 01 1 1305- ●
22 GUARD; PROP SHAFT
WHEEL BASE 4700MM<47W> (B) THA 		1-53279-166-0 01 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X30 FLANGE THA 		0-28651-030-0 03 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X40 FLANGE THA 		0-28651-040-0 04 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (B) M8X35 FLANGE THA 		0-28050-835-0 02 1 1305- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1305- ●
25 NUT; GUARD
WHEEL BASE 5300MM<53W> (B) M10 FLANGE THA 		0-91180-210-0 07 1 1305- ●
25 NUT; GUARD
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 04 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
