◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#119383) — 64 parça

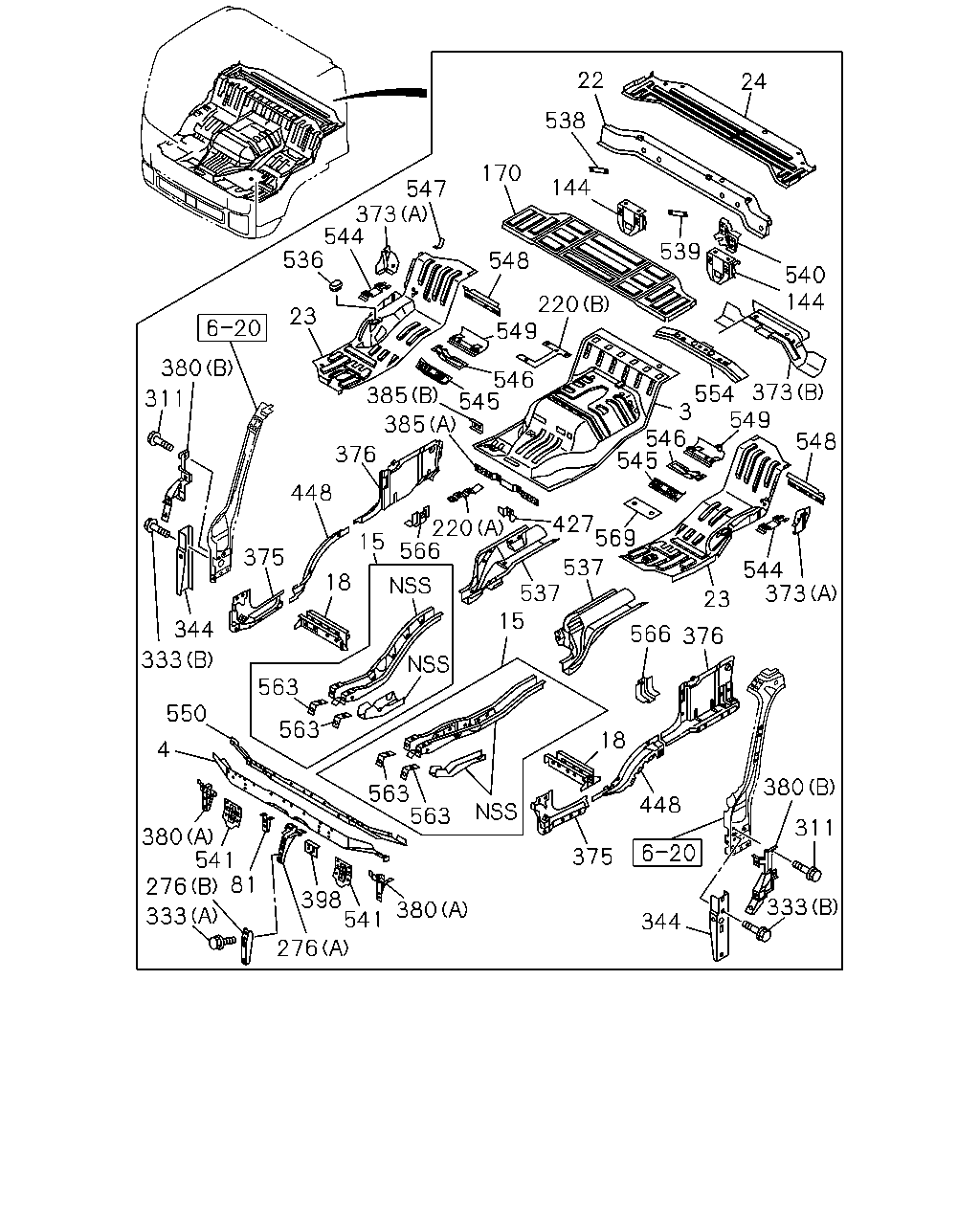

çizim 352772
22 170 24 144 547 373 544 536 23 448 376 385 385 546 545 549 220 548 539 540 554 549 373 548 544 373 23 376 566 18 448 375 380 311 333 344 380 541 276 81 541 333 380 276 4 333 563 563 563 563 15 375 344 18 537 427 545 546 3 144 220 566 15 569 537 538 380 311 550 398
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98046-585-7 01 1 1305- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1305- ● ●
15 FRAME; UNDER 8-98055-645-2 01 1 1305- ● ●
15 FRAME; UNDER 8-98055-646-2 01 1 1305- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1305- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1305- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1305- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1305- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1305- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1305- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1305- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1305- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1305- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1305- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1305-1306 ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 1305- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1305- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1305- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1305- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 04 1 1305- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1305- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1305- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1305- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1305- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1305- ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1305- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1305- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1305- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1305-1403 ● ●
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1305- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1305- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1305- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1305- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1305- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1305- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1305- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1305-1306 ● ●
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1307- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1305- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1305- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1305- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1305- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1305- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1305- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1305- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1305- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1305- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1305- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1305- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1305- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1305- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1305- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1305- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1305- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1305- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1305- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1305- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1305- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1305- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1305- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1305- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1305- ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1305- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
