Sayfa 7-50 - Isuzu EPC

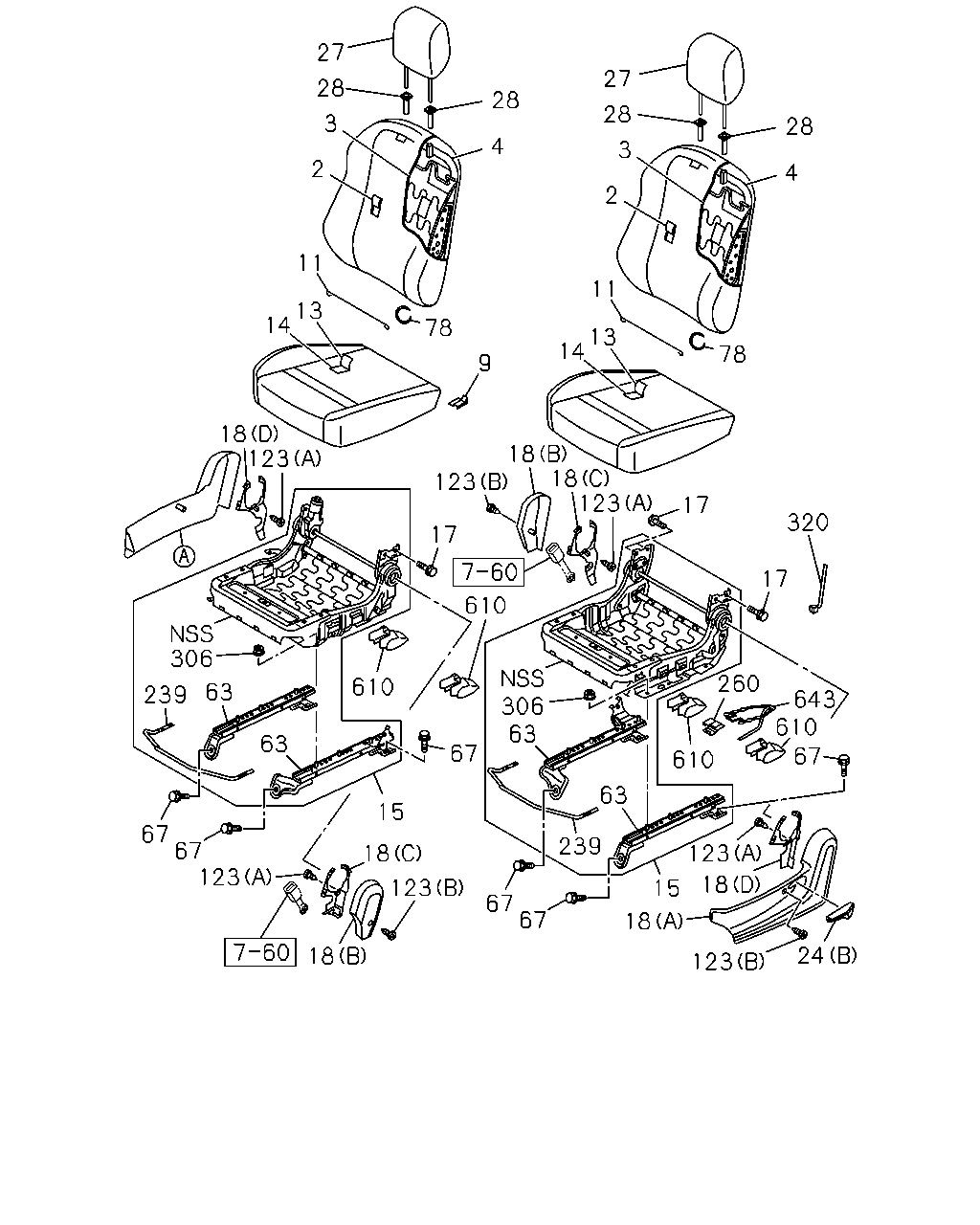

7-50 — FRONT SEAT (#119382) — 221 parça

27 3 28 28 4 2 11 14 13 78 17 17 320 123 18 18 123 9 4 28 27 3 28 2 11 14 13 78 18 123 17 610 306 63 63 239 67 67 123 15 18 123 18 67 67 239 67 63 123 18 15 18 123 24 67 643 610 260 610 610 306 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY	8-97423-177-0	01	1	1305-	●	●
2	COVER; TRIM,FRT SEAT,BACK LIGHT GRAY	8-97423-177-0	01	1	1305-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-177-0	01	1	1305-			●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-177-0	01	1	1305-			●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-724-0	01	1	1305-1403			●
2	COVER; TRIM,FRT SEAT,BACK BLACK	8-97424-724-0	01	1	1305-1403				●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97425-104-0	01	1	1404-			●
2	COVER; TRIM,FRT SEAT,BACK BLACK	8-97425-104-0	01	1	1404-				●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-721-0	01	1	1305-1403			●
2	COVER; TRIM,FRT SEAT,BACK BLACK	8-97424-721-0	01	1	1305-1403				●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97425-106-0	01	1	1404-			●
2	COVER; TRIM,FRT SEAT,BACK BLACK	8-97425-106-0	01	1	1404-				●
3	PAD; FRT SEAT BACK	8-98187-524-0	01	1	1305-	●	●
3	PAD; FRT SEAT BACK	8-98187-524-0	01	1	1305-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK>	8-98187-524-0	01	1	1305-			●
3	PAD; FRT SEAT BACK SEAT TRIM BASE CLOTH<8LK>	8-98187-524-0	01	1	1305-			●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98225-033-0	01	1	1305-1403			●
3	PAD; FRT SEAT BACK	8-98225-033-0	01	1	1305-1403				●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-379-0	01	1	1404-			●
3	PAD; FRT SEAT BACK	8-98224-379-0	01	1	1404-				●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98225-034-0	01	1	1305-1403			●
3	PAD; FRT SEAT BACK	8-98225-034-0	01	1	1305-1403				●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-380-0	01	1	1404-			●
3	PAD; FRT SEAT BACK	8-98224-380-0	01	1	1404-				●
4	FRAME ASM; FRT SEAT	8-98187-533-0	01	1	1305-	●	●
4	FRAME ASM; FRT SEAT	8-98187-533-0	01	1	1305-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-533-0	01	1	1305-			●
4	FRAME ASM; FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-533-0	01	1	1305-			●
4	FRAME ASM; FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98225-072-0	01	1	1305-1403			●
4	FRAME ASM; FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98225-072-0	01	1	1305-1403			●
4	FRAME ASM; FRT SEAT	8-98225-072-0	01	1	1305-1403				●
4	FRAME ASM; FRT SEAT	8-98225-072-0	01	1	1305-1403				●
4	FRAME ASM; FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-496-0	01	1	1404-			●
4	FRAME ASM; FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-496-0	01	1	1404-			●
4	FRAME ASM; FRT SEAT	8-98224-496-0	01	1	1404-				●
4	FRAME ASM; FRT SEAT	8-98224-496-0	01	1	1404-				●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98273-217-0	01	1	1410-			●
9	COVER; SIDE	8-98273-217-0	01	1	1410-				●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98273-219-0	01	1	1410-			●
9	COVER; SIDE	8-98273-219-0	01	1	1410-				●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-601-0	01	1	1305-1409			●
9	COVER; SIDE BLACK	8-97424-601-0	01	1	1305-1409				●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-604-0	01	1	1305-1409			●
9	COVER; SIDE BLACK	8-97424-604-0	01	1	1305-1409				●
11	WIRE; SEAT BACK	8-98220-094-0	01	1	1305-	●	●	●	●
11	WIRE; SEAT BACK	8-98220-094-0	01	1	1305-	●	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97426-615-0	01	1	1305-			●
13	COVER; TRIM,FRT SEAT,CUSHION BLACK	8-97426-615-0	01	1	1305-				●
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY	8-97423-189-0	01	1	1305-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-189-0	01	1	1305-			●
13	COVER; TRIM,FRT SEAT,CUSHION LIGHT GRAY	8-97423-188-0	01	1	1305-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-188-0	01	1	1305-			●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97423-149-0	01	1	1305-			●
13	COVER; TRIM,FRT SEAT,CUSHION BLACK	8-97423-149-0	01	1	1305-				●
14	PAD; FRT SEAT CUSHION	8-98187-558-0	01	1	1305-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>	8-98187-558-0	01	1	1305-			●
14	PAD; FRT SEAT CUSHION	8-98187-557-0	01	1	1305-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM BASE CLOTH<8LK>	8-98187-557-0	01	1	1305-			●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-698-0	01	1	1305-1403			●
14	PAD; FRT SEAT CUSHION	8-98187-698-0	01	1	1305-1403				●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-559-0	01	1	1404-			●
14	PAD; FRT SEAT CUSHION	8-98187-559-0	01	1	1404-				●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-702-0	01	1	1305-1403			●
14	PAD; FRT SEAT CUSHION	8-98187-702-0	01	1	1305-1403				●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-560-0	01	1	1404-			●
14	PAD; FRT SEAT CUSHION	8-98187-560-0	01	1	1404-				●
15	FRAME; CUSHION,FRT SEAT	8-98187-568-2	01	1	1305-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-568-2	01	1	1305-			●
15	FRAME; CUSHION,FRT SEAT	8-98187-567-2	01	1	1305-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM BASE CLOTH<8LK>	8-98187-567-2	01	1	1305-			●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-716-3	01	1	1305-			●
15	FRAME; CUSHION,FRT SEAT	8-98187-716-3	01	1	1305-				●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98239-095-1	01	1	1305-			●
15	FRAME; CUSHION,FRT SEAT	8-98239-095-1	01	1	1305-				●
17	BOLT; RECLINING	8-98220-045-0	04	1	1305-	●	●	●	●
17	BOLT; RECLINING	8-98220-045-0	04	1	1305-	●	●	●	●

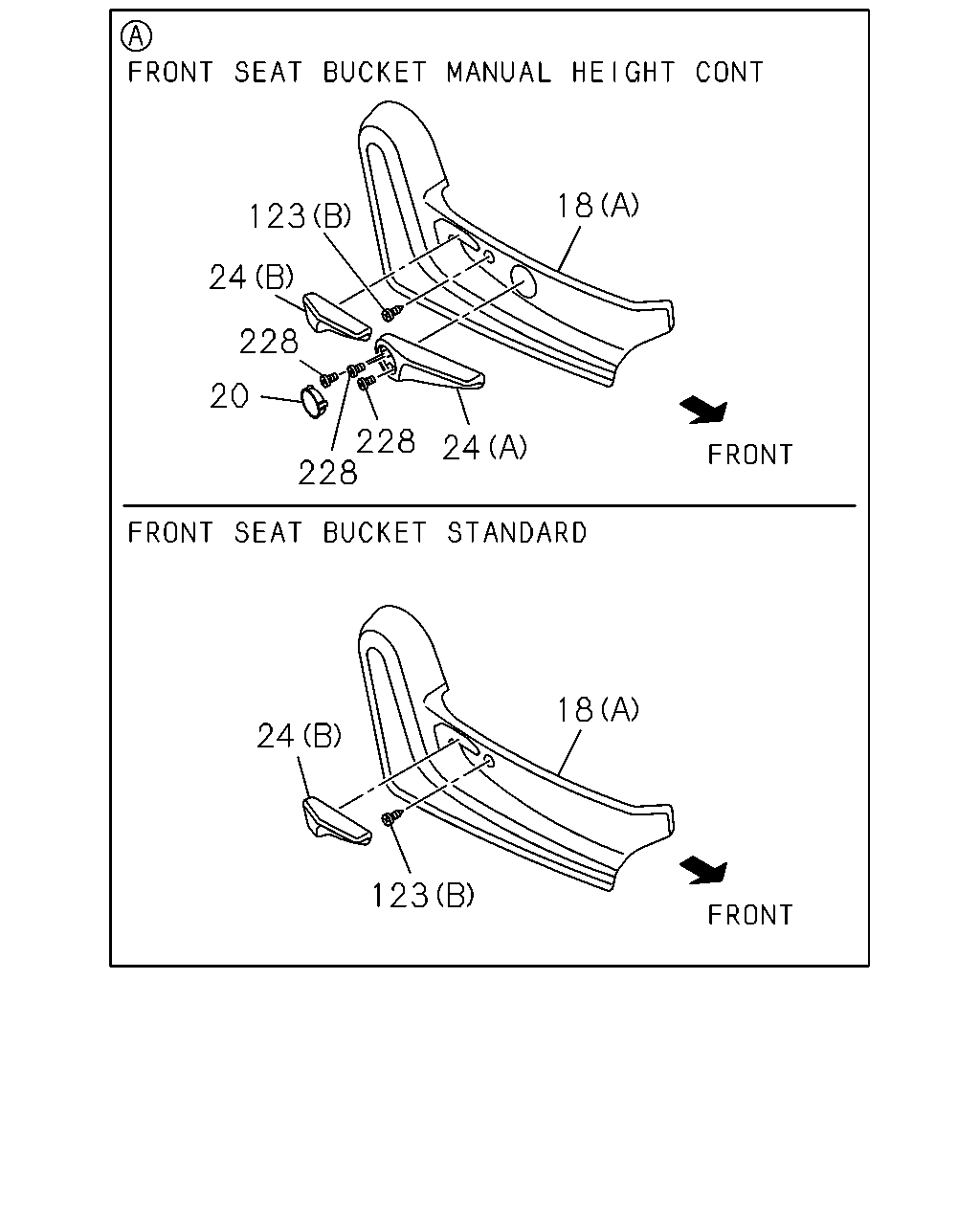

18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1305-			●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1305-			●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1305-			●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1305-			●
18	COVER; RECLINING (A) BLACK	8-97424-579-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-579-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-579-0	01	1	1305-			●
18	COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1305-			●
18	COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1305-			●
18	COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1305-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> (A) BLACK	8-97424-090-0	01	1	1305-			●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1305-			●
18	COVER; RECLINING (A) BLACK	8-97424-094-0	01	1	1305-				●
24	KNOB; RECLINING,FRT,SEAT (B) BLACK	8-97424-518-0	01	1	1305-	●	●		●
24	KNOB; RECLINING,FRT,SEAT INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-518-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-518-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT (B) BLACK	8-97424-591-0	01	1	1305-	●	●		●
24	KNOB; RECLINING,FRT,SEAT INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-591-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-591-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-595-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT (A) BLACK	8-97424-595-0	01	1	1305-				●
27	REST; HD,FRT SEAT LIGHT GRAY	8-97424-716-0	01	1	1305-	●	●
27	REST; HD,FRT SEAT LIGHT GRAY	8-97424-716-0	01	1	1305-	●	●
27	REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-716-0	01	1	1305-			●
27	REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-716-0	01	1	1305-			●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1305-			●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1305-			●
27	REST; HD,FRT SEAT LIGHT GRAY	8-97424-664-0	01	1	1305-				●
27	REST; HD,FRT SEAT LIGHT GRAY	8-97424-664-0	01	1	1305-				●
28	HOLDER; GUIDE,HD REST LOCK BLACK	8-97424-499-0	01	1	1305-	●	●
28	HOLDER; GUIDE,HD REST LOCK BLACK	8-97424-499-0	01	1	1305-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> LOCK BLACK	8-97424-499-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> LOCK BLACK	8-97424-499-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST FREE BLACK	8-97424-500-0	01	1	1305-	●	●
28	HOLDER; GUIDE,HD REST FREE BLACK	8-97424-500-0	01	1	1305-	●	●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FREE BLACK	8-97424-500-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST SEAT TRIM BASE CLOTH<8LK> FREE BLACK	8-97424-500-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK	8-97424-665-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST LOCK BLACK	8-97424-665-0	01	1	1305-				●
28	HOLDER; GUIDE,HD REST LOCK BLACK	8-97424-665-0	01	1	1305-				●
28	HOLDER; GUIDE,HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK	8-97424-666-0	01	1	1305-			●
28	HOLDER; GUIDE,HD REST FREE BLACK	8-97424-666-0	01	1	1305-				●
28	HOLDER; GUIDE,HD REST FREE BLACK	8-97424-666-0	01	1	1305-				●
63	ADJUSTER; SEAT SLIDE INNER	8-98220-096-1	01	1	1305-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> INNER	8-98220-096-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE OUTER	8-98220-097-1	01	1	1305-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> OUTER	8-98220-097-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-186-1	01	1	1305-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> OUTER	8-98224-186-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-187-1	01	1	1305-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM BASE CLOTH<8LK> INNER	8-98224-187-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98224-309-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-309-1	01	1	1305-				●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> INNER	8-98224-313-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-313-1	01	1	1305-				●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> OUTER	8-98224-310-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE OUTER	8-98224-310-1	01	1	1305-				●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> INNER	8-98224-312-1	01	1	1305-			●
63	ADJUSTER; SEAT SLIDE INNER	8-98224-312-1	01	1	1305-				●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1305-	●	●	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1404-			●
78	RING; SNAP	8-98220-068-0	17	1	1404-				●
78	RING; SNAP	8-98220-068-0	12	1	1305-	●	●
78	RING; SNAP	8-98220-068-0	12	1	1305-	●	●
78	RING; SNAP SEAT TRIM BASE CLOTH<8LK>	8-98220-068-0	12	1	1305-			●
78	RING; SNAP SEAT TRIM BASE CLOTH<8LK>	8-98220-068-0	12	1	1305-			●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1305-1403			●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	17	1	1305-1403			●
78	RING; SNAP	8-98220-068-0	17	1	1305-1403				●
78	RING; SNAP	8-98220-068-0	17	1	1305-1403				●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-068-0	18	1	1404-			●
78	RING; SNAP	8-98220-068-0	18	1	1404-				●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1305-	●	●	●	●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1305-	●	●	●	●
123	SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1305-	●	●	●	●
123	SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1305-	●	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1305-			●
123	SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	05	1	1305-				●
239	HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1305-	●	●	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1305-	●	●	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98224-497-0	01	1	1305-1403			●
260	CLIP; HARNESS	8-98224-497-0	01	1	1305-1403				●
306	NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1305-	●	●	●	●
306	NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1305-	●	●	●	●
320	CLIP; BAND,SEAT	8-98220-048-0	AR	1	1305-	●	●	●	●
610	COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1305-			●	●
643	SENSOR; REMINDER SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98184-734-0	01	1	1305-1403			●
643	SENSOR; REMINDER	8-98184-734-0	01	1	1305-1403				●

18 123 24 24 228 228 20 228 24 123 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1305-			●
18	COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1305-			●
18	COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1305-			●
18	COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1305-			●
18	COVER; RECLINING (A) BLACK	8-97424-579-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-579-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-579-0	01	1	1305-			●
18	COVER; RECLINING (D) BLACK	8-97424-582-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1305-			●
18	COVER; RECLINING (C) BLACK	8-97424-585-0	01	1	1305-	●	●		●
18	COVER; RECLINING INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1305-			●
18	COVER; RECLINING INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1305-			●
18	COVER; RECLINING (A) BLACK	8-97424-090-0	01	1	1305-	●	●
18	COVER; RECLINING SEAT TRIM BASE CLOTH<8LK> (A) BLACK	8-97424-090-0	01	1	1305-			●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-094-0	01	1	1305-			●
18	COVER; RECLINING (A) BLACK	8-97424-094-0	01	1	1305-				●
20	CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97424-598-0	01	1	1305-			●
20	CAP; RECLINING ADJ BLACK	8-97424-598-0	01	1	1305-				●
24	KNOB; RECLINING,FRT,SEAT (B) BLACK	8-97424-518-0	01	1	1305-	●	●		●
24	KNOB; RECLINING,FRT,SEAT INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-518-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-518-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT (B) BLACK	8-97424-591-0	01	1	1305-	●	●		●
24	KNOB; RECLINING,FRT,SEAT INTERIOR BASIC(RBA) SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> EXC. FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-591-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT INTERIOR CUSTOM(RBD) SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-591-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK	8-97424-595-0	01	1	1305-			●
24	KNOB; RECLINING,FRT,SEAT (A) BLACK	8-97424-595-0	01	1	1305-				●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1305-	●	●	●	●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1305-	●	●	●	●
123	SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1305-	●	●	●	●
123	SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1305-	●	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M4X10	8-98220-086-0	05	1	1305-			●
123	SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	05	1	1305-				●
228	SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> M5X10	8-98224-268-0	03	1	1305-			●
228	SCREW; KNOB M5X10	8-98224-268-0	03	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
