1-41 — FUEL PIPING; CHASSIS (#119380) — 39 parça

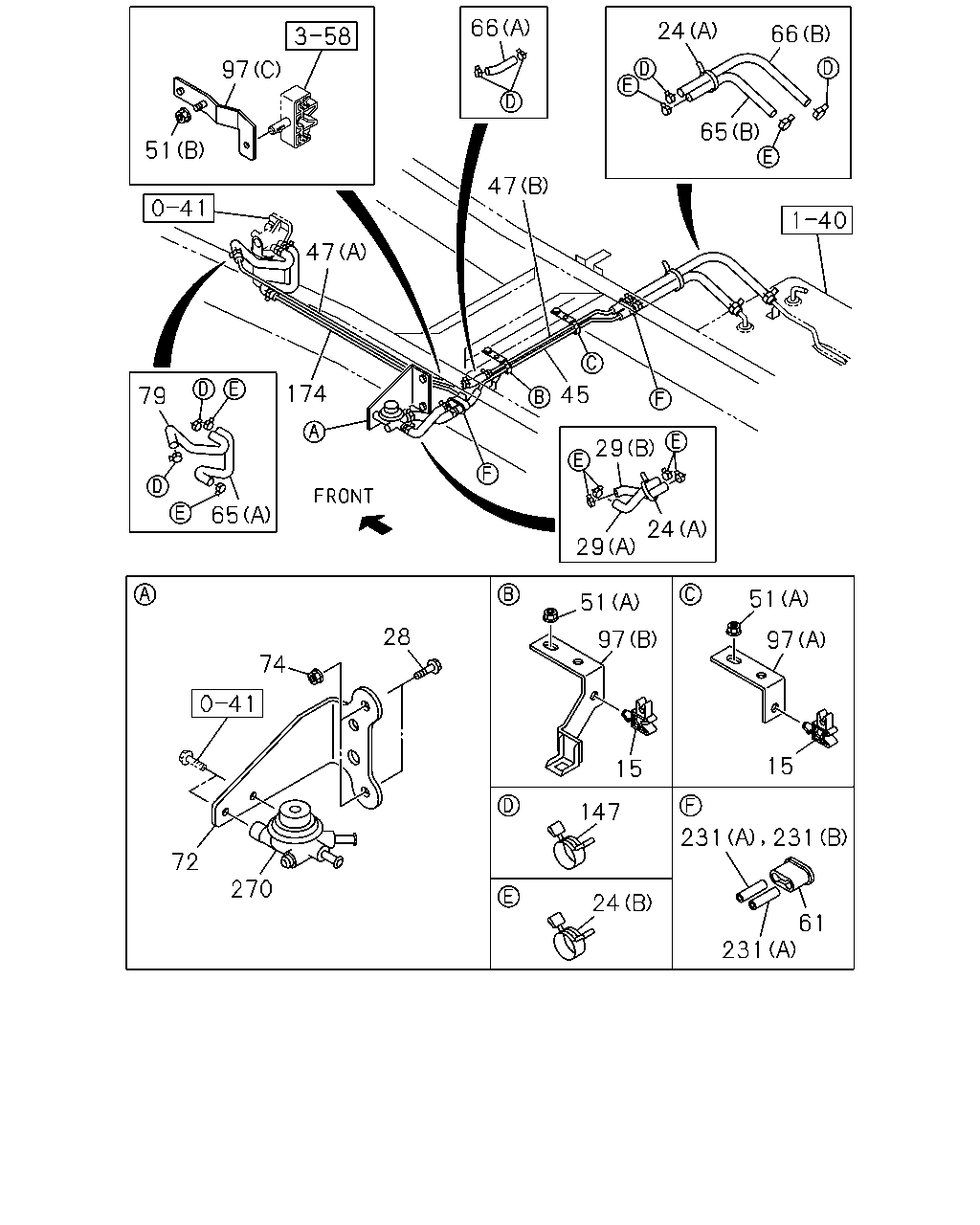

çizim 350488
97 51 66 24 66 65 47 47 45 29 29 24 79 65 174 74 28 72 270 51 97 15 51 97 15 231 231 147 24 61 231
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; FUEL PIPE
ID=12 & 6.35 IMA 		8-97215-437-0 02 1 1304- ● ●
24 CLIP; FUEL HOSE
(A) L=140 THA 		8-97920-656-0 01 1 1304- ● ●
24 CLIP; FUEL HOSE
(A) L=140 THA 		8-97920-656-0 01 1 1304- ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM<24W> (A) L=140 THA 		8-97920-656-0 01 1 1304- ●
24 CLIP; FUEL HOSE
(B) ID=16 IMA 		8-98008-098-0 08 1 1304- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM<33W> (A) L=140 THA 		8-97920-656-0 03 1 1304- ●
28 BOLT; BRKT,FUEL PUMP
M10X30 FLANGE THA 		0-28651-030-0 02 1 1304- ● ●
29 HOSE; FUEL
(A) L=200 SERVICED BY L=3000 IMA 		0-01259-300-0 01 1 1304- ● ●
29 HOSE; FUEL
(B) L=200 THA 		8-98081-038-0 01 1 1304- ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97389-579-3 01 1 1304- ● ●
47 PIPE; FUEL,RETURN
(A) THA 		8-98163-294-0 01 1 1304- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 2400MM<24W> (A) THA 		8-98163-294-0 01 1 1304- ●
47 PIPE; FUEL,RETURN
(B) THA 		8-98020-778-3 01 1 1304- ● ●
47 PIPE; FUEL,RETURN
WHEEL BASE 3300MM<33W> (A) THA 		8-98110-833-0 01 1 1304- ●
51 NUT; CLIP,PIPE
(A) M10 IMA 		0-91111-510-0 02 1 1304- ● ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
61 GROMMET; PIPE TO FRAME
IMA 		8-98038-801-0 02 1 1304- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-97389-796-0 01 1 1304- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM<24W> (B) THA 		8-97389-796-0 01 1 1304- ●
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-97389-772-0 01 1 1304- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM<33W> (B) THA 		8-97924-497-0 01 1 1304- ●
66 HOSE; FUEL,RETURN PIPE
(B) L=380 THA 		8-97924-117-0 01 1 1304- ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM<24W> (B) L=380 THA 		8-97924-117-0 01 1 1304- ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 IMA 		0-01855-300-0 01 1 1304- ● ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM<33W> (B) L=550 THA 		8-97924-400-0 01 1 1304- ●
72 BRACKET; FUEL PUMP & FILTER
IMA 		8-98107-370-0 01 1 1304- ● ●
74 NUT; BRKT,FUEL PUMP
M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
THA 		8-98147-758-0 01 1 1304- ● ●
97 BRACKET; CLIP
(A) IMA 		8-98006-480-1 01 1 1304- ● ●
97 BRACKET; CLIP
(B) IMA 		8-98039-929-1 01 1 1304- ● ●
97 BRACKET; CLIP
(C) IMA 		8-98064-442-1 01 1 1304- ● ●
147 CLIP; FUEL PIPE TO HOSE
ID=12 IMA 		8-98150-358-0 06 1 1304- ● ●
174 PIPE; FUEL,FEED,FRT
THA 		8-98064-632-1 01 1 1304- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 2400MM<24W> THA 		8-98064-632-1 01 1 1304- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 3300MM<33W> THA 		8-97389-589-1 01 1 1304- ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 IMA 		8-94157-054-1 01 1 1304- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 IMA 		8-97214-235-0 03 1 1304- ● ●
270 PUMP ASM; FUEL 8-98018-187-4 01 1 1304-1408 ● ●
270 PUMP ASM; FUEL
THA 		8-97948-892-0 01 1 1409- ● ●
