8-40 — HEATER SYSTEM (#119378) — 14 parça

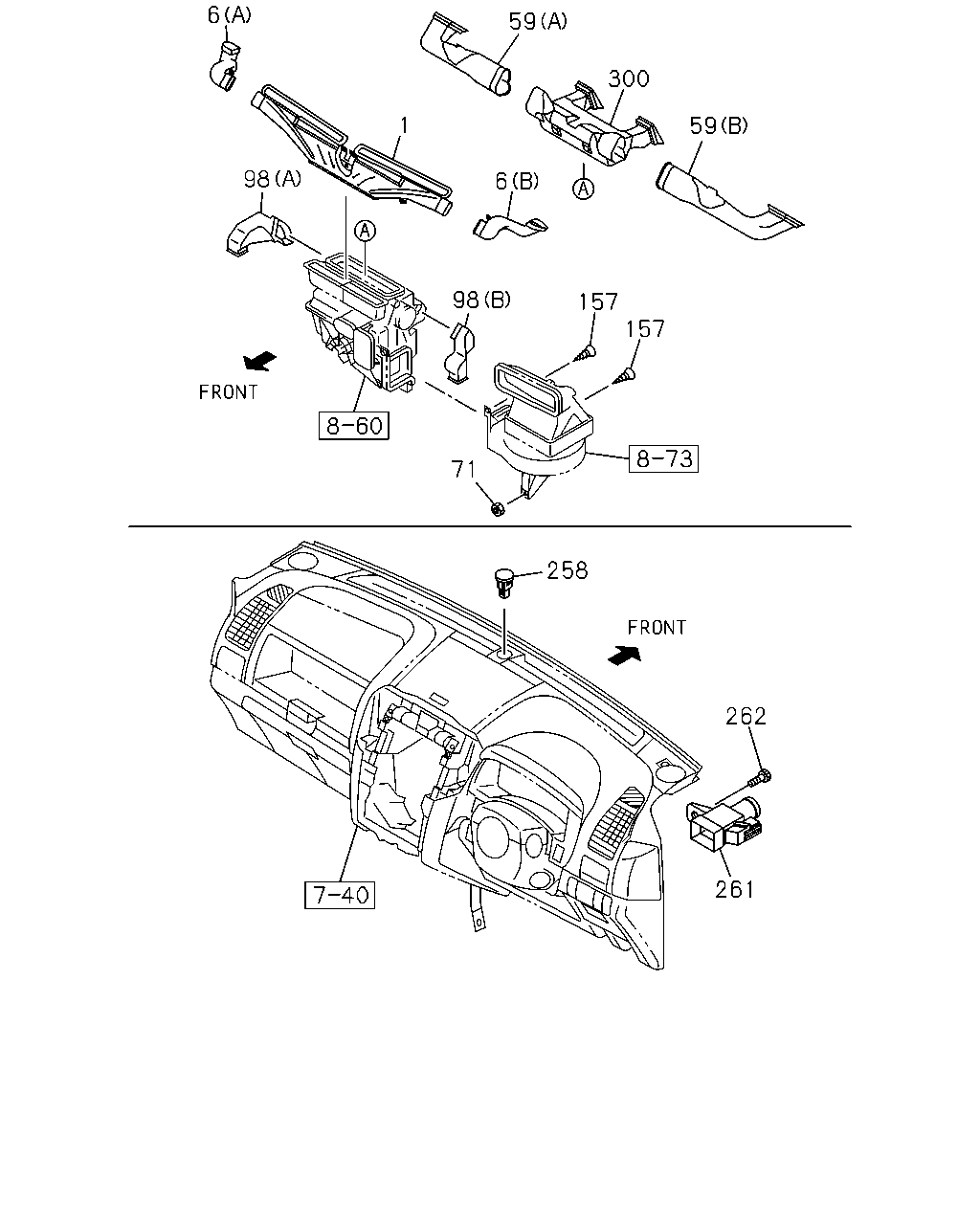

çizim 351725
6 98 59 6 1 300 59 157 157 71 258 262 261 98
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 NOZZLE; DEFROSTER,INST PNL
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) 		8-98187-101-2 01 1 1305- ● ● ● ●
6 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98187-102-0 01 1 1305- ● ● ● ●
6 DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98187-103-0 01 1 1305- ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1305- ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1305- ● ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		8-94279-514-0 01 1 1305- ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-054-0 01 1 1305- ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(A) 		8-98233-055-0 01 1 1305- ● ● ● ●
157 SCREW
M5X16 		8-98167-220-0 02 1 1305- ● ● ● ●
258 SENSOR; SUN
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-691-0 01 1 1305- ● ●
261 SENSOR; IN CAR
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98103-694-0 01 1 1305- ● ●
262 SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM(CJ2) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M5X16 TAPPING 		8-98167-449-0 01 1 1305- ● ●
300 DUCT; VENT,CENTER 8-98187-098-0 01 1 1305- ● ● ● ●

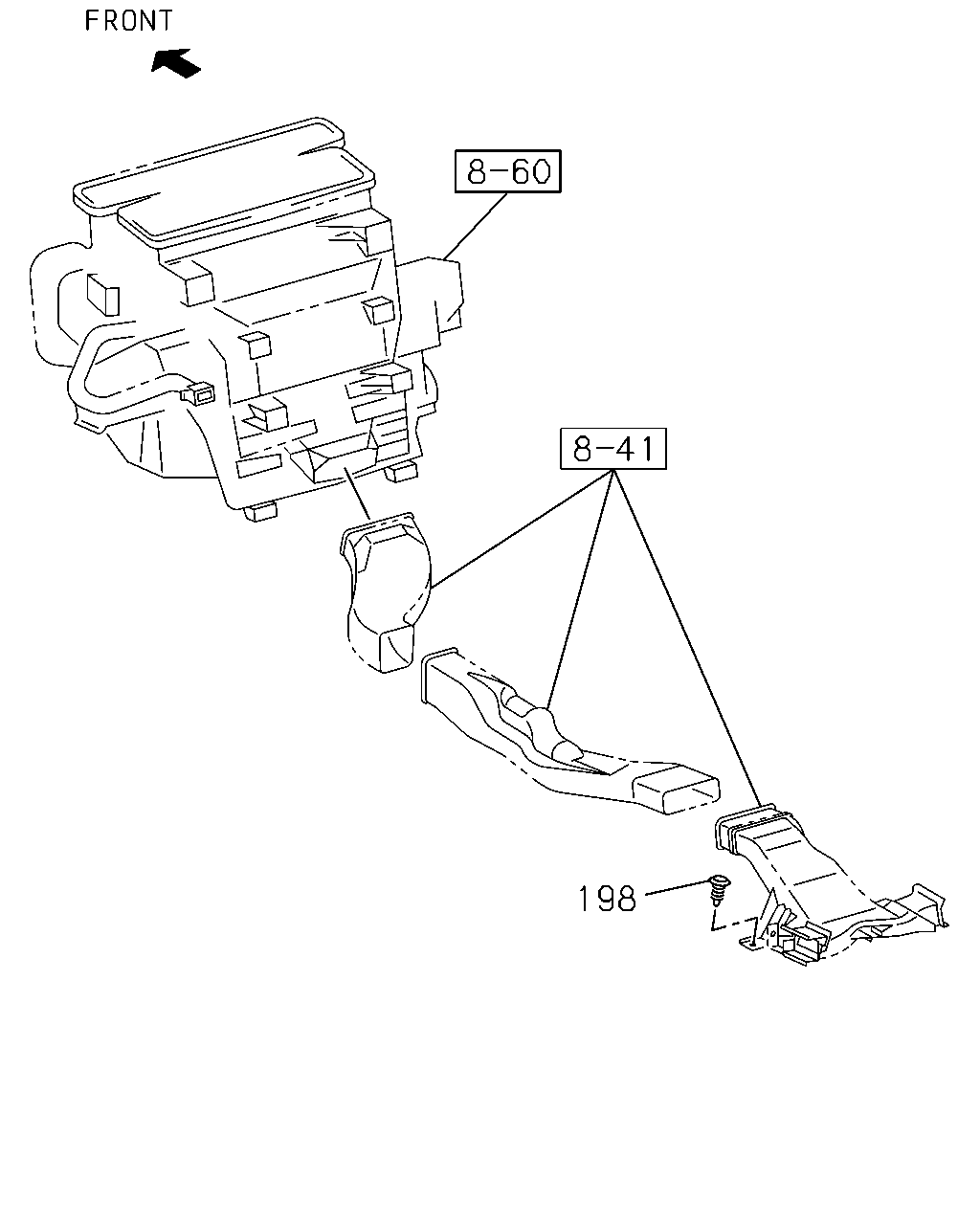

çizim 352556
198
BalonParca AdiParca NoAdetTipApplied Date A B C D
198 CLIP; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98147-301-0 02 1 1305- ● ●
