Sayfa 8-71 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶

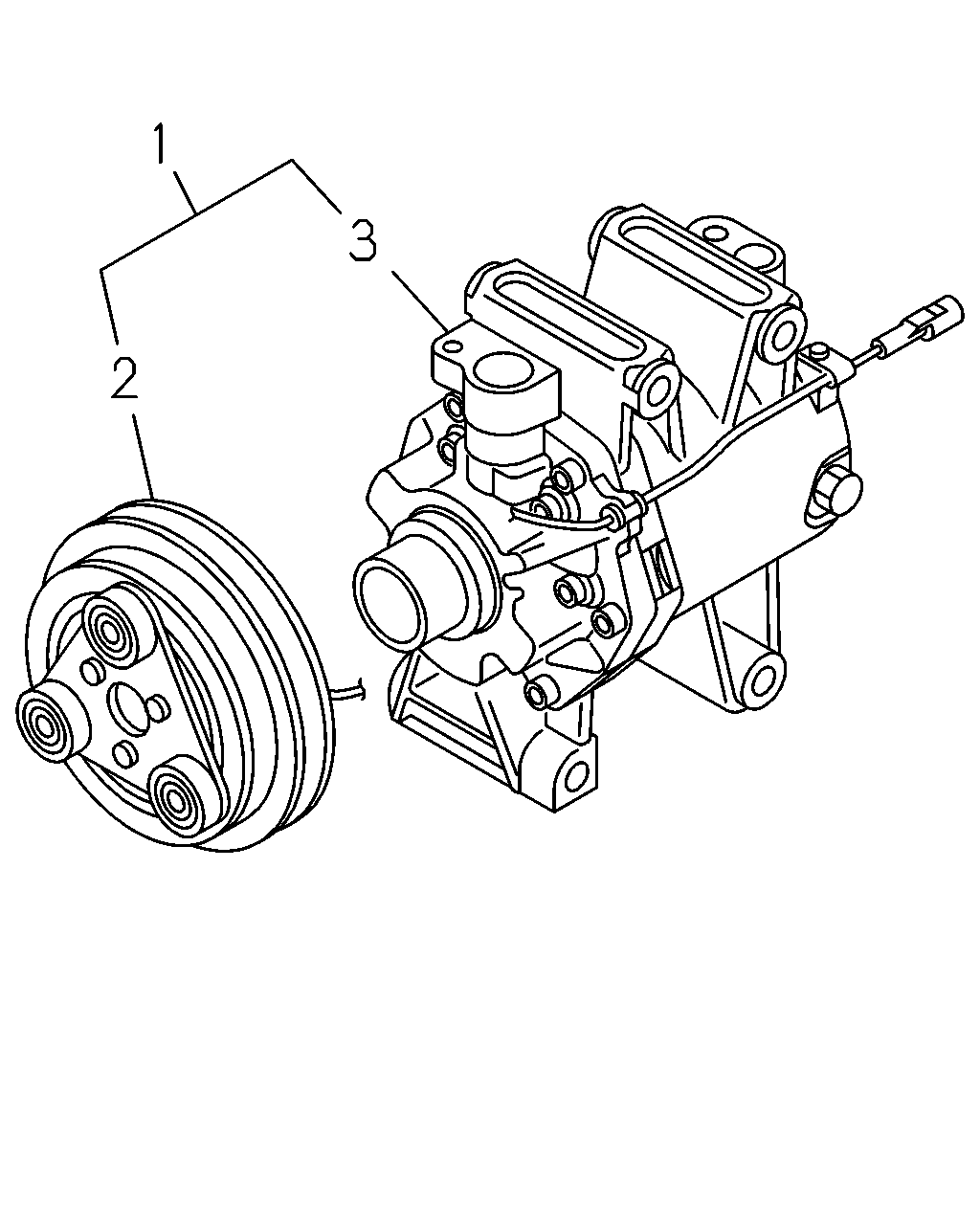

8-71 — COMPRESSOR; AIR CONDITIONING (#119377) — 16 parça

1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60)	8-98200-246-1	01	1	1305-	●
1	COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98200-246-1	01	1	1305-		●
1	COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98102-824-1	01	1	1305-		●	●
1	COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) MAL	8-98102-824-1	01	1	1305-				●
2	CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60)	8-97371-580-0	01	1	1305-1402	●
2	CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97371-580-0	01	1	1305-1402		●
2	CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60)	8-98258-537-0	01	1	1403-	●
2	CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98258-537-0	01	1	1403-		●
2	CLUTCH; MAGNET,A/C 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98139-936-1	01	1	1305-		●	●
2	CLUTCH; MAGNET,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) MAL	8-98139-936-1	01	1	1305-				●
3	COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60)	8-98204-877-0	01	1	1305-1402	●
3	COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98204-877-0	01	1	1305-1402		●
3	COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60)	8-98258-536-0	01	1	1403-	●
3	COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98258-536-0	01	1	1403-		●
3	COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98139-935-1	01	1	1305-		●	●
3	COMPRESSOR ASM; A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) MAL	8-98139-935-1	01	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
