6-05 — FRONT PANEL (#119365) — 61 parça

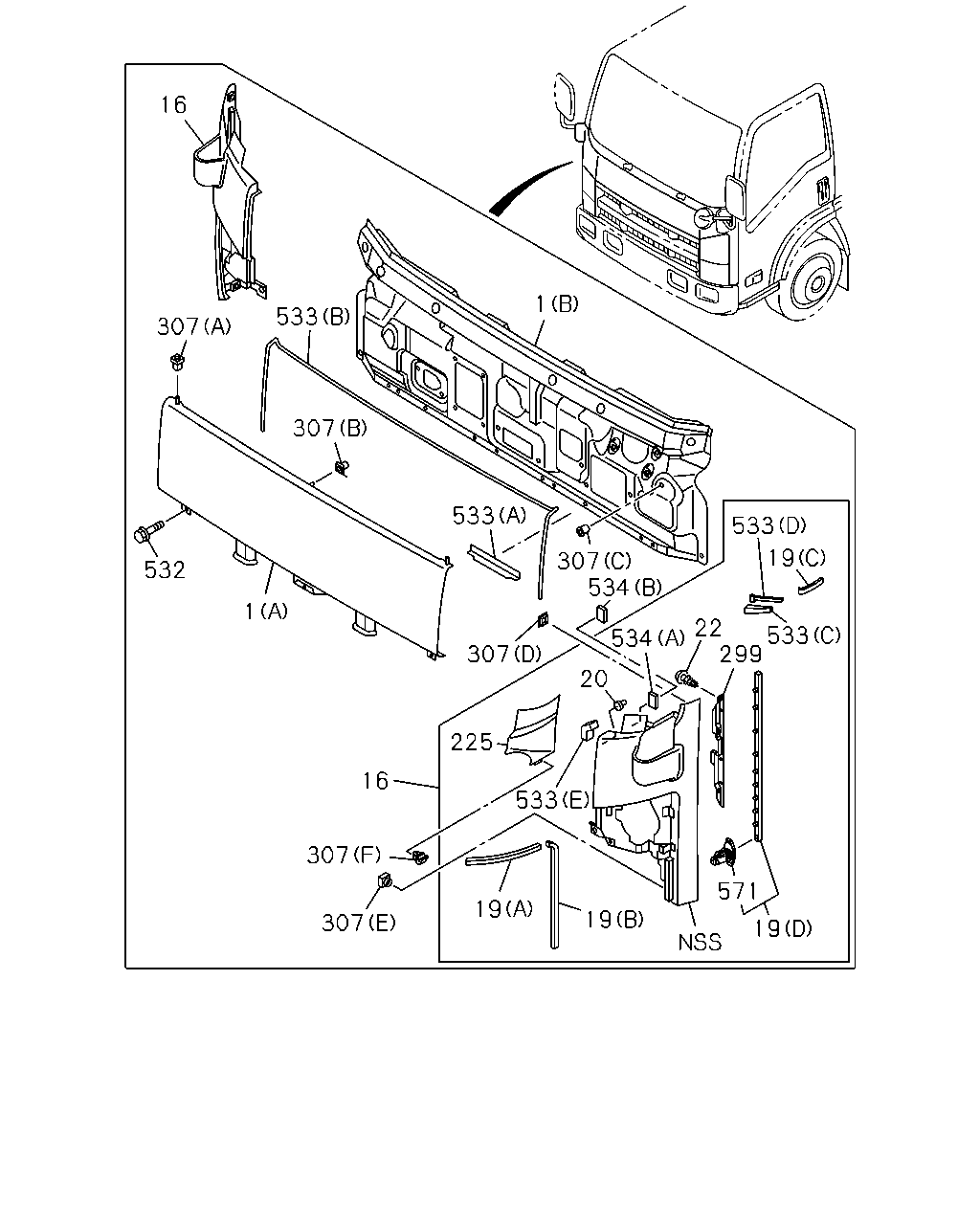

16 533 307 1 533 307 532 307 1 16 307 534 533 533 299 22 20 533 571 19 19 19 307 307 225 534 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> PTO MANUAL CONTROL<6WC> (B) THA	8-98183-884-0	01	1	1304-	●
1	PANEL ASM; FRT 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> PTO MANUAL CONTROL<6WC> (B) THA	8-98183-884-0	01	1	1304-		●
1	PANEL ASM; FRT 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> EXC. PTO MANUAL CONTROL<6WC> (B) THA	8-98183-882-0	01	1	1304-	●
1	PANEL ASM; FRT 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> EXC. PTO MANUAL CONTROL<6WC> (B) THA	8-98183-882-0	01	1	1304-		●
1	PANEL ASM; FRT (A) IMA	8-98122-695-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE VIN MODEL YEAR 2011<VZB> WHITE THA	8-97409-873-8	01	1	1304-	●	●
16	PANEL; FRONT,SIDE VIN MODEL YEAR 2011<VZB> WHITE THA	8-97409-874-8	01	1	1304-	●	●
16	PANEL; FRONT,SIDE EXC. VIN MODEL YEAR 2011<VZB> WHITE THA	8-97409-869-9	01	1	1304-	●	●
16	PANEL; FRONT,SIDE EXC. VIN MODEL YEAR 2011<VZB> WHITE THA	8-97409-871-9	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (D) IMA	8-98028-749-3	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (D) IMA	8-98028-750-3	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (A) IMA	8-98035-268-0	02	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (C) IMA	8-98038-608-0	02	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (B) IMA	8-98062-215-0	02	1	1304-	●	●
20	CLIP; FRT PANEL SIDE	8-97410-739-1	04	1	1304-	●	●
22	SCREW; FRT PANEL SIDE M4X10 TAPPING W/PL WASHER IMA	0-74360-410-0	06	1	1304-	●	●
225	COVER; SIDE,FRT VIN MODEL YEAR 2011<VZB> PLEASE PAINT TO MATCH BODY COLOR IMA	8-98036-520-3	01	1	1304-	●	●
225	COVER; SIDE,FRT VIN MODEL YEAR 2011<VZB> PLEASE PAINT TO MATCH BODY COLOR IMA	8-98036-521-3	01	1	1304-	●	●
299	COVER; FRT PANEL SIDE IMA	8-98028-144-1	01	1	1304-	●	●
299	COVER; FRT PANEL SIDE IMA	8-98028-145-1	01	1	1304-	●	●
307	GROMMET; FRT PANEL VIN MODEL YEAR 2011<VZB> (F) IMA	8-98028-743-0	02	1	1304-	●	●
307	GROMMET; FRT PANEL (D) IMA	8-97410-738-0	02	1	1304-	●	●
307	GROMMET; FRT PANEL (E) IMA	8-98021-300-1	04	1	1304-	●	●
307	GROMMET; FRT PANEL (A) IMA	8-98021-968-0	01	1	1304-	●	●
307	GROMMET; FRT PANEL (A) IMA	8-98021-969-0	01	1	1304-	●	●
307	GROMMET; FRT PANEL (B) IMA	8-98023-229-1	01	1	1304-	●	●
307	GROMMET; FRT PANEL (C) IMA	8-98034-363-1	04	1	1304-	●	●
532	BOLT; FRT PANEL M6X16 W/LK&PL WASHER IMA	0-52010-616-0	02	1	1304-	●	●
533	SEAL; FRT PANEL (B)	8-98021-964-4	01	1	1304-	●	●
533	SEAL; FRT PANEL (A) IMA	8-98021-965-2	01	1	1304-	●	●
533	SEAL; FRT PANEL (C) IMA	8-98043-509-0	01	1	1304-	●	●
533	SEAL; FRT PANEL (C) IMA	8-98043-510-0	01	1	1304-	●	●
533	SEAL; FRT PANEL (D) IMA	8-98043-511-1	02	1	1304-	●	●
533	SEAL; FRT PANEL (E) IMA	8-98064-939-0	02	1	1304-	●	●
534	FASTENER VIN MODEL YEAR 2011<VZB> (A) 20X30 IMA	8-98059-208-1	02	1	1304-	●	●
534	FASTENER EXC. VIN MODEL YEAR 2011<VZB> (B) 40X25	8-98089-411-1	02	1	1304-	●	●
534	FASTENER EXC. VIN MODEL YEAR 2011<VZB> (A) 40X25	8-98089-412-1	02	1	1304-	●	●
571	CLIP; SEAL NATURAL IMA	8-98027-457-0	20	1	1304-	●	●

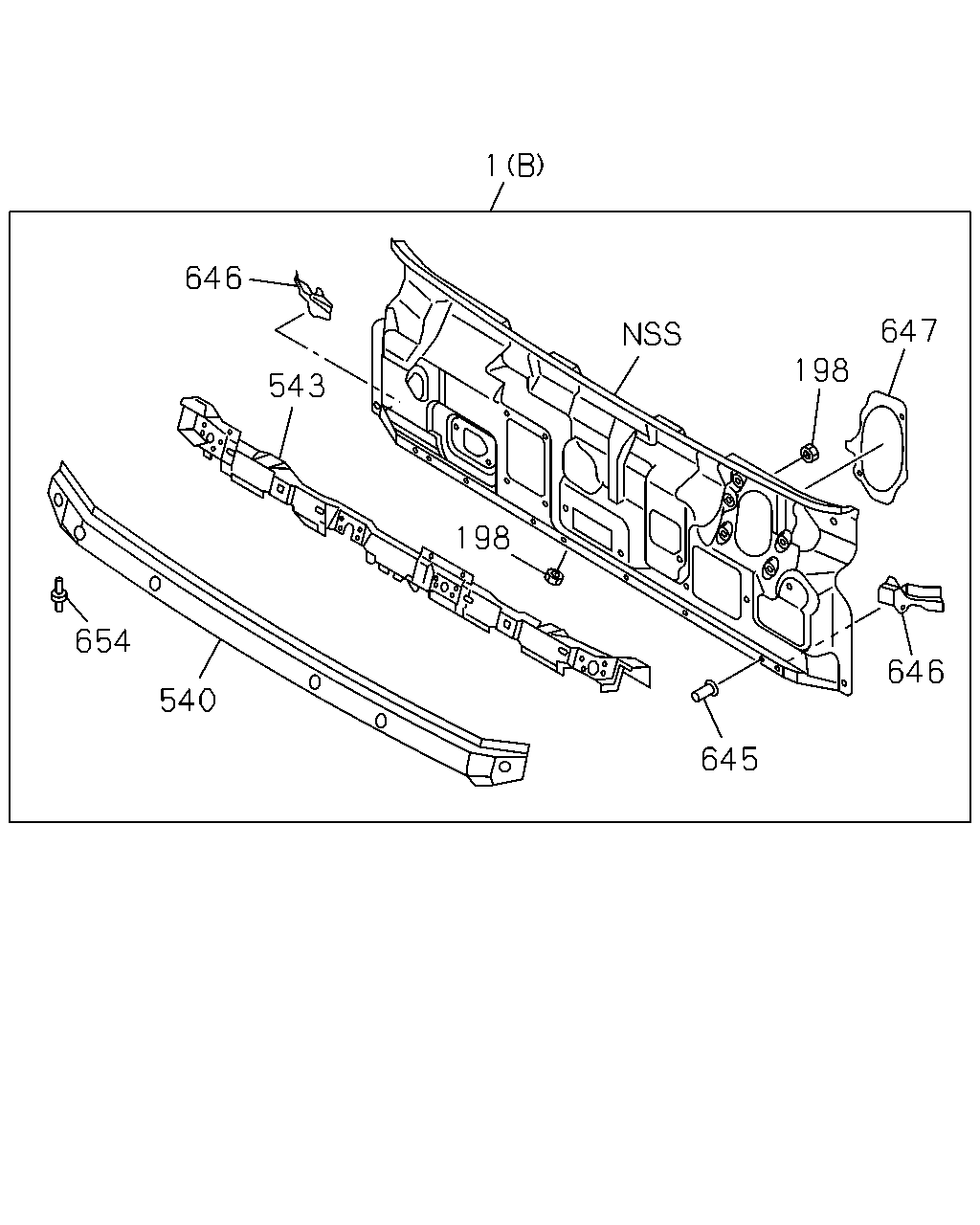

647 198 646 645 198 543 646 1 654 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> PTO MANUAL CONTROL<6WC> (B) THA	8-98183-884-0	01	1	1304-	●
1	PANEL ASM; FRT 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> PTO MANUAL CONTROL<6WC> (B) THA	8-98183-884-0	01	1	1304-		●
1	PANEL ASM; FRT 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> EXC. PTO MANUAL CONTROL<6WC> (B) THA	8-98183-882-0	01	1	1304-	●
1	PANEL ASM; FRT 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> EXC. PTO MANUAL CONTROL<6WC> (B) THA	8-98183-882-0	01	1	1304-		●
1	PANEL ASM; FRT (A) IMA	8-98122-695-0	01	1	1304-	●	●
198	NUT; PANEL 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> PTO MANUAL CONTROL<6WC> M6 THA	9-09114-086-0	06	1	1304-	●
198	NUT; PANEL 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> PTO MANUAL CONTROL<6WC> M6 THA	9-09114-086-0	06	1	1304-		●
198	NUT; PANEL 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> EXC. PTO MANUAL CONTROL<6WC> M6 THA	9-09114-086-0	04	1	1304-	●
198	NUT; PANEL 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> EXC. PTO MANUAL CONTROL<6WC> M6 THA	9-09114-086-0	04	1	1304-		●
540	PANEL; FRONT,OUTER 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> IMA	8-97585-325-3	01	1	1304-	●
540	PANEL; FRONT,OUTER 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> IMA	8-97585-325-3	01	1	1304-		●
543	CLOSING; FRT MTG RAIL 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> IMA	8-97585-328-5	01	1	1304-	●
543	CLOSING; FRT MTG RAIL 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> IMA	8-97585-328-5	01	1	1304-		●
645	STUD; FRT PANEL 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> M6X12 IMA	8-98013-112-0	06	1	1304-	●
645	STUD; FRT PANEL 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> M6X12 IMA	8-98013-112-0	06	1	1304-		●
646	REINFORCEMENT; DASH 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> IMA	8-98023-098-1	01	1	1304-	●
646	REINFORCEMENT; DASH 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> IMA	8-98023-098-1	01	1	1304-		●
646	REINFORCEMENT; DASH 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> IMA	8-98023-099-1	01	1	1304-	●
646	REINFORCEMENT; DASH 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> IMA	8-98023-099-1	01	1	1304-		●
647	REINFORCEMENT; WIPER MOTOR 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> IMA	8-98006-327-0	01	1	1304-	●
647	REINFORCEMENT; WIPER MOTOR 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> IMA	8-98006-327-0	01	1	1304-		●
654	PIN; FRT PANEL 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> IMA	8-98021-967-2	02	1	1304-	●
654	PIN; FRT PANEL 4HK1-TCS ENG<RJS> VIN MODEL YEAR 2011<VZB> IMA	8-98021-967-2	02	1	1304-		●
