Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10878 - EXZ RHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

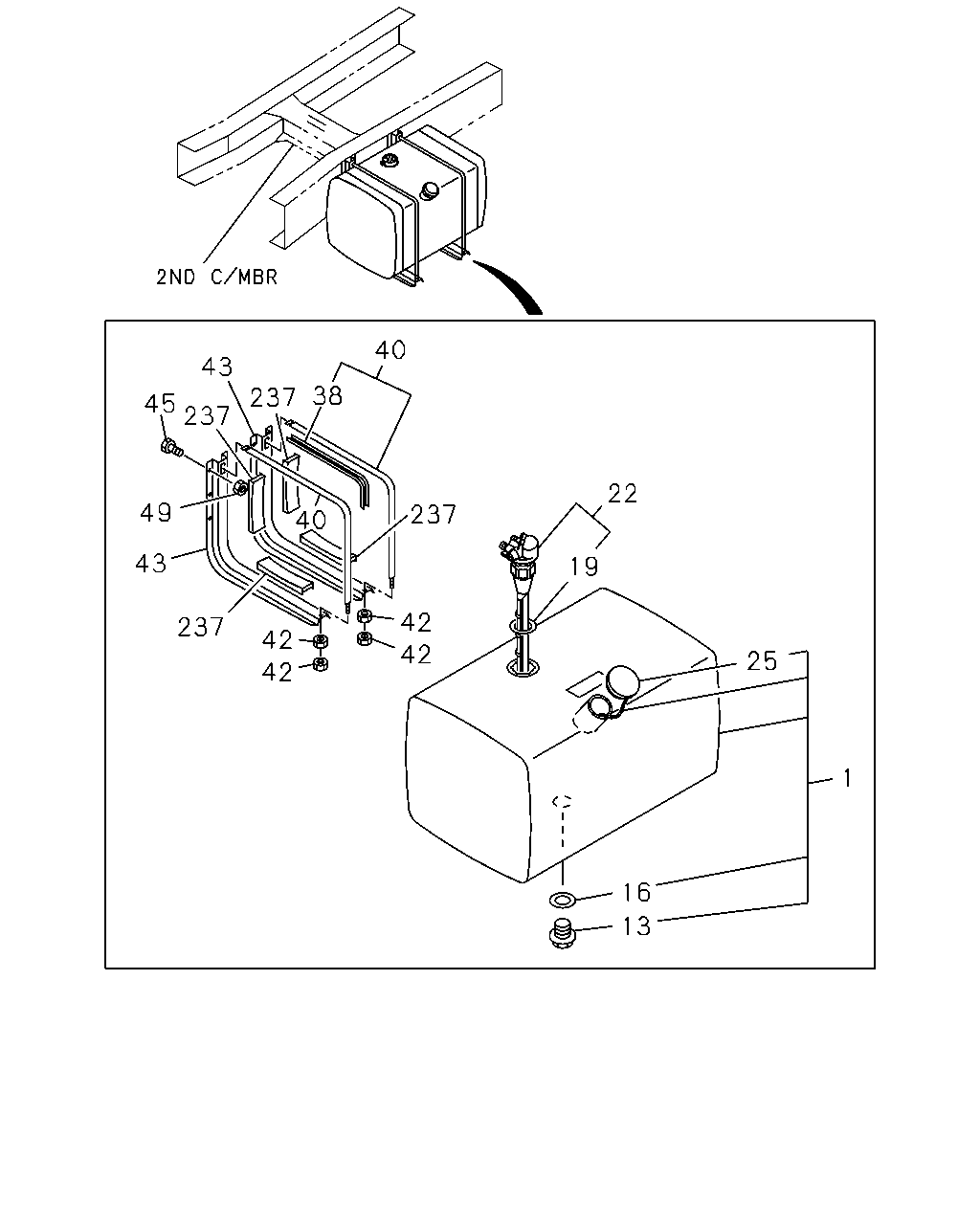

1-40 — FUEL TANK
(#11936) — 18 parça
40
43
45
49
237
237
38
22
40
237
19
25
1
13
16
43
237
42
42
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1020X680X625 400L
1-87411-168-0
01
1
0105-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
9-99202-318-0
01
1
0105-0606
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
0607-
16
GASKET; PLUG
T=1.60
1-22416-001-0
01
1
0105-0509
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
0510-
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0105-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0105-
25
CAP; FILLER,FUEL TANK
1-22440-056-0
01
1
0105-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0105-
40
BELT; SUPPORT,FUEL TANK
L=1205
1-22550-227-2
02
1
0105-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0105-0512
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0105-
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28681-240-0
12
1
0105-0512
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28651-240-0
12
1
0601-
49
NUT; BRKT
M12
9-99110-512-0
08
1
0105-0512
49
NUT; BRKT
M12
0-91110-512-0
08
1
0601-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-0
04
1
0105-
