◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#119357) — 72 parça

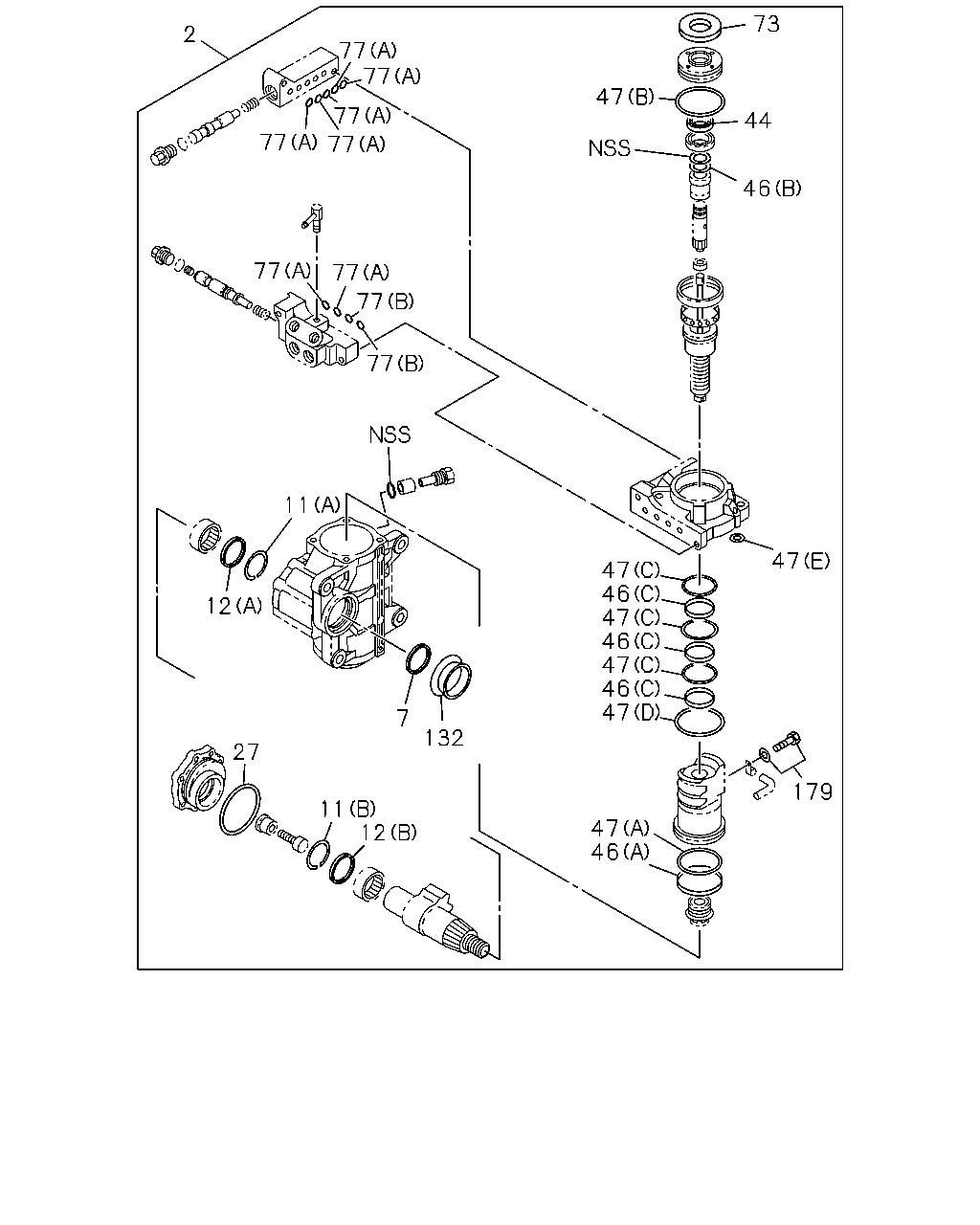

çizim 350032
179 46 47 47 46 46 47 47 47 46 47 46 44 73 47 77 77 77 2 77 77 77 77 77 77 11 12 27 7 132 11 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-98194-671-0 		8-98217-623-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-98194-671-0 		1-44519-261-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 8-98194-671-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98166-307-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44159-247-0 07 1 -
77 GASKET; CONNECTOR,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44159-248-0 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		8-98238-604-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(D) ASM PART: A = 8-98194-671-0 		9-89970-787-0 05 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 8-98194-671-0 		1-09000-610-0 02 1 -

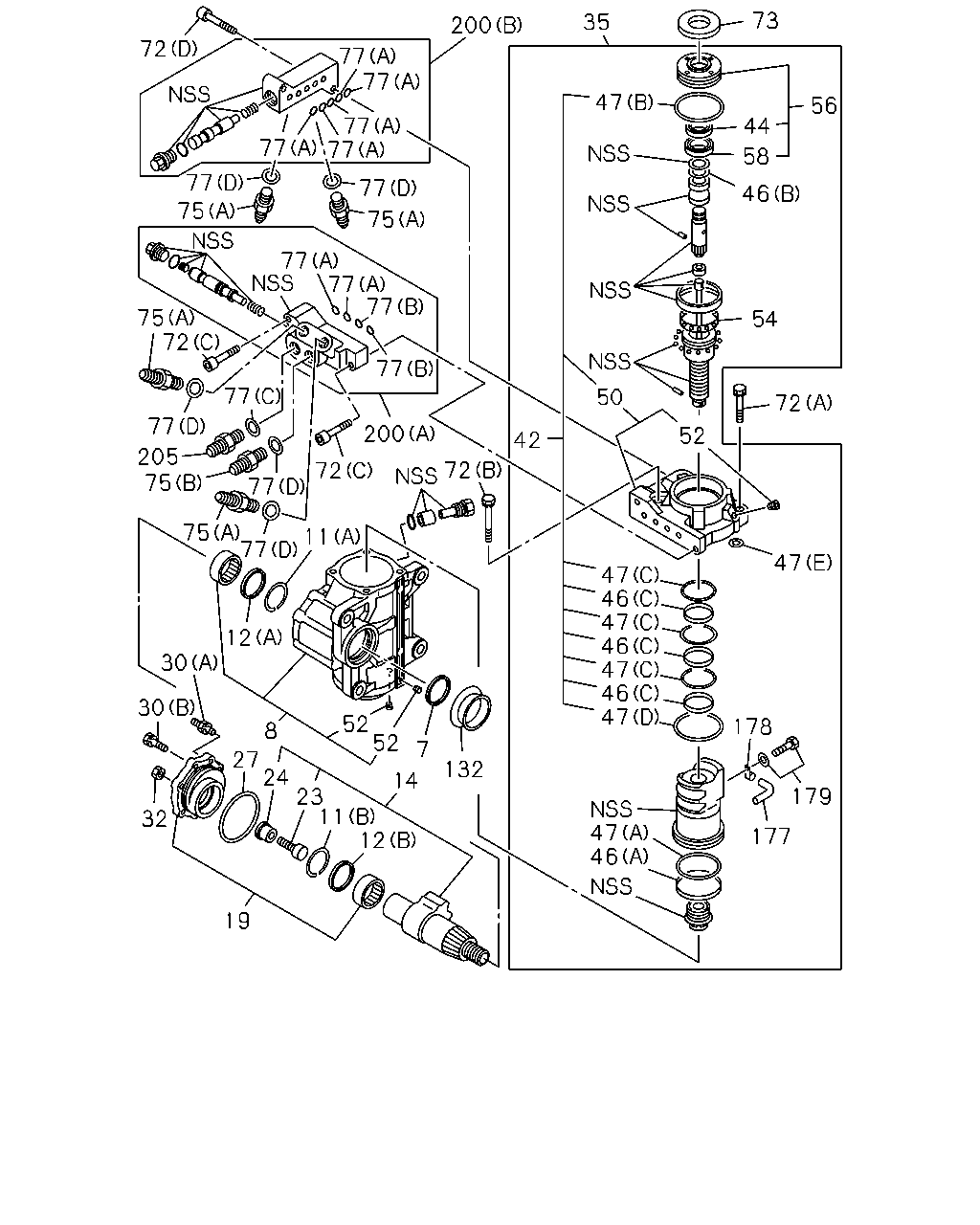

çizim 352258
72 77 200 77 77 77 77 77 75 77 75 77 77 77 77 77 72 75 77 205 75 77 72 200 42 50 54 46 58 44 47 35 73 56 72 2 47 47 46 47 46 47 46 47 178 179 177 47 46 12 11 23 24 27 30 32 19 30 12 75 77 11 72 14 8 52 52 7 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-98194-671-0 		8-98217-623-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44240-152-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44320-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44260-030-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-19519-121-0 02 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44279-012-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98217-622-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98217-621-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 8-98194-671-0 		1-44519-261-0 01 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 8-98194-671-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98217-620-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44519-071-0 04 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44259-017-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44259-070-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		1-44259-071-0 02 1 -
72 BOLT; HSG FIX STRG UNIT
(D) ASM PART: A = 8-98194-671-0 		1-44259-072-0 02 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-98194-671-0 		8-98166-307-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 8-98194-671-0 		1-44259-034-1 04 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 8-98194-671-0 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(A) ASM PART: A = 8-98194-671-0 		1-44159-247-0 07 1 -
77 GASKET; CONNECTOR,STRG UNIT
(B) ASM PART: A = 8-98194-671-0 		1-44159-248-0 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
(C) ASM PART: A = 8-98194-671-0 		8-98238-604-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
(D) ASM PART: A = 8-98194-671-0 		9-89970-787-0 05 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44159-176-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 8-98194-671-0 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 8-98194-671-0 		1-09000-610-0 02 1 -
200 VALVE ASM; CONTROL
(B) ASM PART: A = 8-98194-671-0 		8-98217-625-0 01 1 -
200 VALVE ASM; CONTROL
(A) ASM PART: A = 8-98194-671-0 		8-98217-627-0 01 1 -
205 VALVE ASM; CHECK
ASM PART: A = 8-98194-671-0 		8-98217-626-0 01 1 -
