0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#119351) — 69 parça

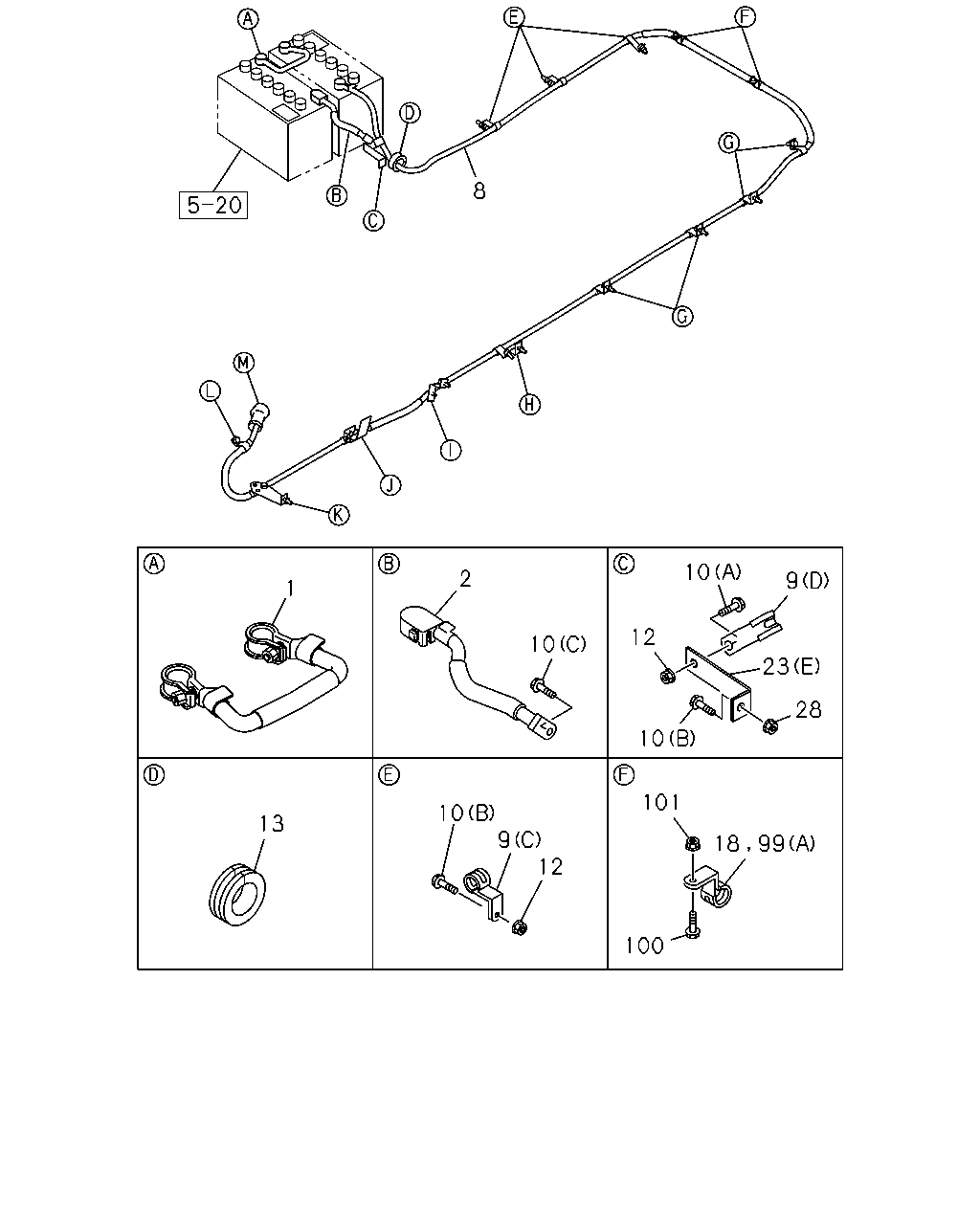

çizim 350351
8 10 2 13 10 9 12 100 101 18 99 28 23 9 10 12 10 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=265 THA 		8-98168-288-0 01 1 1305- ● ●
2 CABLE; BATTERY
L=250 THA 		8-98105-795-0 01 1 1305- ● ●
8 CABLE; BATTERY,STARTER
L=4610 THA 		8-97926-343-0 01 1 1305- ●
8 CABLE; BATTERY,STARTER
L=4610 THA 		8-98112-961-1 01 1 1305- ●
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 1305- ● ●
9 CLIP; BATTERY CABLE
(E) ID=18 H=23 L=28 		1-09701-070-0 01 1 1305- ● ●
9 CLIP; BATTERY CABLE
(E) ID=18 H=23 L=28 		1-09701-070-0 01 1 1305- ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 04 1 1305- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1305- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1305- ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1305- ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1305- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1305- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1305- ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1305- ● ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) THA 		1-47471-215-1 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		1-47476-676-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) THA 		1-47479-779-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) THA 		1-82698-614-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1305- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1305- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1305- ● ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 1305- ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 01 1 1305- ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 01 1 1305- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 04 1 1305- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1305- ● ●
çizim 350361
10 9 100 23 99 101 12 24 24 9 23 100 101 99 10 28 23 9 21 28 24 24 9 23 33 107 20 77
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1305- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 1305- ● ●
9 CLIP; BATTERY CABLE
(E) ID=18 H=23 L=28 		1-09701-070-0 01 1 1305- ● ●
9 CLIP; BATTERY CABLE
(E) ID=18 H=23 L=28 		1-09701-070-0 01 1 1305- ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 04 1 1305- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 03 1 1305- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1305- ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1305- ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1305- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1305- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1305- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1305- ●
20 NUT; STARTER CABLE 8-98011-328-0 01 1 1305- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) THA 		1-47471-215-1 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		1-47476-676-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) THA 		1-47479-779-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) THA 		1-82698-614-0 01 1 1305- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1305- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X35 FLANGE THA 		0-28650-835-0 02 1 1305- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1305- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1305- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1305- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1305- ● ●
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-810-0 01 1 1305- ● ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 1305- ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 01 1 1305- ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 01 1 1305- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 04 1 1305- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1305- ● ●
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 1305- ● ●
