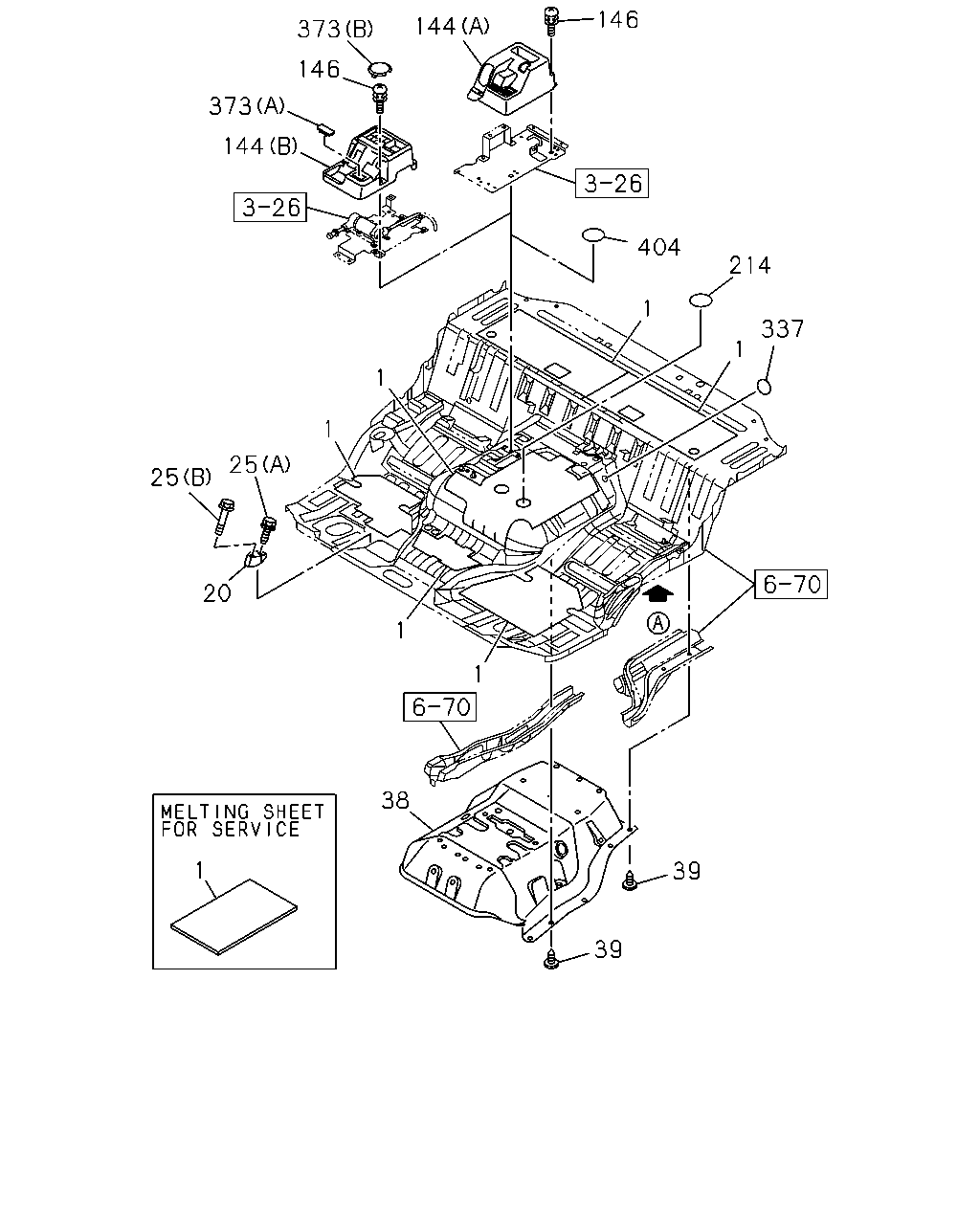

6-76 — FLOOR EQUIPMENT AND SEALING (#119347) — 18 parça

337 214 1 1 404 144 373 373 144 25 25 20 1 1 1 39 39 38 1 146 146 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	01	1	1307-	●	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1305-	●	●
20	REST; FOOT	8-98058-150-0	01	1	1305-	●	●
25	SCREW; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1305-	●	●
25	SCREW; FOOT REST (B) M6X47	8-94407-876-1	01	1	1305-	●	●
38	INSULATOR; ENG COVER THA	8-97924-381-1	01	1	1305-1406	●	●
38	INSULATOR; ENG COVER THA	8-98285-270-0	01	1	1407-	●	●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4 THA	8-97808-623-0	26	1	1305-	●	●
144	COVER; HAND BRK VLV (B) GRAY	8-97414-752-0	01	1	1305-	●
144	COVER; HAND BRK VLV (A) THA	8-97925-580-1	01	1	1305-		●
146	BOLT; COVER BRKT M6X16	0-38050-616-0	04	1	1305-	●
146	BOLT; COVER BRKT M6X16	0-38050-616-0	03	1	1305-		●
214	SEAL; HOLE COVER OD=25 BLACK THA	1-76798-019-0	02	1	1305-	●	●
337	SEAL; CLIP HOLE OD=25 BLACK THA	1-76798-019-0	06	1	1305-	●	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	1305-	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	1305-	●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK THA	1-76798-019-0	02	1	1305-	●	●

370 370 370

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	370	SEAL; LOCATION HOLE OD=30 T=0.8	8-98230-420-0	08	1	1305-	●	●
