Sayfa 8-15 - Isuzu EPC

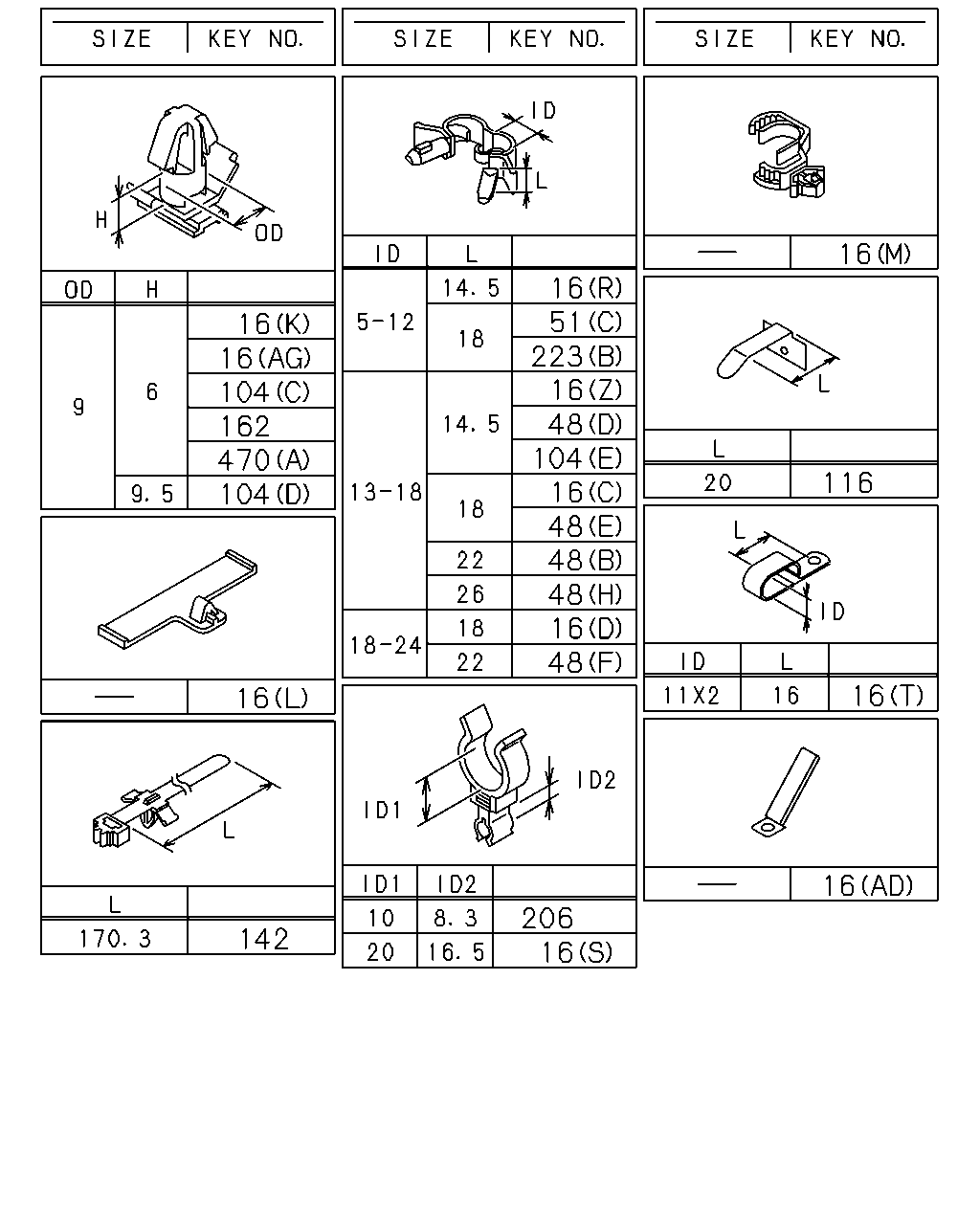

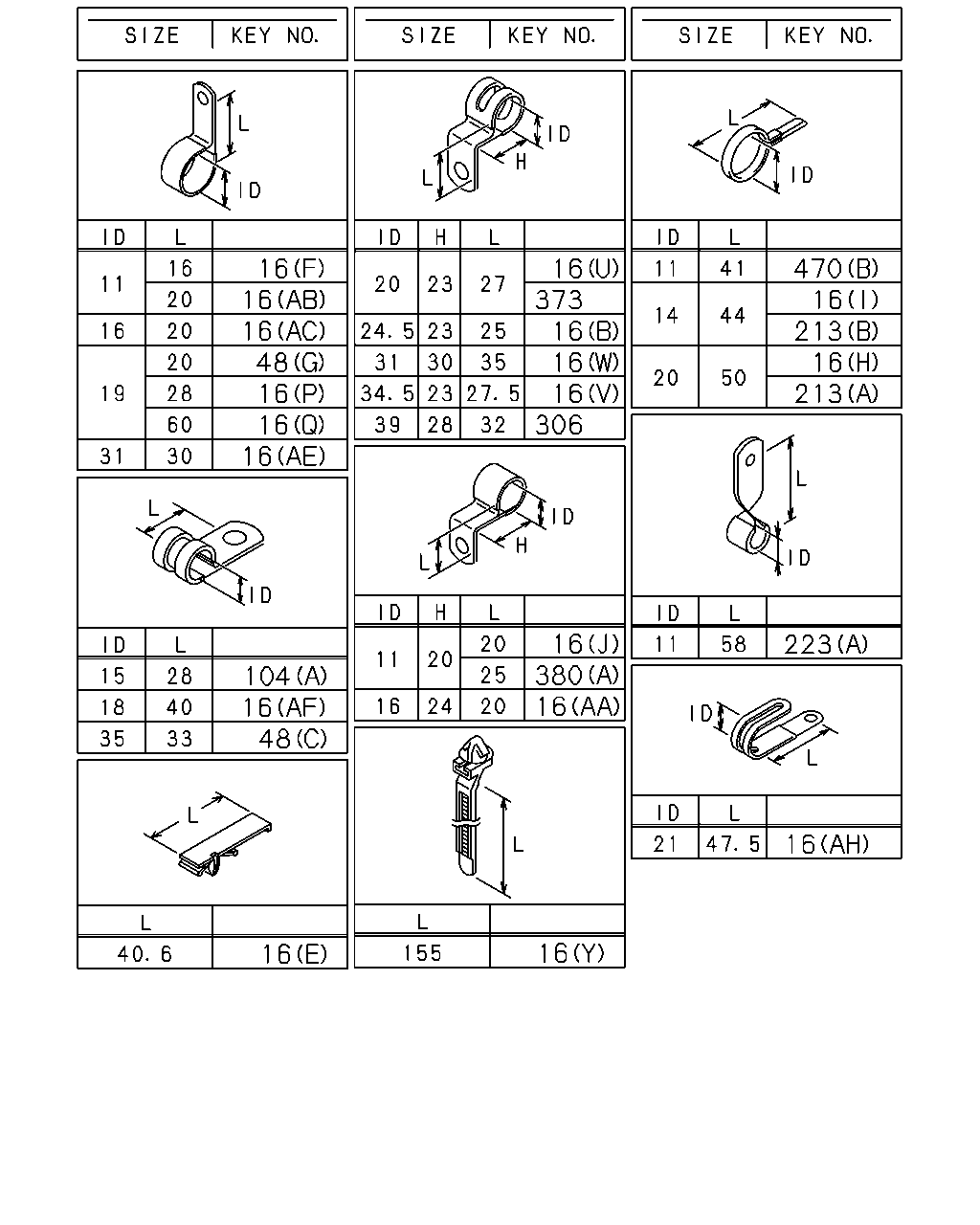

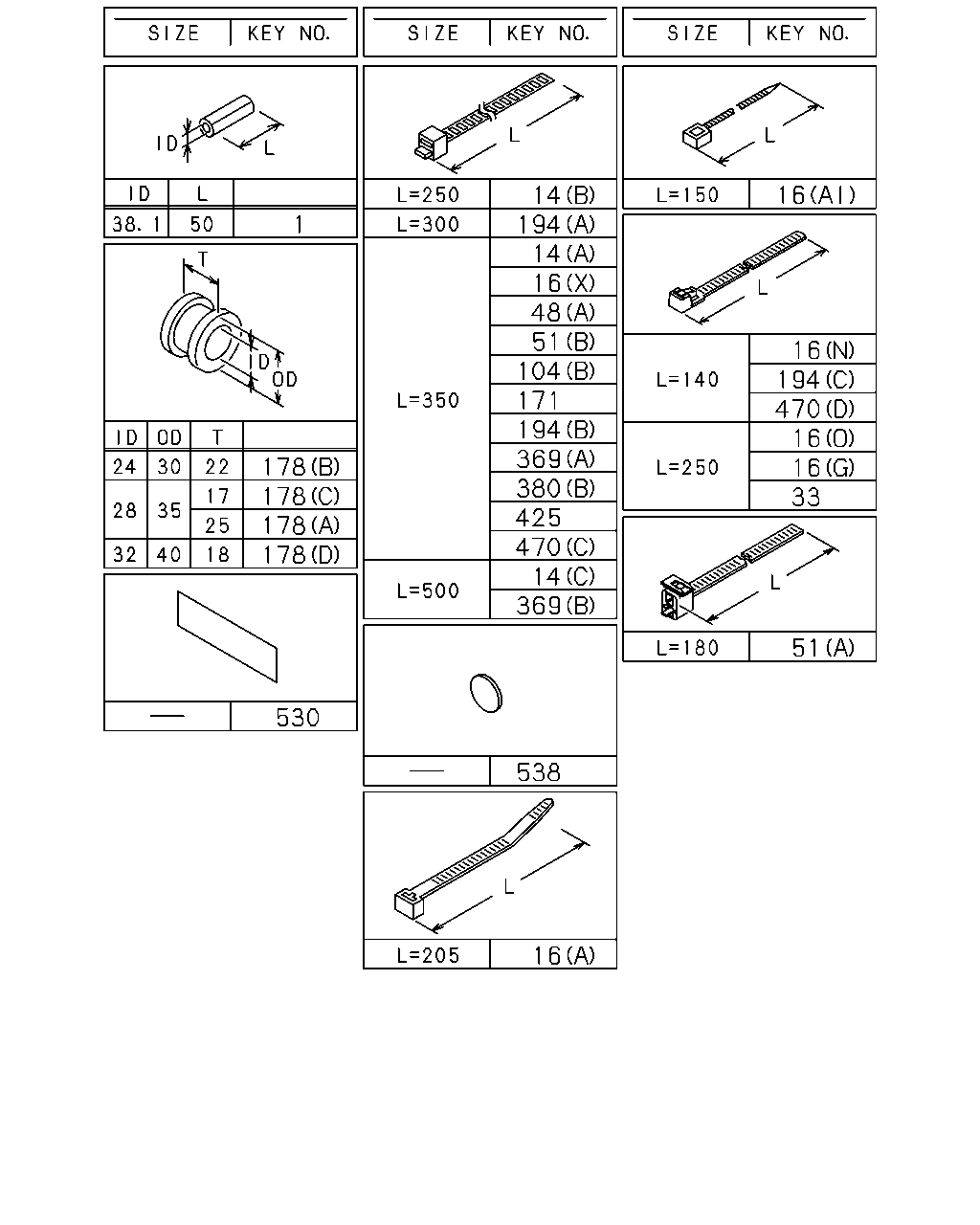

8-15 — FIXING PARTS; WIRING HARNESS (#119345) — 322 parça

16 538 51 33 16 16 470 194 16 16 369 470 425 380 369 194 171 104 51 48 16 14 194 14 14 178 178 178 178 1 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER ID=38.1 L=50	5-09360-835-0	01	1	1305-	●	●
14	CLIP; BAND,HARNESS (C) L=500	1-09707-082-1	01	1	1305-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) L=250	1-09707-126-0	02	1	1305-		●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	02	1	1305-		●
16	CLIP; HARNESS (AA) ID=16 H=24 L=20	0-95207-315-0	01	1	1305-	●	●
16	CLIP; HARNESS (AB) ID=11 L=20	0-95235-035-0	10	1	1305-	●	●
16	CLIP; HARNESS (AC) ID=16	0-95235-533-0	02	1	1305-	●	●
16	CLIP; HARNESS (AD) L=63	1-09700-418-1	02	1	1305-	●	●
16	CLIP; HARNESS (AE) ID=31 L=30	1-09700-969-0	01	1	1305-	●	●
16	CLIP; HARNESS (AF) ID=18 L=40	1-09701-111-0	01	1	1305-	●	●
16	CLIP; HARNESS (AG) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
16	CLIP; HARNESS (AH) ID=21 L=47.5	8-94178-108-0	01	1	1305-	●	●
16	CLIP; HARNESS (AI) L=150	8-97355-273-0	03	1	1305-	●	●
16	CLIP; HARNESS (G) L=250	8-98216-430-0	14	1	1305-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	12	1	1305-	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	1305-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1305-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1305-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1305-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-	●	●
16	CLIP; HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1305-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1305-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1305-	●	●
16	CLIP; HARNESS (Z) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-	●	●
16	CLIP; HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-	●	●
16	CLIP; HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	05	1	1305-	●	●
16	CLIP; HARNESS (O) L=250	5-09707-030-1	02	1	1305-	●	●
16	CLIP; HARNESS (M) ID=10 & 16	8-94413-325-0	01	1	1305-	●	●
16	CLIP; HARNESS (S) ID=20 & 16.5	8-94486-835-0	01	1	1305-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1305-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1305-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1305-	●	●
16	CLIP; HARNESS (N) L=140 THA	8-97920-656-0	04	1	1305-	●	●
16	CLIP; HARNESS (J) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-	●	●
16	CLIP; HARNESS (J) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-	●	●
16	CLIP; HARNESS (A)	8-98040-124-0	01	1	1305-	●	●
16	CLIP; HARNESS (L) THA	8-98052-679-0	02	1	1305-	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	02	1	1305-	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	1305-	●	●
16	CLIP; HARNESS (I) ID=14 L=44	9-09917-427-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (N) L=140 THA	8-97920-656-0	01	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (D) ID=18-24 L=18	1-09709-294-0	06	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (Z) ID=13-18 L=14.5	1-09709-290-0	03	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	06	1	1305-		●
33	CLIP; HARNESS,VLV L=250	5-09707-030-1	01	1	1305-	●	●
48	CLIP; FRAME HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1305-	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	07	1	1305-	●
48	CLIP; FRAME HARNESS (H) ID=13-18 L=26	1-09709-293-0	01	1	1305-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1305-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1305-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1305-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-		●
48	CLIP; FRAME HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1305-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22	1-09709-295-0	02	1	1305-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22	1-09709-292-0	02	1	1305-		●
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1305-	●	●
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	01	1	1305-	●	●
51	CLIP; COOLER CMPR (C) ID=5-12 L=18	1-09709-287-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1305-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-126-0	01	1	1305-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1305-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1305-	●	●
178	GROMMET; HARNESS (D) ID=32 OD=40 T=18	1-09891-003-0	01	1	1305-		●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=28 OD=35 T=25	1-09332-011-1	03	1	1305-		●
194	CLIP; BAND (B) L=350	1-09707-183-0	07	1	1305-	●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1305-	●	●
194	CLIP; BAND (C) L=140 THA	8-97920-656-0	02	1	1305-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1305-		●
369	CLIP; BAND EDS HARNESS (B) L=500	1-09707-082-1	01	1	1305-	●	●
369	CLIP; BAND EDS HARNESS (A) L=350	1-09707-183-0	02	1	1305-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1305-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1305-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> L=350	1-09707-183-0	03	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (D) L=140 THA	8-97920-656-0	02	1	1305-		●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1305-	●	●
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1305-	●	●

16 16 48 16 16 16 16 104 16 48 16 380 16 16 16 16 223 213 16 213 16 470 16 16 16 373 306 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (AA) ID=16 H=24 L=20	0-95207-315-0	01	1	1305-	●	●
16	CLIP; HARNESS (AB) ID=11 L=20	0-95235-035-0	10	1	1305-	●	●
16	CLIP; HARNESS (AC) ID=16	0-95235-533-0	02	1	1305-	●	●
16	CLIP; HARNESS (AD) L=63	1-09700-418-1	02	1	1305-	●	●
16	CLIP; HARNESS (AE) ID=31 L=30	1-09700-969-0	01	1	1305-	●	●
16	CLIP; HARNESS (AF) ID=18 L=40	1-09701-111-0	01	1	1305-	●	●
16	CLIP; HARNESS (AG) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
16	CLIP; HARNESS (AH) ID=21 L=47.5	8-94178-108-0	01	1	1305-	●	●
16	CLIP; HARNESS (AI) L=150	8-97355-273-0	03	1	1305-	●	●
16	CLIP; HARNESS (G) L=250	8-98216-430-0	14	1	1305-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	12	1	1305-	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	1305-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1305-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1305-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1305-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-	●	●
16	CLIP; HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1305-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1305-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1305-	●	●
16	CLIP; HARNESS (Z) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-	●	●
16	CLIP; HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-	●	●
16	CLIP; HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	05	1	1305-	●	●
16	CLIP; HARNESS (O) L=250	5-09707-030-1	02	1	1305-	●	●
16	CLIP; HARNESS (M) ID=10 & 16	8-94413-325-0	01	1	1305-	●	●
16	CLIP; HARNESS (S) ID=20 & 16.5	8-94486-835-0	01	1	1305-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1305-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1305-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1305-	●	●
16	CLIP; HARNESS (N) L=140 THA	8-97920-656-0	04	1	1305-	●	●
16	CLIP; HARNESS (J) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-	●	●
16	CLIP; HARNESS (J) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-	●	●
16	CLIP; HARNESS (A)	8-98040-124-0	01	1	1305-	●	●
16	CLIP; HARNESS (L) THA	8-98052-679-0	02	1	1305-	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	02	1	1305-	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	1305-	●	●
16	CLIP; HARNESS (I) ID=14 L=44	9-09917-427-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (N) L=140 THA	8-97920-656-0	01	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (D) ID=18-24 L=18	1-09709-294-0	06	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (Z) ID=13-18 L=14.5	1-09709-290-0	03	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	06	1	1305-		●
48	CLIP; FRAME HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1305-	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	07	1	1305-	●
48	CLIP; FRAME HARNESS (H) ID=13-18 L=26	1-09709-293-0	01	1	1305-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1305-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1305-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1305-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-		●
48	CLIP; FRAME HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1305-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22	1-09709-295-0	02	1	1305-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22	1-09709-292-0	02	1	1305-		●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1305-	●
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=14 L=44	9-09917-427-0	03	1	1305-		●
213	CLIP; END CROSS HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=20 L=50	9-09917-430-0	03	1	1305-		●
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1305-	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=58	9-09917-135-2	01	1	1305-		●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1305-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1305-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1305-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1305-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (D) L=140 THA	8-97920-656-0	02	1	1305-		●

16 16 104 162 470 104 16 142 16 51 223 16 48 104 16 48 48 48 16 48 206 16 116 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (AA) ID=16 H=24 L=20	0-95207-315-0	01	1	1305-	●	●
16	CLIP; HARNESS (AB) ID=11 L=20	0-95235-035-0	10	1	1305-	●	●
16	CLIP; HARNESS (AC) ID=16	0-95235-533-0	02	1	1305-	●	●
16	CLIP; HARNESS (AD) L=63	1-09700-418-1	02	1	1305-	●	●
16	CLIP; HARNESS (AE) ID=31 L=30	1-09700-969-0	01	1	1305-	●	●
16	CLIP; HARNESS (AF) ID=18 L=40	1-09701-111-0	01	1	1305-	●	●
16	CLIP; HARNESS (AG) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
16	CLIP; HARNESS (AH) ID=21 L=47.5	8-94178-108-0	01	1	1305-	●	●
16	CLIP; HARNESS (AI) L=150	8-97355-273-0	03	1	1305-	●	●
16	CLIP; HARNESS (G) L=250	8-98216-430-0	14	1	1305-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	12	1	1305-	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	1305-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1305-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1305-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1305-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-	●	●
16	CLIP; HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1305-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1305-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1305-	●	●
16	CLIP; HARNESS (Z) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-	●	●
16	CLIP; HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-	●	●
16	CLIP; HARNESS (R) ID=5-12 L=14.5	1-09987-221-0	05	1	1305-	●	●
16	CLIP; HARNESS (O) L=250	5-09707-030-1	02	1	1305-	●	●
16	CLIP; HARNESS (M) ID=10 & 16	8-94413-325-0	01	1	1305-	●	●
16	CLIP; HARNESS (S) ID=20 & 16.5	8-94486-835-0	01	1	1305-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1305-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1305-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1305-	●	●
16	CLIP; HARNESS (N) L=140 THA	8-97920-656-0	04	1	1305-	●	●
16	CLIP; HARNESS (J) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-	●	●
16	CLIP; HARNESS (J) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-	●	●
16	CLIP; HARNESS (A)	8-98040-124-0	01	1	1305-	●	●
16	CLIP; HARNESS (L) THA	8-98052-679-0	02	1	1305-	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	02	1	1305-	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	1305-	●	●
16	CLIP; HARNESS (I) ID=14 L=44	9-09917-427-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1305-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (N) L=140 THA	8-97920-656-0	01	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (D) ID=18-24 L=18	1-09709-294-0	06	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (Z) ID=13-18 L=14.5	1-09709-290-0	03	1	1305-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	06	1	1305-		●
48	CLIP; FRAME HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1305-	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	07	1	1305-	●
48	CLIP; FRAME HARNESS (H) ID=13-18 L=26	1-09709-293-0	01	1	1305-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1305-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1305-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1305-		●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-		●
48	CLIP; FRAME HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1305-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22	1-09709-295-0	02	1	1305-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22	1-09709-292-0	02	1	1305-		●
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1305-	●	●
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	01	1	1305-	●	●
51	CLIP; COOLER CMPR (C) ID=5-12 L=18	1-09709-287-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1305-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-	●	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	1305-	●	●
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1305-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
206	CLIP; FUEL TANK HARNESS ID=8.3 & 10	8-94176-792-0	01	1	1305-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1305-	●
223	CLIP; AIR TANK HARNESS (A) ID=11 L=58	9-09917-135-2	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1305-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1305-		●
470	CLIP; HARNESS,LICENSE LAMP (D) L=140 THA	8-97920-656-0	02	1	1305-		●

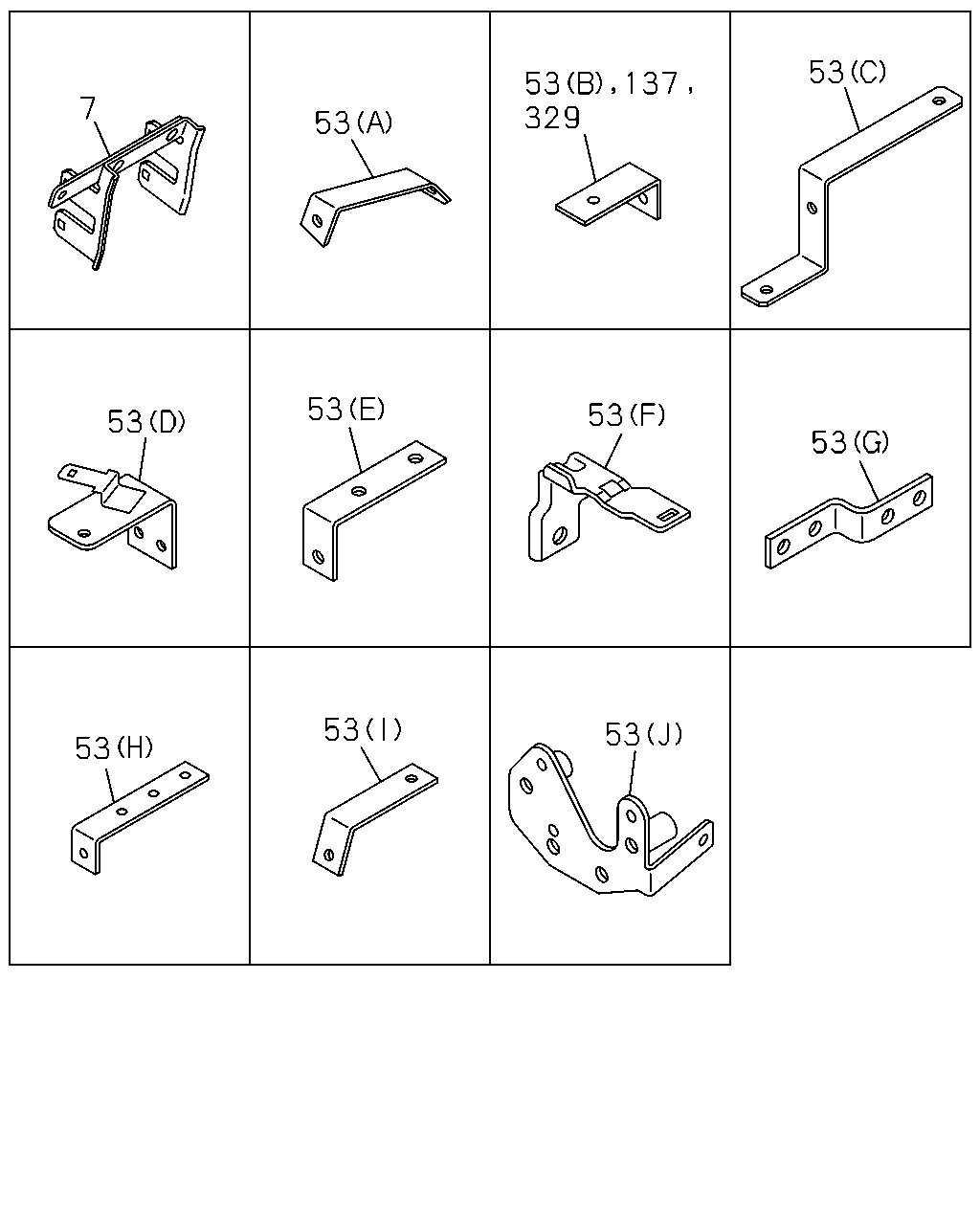

7 53 53 137 329 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1305-	●	●
53	BRACKET; HARNESS (J)	8-97611-413-0	01	1	1305-	●	●
53	BRACKET; HARNESS (B) L=65	1-47477-713-0	01	1	1305-	●
53	BRACKET; HARNESS (B) L=55	1-47475-304-0	01	1	1305-	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1305-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1305-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1305-	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1305-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1305-	●	●
53	BRACKET; HARNESS (I)	1-82698-514-0	01	1	1305-	●	●
53	BRACKET; HARNESS (F)	8-98052-458-0	01	1	1305-	●	●
53	BRACKET; HARNESS (C)	8-98078-801-0	01	1	1305-	●	●
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1305-	●	●
53	BRACKET; HARNESS WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=65	1-47479-064-1	03	1	1305-		●
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM<BFA> 25X37	1-34656-004-0	01	1	1305-		●
329	BRACKET; CLIP,CABLE L=75	1-47478-323-0	01	1	1305-		●

211 312 375 335 335 600 375 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM<BFA>	8-97621-353-1	01	1	1305-		●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM<BFA>	8-97621-352-1	01	1	1305-		●
312	BRACKET; CLIP HARNESS	8-97619-440-0	02	1	1305-	●
312	BRACKET; CLIP HARNESS	8-97619-440-0	01	1	1305-		●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1305-	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-82698-167-0	01	1	1305-		●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1305-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1305-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1305-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1305-	●	●

423 525 340 515 297 219 524 294 127 38 150 386 38 139 38 86 139 242 313 139 38 386 377 242 377 358 38 38 242 38 466 38 38 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (H) M6X10 FLANGE THA	0-28050-610-0	01	1	1305-	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE THA	0-28050-812-0	02	1	1305-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1305-	●	●
38	BOLT; CLIP,HARNESS (F) M8X18 FLANGE	0-28080-818-0	01	1	1305-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE THA	0-28650-820-0	04	1	1305-	●	●
38	BOLT; CLIP,HARNESS (I) M8X25 FLANGE THA	0-28650-825-0	06	1	1305-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	02	1	1305-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	09	1	1305-	●	●
38	BOLT; CLIP,HARNESS (A) M8X40 FLANGE THA	0-28650-840-0	01	1	1305-	●	●
38	BOLT; CLIP,HARNESS (C) M8X14 W/PL WASHER	8-98164-837-0	03	1	1305-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1305-		●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA	0-28650-820-0	03	1	1305-		●
86	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1305-	●
86	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1305-		●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1305-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	03	1	1305-	●
139	BOLT; BRKT (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1305-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1305-		●
139	BOLT; BRKT (D) M8X25 FLANGE THA	0-28650-825-0	01	1	1305-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1305-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	06	1	1305-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1305-		●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1305-		●
139	BOLT; BRKT WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) M8X25 FLANGE THA	0-28650-825-0	03	1	1305-		●
150	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1305-	●	●
219	NUT M8 FLANGE THA	0-91180-108-0	08	1	1305-	●	●
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1305-		●
219	NUT ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	03	1	1305-		●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1305-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1305-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1305-		●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1305-	●	●
294	NUT M8 FLANGE THA	0-91180-108-0	09	1	1305-	●
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1305-	●	●
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1305-		●
294	NUT M8 FLANGE THA	0-91180-108-0	07	1	1305-		●
294	NUT ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	03	1	1305-		●
297	NUT; HARNESS ELEC PANEL M8 FLANGE THA	0-91180-108-0	04	1	1305-	●	●
313	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	07	1	1305-	●
313	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	06	1	1305-		●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE THA	0-91180-108-0	03	1	1305-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1305-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1305-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1305-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1305-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1305-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1305-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE THA	0-28050-816-0	04	1	1305-	●	●
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	09	1	1305-	●
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1305-	●	●
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1305-	●	●
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	08	1	1305-		●
515	NUT; BRKT WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	03	1	1305-		●
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1305-	●	●
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1305-	●	●
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
