8-75 — CONDENSER (#119340) — 25 parça

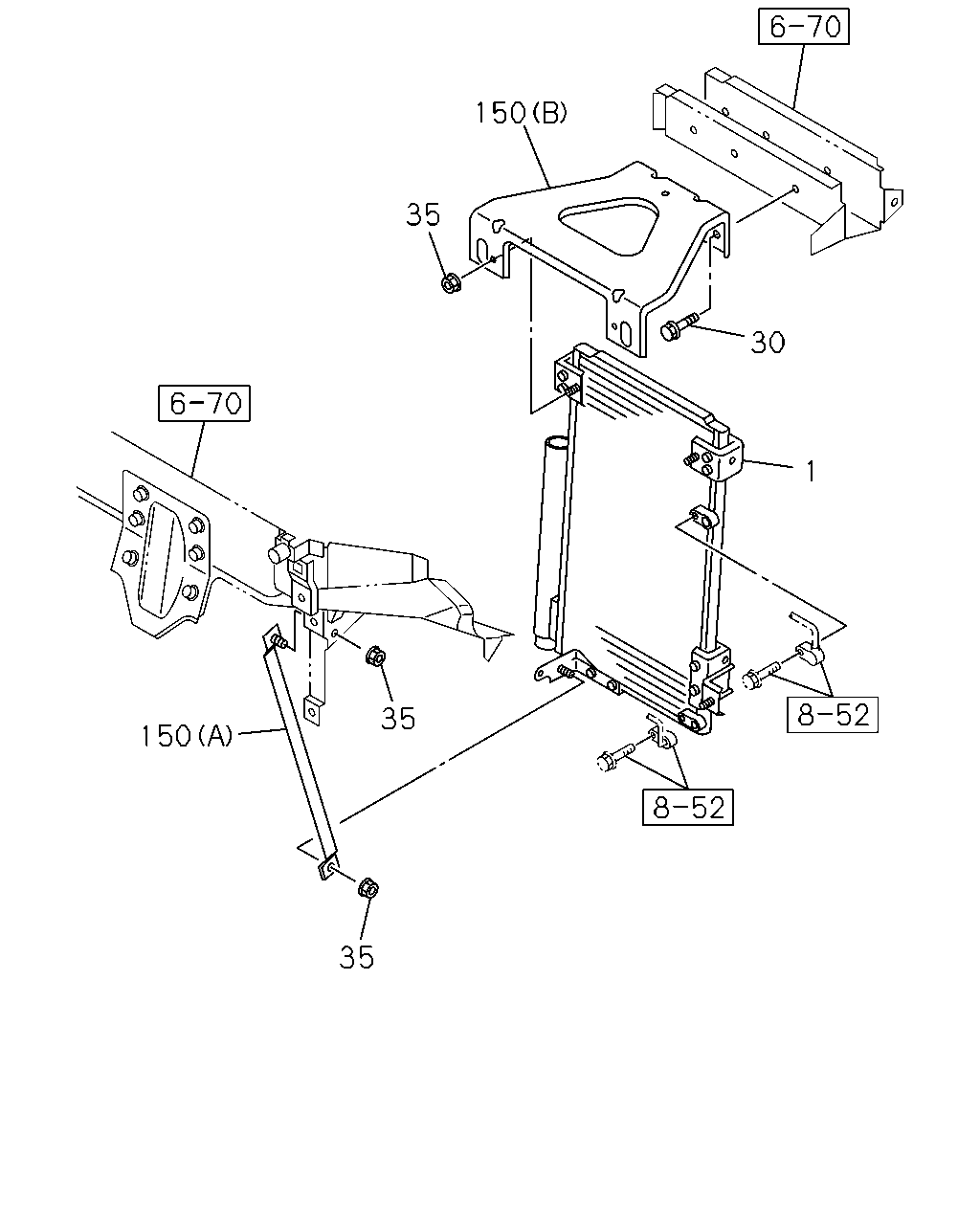

35 150 30 1 35 35 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C	8-98164-844-1	01	1	1305-	●	●
30	BOLT; CONDENSER,A/C M8X20 FLANGE THA	0-28650-820-0	02	1	1305-	●	●
35	NUT; CONDENSER,A/C M8 FLANGE THA	0-91180-108-0	05	1	1305-	●	●
150	BRACKET; CONDENSER,MTG (A)	8-98041-321-0	01	1	1305-1405	●	●
150	BRACKET; CONDENSER,MTG (A)	8-98270-947-0	01	1	1406-	●	●
150	BRACKET; CONDENSER,MTG (B)	8-98041-322-0	01	1	1305-1409	●	●
150	BRACKET; CONDENSER,MTG (B)	8-98242-412-0	01	1	1410-	●	●

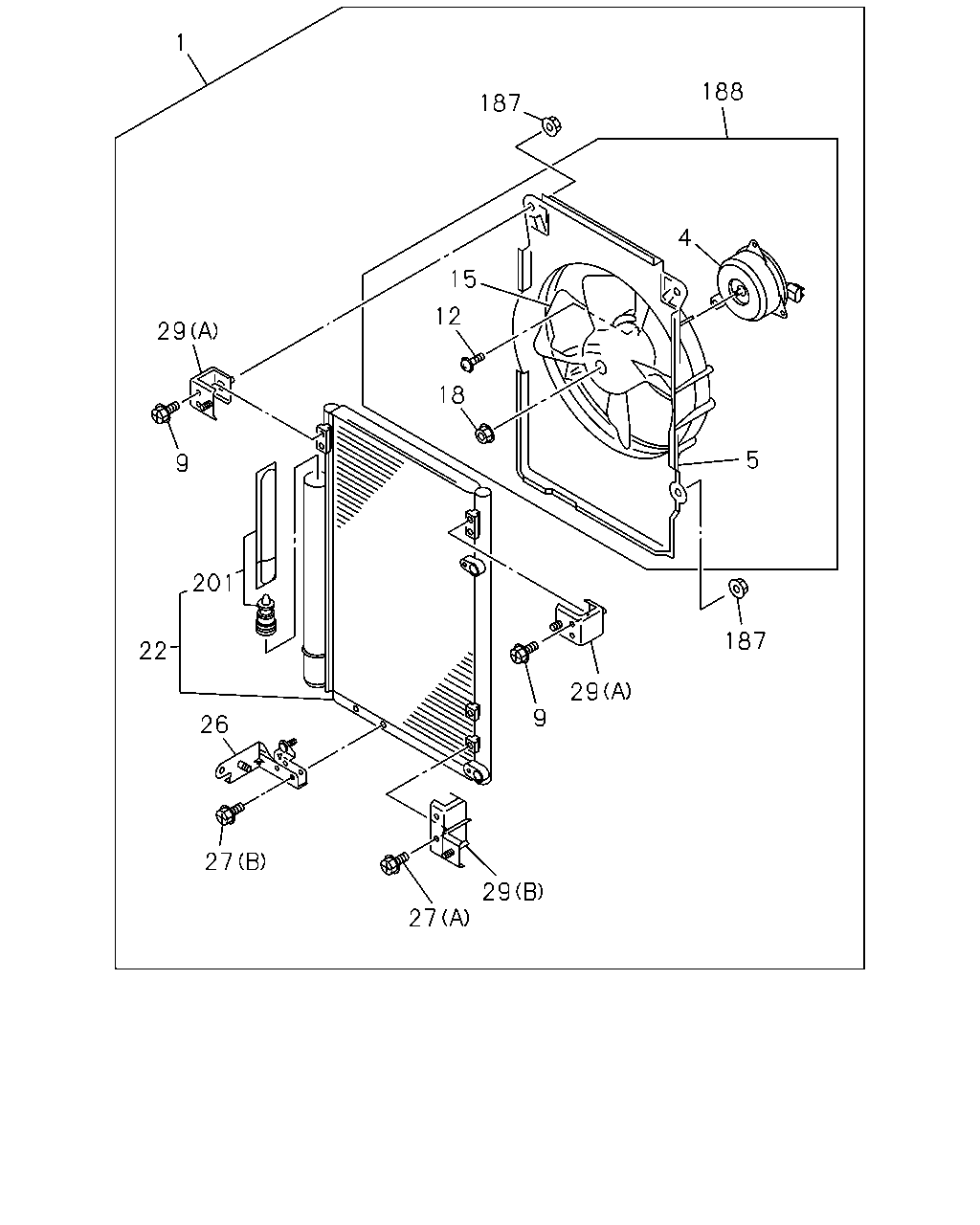

1 187 188 4 15 12 18 5 187 29 9 29 27 27 26 22 201 9 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C	8-98164-844-1	01	1	1305-	●	●
4	MOTOR ASM; FAN THA	8-98076-091-0	01	1	1305-	●	●
5	SHROUD; FAN MOTOR THA	8-98076-093-0	01	1	1305-	●	●
9	BOLT; BRKT M6X14 THA	1-83539-382-0	04	1	1305-	●	●
12	BOLT; FAN MOTOR THA	8-97180-269-0	03	1	1305-	●	●
15	FAN; MOTOR THA	8-98152-861-0	01	1	1305-	●	●
18	NUT; FAN,CENTER M5 FLANGE THA	8-94157-075-0	01	1	1305-	●	●
22	CONDENSER ASM; A/C THA	1-83534-261-0	01	1	1305-1409	●	●
22	CONDENSER ASM; A/C	8-98275-189-0	01	1	1410-	●	●
26	BRACKET; LOW THA	1-83573-281-0	01	1	1305-	●	●
27	BOLT; BRKT,LOW SIDE (A) M6X14 THA	1-83539-382-0	02	1	1305-	●	●
27	BOLT; BRKT,LOW SIDE (B) M5X25 THA	8-97178-770-0	02	1	1305-	●	●
29	BRACKET; SIDE (A) THA	8-98065-914-0	02	1	1305-	●	●
29	BRACKET; SIDE (B) THA	8-98065-915-0	01	1	1305-	●	●
187	NUT; SHROUD M6 THA	1-83539-354-0	04	1	1305-	●	●
188	BLOWER ASM; SHROUD	8-98166-696-0	01	1	1305-	●	●
201	DRYER ASM; CONDENSER THA	1-83535-097-0	01	1	1305-1409	●	●
201	DRYER ASM; CONDENSER	8-98282-482-0	01	1	1410-	●	●
